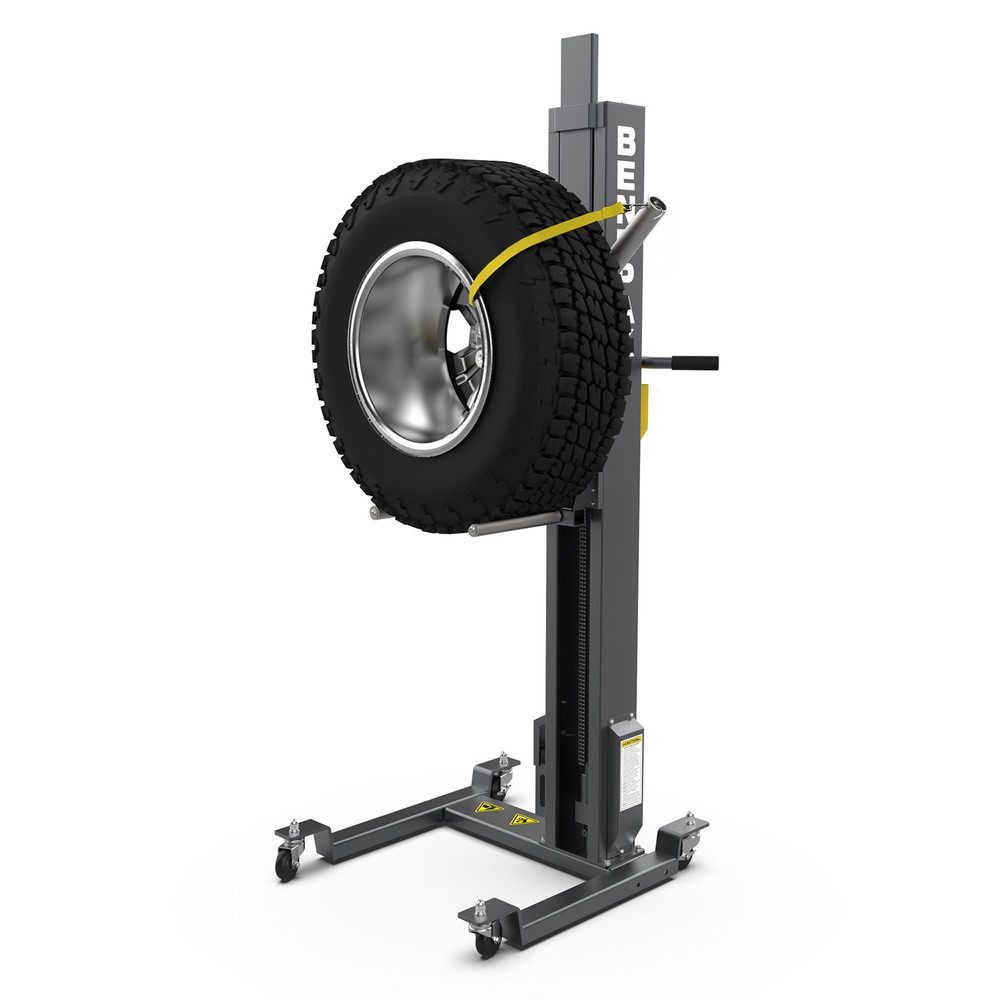

The BendPak RWS-200WL battery-powered wheel lift is engineered to handle the heavy lifting of tires and wheels while significantly reducing technician fatigue and the risk of workplace injuries. Featuring a robust 200-lb lifting capacity, a precision lithium-ion-powered actuator, and rugged steel construction, it delivers cordless convenience, quiet operation, and enhanced safety. Ideal for tire shops, fleet facilities, and EV service bays, the RWS-200WL improves efficiency while creating a safer, more productive work environment.
Take the Strain Out of Heavy Wheel Service
With the BendPak RWS-200WL Portable Wheel Lift—the next evolution in wheel-handling equipment. Unlike pneumatic models that must remain tethered to an air supply, the RWS-200WL operates on a powerful 24V lithium-ion battery, delivering true cordless freedom. Move it anywhere in the shop and position it exactly where you need it—no hoses, no cords, no compromises.
With double the voltage of many competing 12V units, the RWS-200WL provides faster lift speeds, greater torque, and a full 200-lb. lifting capacity, making it ideal for handling today’s oversized truck and SUV wheel assemblies.
At the heart of the system is a heavy-duty 24V DC linear actuator featuring a hardened acme lead screw and reduction gearbox. This advanced drive system eliminates the inconsistent “spongy” feel common with pneumatic lifts, delivering smooth, predictable motion at 1.6 inches per second for precise vertical positioning. Lug-bolt alignment, hub centering, and delicate mounting tasks become faster, easier, and safer.
With fewer moving parts than hydraulic or pneumatic alternatives, the sealed, factory-lubricated linear actuator is built for long service life with minimal maintenance. Precision-machined components, hardened screw threads, and a permanently lubricated gearbox ensure consistent performance over thousands of cycles—reducing downtime and lowering total cost of ownership.
The RWS-200WL is ideal for removing and installing heavy wheels on vehicles raised on car lifts or floor jacks. It also elevates wheels to waist height for mounting on wheel balancers or positioning on tire changers, eliminating the strain and injury risk associated with manual lifting.
A low-profile 2.5-inch frame height makes it easy to roll even the heaviest wheels into position, while offset carriage arms improve access to lug bolts during installation and removal. Side-mounted thrust rollers allow effortless wheel rotation for precise alignment without back strain.
Charging is Simple and Universal
Thanks to the integrated smart charger, which accepts 110–240V AC input without the need for transformers—ideal for shops worldwide. Additional features such as an onboard 12V accessory outlet, quick-glance battery status indicator, rugged powder-coated steel construction, and smooth-rolling casters with locking rear wheels make the RWS-200WL an essential tool you’ll rely on every day.
When it comes to mobility, performance, and operator comfort, nothing else in its class compares. The RWS-200WL doesn’t just lift wheels—it elevates your entire workflow.
Key Advantages of the BendPak RWS-200WL Rechargeable Portable Wheel Lift
Rechargeable 24V lithium-ion battery
Portable Ideal for removing and installing heavy wheels on vehicles raised on car lifts or floor jacks
Integrated smart charger that accepts 110–240V AC input
