The Atlas® 9OHSC-SS two post above ground lift paired with the versatile LMA Lawn Mower Adapter creates the ultimate lifting solution for commercial repair facilities, dealerships, and serious home garage enthusiasts. This powerful combo delivers a TRUE 9,000 lb. capacity two post lift engineered to handle everything from Smart Cars® to Suburbans®, plus the unique ability to transform your lift into a specialized platform for lawn mowers, golf carts, ATVs, snowmobiles, and small sports cars. Whether you're running a busy shop or building your dream home garage, this combination offers unparalleled versatility and exceptional value.
The Atlas® 9OHSC features symmetric columns with super symmetric arms designed for maximum flexibility and lifting power. The current model now includes upgraded 3-stage front arms (replacing the older 2-stage design), providing even greater flexibility when positioning your lift points for optimal vehicle support. This is the lift that delivers highest quality engineering at the absolute best price point in its class.
Uncompromising Structural Design

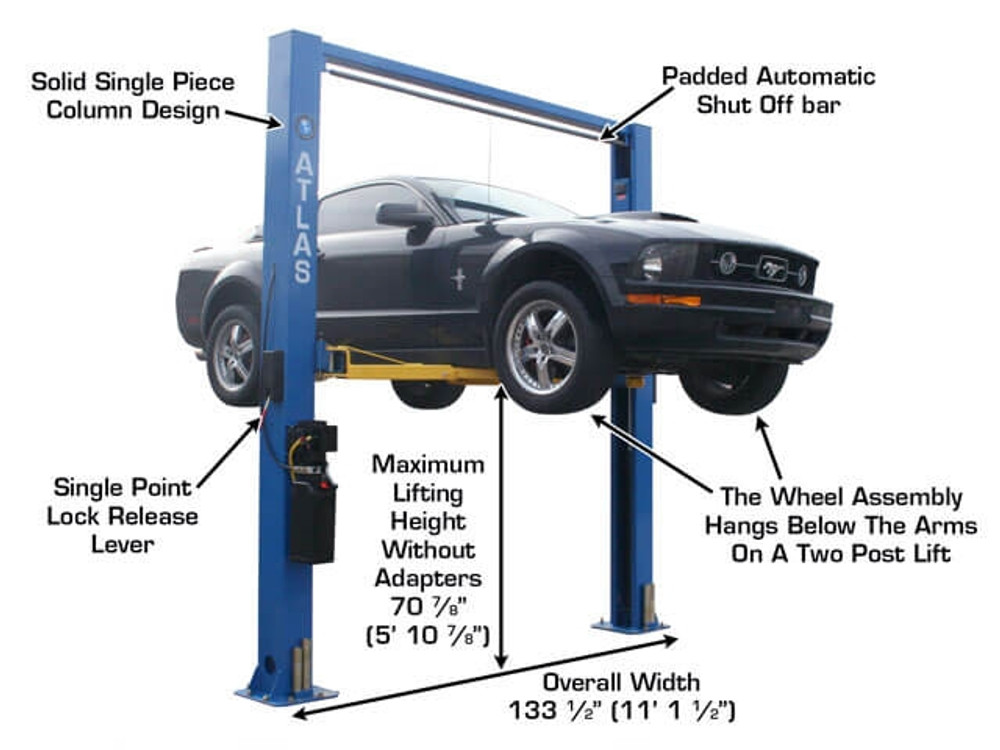

The Atlas® 9OHSC incorporates a single piece 11' 10" formed column and an extra long 57½" carriage that provides maximum column and arm strength to lift and support a full 9,000 lb. vehicle with confidence. This single-piece column design offers unparalleled structural support for all your lifting requirements, ensuring years of trouble-free service without the weak points found in multi-piece column designs.
Important: The single piece columns require a minimum ceiling height of 12 feet to stand up the column during installation. The combination of single-piece construction and the longer carriage design creates superior rigidity and stability under load.
Built with 5mm thick columns, 5mm carriages, and 6mm thick lift arms, this lift is engineered with heavy-duty steel throughout. The dual hydraulic chain-drive cylinders provide smooth, powerful lifting action, while the automatic arm restraints and single point lock release system ensure safe, convenient operation every time.
Professional Features & Premium Construction

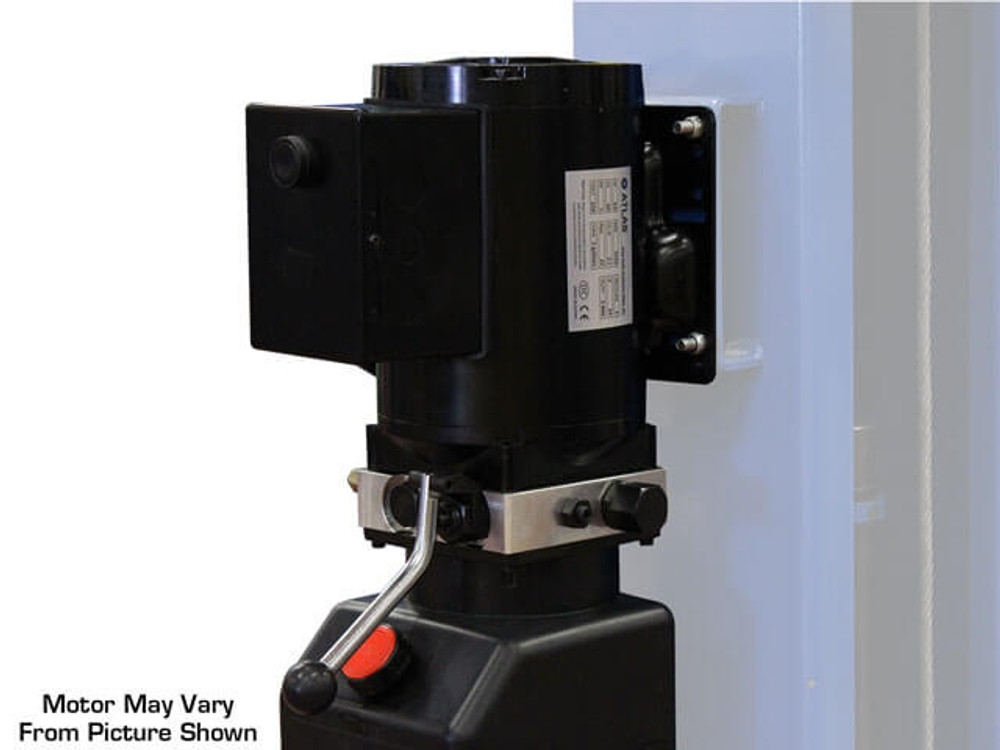

The 9OHSC includes a "padded" shut-off bar at 135" height for added safety and column protection. The clear floor design keeps your workspace open and accessible, while the Atlas® powder coat finish provides lasting durability and professional appearance. With a 3 HP motor powered by 220V single phase electrical (requires 30 amp breaker), this lift delivers reliable performance day after day.

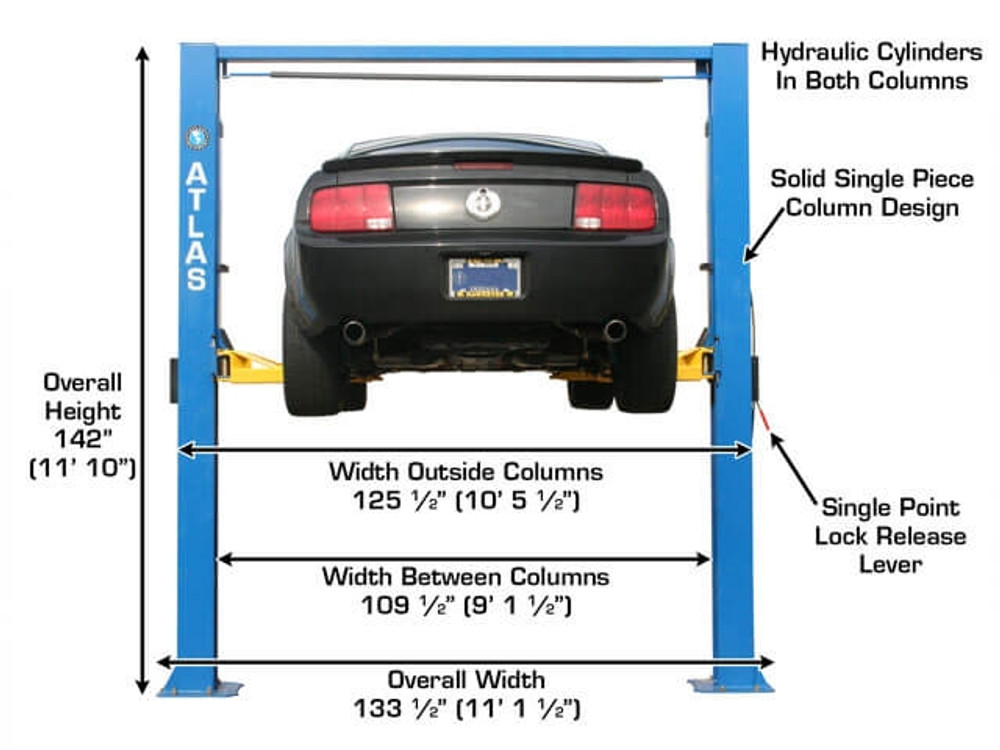

Your lift arrives complete with mounting hardware and a 12-piece truck adapter set, giving you everything needed for installation and immediate versatility. The lift's 133½" overall width and 100¾" drive-thru clearance accommodate a wide range of vehicles, while the minimum 4¼" arm height allows access to low-profile sports cars and specialty vehicles.
Installation Requirements:
Requires a minimum of 4 inches of concrete with 3000 psi rating for proper anchoring and safe operation.
The LMA Lawn Mower Adapter Advantage
The Atlas® LMA (Lawn Mower Adapter) included in this combo transforms your two post lift into a versatile specialty lifting platform. This innovative accessory adapts easily to the symmetric arm design of the 9OHSC, creating a stable four-wheel support system perfect for lawn mowers, golf carts, snowmobiles, ATVs, and small sports cars.
The LMA is adjustable in width from 8' to 11' to accommodate different lift arm configurations, and handles wheelbases from 32" to 90", giving you incredible flexibility to lift various equipment sizes. Constructed with 3/16" thick steel and featuring 12" wide wheel wells, the LMA provides a secure, stable platform for equipment up to 5,000 lbs. (capacity varies based on wheelbase and weight distribution).
Specialty lawn equipment lifts often command premium prices as niche products. The Atlas® LMA gives you that same specialized lifting capability as an affordable accessory to your existing two post lift. The adapter fits over symmetric lift arms up to 5½" wide and can be positioned in infinite configurations between the minimum and maximum wheelbase settings.
Understanding LMA Capacity & Safe Operation
Please read the following before using the Atlas® LMA with your lift:
The Atlas® LMA is designed to work with two post above ground lifts with symmetric arms. Several factors determine the safe weight capacity of the LMA on your lift. Understanding these guidelines ensures safe lifting of all specialty vehicles and lawn service equipment.
The principle behind two post lifting is simple: each of the four lift arms on a two post lift supports an equal portion of the total weight. On a TRUE 8,000 lb. two post lift, each arm is capable of lifting and safely supporting 2,000 lbs. When lifting an 8,000 lb. vehicle, the weight needs to be evenly distributed across all four lifting points.
This same principle applies when using the Atlas® LMA as an accessory. You must distribute the weight as evenly as possible. First, consider the weight of the LMA itself (600 lbs.) and deduct this from the lifting capacity of your lift. An 8,000 lb. lift with a properly positioned LMA has a new effective lifting capacity of 7,400 lbs.
Critical Capacity Guidelines:
The longer the wheelbase of the vehicle to be lifted, the lower the lifting capacity of the LMA
At maximum wheelbase (90"): Deduct 3,000 lbs. from your lift's rated capacity
At minimum wheelbase (32"): Deduct 2,000 lbs. from your lift's rated capacity
The closer the LMA plates are to the vertical columns, the greater the lifting capacity
Different positions on lift arms may be required to keep wheel platforms stable and level
Example calculation: If using an 8,000 lb. two post lift with wheelbase dimensions set at 32", the new effective lifting capacity would be 6,000 lbs. If you position the LMA plates so the wheelbase is 90", the new lifting capacity would be 5,000 lbs.
If you're lifting a mower or vehicle that is extremely heavy on one end, position the LMA plate supporting the "heavy" end closer to the vertical column and extend the opposite LMA plate (supporting the "lighter" end) further out on the lift arm to accommodate the necessary wheelbase. This strategic positioning helps maintain proper weight distribution and safe lifting capacity.
Specifications may vary depending on lift model, wheelbase configuration, and weight distribution. The LMA consists of two wheel platforms. Lift shown in demonstration images is not included in this combo package.
Key Benefits of This Combo Package
9,000 lb. capacity handles full-size trucks, SUVs, and everything in between
Upgraded 3-stage front arms provide maximum lifting point flexibility
Single-piece column design ensures superior strength and longevity
LMA adapter included transforms your lift for lawn equipment, ATVs, golf carts, and specialty vehicles
See the 9OHSC in Action
Watch the Atlas® 9OHSC two post lift demonstration
See the LMA Adapter in Action
Watch how the LMA transforms your lift for specialty equipment
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
