The Scorpion TJ12S is a revolutionary 24,000 lb. capacity (12-ton) floor service jack specifically engineered for the heavy-duty truck repair industry. This patented air/hydraulic jack transforms how shops service commercial vehicles by lifting an entire front or rear end in one operation—eliminating the time-consuming, labor-intensive process of jacking one corner at a time with conventional equipment. With an ultra-low 8-inch collapsed height, dual hydraulic cylinders, and a built-in three-stage safety lock, the TJ12S delivers unmatched efficiency, safety, and durability for professional truck service operations.
What Makes the Scorpion TJ12S Revolutionary?
Unlike conventional floor jacks that require lifting one corner at a time, the Scorpion TJ12S lifts the entire front or rear axle in a single operation. This patented design features two points of contact when lifting, providing superior stability and safety compared to single-point jacks. Most importantly, the TJ12S is the only floor jack on the market with an integrated three-stage locking mechanism—eliminating the need for separate vehicle stands and dramatically reducing setup time.
Built from the highest grade materials, the TJ12S is engineered to withstand the demanding conditions of busy commercial truck shops. Its robust construction ensures long-term reliability, protecting your investment and reducing downtime caused by equipment failure.
The Result: Increased Productivity and Reduced Labor Costs
Increased shop throughput: The TJ12S lifts a truck in seconds, while conventional jacks and stands can take 7-10 minutes per vehicle. This time savings multiplies across every service, dramatically improving your daily vehicle capacity.
Reduce employee fatigue and injuries: The TJ12S keeps your technicians off the floor as much as possible, maintaining their energy and alertness throughout the shift. Less physical strain means fewer workplace injuries and more consistent productivity.
Preserve your hard-earned profits: Stop throwing money away on low-quality jacks that fail prematurely. The TJ12S is built to last, delivering reliable performance year after year in the toughest shop environments.
How the Scorpion TJ12S Works

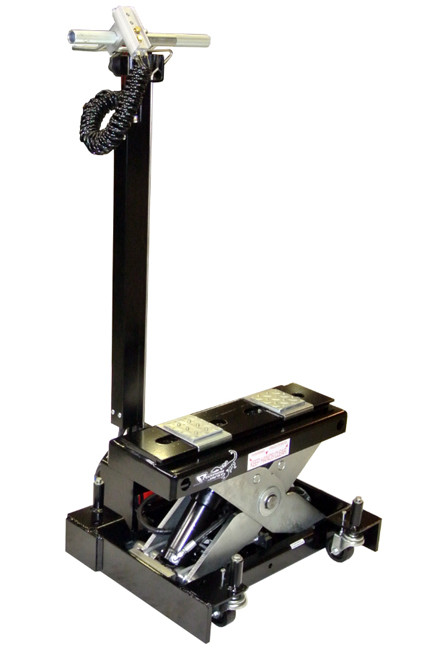

The Scorpion TJ12S features a vertical handle design and four full-floating casters that make positioning the jack incredibly easy. The vertical handle provides a more comfortable, ergonomic posture for technicians, reducing back strain during setup.

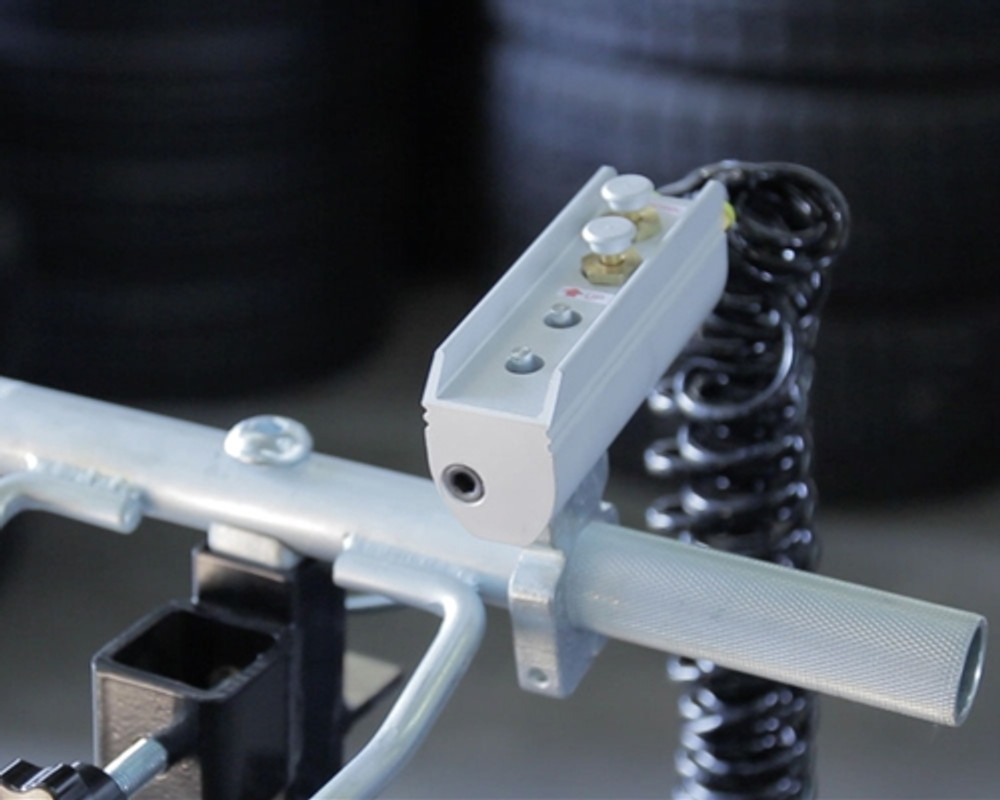

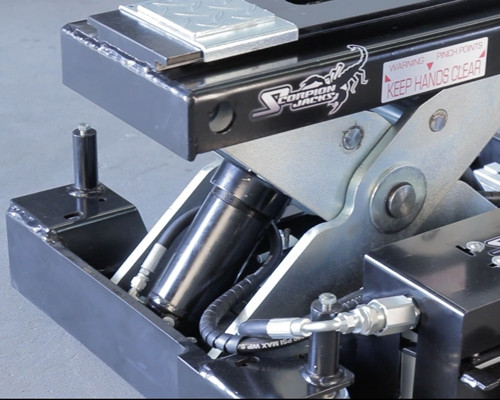

Dual hydraulic cylinders provide the lifting power, all controlled by a detachable remote control pendant. Everything is pneumatically controlled—no hand pumping required. Operation couldn't be simpler: one button to lift, one button to lower.
To lift a vehicle: Simply lower the handle assembly and push the jack under the truck to the axle. For rear axles, you can extend the handle up to 9 feet (108 inches) to reach the axle without getting on the floor. Then press the up button and the jack raises the truck across the axle. The jack lifts over 15.75 inches with smooth, controlled movement. Stop at any height—the automatic safety lock engages instantly, securing the vehicle without additional stands.
To lower the vehicle: Simply raise the jack slightly, then press the down button and the truck is lowered safely and smoothly back to the ground.
Watch the Scorpion TJ12S in action
Key Features & Benefits
24,000 lb. capacity (12-ton) handles the heaviest commercial trucks with ease
Ultra-low 8-inch collapsed height fits under the lowest axles without modifications

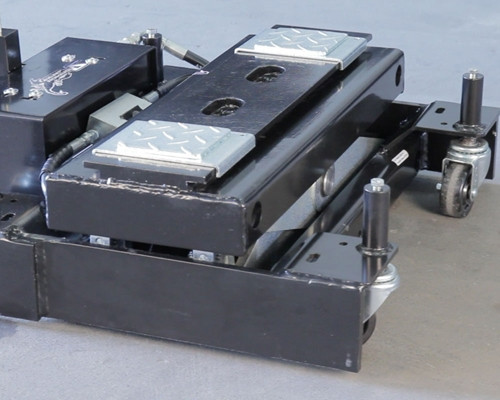

Two-point contact lifting system provides superior safety and stability
Air/hydraulic design with pneumatic controls—no hand pumping required, reducing technician fatigue

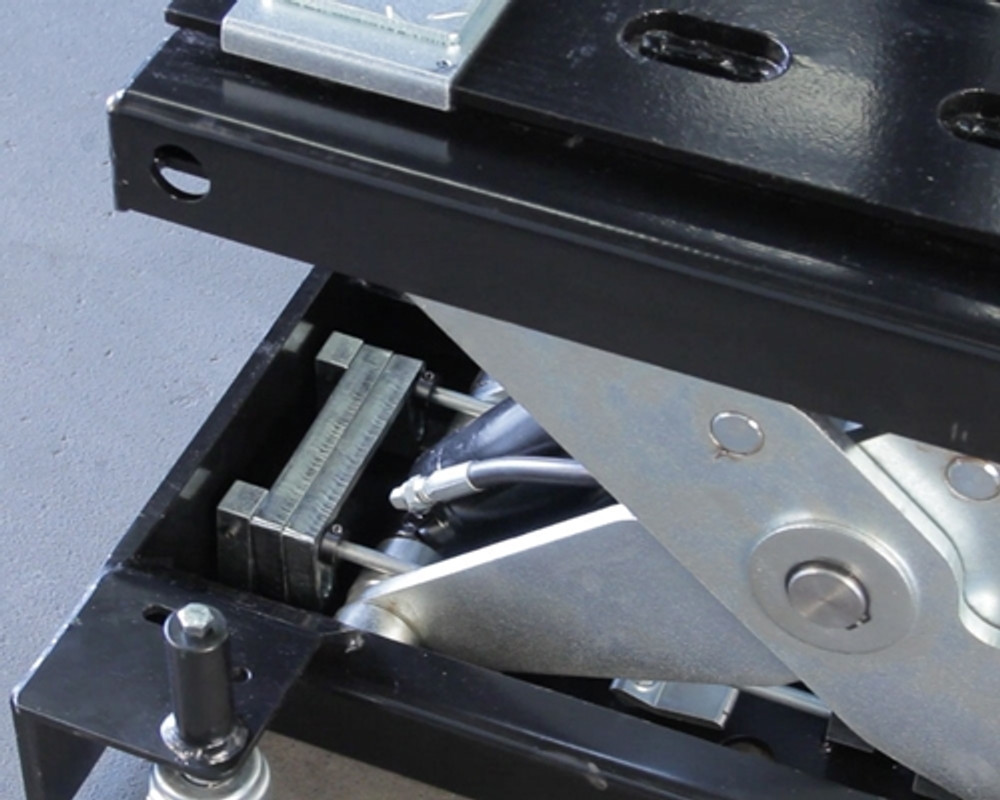

Lifts over 15.75 inches with a built-in three-stage safety lock—no need for vehicle stands
Full-floating casters for effortless maneuvering around your shop
Compact footprint doesn't consume valuable floor space
Extendable handle reaches 65-108 inches (up to 9 feet) for rear axle access without crawling under the vehicle
What's Included:

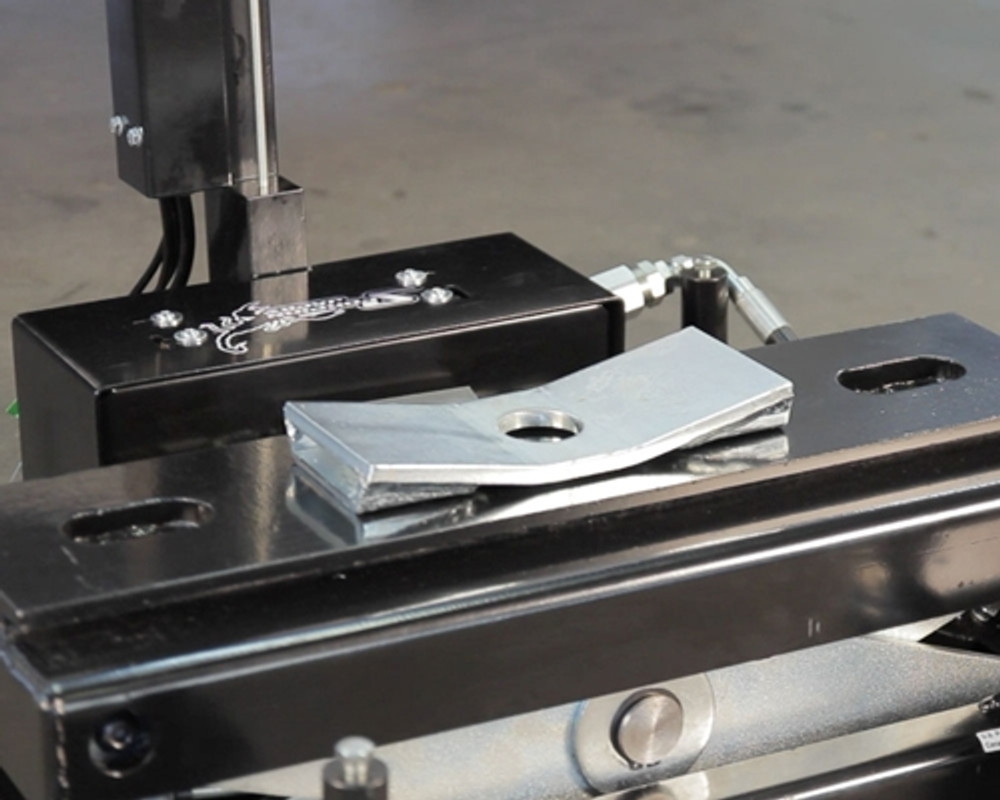

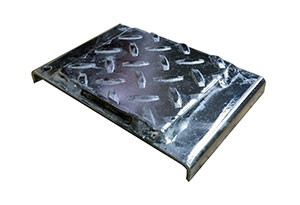

# TJ24710 Low Profile Lifting Adaptors are included with every TJ12S jack, ensuring you have everything needed for safe, efficient operation right out of the box.
See the Optional Adaptors in Action
The video below demonstrates the TJ12S with optional adaptors (available separately)
Specifications at a Glance
Capacity: 24,000 lbs / 12-Ton (10,909 kg)
Collapsed Height (A): 8 inches (20.3 cm)
Maximum Lift Height (B): 15.75 inches (40 cm)
Handle Extension Range (F): 65" - 108" (165-274 cm)
Shipping Weight: 300 lbs (136.36 kg)
Click on Image to Download or Enlarge It

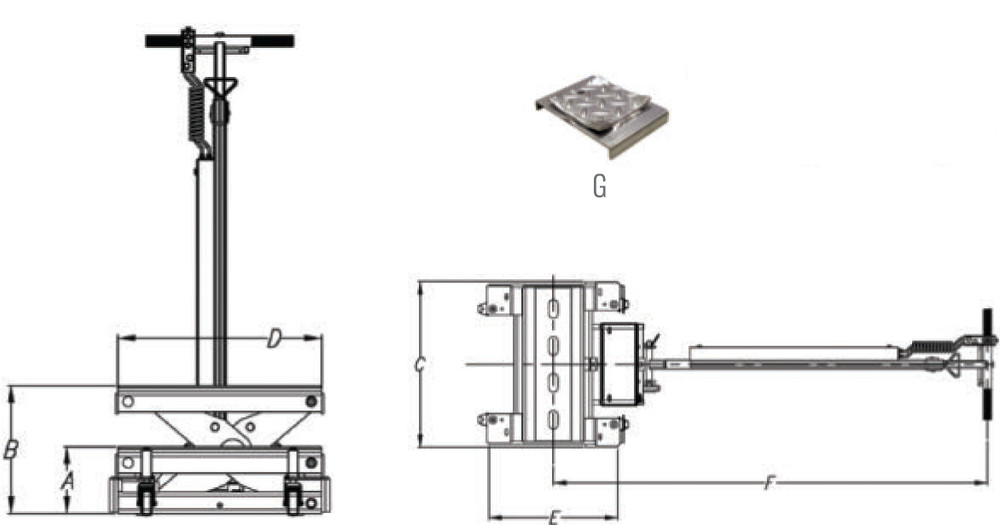

Detailed specifications diagram for the Scorpion TJ12S
To view complete specifications with # TJ24710 Low Profile Lifting Adaptors, click here.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

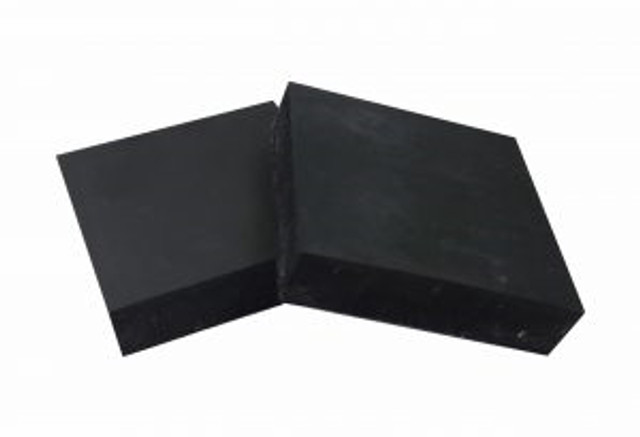

Scorpion Jacks 6454 Rubber Lifting Block (1 Pair)
The Scorpion Jacks 6454 Rubber Lifting Block is an essential accessory for any professional automotive shop or mob
Scorpion Jacks TJ12450 Adjustable Trailer Adapter (1 Pair)
Transform the way you lift and position trailers with the Scorpion Jacks TJ12450 Adjustable Trailer Adapter
```html
Scorpion Jacks TJ12750 Top Beam Extension (1 Pair)
The Scorpion Jacks TJ12750 Top Beam Extension is the professional solution for expanding your vehicle lift
```html

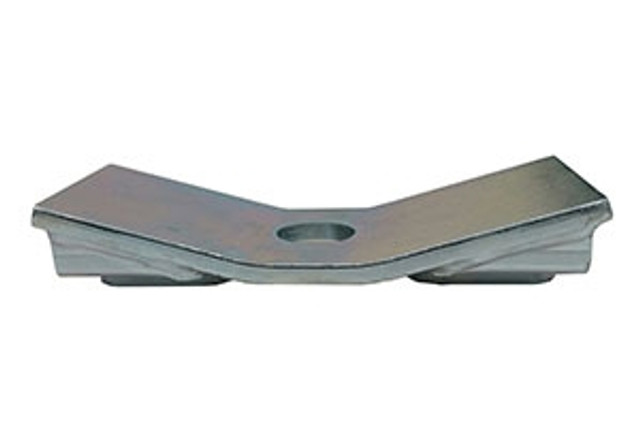

Scorpion Jacks TJ12770 Differential / Pumpkin Adapter
The Scorpion Jacks TJ12770 Differential / Pumpkin Adapter is an essential tool for anyone working on r

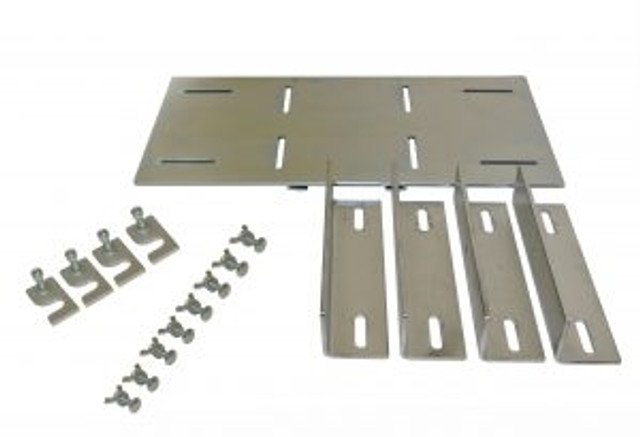

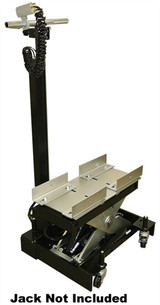

Scorpion Jacks TJ12790 Transmission Adapter Kit
