The high-quality ESCO Stak-Able 10 Ton Hydraulic Ram Kit (Model 10316) is specifically engineered for a wide range of heavy-duty applications across the commercial truck, OTR tire service, and heavy equipment industries. This 20,000 lb. capacity hydraulic ram eliminates the tedious and physically demanding effort required to push rusted, corroded wheels off hubs. Ideal for stubborn 22.5" and 24.5" wheels, the Stak-able Ram Kit is far more resilient and robust than any other equipment alike on the market. With its innovative modular extension system and versatile design, this ram excels in low clearance applications where other tools simply cannot fit. Built from high-quality steel and rated to 10,000 psi maximum pressure, the ESCO 10316 delivers professional-grade performance for demanding tire service, wheel removal, and bead breaking operations.
Designed for Heavy-Duty Commercial and OTR Applications
The ESCO 10316 is purpose-built for the tire and wheel service market, with particular emphasis on heavy-duty commercial trucks and off-the-road equipment. This ram kit is great for use in multiple applications, including breaking the back bead by pushing off the chassis on heavy duty equipment and loosening seized wheels from the back-end of vehicles. Its low profile design with a 3.5" retracted height makes it ideal for low clearance applications where space is limited and access is restricted. Whether you're working on commercial fleets, construction equipment, or agricultural machinery, the 10 ton capacity provides the power needed to handle the toughest jobs with confidence.
The versatility of this hydraulic ram is unmatched. Use the included extensions within the kit separately or combine them as a single long extension to reach exactly the height you need. The easy snap-in extension system allows for quick changes between configurations, making this the most versatile 10 ton ram on the market. Simply switch out extensions for optimal extension length depending on your specific application requirements.
Key Features & Benefits
20,000 lb. (10 ton) capacity — Professional-grade power for the most stubborn wheel and tire service applications
Ultra-low 3.5" retracted height — Perfect for tight clearance situations where traditional equipment won't fit
Modular stacking system with easy snap-in extensions — Achieve heights from 3.5" to 11.25" by combining the included 0.375" saddle, 1" extension, 2" extension, and 3" extension
High-quality steel construction — Built to withstand the rigors of daily commercial shop use and rated to 10,000 psi maximum pressure

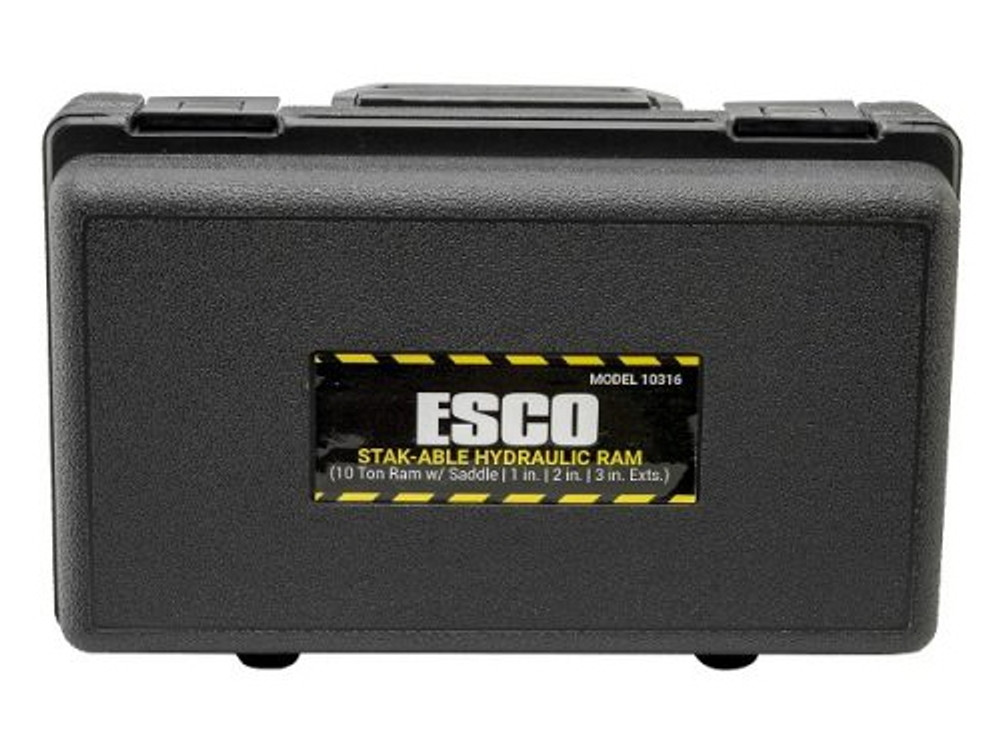

Complete kit with carrying case — Everything you need organized and protected in a convenient 12" x 5" x 5" case
Why Choose the ESCO 10316?
When you're dealing with seized wheels, corroded hubs, and stubborn beads on heavy commercial equipment, you need a tool that delivers both power and versatility. The ESCO Stak-Able Ram Kit stands apart from competing equipment with its unique combination of modular height adjustment, low-profile design, and robust 10 ton capacity. The easy snap-in extension system means you can adapt to any job in seconds without struggling with threaded components or complicated assembly.
This ram kit eliminates the need for sledgehammers, pry bars, and unsafe improvised methods that risk damaging expensive wheels and equipment. The precise hydraulic control and 1.3125" stroke provide smooth, controlled force application. And with a 5" extended height that can reach up to 11.25" maximum height with all extensions stacked, you have the reach needed for virtually any wheel removal or bead breaking scenario.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
