The Nationwide FR-77-18 (formerly FR-160) is a professional-grade frame straightening machine built for modern collision repair facilities that demand precision, durability, and versatility. With a 7,700 lb. working capacity and an 18-foot steel deck, this tilt deck frame rack is engineered to handle both full-frame and uni-body vehicles with confidence. Whether you're pulling complex structural damage or performing precision straightening work, the FR-77 delivers the power, flexibility, and quality your shop needs to complete repairs efficiently and accurately.
This heavy-duty frame straightener combines twin 10-ton pull towers with a 360-degree clear floor pulling system, giving technicians unrestricted access and pulling angles from any direction. The hydraulic tilt deck operation makes vehicle loading and positioning effortless, while the universal anchoring system with adjustable height pinch weld and clamp assemblies secures a wide range of vehicle types safely and securely. Built with durable, powder-coated heavy-duty construction, the FR-77-18 is designed to withstand the rigors of daily shop use while maintaining precision performance for years to come.
Professional Frame Straightening Power
At the heart of the FR-77-18 is a robust hydraulic system delivering 10-ton pull force per tower at 10,000 psi hydraulic pressure. This powerful pulling capability ensures you can handle even the most challenging frame and structural repairs with precision and control. The system includes (2) HQ Air/Hydraulic pumps with pressure gauges for reliable operation, and comes complete with (2) pull chains with hooks so you can start working immediately upon installation.
The twin 10-ton round pull towers feature telescoping tower heads and adjustable tower collars, providing exceptional flexibility for complex pulls at any height or angle. Combined with the 360-degree post working range, technicians can position towers and apply force from virtually any direction around the vehicle—critical for achieving precise alignment and structural correction on modern vehicle designs.
Tilt Deck Convenience & Clear Floor Design
Tilt Deck Operation: The hydraulic tilt deck feature makes vehicle loading and positioning fast and effortless. The deck tilts hydraulically for drive-on convenience using the included drive-on ramps, then levels for secure anchoring and pulling operations. Quick disconnect hydraulic fittings and hose connections make setup and maintenance simple, reducing downtime and keeping your workflow efficient.
Clear Floor, 360-Degree Pulling Capability: The clear floor design eliminates obstructions and gives technicians complete freedom of movement around the vehicle. With multiple precision-cut tie-down hole locations across the entire 18-foot deck, you can anchor chains, hooks, and accessories exactly where needed for optimal pulling geometry. The universal anchoring system adapts to a wide variety of vehicle types, making this frame rack as versatile as it is powerful.
Secure Vehicle Anchoring System
Clamp Assemblies: The adjustable height pinch weld/clamp assemblies provide rock-solid anchoring for both full-frame and uni-body vehicles. These universal clamps adjust to accommodate different vehicle heights and pinch weld locations, ensuring secure, safe anchoring during even the most aggressive pulling operations. The clamps work seamlessly with the deck's tie-down system to hold vehicles firmly in place while you work.
The rack's 82.6-inch deck width and 19.7-inch deck height are optimized for comfortable working conditions and compatibility with a wide range of vehicle sizes, from compact cars to full-size trucks. The steel platform construction with durable powder coat finish resists wear, corrosion, and shop chemicals, maintaining both performance and appearance through years of heavy use.
Key Selling Points
7,700 lb. working capacity with 10-ton pull force per tower – professional-grade power for comprehensive frame and structural repair
18-foot steel deck with hydraulic tilt operation – drive-on convenience and secure, level working surface
Clear floor, 360-degree pulling system – unrestricted access and pulling angles from any direction for maximum versatility
Universal anchoring with adjustable clamp assemblies – secure full-frame and uni-body vehicles with confidence
Includes air/hydraulic pumps, pull chains, and hooks – complete system ready to work right out of the box
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Optional Accessories to Expand Capability
Maximize your investment in the FR-77-18 with optional accessories designed to enhance productivity and expand your repair capabilities. Available accessories include the 25 Piece Tool & Clamp Kit (FR-77-TBK25), Electric Winch (FR-Ewinch), and Air Bag Jack (FR-Bag-Jack). Each accessory is engineered to integrate seamlessly with your frame rack, giving you more options for tackling complex repairs efficiently.
The Nationwide FR-77-18 represents a smart investment for collision repair professionals who demand reliability, performance, and versatility. With its combination of heavy-duty construction, powerful hydraulic systems, and flexible pulling capabilities, this frame straightener is built to handle the full spectrum of modern vehicle repair challenges. Whether you're straightening a bent frame, correcting unibody damage, or performing precision alignment work, the FR-77-18 gives you the tools and capability to deliver quality repairs efficiently.
Backed by Nationwide's reputation for quality equipment and designed with input from professional technicians, the FR-77-18 delivers the performance you need with the durability to keep working day after day. From its pneumatic pressure range of 115 PSI to its thoughtful design details like quick-disconnect fittings and precision-cut anchor points, every aspect of this frame rack is engineered to make your job easier and your repairs more precise.

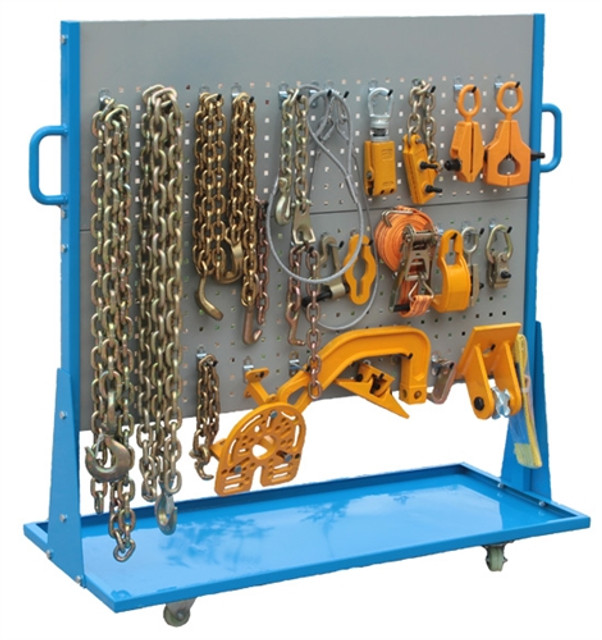

Nationwide FR-77-TBK25 Tool Board & Clamp Kit
