The Nationwide FR-55 Frame Straightener Scissor Lift (formerly FR-2000) represents the perfect fusion of collision repair power and versatile automotive lifting capability. This 5,500 lb. capacity frame straightening machine delivers professional-grade collision repair in a uniquely compact footprint that maximizes shop floor efficiency. Engineered to service both full-frame and uni-body vehicles, the FR-55 combines a precision scissor lift platform with a powerful 10-ton pull tower, providing 360-degree pulling capability for comprehensive frame correction work. With twin hydraulic cylinders, adjustable height clamping assemblies, and a portable console with remote pendant control, this system puts complete frame straightening control at your fingertips.
Complete Frame Straightening Solution
The FR-55 is built around a robust scissor lift platform with a 123.62" deck length and 37" deck width, providing ample work area for most passenger vehicles and light trucks. The dual hydraulic cylinder design ensures smooth, stable operation through the entire 4.75" to 63" lifting range, positioning vehicles at optimal working height for frame analysis and repair. Heavy-duty construction with a durable powder coat finish ensures years of reliable service in demanding collision repair environments.
At the heart of the system is a 10-ton slotted pull tower with 100KN pulling force and integrated down pull roller. The tower's adjustable height design and multi-angle positioning capability deliver true 360-degree pulling versatility, allowing technicians to apply corrective force from virtually any direction required. Operating at 10,000 psi maximum pressure, the air/hydraulic system provides the muscle needed for even the most challenging frame straightening work.
10-Ton Pull Tower Performance
The slotted, adjustable-height pull tower with integrated down pull roller delivers multi-angle, 360-degree pulling capability for comprehensive frame correction. Position the tower precisely where you need it, then apply controlled hydraulic force up to 10 tons to restore frame geometry to factory specifications.
Precision Control & Versatile Clamping
Portable Console Cabinet
The FR-55's portable console cabinet puts complete lift operation control at your fingertips with a convenient remote hand-held pendant. The single-point pneumatic lock release system allows for quick, safe positioning adjustments. Console operates on 220VAC - 20 Amp, 1PH power and requires 100-120 PSI shop air for optimal performance.
Adjustable Pinch Weld Clamps Adjustable height pinch weld/clamp assemblies accommodate a wide range of vehicle designs and provide secure anchoring points for pulling operations. The universal positioning swivel lifting arms with integrated lift pads ensure safe, stable vehicle support throughout the repair process, adapting to different vehicle configurations with ease.
Quick-disconnect hydraulic fittings and hose connections streamline setup and reconfiguration, minimizing downtime between jobs. The system includes an HQ Air/Hydraulic pump with pressure gauge, pull chain with hook, and (4) wheel stands to get you started right out of the crate.
Key Performance Highlights
5,500 lb. working capacity handles most passenger vehicles and light trucks
10-ton pull tower with 360-degree, multi-angle pulling capability for comprehensive frame correction
Twin hydraulic cylinder scissor lift with 4.75" to 63" height range and remote pendant control
Universal swivel lifting arms and adjustable pinch weld clamps accommodate full-frame and uni-body designs
Compact 173.25" overall length with portable console design maximizes shop floor space efficiency
Expand Your Capabilities
Enhance your FR-55 with the optional 20-Piece Tool & Clamp Kit (FR-55-TBK20), providing a comprehensive array of pulling tools, clamps, and accessories organized on a convenient tool board for efficient workflow and expanded repair capabilities.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.

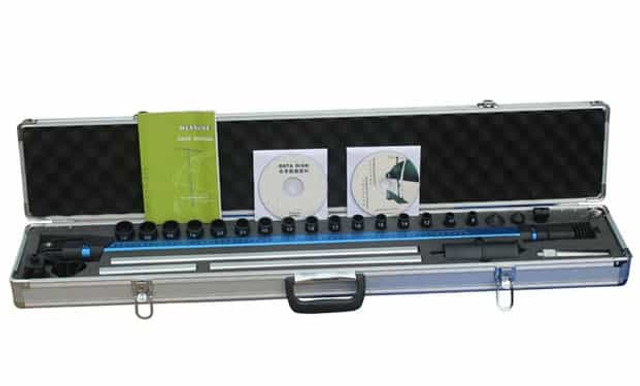

Nationwide FR-PROMEASRKIT Frame Rack Professional Measuring Kit
