Chassis Liner MDT 28 871030 Medium-Duty Trucker™ 28' Deck Frame Machine
The Chassis Liner Medium-Duty Trucker™ 28-foot deck represents the ultimate solution for collision repair professionals handling medium-duty and light-duty vehicles. This four-tower air hydraulic frame machine combines 20-ton pulling power with precision engineering, featuring two ChassisLiner-exclusive dual pull towers plus two additional 15-ton towers. With its 28-foot bed length and 8-foot 6-inch width, this system delivers the capacity and versatility needed for comprehensive frame straightening and repair work on a wide range of vehicles.
Built for professional body shops that demand reliability and power, the MDT 28 #871030 features 8-foot high towers that provide exceptional pulling angles and reach. The drive-on frame rack comes plumbed for air, while the complete hydraulic package includes dual 15-ton rams on the lift with pump, ensuring you have the power and control needed for even the most challenging repairs. Whether you're straightening frames, pulling rocker panels, or performing complex multi-directional pulls, this system delivers the precision and strength that professional technicians require.
Key Highlights
- 20-Ton Pulling Power with two ChassisLiner-exclusive dual pull towers (dual 10-ton ram design) plus two additional 15-ton towers
- 28-foot bed length with 8'6" width and 34-inch treadway width accommodates a wide range of medium-duty and light-duty vehicles
- 8-foot high towers with hydraulic rams, hoses, air pumps with pressure gauges, and rollers provide superior pulling angles
- Complete anchoring system includes four 15½" chains with slip hooks, four adjustable uni-body clamps with upright holders, and four chain locks with locking keys
- Professional-grade accessories including all-new jacking beam, down pull rollers, tower extension overhead puller, and 10-ton power pusher
Advanced Tower and Hydraulic System
The four-tower air hydraulic package on the Medium-Duty Trucker™ sets a new standard for versatility and power. The system features two 20-ton towers utilizing ChassisLiner's exclusive dual 10-ton ram design, delivering maximum pulling force for stubborn damage. These are complemented by two 15-ton towers, all reaching 8 feet in height to provide optimal pulling angles from virtually any direction. Each tower is equipped with hydraulic rams and hoses, air pumps with precision pressure gauges, and smooth-rolling pulleys that ensure controlled, accurate pulls.
The drive-on frame rack comes plumbed for air, streamlining your workflow and eliminating the need for additional air line installation. The lift itself is equipped with dual 15-ton rams with pump, providing the lifting capacity needed to raise even fully-loaded medium-duty vehicles safely and efficiently. This integrated hydraulic system ensures smooth operation and precise control throughout every repair.
Complete Anchoring and Clamping System
Secure anchoring is critical for safe, effective frame repair, and the MDT 28 delivers a comprehensive solution. The system includes four 15½" chains with slip hooks for flexible attachment points, along with four adjustable uni-body clamps with upright holders that accommodate various vehicle configurations. The Medium Duty full frame anchoring system ensures that both full-frame and unibody vehicles can be securely held during pulling operations.
For added safety and control, the system includes four chain locks with locking keys that hold pulls in place, allowing you to step back and evaluate progress without maintaining constant hydraulic pressure. The non-skid treadways provide safe footing when working around the machine, while the new style medium-duty portable ramps (2-piece design) make vehicle loading and unloading safe and efficient.
Professional Features and Accessories
|

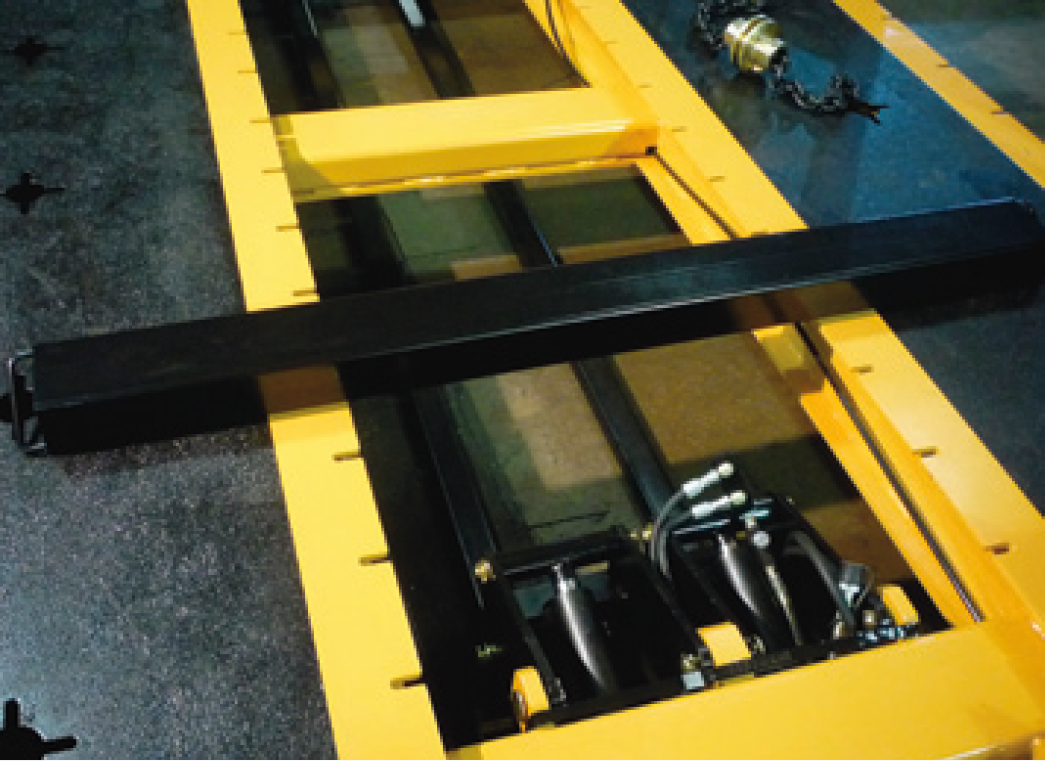

All New Jacking Beam
|
|
Down Pull Roller
|
|

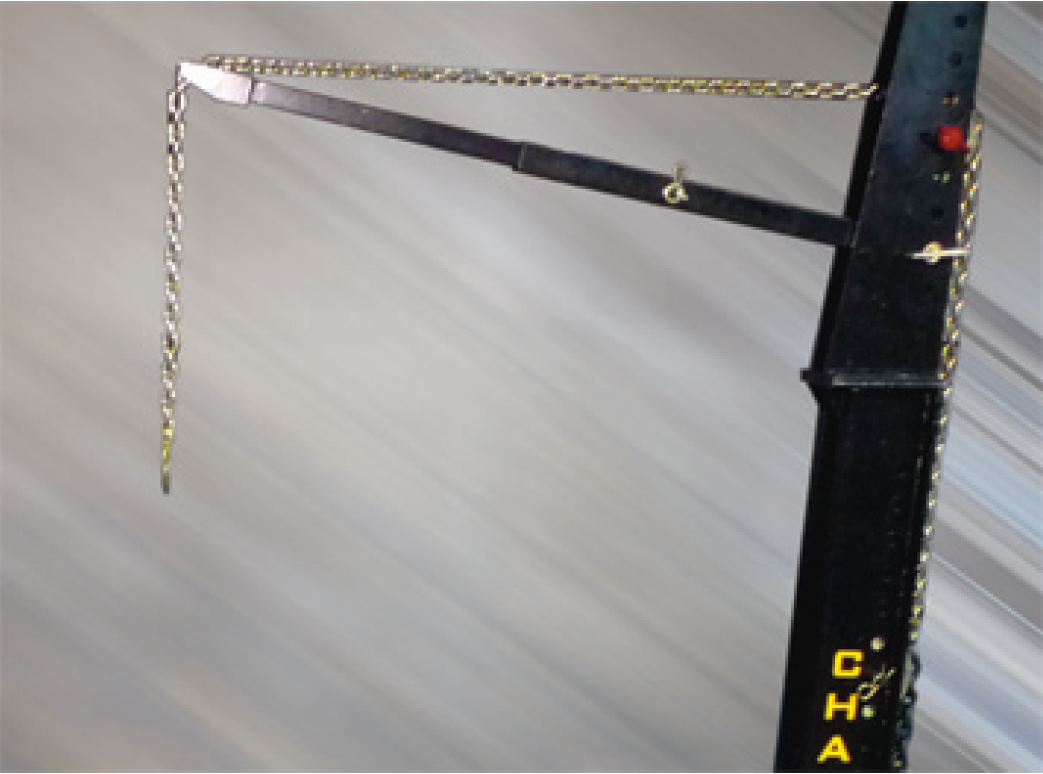

Tower Extension
Overhead Puller
|
|

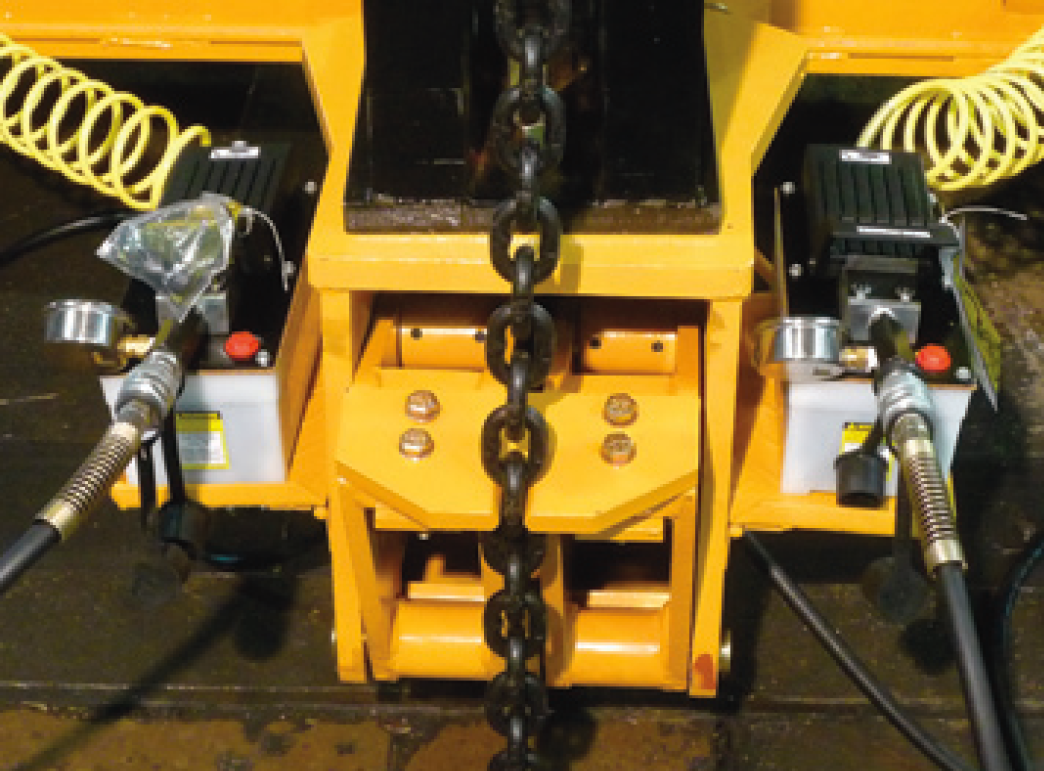

Double Ram Design
Offers 20-Ton Pulling
|
|

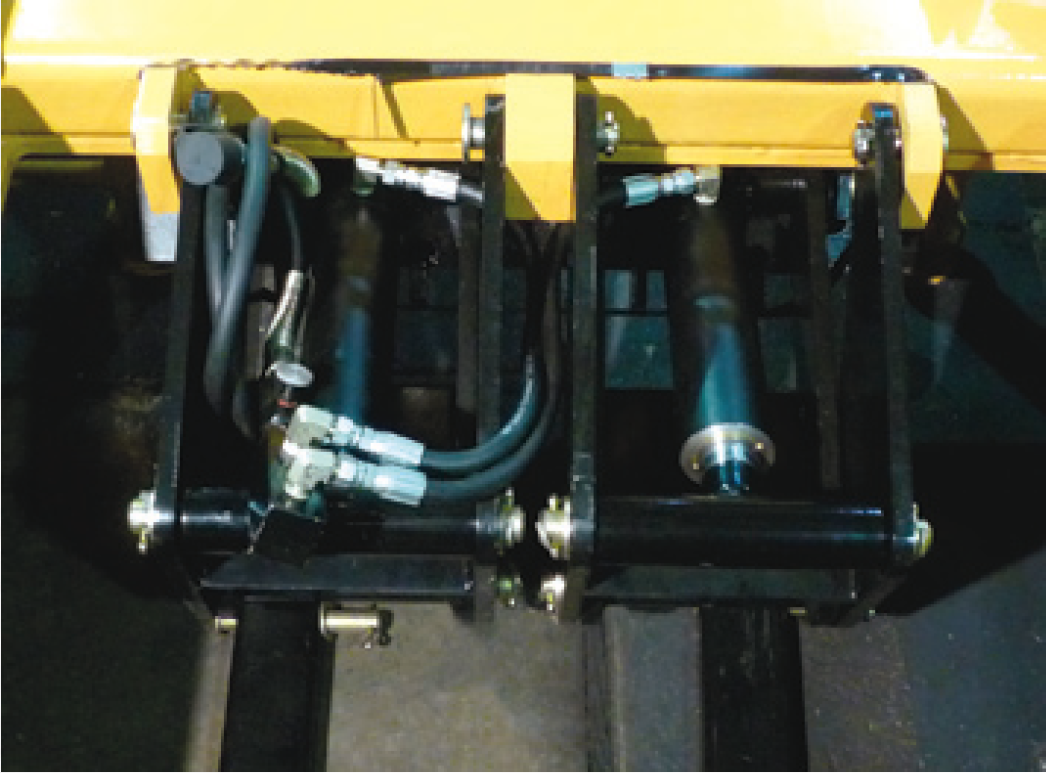

Dual 15-Ton Rams on Lift
|
|

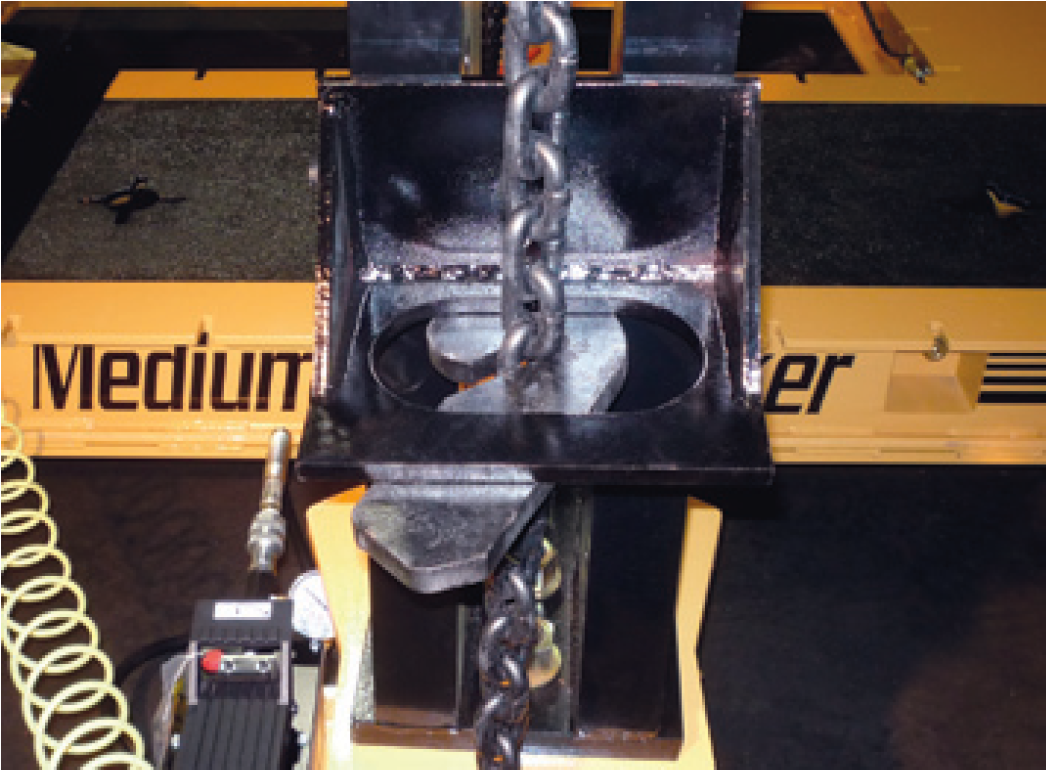

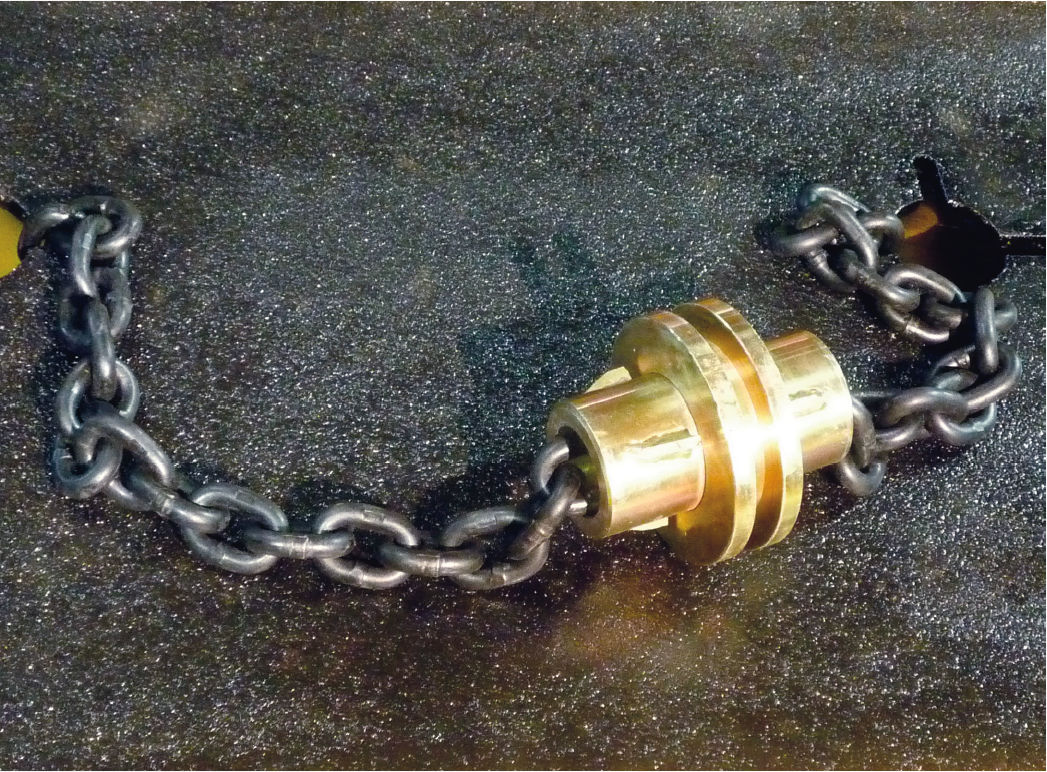

Chain Lock For Holding Pull
|
|

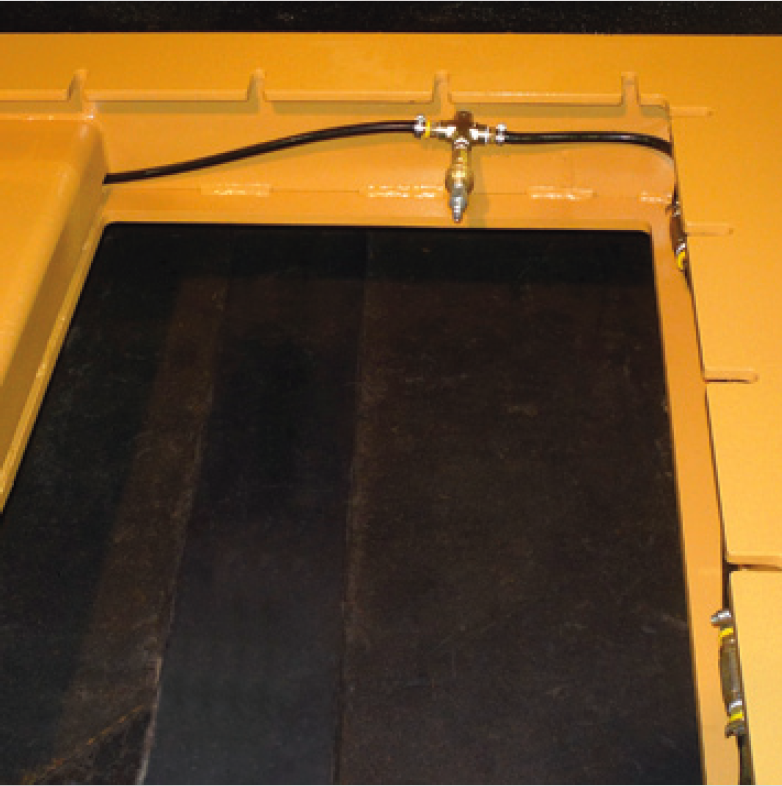

All Beds Plumbed For Air
|
|

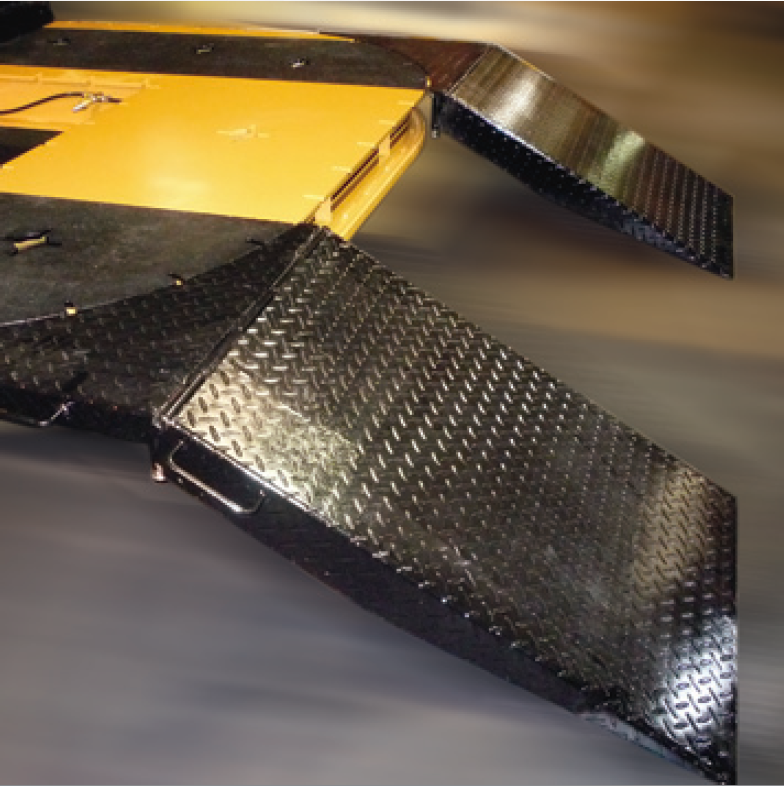

Removable Hing-O-Matic Ramps
|
|

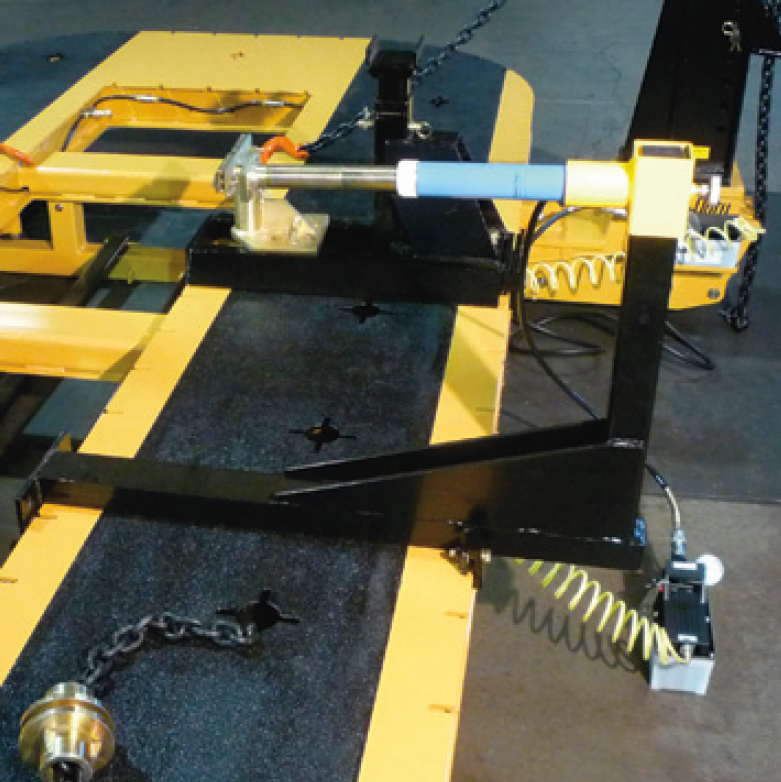

10-Ton Power Pusher
|
|
|
|
|
The Medium-Duty Trucker™ comes equipped with an impressive array of professional-grade accessories designed to handle complex repair scenarios. The all-new jacking beam provides precise lifting points, while the down pull roller enables controlled downward force application. The tower extension overhead puller expands your pulling capabilities for high-point damage, and the included 10-ton power pusher allows you to apply controlled pushing force when needed.
The removable Hing-O-Matic ramps feature a two-piece design for easy storage and positioning, while the fact that all beds are plumbed for air means your pneumatic tools are always ready when you need them. With a working height of 20 inches from floor to top of bed, the system provides comfortable access for technicians while maintaining a low profile for easy vehicle loading.
Built for Demanding Shop Environments
At 26,500 pounds, the Chassis Liner MDT 28 is built to handle the rigors of daily shop use. The robust construction ensures stability during high-force pulling operations, while the 28-foot bed length accommodates everything from light-duty pickups to medium-duty commercial vehicles. The 8'6" bed width provides ample room for dual-wheel trucks and wider vehicles, and the 34-inch treadway width offers secure drive-on access.
Whether you're performing simple pulls or complex multi-directional frame straightening, this system provides the power, precision, and versatility that professional collision repair demands. The combination of 20-ton pulling capacity, comprehensive anchoring options, and professional-grade accessories makes the Medium-Duty Trucker™ an investment that will serve your shop for years to come.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
