Chassis Liner Heavy-Duty Trucker™ 32' Deck Frame Machine
The Chassis Liner Heavy-Duty Trucker™ HDT 32 is the ultimate drive-on frame rack designed for professional collision repair shops that demand versatility and power. With a 32-foot deck and four-tower air hydraulic package, this above-ground frame machine delivers 25-ton pulling power for tractors, buses, RVs, trucks, pickups, and cars. The innovative wheel-less design, 360-degree pulling capability, and two pulls per tower ensure you have the flexibility and strength to handle any frame straightening job with precision and confidence.
Pull 'Em All – Unmatched Versatility and Power
Whether you're working on a heavy-duty tractor or a compact car, the Heavy-Duty Trucker™ is engineered to handle the full spectrum of vehicles. The 8'6" bed width with 34" non-skid treadways provides stable, secure access for drive-on convenience, while the 20" working height (floor to top of bed) ensures comfortable ergonomics and efficient workflow. This is a frame rack built for shops that refuse to compromise on capability.
The four 25-ton, 7-foot cab towers each feature a hydraulic ram and hose, complemented by four air hydraulic pumps with gauges for precise control. Each tower is equipped with a 15' 5/8" chain with slip hook, HD tower roller with pin, and a tower chain lock with locking key for maximum safety and security during pulls. The system is plumbed for air, streamlining your setup and operation.
Custom bed lengths are available for shops with unique requirements—choose from 32', 40', or custom lengths to match your facility and workload. The HDT 32 model #871005 includes new-style HD portable ramps (2-piece) for easy vehicle loading, plus installation and training to get your team up and running fast.
Key Selling Points
- 25-Ton Pulling Power – Tackle the toughest frame damage with confidence
- Two Pulls Per Tower – Maximize efficiency and pulling angles on every job
- 360° Pulling Capability – Complete flexibility for complex multi-directional pulls
- Wheel-less Design – Rock-solid stability and safety during heavy-duty operations
- Drive-On Frame Rack Above Ground – Plumbed for air, ready for fast, convenient workflow
See the Heavy-Duty Trucker™ in Action
|

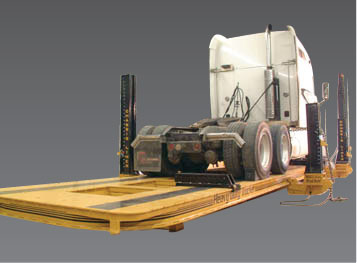

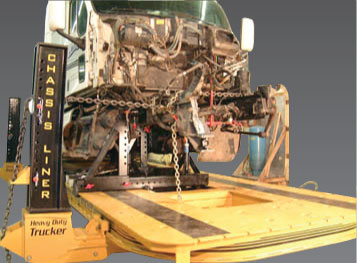

Long-Bed View
|
|

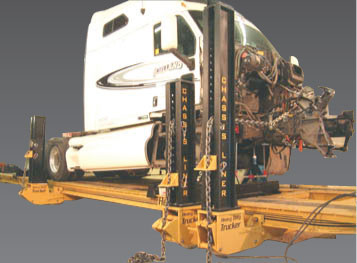

Wide-Shot View
|
|

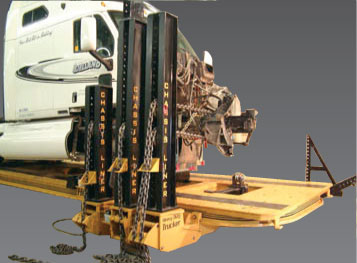

Double-Pull
|
|

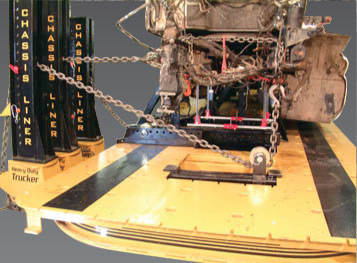

Multi-Pull
|
|

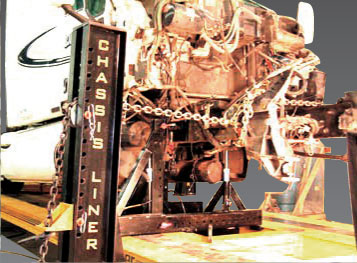

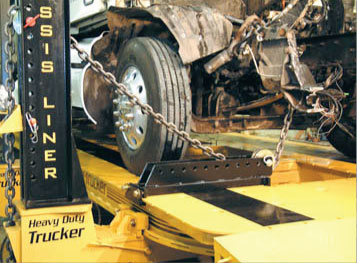

Down-Pull
|
|
Multiple Down-Pull
|
|

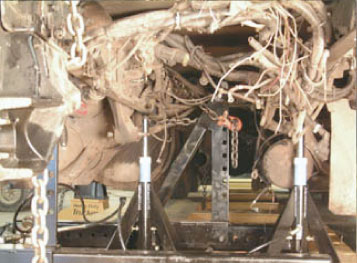

Under-Set Shot
|
|
Single Pull
|
|

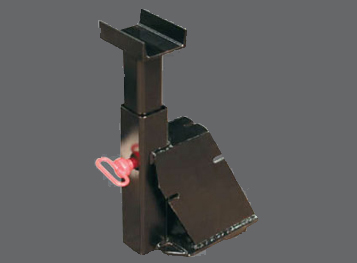

Truck Adapter w/Drive-Over Base
|
|

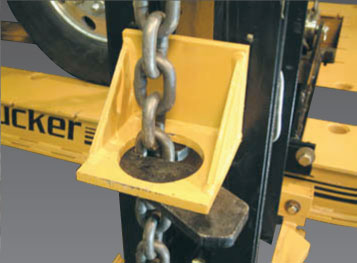

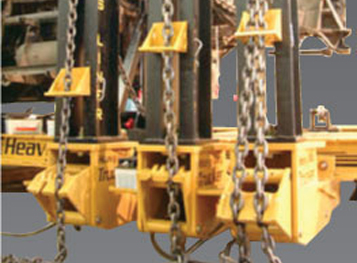

Chain Lock
|
|
4 Pulls
|
|

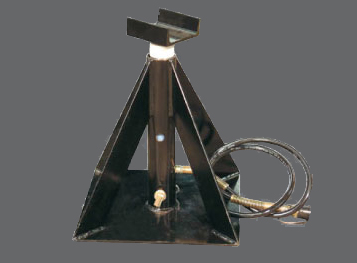

10-Ton Jack Stands
|
|

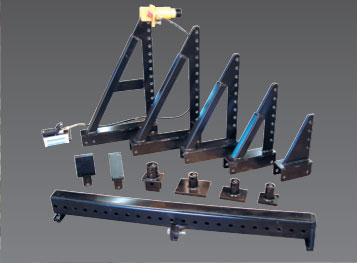

Power Pusher Kit – The modular design of the Pow'r Pusher™ allows for precise holding and pushing anywhere around the bed.
|
|
|
|
|
|
|
|
|
|
|
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
