PowerLine Vantage PLT-3000E 110V EV Battery 3,000 lbs. Lift Table
Need help with installation? Our AI assistant can help you find the right information and walk you through each step of setup and operation.
The PowerLine Vantage PLT-3000E is a professional-grade hydraulic lift table engineered specifically for the demanding tasks of modern automotive service, including EV battery pack installation and removal, transmission and engine work, and heavy component service. With a robust 3,300 lb lifting capacity and powered by convenient 110V corded power, this lift table delivers the strength, versatility, and precision you need to tackle electric vehicle maintenance and traditional automotive service with confidence.
Featuring an impressive 80-inch maximum lifting height and a spacious 55" x 32" platform, the PLT-3000E provides ample working space and elevation for safely positioning heavy components at the ideal working height. The platform includes a removable threaded hole deck that accommodates optional height adapters, and the innovative design allows the deck to be removed entirely to utilize the adjustable arm pads—dramatically increasing the versatility of this lift for a wide range of automotive applications.
Designed for EV Battery Service and Beyond
As electric vehicle service becomes increasingly essential in modern automotive shops, the PLT-3000E offers the specialized capability required for safe and efficient EV battery pack removal and installation. The lift table's 3,300 lb capacity handles even the heaviest battery assemblies with ease, while the adjustable arm pads and removable deck system provide the flexibility needed to support a variety of EV battery configurations.
Beyond EV service, this hydraulic lift table is equally capable for engine removal, transmission service, and a wide range of heavy component work. The adjustable arm pads can be positioned in height and location to securely support components of varying shapes and sizes, making this a truly multi-purpose tool for your shop.
Key Performance Features
3,300 lb Lifting Capacity: Handle EV battery packs, transmissions, engines, and other heavy automotive components with confidence.
110V Corded Power: Convenient plug-in operation eliminates battery charging concerns—always ready when you need it.

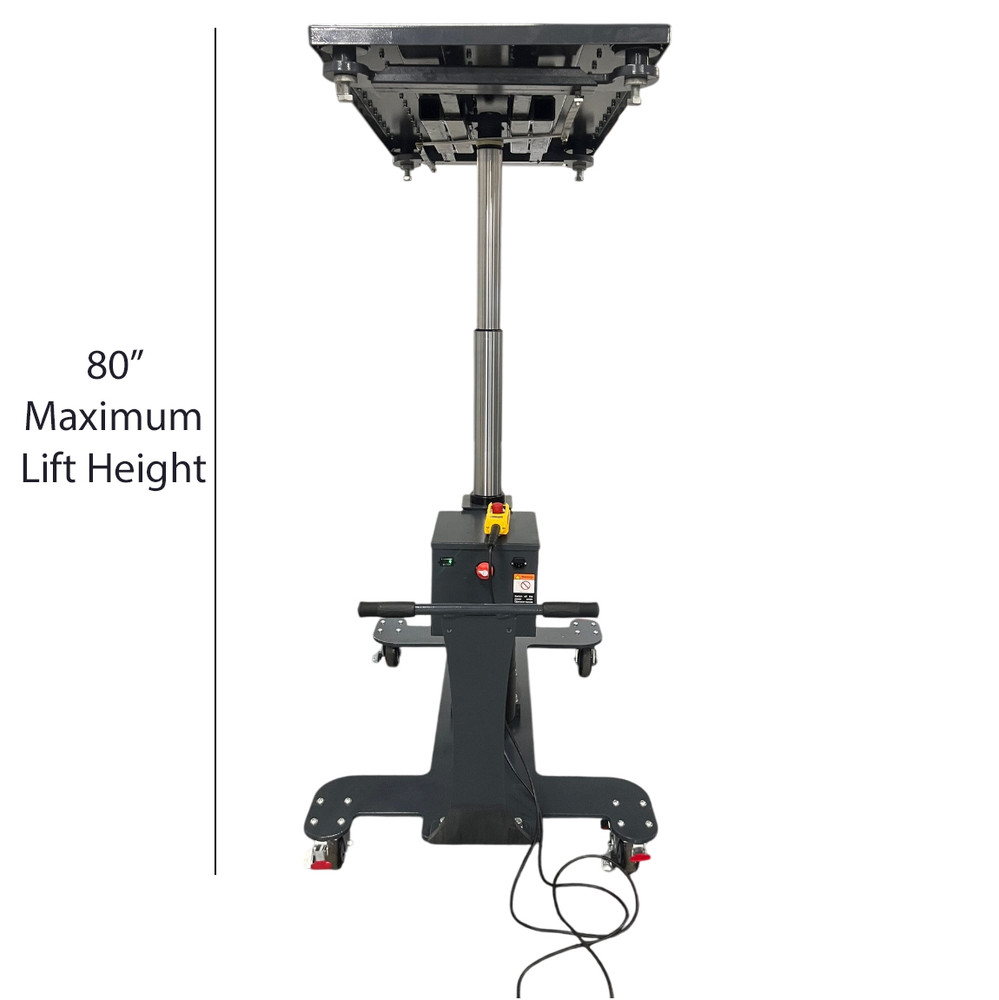

80" Maximum Lifting Height: Raises components to a comfortable working height for easier access and reduced technician strain.
55" x 32" Platform: Generous working surface provides ample space for large components and assemblies.
Removable Threaded Hole Deck: Accommodates optional height adapters (ELT-ADPT available separately) or can be removed to use adjustable arm pads for maximum versatility.

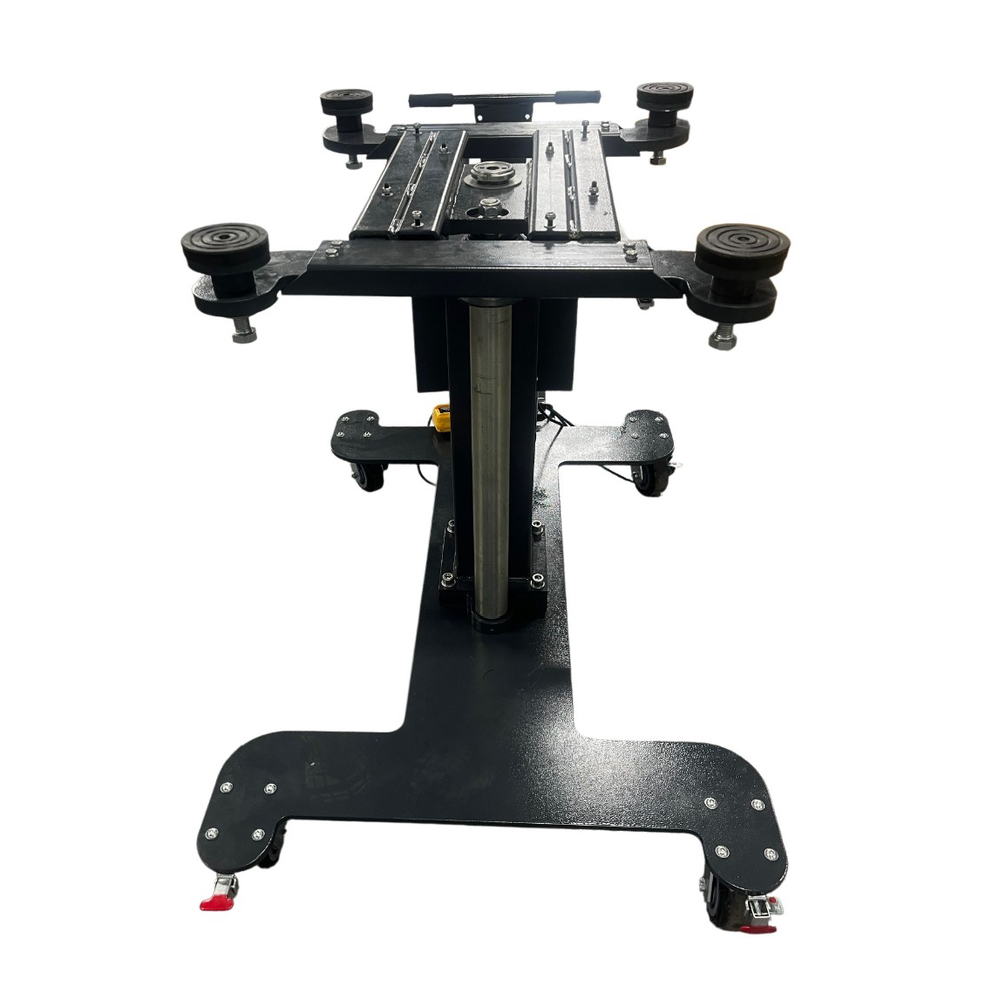

Adjustable Arm Pads: Expandable from 32" to 57" in length and 23" to 32" in width, allowing precise positioning to support components of varying shapes and sizes.
Fast Operation:25-second raise time and 40-second lowering time under load for efficient workflow.

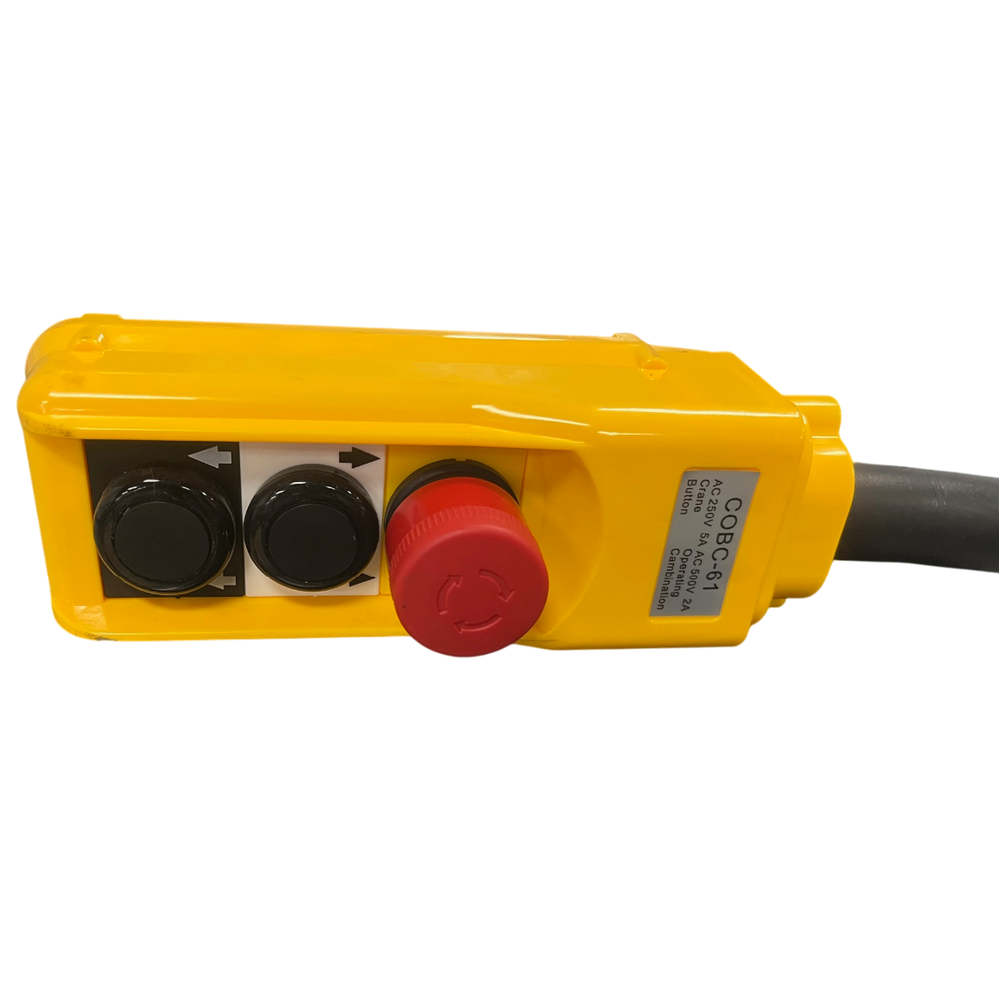

Wired Remote Control: Safely operate the lift from a convenient distance with precise control.
Compact Collapsed Height: At just 40 inches collapsed, the lift stores efficiently when not in use.

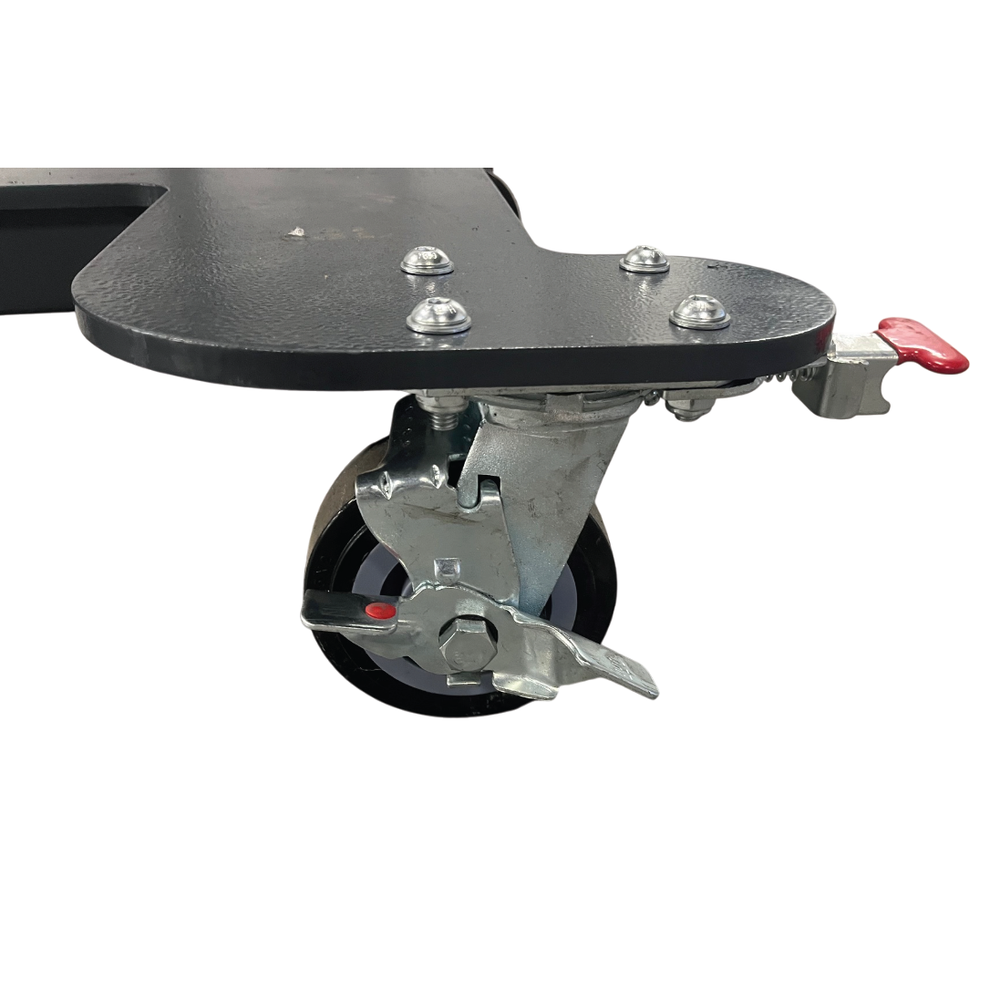

Heavy-Duty Construction: Built with a robust steel frame and 5-inch diameter wheels for smooth mobility across the shop floor.
Why Choose the PLT-3000E Lift Table?
✓ EV-Ready Performance: Purpose-built to handle the unique demands of electric vehicle battery service with confidence and safety.
✓ Versatile Configuration: Removable deck and adjustable arm pads adapt to a wide range of automotive service tasks—engines, transmissions, differentials, and more.
✓ Convenient Power Source: Standard 110V operation means no batteries to charge or maintain—simply plug in and get to work.
✓ Expand Your Capabilities: Optional ELT-ADPT adapter set available for even greater positioning flexibility.
✓ Built for the Shop: Heavy-duty construction, smooth-rolling wheels, and thoughtful ergonomic design ensure years of reliable service.
See the PLT-3000E in Action
Watch the PowerLine PLT-3000E hydraulic lift table in action—see how it handles EV battery packs, transmissions, and heavy components with ease.
Optional Accessories
Optional ELT-ADPT Adapter Set Available: Take your lift table's versatility to the next level with the optional ELT-ADPT adapter set (sold separately). These adapters can be positioned in an almost infinite number of configurations across the threaded hole deck, providing custom support for component parts that need to be elevated above the table top. Perfect for oddly shaped assemblies, uneven loads, or specialized service tasks.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
California Prop 65 Warning: This product can contain certain metals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PowerLine Vantage ETL-ADPT Adapter Kit
A set of Table Top Threaded Adapters are optional and sold separately from lifts (ELT-3300L, PTL-3000E, PTL-3000B). These adapters can be installed in several...
