The Atlas® 412A is a professional-grade 12,000 lb capacity four post alignment lift engineered for commercial shops that demand reliability, precision, and versatility. This combo package includes two RJ-6000 rolling air/hydraulic jacks (6,000 lb capacity each) and a FREE airline kit (a $300 value), delivering everything you need for full-vehicle suspension, brake, and wheel service. Built to commercial-grade standards with heavy-duty construction and precision alignment features, the Atlas® 412A offers exceptional value for shops performing alignments, undercarriage work, and maintenance on a wide variety of vehicles.
Supersedes ATPK-412A-KIT
Important Installation Step:
To view the Atlas 4 Post Cylinder Bleeding Procedure, click here. (Perform this procedure immediately after installation to ensure proper lift operation.)
Professional-Grade Alignment Lift for Serious Shops
The Atlas® 412A four post alignment lift is designed and built to meet the rigorous demands of busy commercial shops. Engineered for years of reliable service, this 12,000 lb capacity lift incorporates exclusive features not found on many competitor models—all at a price point that delivers exceptional value.

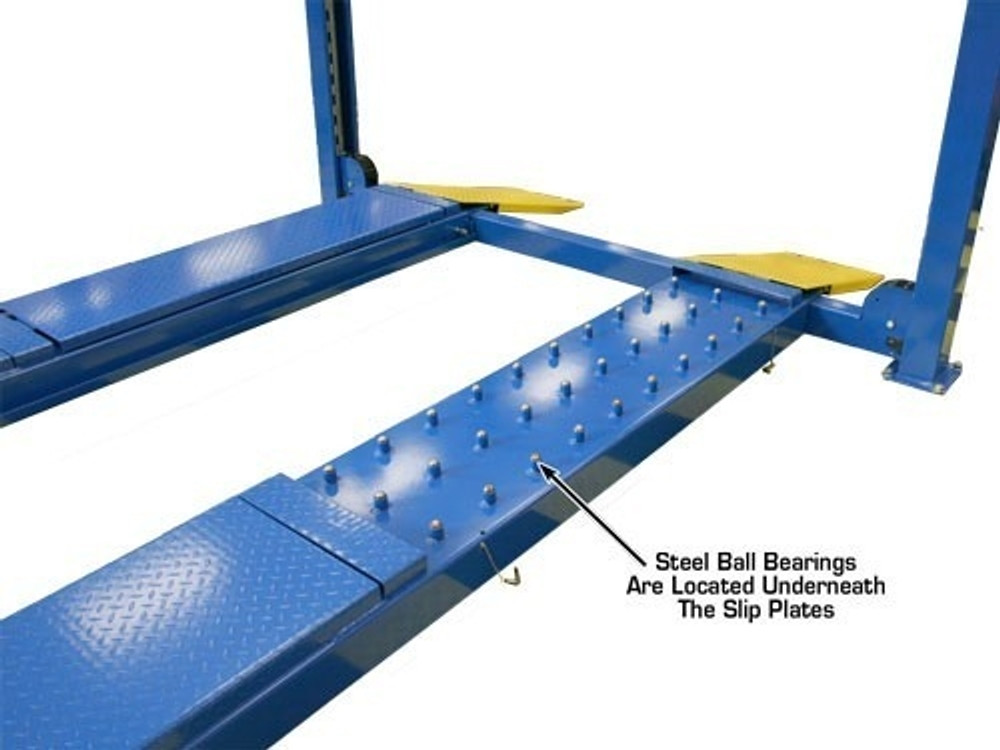

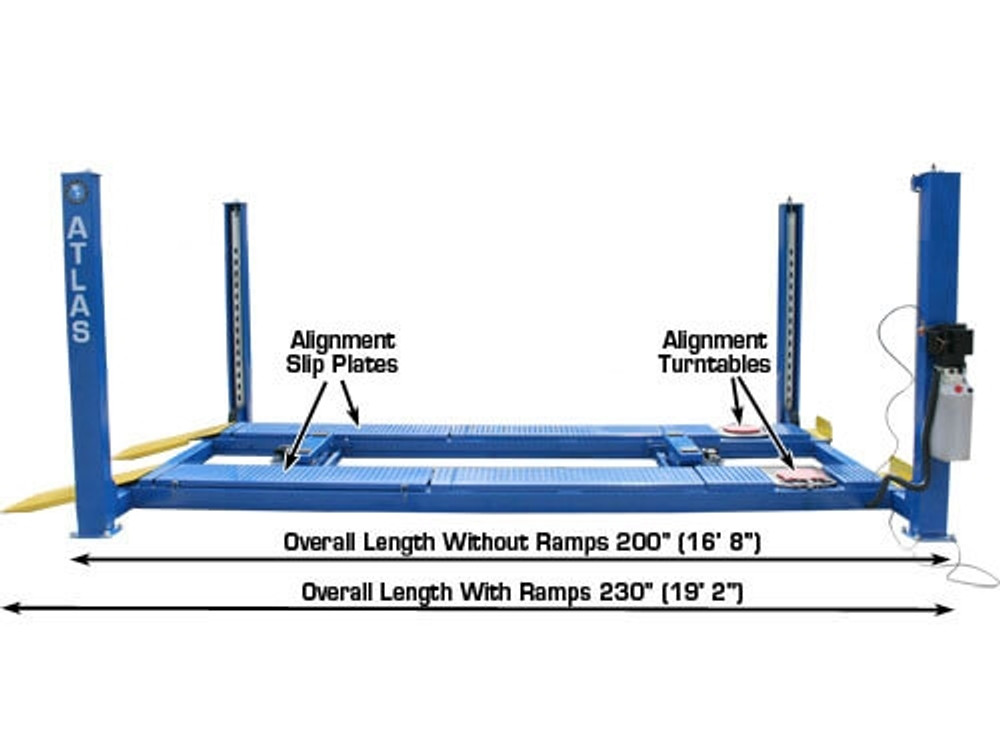

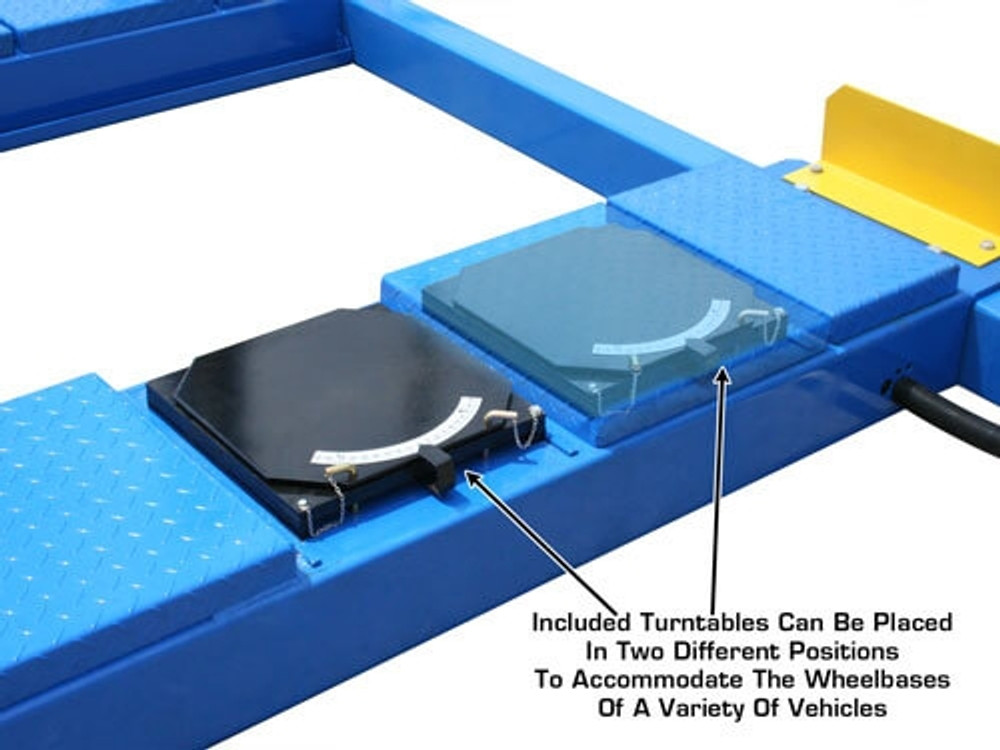

Each Atlas® 412A alignment lift includes a complete set of front alignment turntables and slip plates built directly into the runways and level with the turntables. The turntables can be repositioned along the runway to accommodate a wide variety of wheelbases, making this lift ideal for everything from compact cars to full-size trucks. Metal cover plates are included to cover the turntable cutouts when the lift is not being used for alignment work, ensuring vehicles sit level and stable during non-alignment service.
The Atlas® 412A incorporates structural and cosmetic features typically found on lifts costing thousands of dollars more. Manufactured to exacting specifications and rigorously tested to perform flawlessly at its rated capacity, this alignment lift system has been built to the same high standards for many years—a testament to its proven design and reliability.
Unlike many competitors that rely on old-style chain lifting systems with exposed hydraulic cylinders, the Atlas® 412A uses a modern high-strength cable system paired with an under-runway oversized hydraulic cylinder. This design is far easier to level properly and eliminates the exposed cylinder that causes door dings in tight shop spaces. The lift is powered by a 2 HP 220V single-phase motor (requires a 30 amp breaker), ensuring smooth, reliable operation day after day.
Complete Package: Two RJ-6000 Rolling Jacks Included
This combo package includes two Atlas® RJ-6000 rolling air/hydraulic jacks (color may vary: blue or black), each rated for 6,000 lbs. These heavy-duty, commercial-grade jacks are engineered to lift and support the front or rear of a vehicle on a four post lift, allowing technicians to perform wheel, brake, and suspension service with ease. With two jacks, you can support the entire vehicle in the air simultaneously—a must-have for busy shops performing full-service undercarriage work.
The RJ-6000 features telescoping arms that extend over the runways of the four post lift, with lift pads positioned under the vehicle's factory lifting points. The expandable supports adjust to fit many different brands of four post lifts, and a unique roller system allows the jack to glide smoothly under the entire length of the vehicle. Large, heavy-duty steel wheels make positioning the jack fast and effortless.
Each RJ-6000 is equipped with an air/hydraulic pump (requires a shop air compressor) and operates on delivered air pressure of 70-95 PSI. A scissor mechanism ensures level lifting, and the jack features two solid locking positions that eliminate hydraulic pressure when the vehicle is suspended—functioning like a pair of jack stands for maximum safety. The compact, low-profile design and powder-coated finish ensure durability and easy maneuverability in tight spaces.

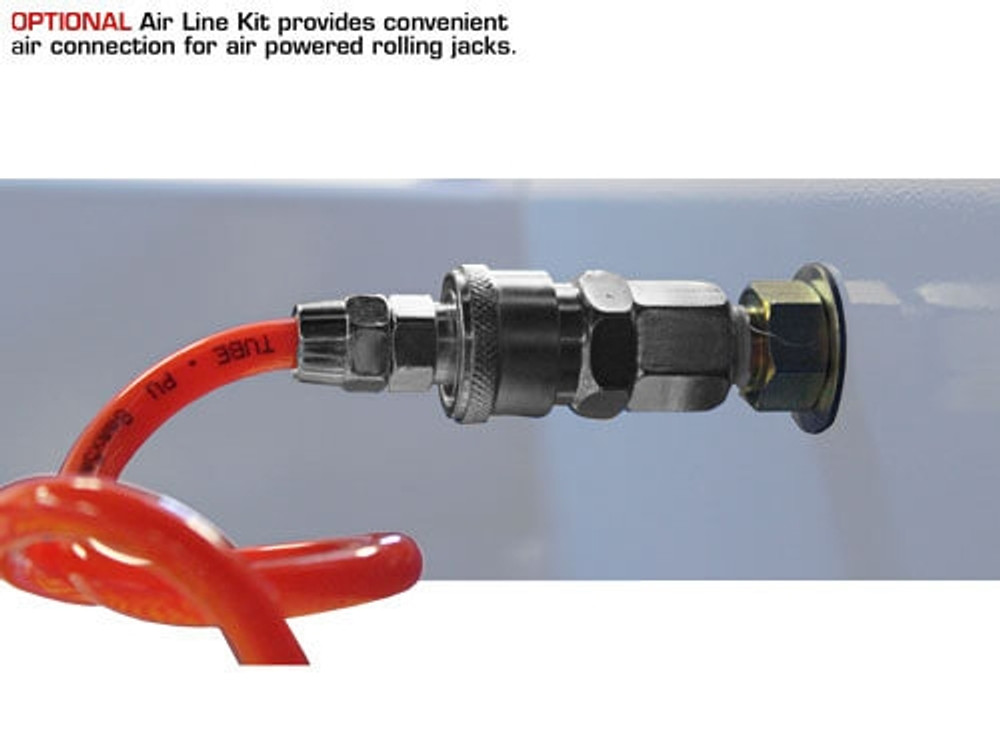

Both jacks come standard with peg-style truck adapters, increasing the lifting height to accommodate pickups, SUVs, and other taller vehicles. Each jack also includes an airline kit, and when you purchase this combo package, you receive a FREE airline kit valued at $300.
RJ-6000 supersedes ATPK-RJ6BK-AH-KIT
Important Operating Information:
The Atlas® RJ-6000 is designed and engineered to operate on delivered air pressure between 70-95 PSI. Exceeding 95 PSI may damage your jack. For more information on recommended operating air pressure, click here.
Key Features & Highlights

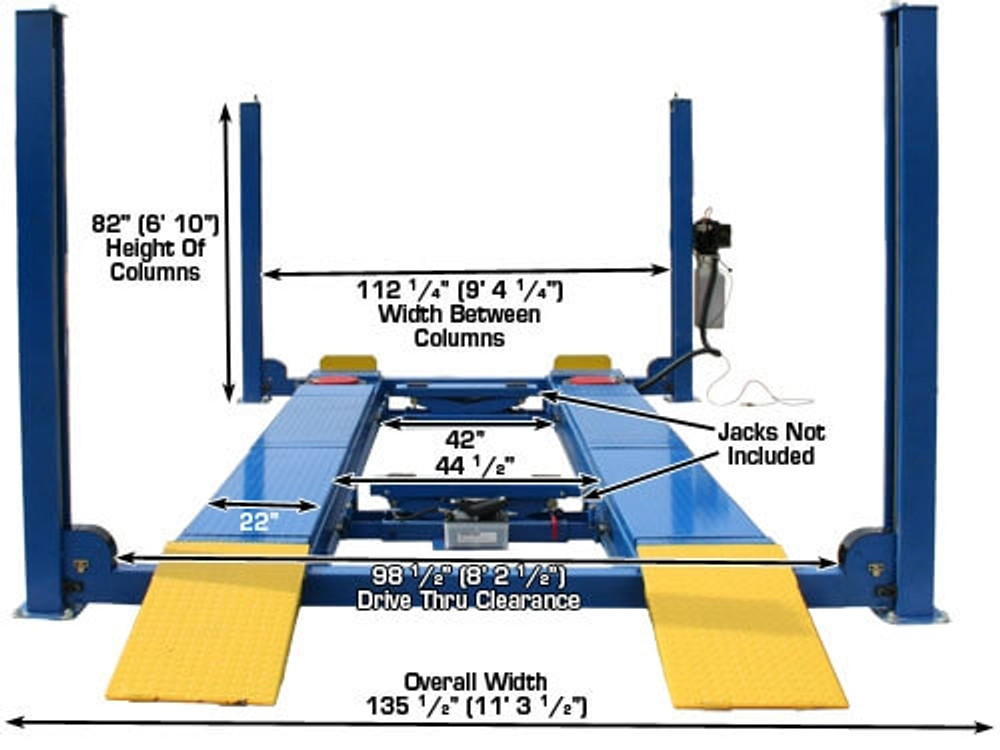

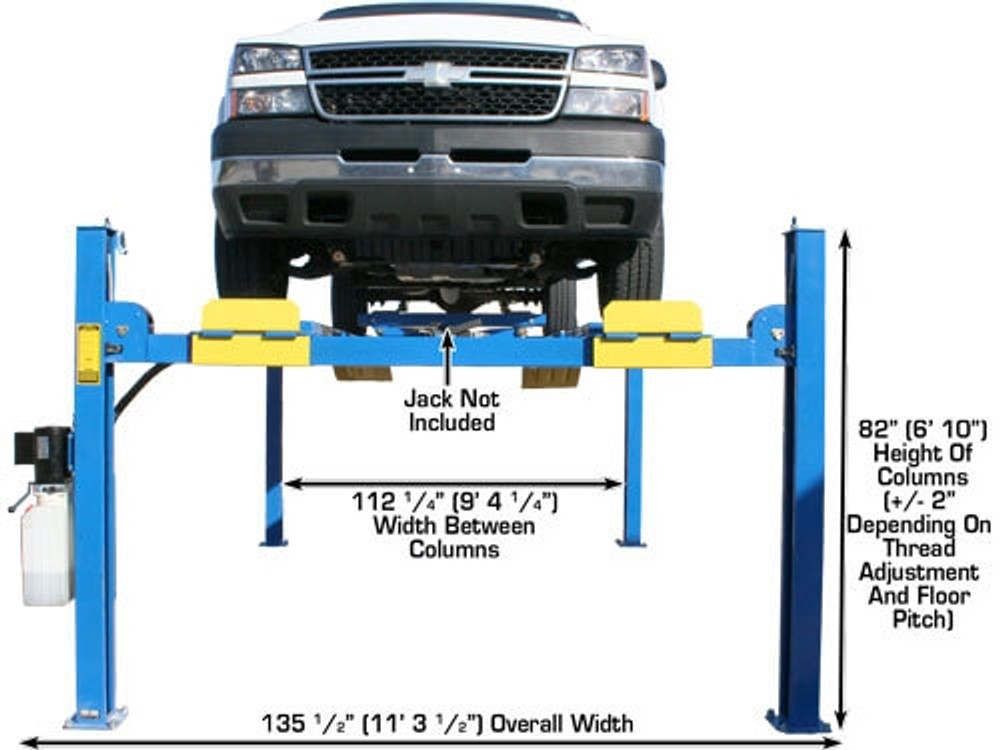

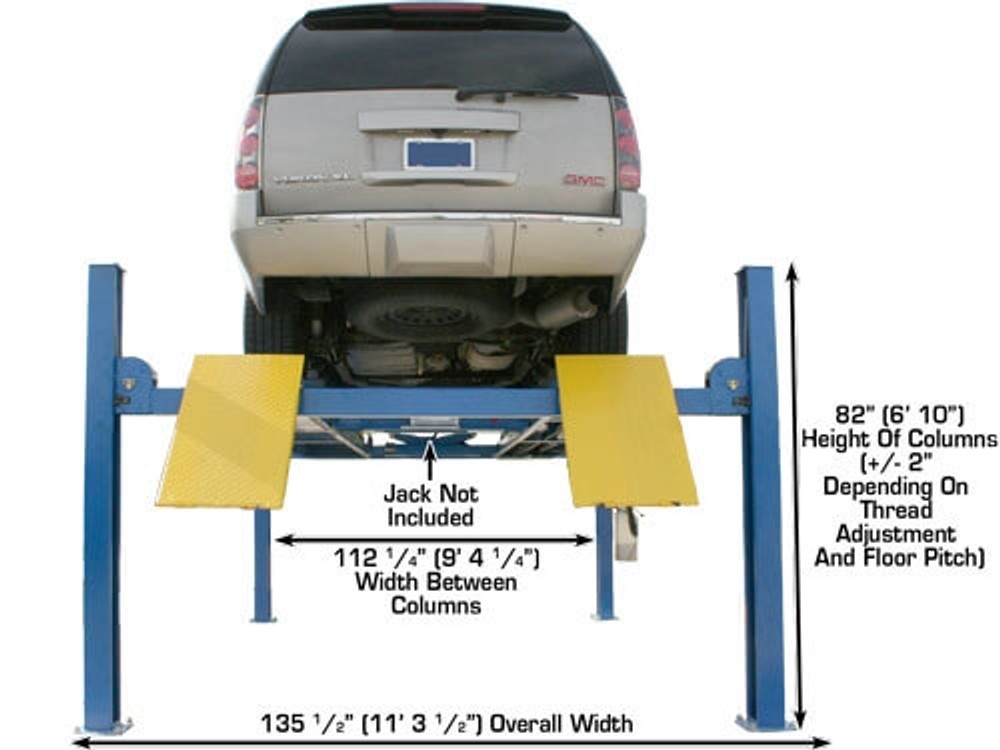

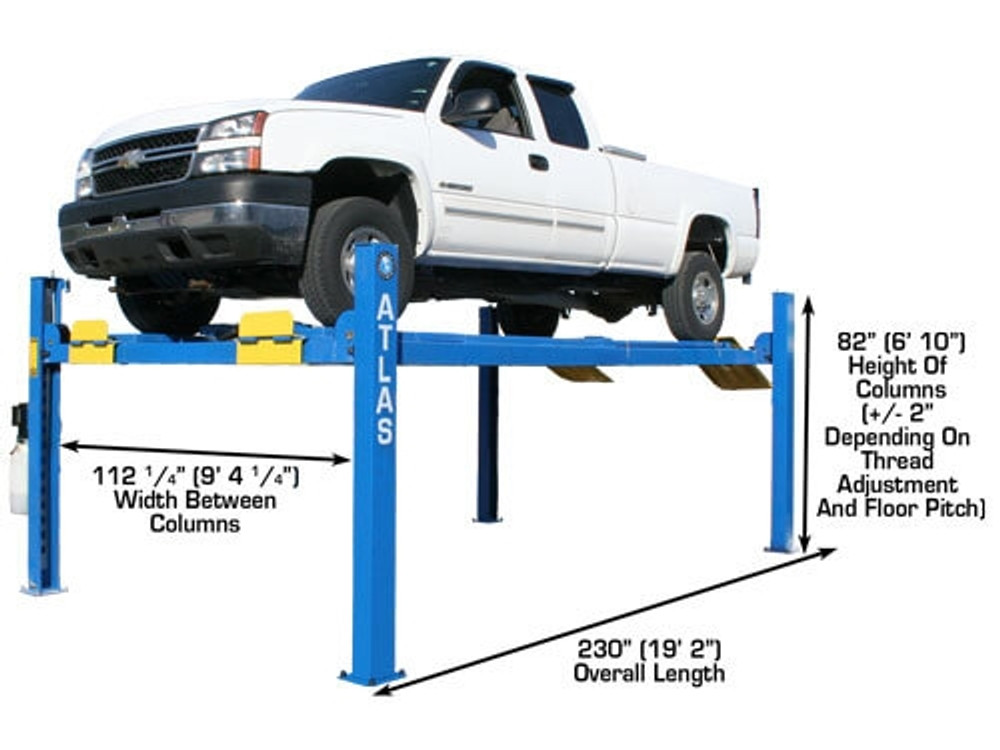

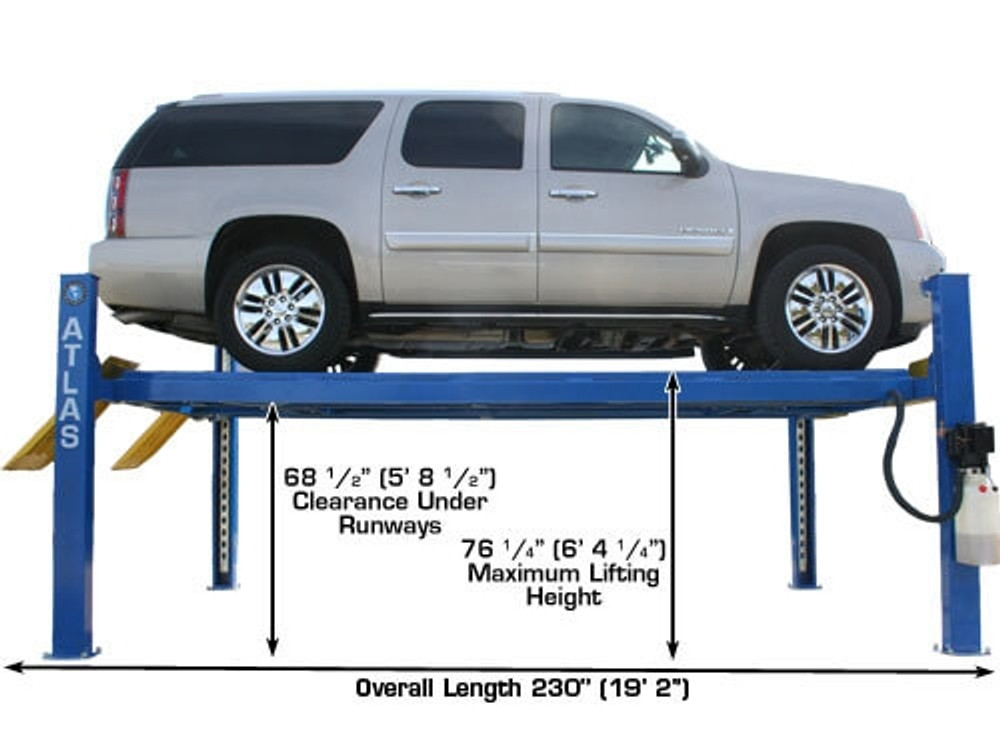

12,000 lb capacity commercial-grade four post alignment lift with 76 1/4" lifting height

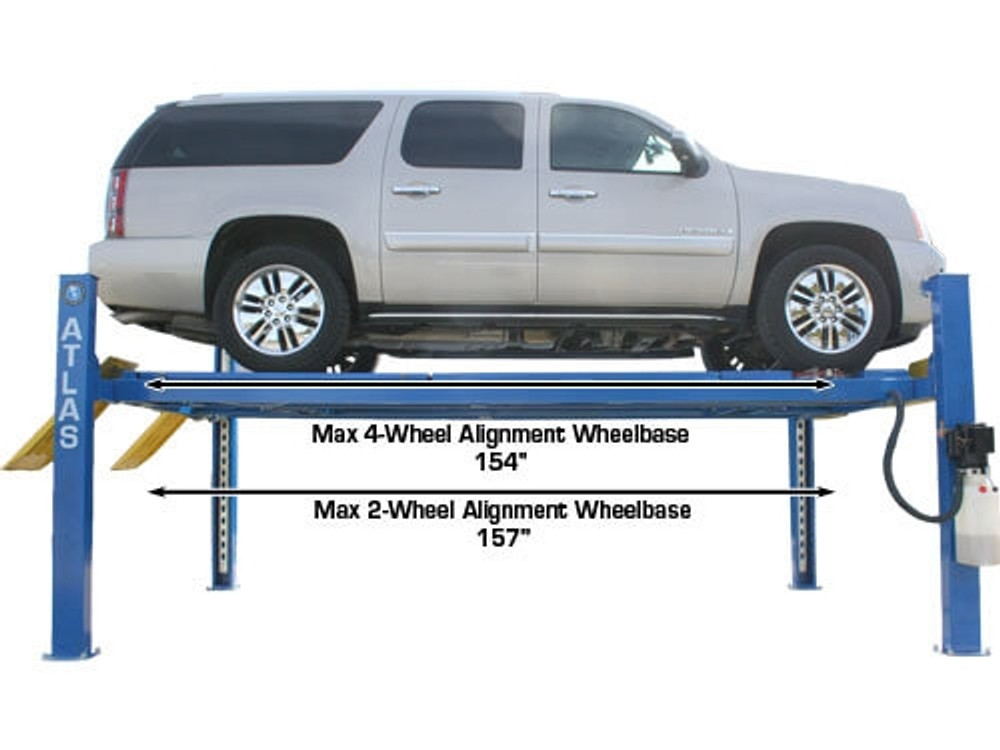

Alignment slip plates and turntables included — repositionable to accommodate a wide range of wheelbases (154" max / 82" min for 4-wheel alignment)

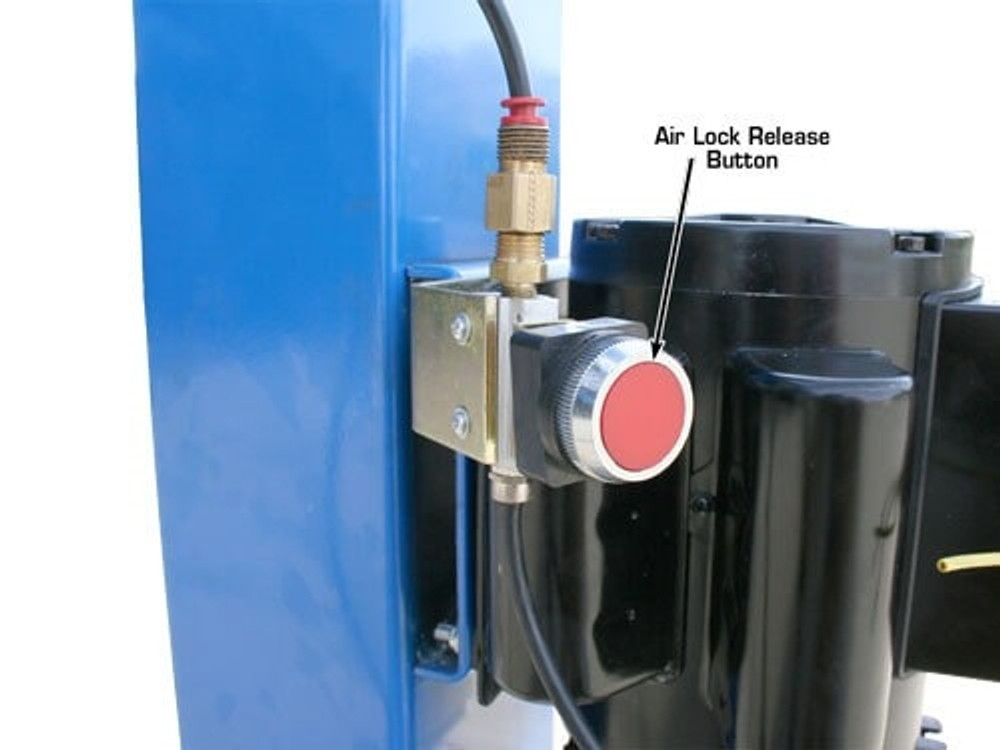

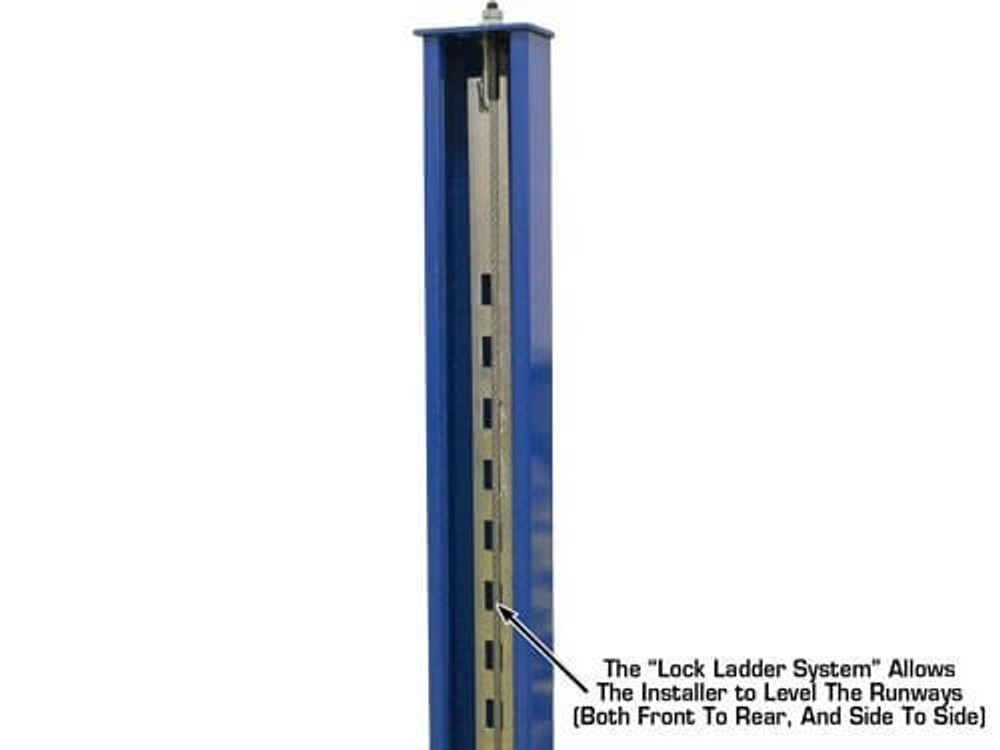

Lock ladder column design with automatic shut-off switch and air-operated single point lock release for fast, safe operation
High-strength cable lifting system with under-runway oversized hydraulic cylinder — superior to old-style chain lifts
Two RJ-6000 rolling air/hydraulic jacks (6,000 lb capacity each) with truck adapters, airline kits, and scissor mechanism for level lifting

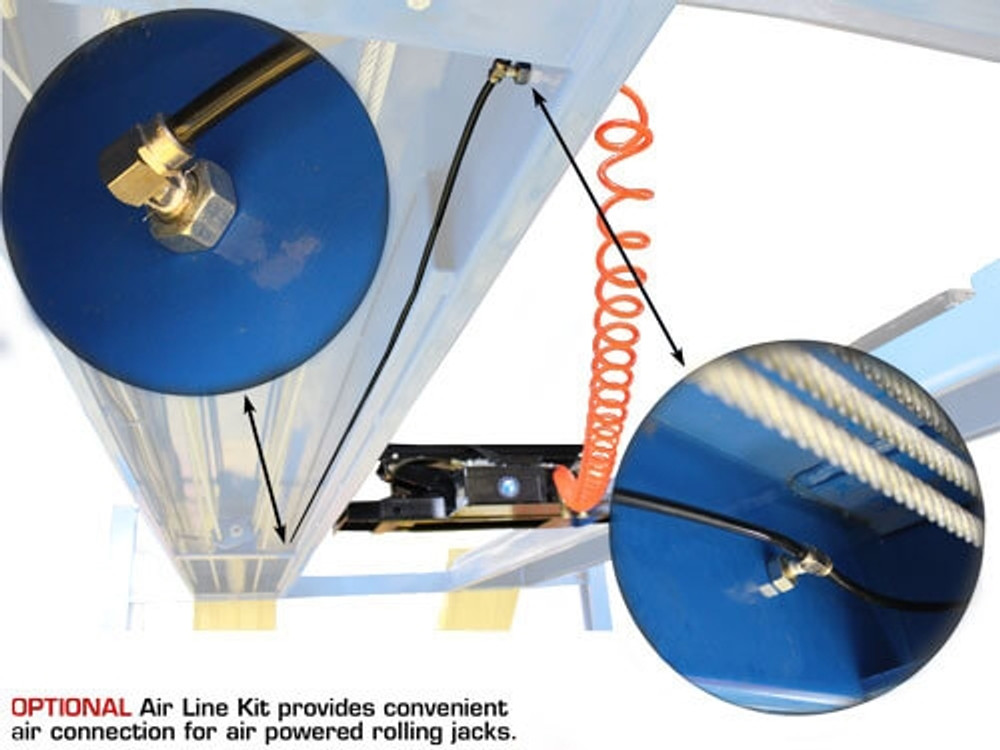

FREE airline kit included with combo package (a $300 value)
Diamond plate runway surface with Atlas® powder coat finish for long-lasting durability
Mounting hardware included for straightforward installation
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Built for Commercial Use, Priced for Value
The Atlas® 412A Combo delivers professional-grade performance, precision alignment capabilities, and comprehensive lifting solutions—all in one complete package. Whether you're running a full-service alignment shop, performing brake and suspension work, or maintaining a fleet, this combo gives you the capacity, versatility, and reliability to handle virtually any job.
Backed by Atlas® Automotive Equipment's commitment to quality and manufactured to exacting specifications, the 412A alignment lift and RJ-6000 rolling jacks represent an exceptional investment for shops that demand the best.
