The Atlas® 12ASL Commercial Grade Alignment Scissor Lift represents a perfect fusion of Italian precision engineering and cost-effective manufacturing excellence. Developed through a joint venture partnership with one of Italy's most prestigious lift manufacturers, this 12,000 lb capacity alignment lift delivers world-class performance and reliability at a fraction of the cost of competing big-name brands that can run two to three times the price.
This complete combo package includes the 12ASL Alignment Scissor Lift paired with the RJ-6 Rolling Air/Hydraulic Center Jack (6,000 lb capacity) and truck adapters, providing everything you need for professional-grade wheel alignment work on a wide range of vehicles from passenger cars to light trucks.
The Atlas® 12ASL offers exceptional installation flexibility with its impressive 84 1/4" (over 7 feet) lifting height. This generous height allows the lift to be floor mounted with included approach ramps, or recessed for a professional flush mount installation. When flush mounted, the lift still provides ample clearance beneath the runways for proper undercarriage access, making it ideal for shops looking to maximize floor space while maintaining full functionality.
For flush mount applications, detailed pit dimensions are available to ensure proper installation. The full frame construction under the scissor mechanism provides maximum stability in either mounting configuration.
View or Download Flush Mount Pit Dimensions
Professional wheel alignment demands precision and stability. The 12ASL delivers both with heavy-duty construction and super-balanced lifting design specifically engineered for alignment work. Very precise platform leveling accuracy ensures accurate measurements and adjustments every time.
The lift accommodates 4-wheel alignment wheelbase from 90" minimum to 168" maximum, and 2-wheel alignment wheelbase from 86" minimum to 172" maximum, covering virtually all passenger vehicles and light trucks. The 23 3/4" wide runways with 39" spacing between runways provide secure vehicle positioning.

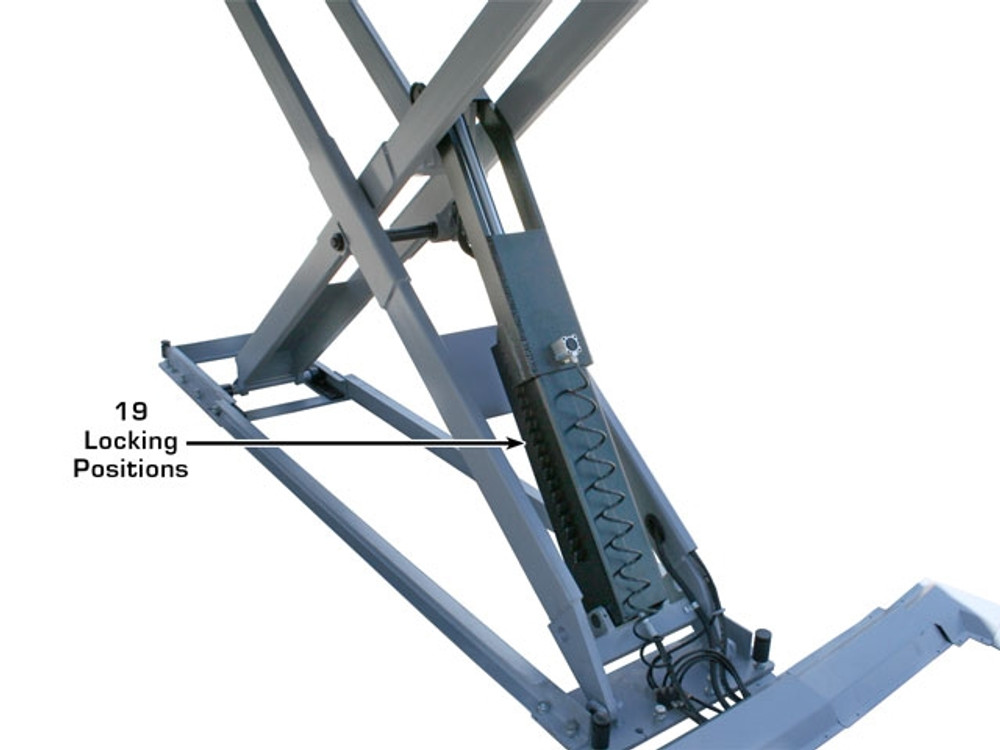

Extra-long 71" (5' 10") approach ramps make loading low-riding vehicles effortless, while the 11 1/2" lowered height ensures easy vehicle access. With 19 locking positions, you have complete control over working height for maximum technician comfort and efficiency.
Safety is paramount in any lift operation. The Atlas® 12ASL features a mechanical safety lock with air-operated engagement and release for secure vehicle positioning at any of the 19 locking heights. An overload valve protects against exceeding capacity limits, while an emergency manual pump for lowering ensures you're never stranded in the event of power loss.
The lowering speed control valve allows smooth, controlled descent, and the air line kit is included for convenient installation. The lift operates on 220V ±5% (209-231 volts) single phase power and requires a 30 amp breaker.

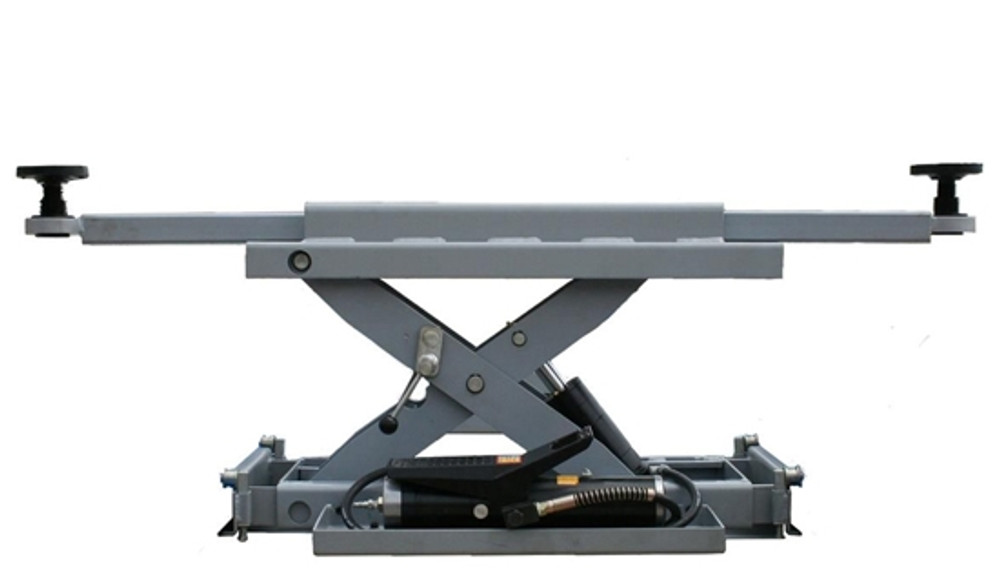

This combo package includes the Atlas® RJ-6 Rolling Air/Hydraulic Center Jack, the perfect accessory for professional alignment work. The RJ-6 (6,000 lb capacity) is specifically designed to fit the Atlas® 12ASL and 12AWFSL alignment racks, and may also be used on competitive scissor lifts and four-post lifts with welded rails on the inside of the runways.
While the "wheels free" system built into Atlas® scissor lifts is designed to reach and lift most vehicles, many professional technicians prefer using the rolling jack to lift either the front or rear of the vehicle independently for faster, more efficient alignment procedures.
The scissor mechanism design of the RJ-6 ensures level lifting action, critical for alignment accuracy. Its compact size with low profile (minimum lifting height of just 3 1/2") allows it to fit under most vehicles, while reaching a maximum lifting height of 21 3/4". The jack adjusts to work with runway spacing from 32" to 48", with a maximum working width range of 31 1/2" to 49 1/2".
The RJ-6 comes standard with peg-style truck adapters that increase lifting pad height, allowing the jack to raise most pickups and larger trucks that sit higher than average passenger cars. These stack-on truck adapters are included and feature convenient adapter storage built into the jack frame. Heavy-duty commercial-grade construction with a powder-coated finish ensures long-lasting durability in demanding shop environments.
⚠ Important RJ-6 Operating Pressure:
The Atlas® RJ-6 is designed and engineered to operate on "delivered" air pressure of 70-105 PSI. Exceeding 105 PSI may damage your jack.
Click here for detailed operating pressure information.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
12ASL Alignment Scissor Lift Includes:
RJ-6 Rolling Jack Includes:
The Atlas® 12ASL ships in 2 boxes with dimensions of 198" x 53" x 29 1/2" and a total weight of 5,000 lbs. The RJ-6 rolling jack ships separately at 350 lbs. This is commercial freight shipping requiring a loading dock or forklift for delivery reception.
Warranty Information
To View Atlas® Automotive Equipment 12ASL Warranty Click Here
