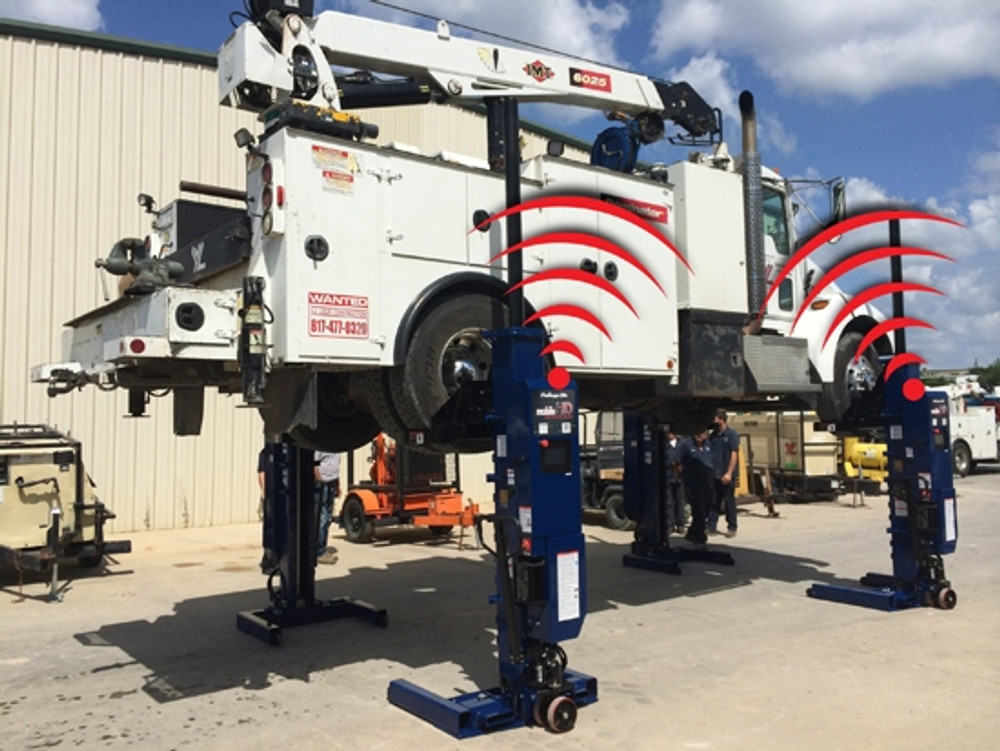

Transform your shop into a multi-bay lifting powerhouse with the Challenger CLHM-140 heavy-duty mobile column lift system. Engineered for professional automotive, fleet, and municipal service applications, this 2-column configuration delivers a combined 28,000 lbs. total lifting capacity (14,000 lbs. per column). Featuring wireless operation, an integrated 110V charging system, and a state-of-the-art Android-based 10" touch screen control console, the CLHM-140 brings unmatched mobility, precision, and safety to every lift. ALI/ETL certified, these robust mobile columns can be operated on almost any solid surface—indoors or outdoors—making them the ultimate solution for shops that demand versatility and performance.
To view the lift inspection guide, click here.
The Challenger CLHM-140 is a complete mobile lifting system designed to accommodate multiple lift bays with one lift set. Each robust yet easily maneuverable column operates independently and can be positioned precisely where you need it—on shop floors, paved outdoor areas, or any solid surface. The system's 12-volt deep cycle battery operation (providing 24V nominal power) eliminates the need for external power hookups during lifting operations, giving you true cable-free mobility throughout your facility.
The CLHM Series is available in 1, 2, 4, 6, and 8 column configurations with both 14,000 lb and 19,000 lb per column capacity options. With a 2-column CLHM-140 set, you achieve a maximum lift capacity of 28,000 lbs, handling everything from passenger cars to light commercial trucks. Expand to larger configurations for even heavier-duty applications—up to 152,000 lbs. total capacity with an 8-column 19,000 lb setup.
Each CLHM-140 column features a built-in 110-volt multi-stage charging system for continuous battery maintenance and peak performance. The integrated charger requires only 120 VAC @ 60 Hz and draws just 1.3 Amps, making installation and operation simple in any shop environment. A charging status light provides real-time battery updates, helping you plan your workload and manage battery life effectively.
Starting in May 2025, all Challenger CLHM lifts come equipped with AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. These advanced batteries offer superior durability, faster recharge times, and enhanced reliability compared to traditional batteries—and are backed by a 2-year free replacement warranty.

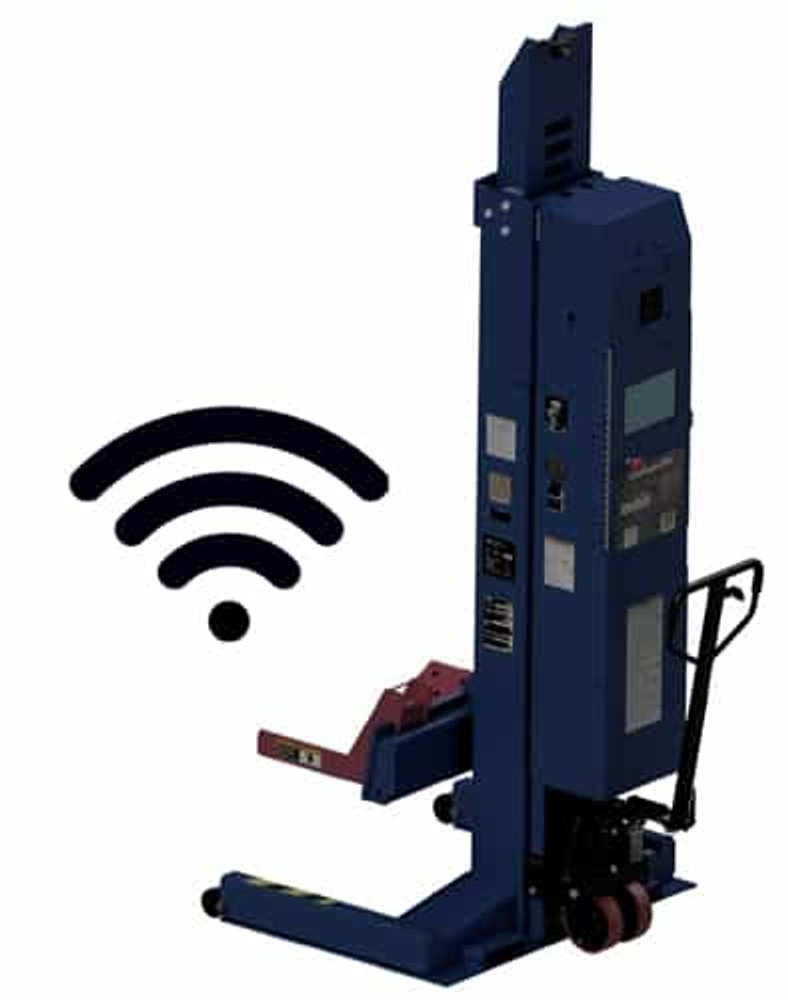

Say goodbye to tangled cables and trip hazards. The CLHM-140 wireless operation system provides a completely clutter-free work area with no cables to connect, navigate around, roll over, or replace. Each column communicates via 12 distinct radio frequencies with a wide channel range (100 to 120) for each frequency, ensuring reliable communication and eliminating interference from external radio noise or other shop equipment.
This wireless technology streamlines setup and operation while maximizing shop safety and efficiency. Technicians can move freely around the vehicle without obstruction, and there's no downtime due to damaged or worn cables.
Take full command with the NEW Android-based 10" touch screen control console. This intuitive integrated interface provides easy-to-use control and precise measurements of lifting height and lifting weight per column in real time. Operators can monitor every aspect of the lift with a simple glance, ensuring safe and accurate positioning every time.
The console features:
This advanced control system reduces operator training time, minimizes errors, and keeps your team productive from day one.
The Challenger CLHM-140 is built to meet the industry's most stringent safety standards. Each column is ALI/ETL certified, ensuring compliance with ALI Gold Label standards for maximum operator and vehicle protection.
Key Safety Features:
The precise balanced design and heavy-duty tow handle combined with spring-loaded wheels make moving and aligning individual lift units simple and easy with minimal effort. The compact turning radius of 47 inches allows maneuverability in tight spaces.

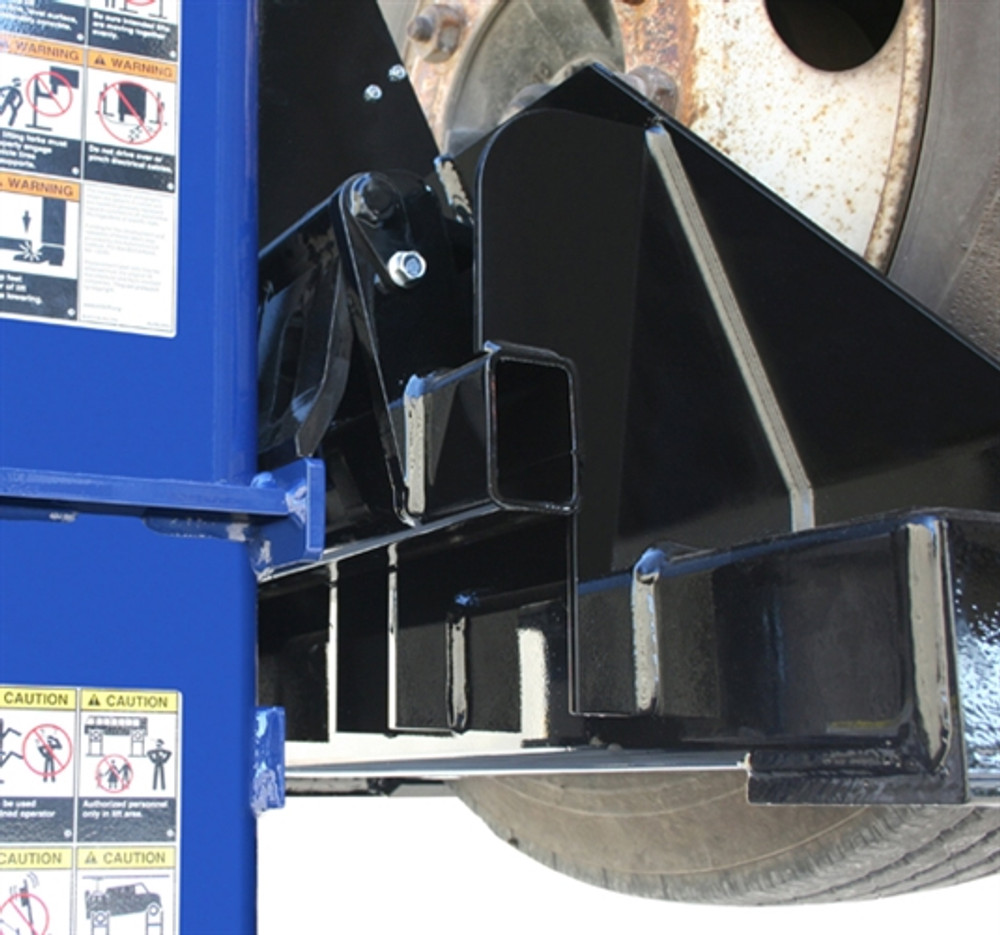

Each CLHM-140 column features adjustable wheel carriages that accommodate a wide range of wheel sizes—from 5" to 24.5" diameter (127 to 622 mm)—making this system compatible with passenger vehicles, light trucks, vans, and more. The columns measure 44.25" wide (C) by 53.625" long (D), with a footprint of 560 sq inches, providing a stable lifting platform without consuming excessive shop space.
At a weight of 1,485 lbs per column, the CLHM-140 is robust yet manageable. The ground pressure at maximum load is just 27.7 psi, minimizing stress on shop floors.
Limited Time Offer: Receive a $750 Rebate Per Column
Valid for purchases made between July 28th and September 30th, 2025.
How to claim your rebate:
Deadline to submit: November 15, 2025 for purchases made between July 28, 2025 and September 30, 2025.
Valid for U.S. only. Please allow 4-6 weeks for processing.
Watch these videos to see how the Challenger CLHM Series mobile column lifts deliver unmatched versatility and performance in real-world shop environments:
For a complete overview of the CLHM Series features, click the image below to view the full feature sheet (PDF):
Click on Image to Enlarge it
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
LIMITED WARRANTY
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will begin from invoice date of lift purchase.
Effective: June 1, 2025 - Challenger CLHM / CLMM model lifts Warranty
