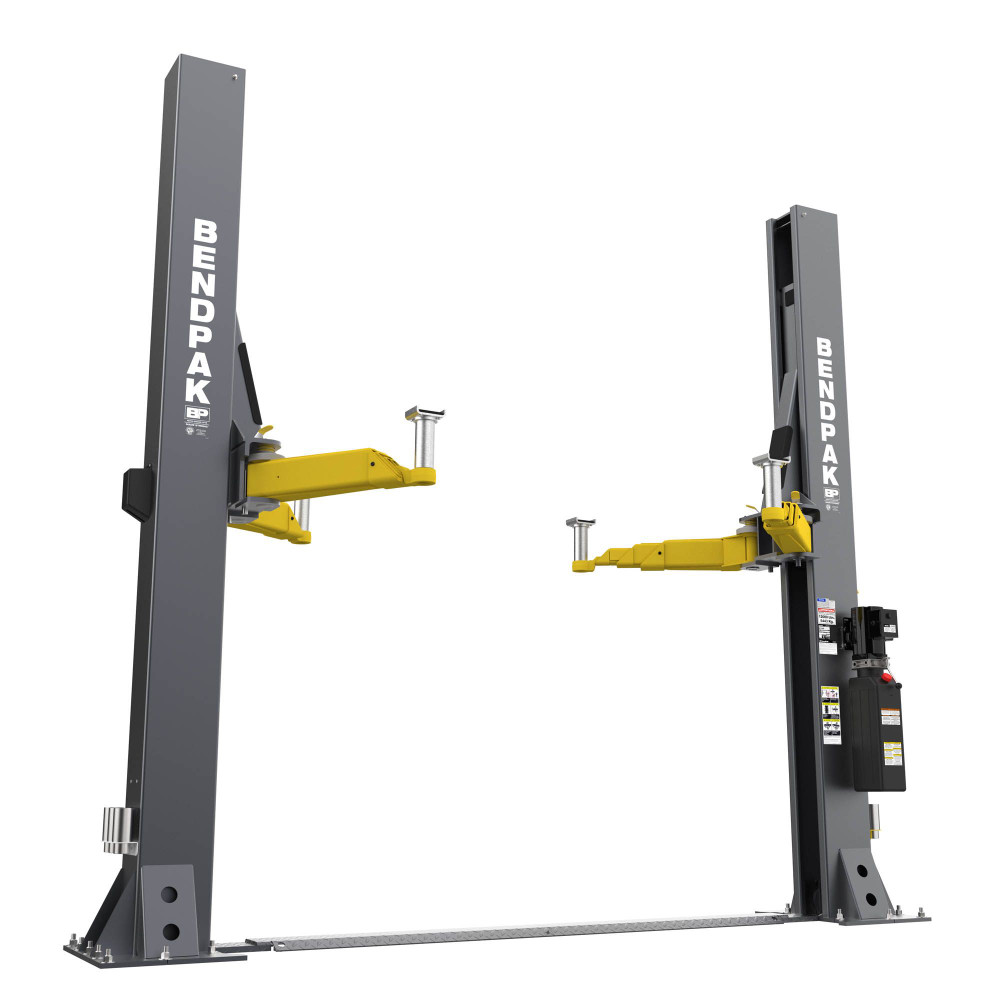

BendPak 12APF Floorplate 2 Post Lift 12,000 lb w/Triple-Telescoping Arms

To View or download the lift inspection guide Click Here.

The 12APF is a heavy-duty 12,000-lb lifting capacity open-top two-post lift designed for shops that demand flexibility without sacrificing performance. With no overhead beam, it offers unhindered vertical clearance—perfect for working on high-profile vehicles like commercial vans and lifted trucks. The hydraulic lines are routed through a durable steel floorplate between the posts, keeping your workspace safe and tidy. Whether you’re lifting for maintenance, inspection, or repair, the 12APF is built to handle the job with strength, safety, and simplicity.

Engineered for strength, safety, and simplicity
The BendPak 12APF is designed for shops that demand true heavy-duty lifting performance in spaces where traditional overhead lifts won’t fit. Its shortened columns and open-top design make it ideal for low-ceiling service bays, retrofit facilities, and older buildings with height restrictions.

Improved access for taller vehicles
The open-top configuration provides unobstructed vertical clearance, making it an excellent choice for servicing commercial vans, lifted trucks, and full-size SUVs. Technicians can work comfortably in an upright position while moving freely around the vehicle without overhead interference.

Clean, protected line routing
A rugged steel floorplate fully conceals hydraulic hoses and equalizer cables, creating a safer, more organized workspace. This design allows jacks, oil drains, and shop equipment to roll smoothly across the bay without obstruction.

Exclusive Bi-Metric arm system
BendPak’s Bi-Metric arms deliver fast, flexible positioning to match a wide range of vehicles. Technicians can quickly switch between symmetric lifting for optimal balance or asymmetric configurations for improved door access and interior reach.

Drop-end arms with included adapters
Low-profile drop-end arms simplify spotting under low-clearance vehicles, while the included frame cradle pads, medium adapters, and tall adapters provide the versatility needed to lift trucks, vans, and vehicles with varying frame heights.

Advanced ASARS safety technology
The Automatic Swing Arm Restraint System (ASARS) provides a full 360-degree arm restraint with more than 2,000 pounds of holding force. Built from forged steel, this system keeps arms securely locked during demanding service procedures such as suspension work, braking, and high-torque repairs.

Built for long-term commercial durability
Single-piece columns, dual 3/8" equalizer cables, oversized cable sheaves, and self-lubricating bearings ensure smooth, dependable operation in high-volume environments. Fifteen locking positions spaced every four inches give technicians precise working height control.

Warning Sign WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov

Warranty Information

BendPak 521 Warranty

Better Products – Better Service – Better Value

LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER

Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.

Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
- Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
- Any damage caused by overloading Product beyond rated capacity
- Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
- Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
- Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
- Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
- Rusted components due to improper maintenance or corrosive environments
- Cosmetic defects that do not interfere with product functionality
- Damage due to incorrect voltage or improper wiring
- Any failure that results from improper installation or use not according to specifications
- Damage caused by disasters such as fire, flood, wind, and lightning
- Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
- Provide dated proof of purchase and maintenance records
- In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
- Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
- Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
