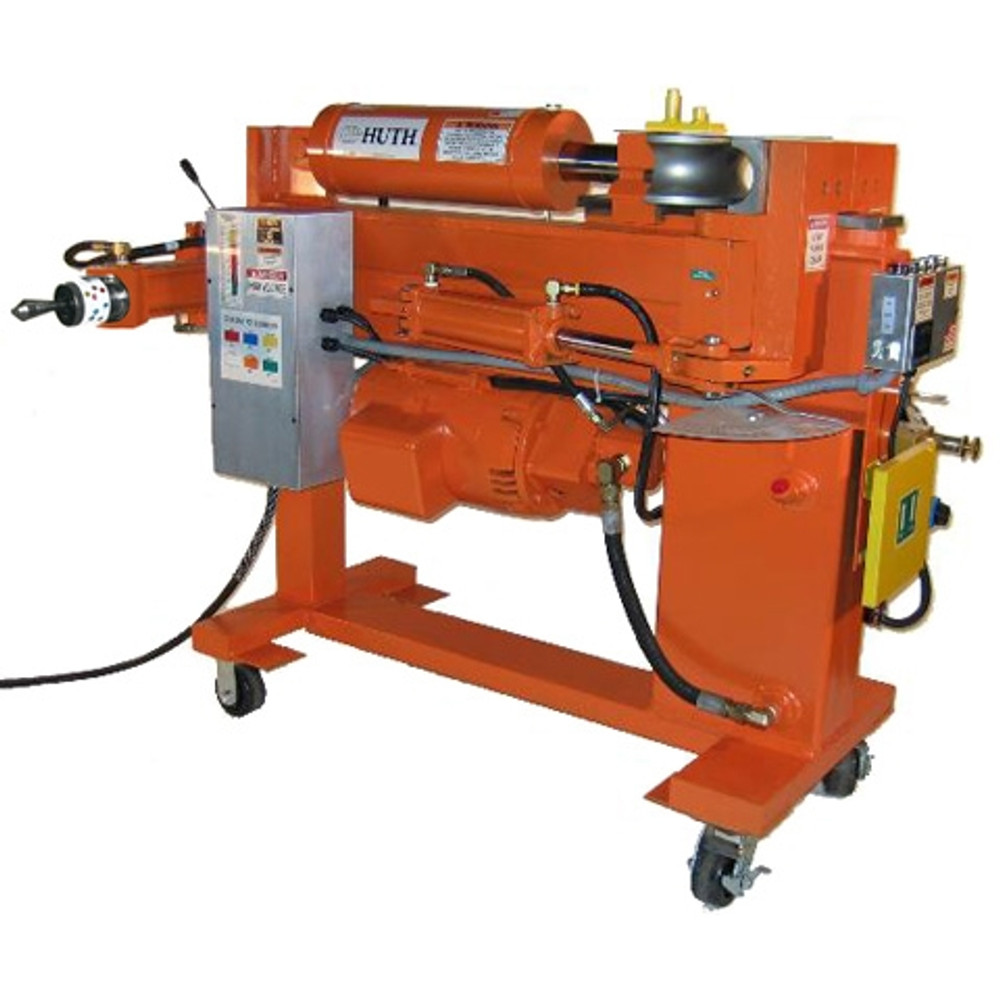

The Huth 2600HD is a production-grade heavy-duty pipe bender engineered for shops that demand precision, power, and versatility when bending heavier materials up to 3" OD. Delivering a commanding 85,000 lbs of bending force—significantly more than standard models—this machine meets the exacting standards for precise bending and end finishing that Huth is known for. Powered by a robust 7-1/2 HP motor, the 2600HD completes a 3" tube bent to 90 degrees in just 16 seconds in automatic mode, making it the ideal solution for high-volume exhaust fabrication, custom chassis work, roll cage production, and industrial tubing applications.
What sets the 2600HD apart is its ergonomically designed knee control system, which allows for hands-free operation during tube positioning and securing. This intuitive control is invaluable for rapid prototyping and production work, freeing your hands to guide material while your knee manages forward and reverse motion. Pair that with the automatic depth-of-bend selector and a smart adjustable return-to-home position control, and you have a machine that ensures fast transitions between multiple bends, repeatable accuracy, and maximum efficiency on every job.
The integrated heavy-duty swager/expander provides complete end-finishing capabilities in one machine. The swager end accommodates 1" to 3" tubing, while the expander end handles expansions from 1" to 5-1/2". Using Huth's exclusive Accu-Sizer bulls-eye expanding system, you can dial in precise expansions every time with confidence and repeatability. With rugged I-Beam construction, reinforced bending gates and frame, a large-volume reservoir, and an elevated center of bend, the Huth 2600HD is built to withstand the rigors of daily production while delivering consistent, professional-quality bends.
Why Choose the Huth 2600HD?
85,000 lbs of bending force – Engineered for heavier-duty materials and faster cycle times than standard models.
Ergonomic knee control – Hands-free forward/reverse operation for faster tube positioning and prototyping.
Automatic depth-of-bend selector – Easy-to-read, easy-to-adjust plate ensures precision and repeatability on every bend.
Complete end-finishing capabilities – Integrated heavy-duty swager/expander with Accu-Sizer system for perfect expansions from 1" to 5-1/2".
Production-ready speed – Bend a 3" tube to 90 degrees in just 16 seconds with the 7-1/2 HP motor and automatic mode.
Superior Bend Quality – Made in the USA
When you invest in a Huth bender, you're investing in American-made quality and precision. The comparison images below show the dramatic difference between a Huth 3" tube bend and an Asian-made competitor. Notice the dimpling, tube flattening, and inconsistent wall thickness in the import sample—flaws that compromise structural integrity and appearance. Huth benders produce smooth, consistent, professional-quality bends every time, with no dimpling or flattening, ensuring your finished product meets the highest standards.
Huth 3" Tube Bend (top on tube) vs. Asian-made Notice dimpling on bend in lower sample
Huth 3" Tube Bend (tube to left) vs. Asian-made Notice tube flattening on the right
Smart Features for Production Efficiency
The Huth 2600HD is packed with intelligent features designed to save time and maximize accuracy. The smart automatic mode includes an adjustable return-to-home position control, a unique time-saving feature that increases efficiency by ensuring fast and easy transitions between multiple bends. The automatic depth-of-bend selector ensures precise bending control through an easy-to-read, easy-to-adjust depth-of-bend plate, guaranteeing accuracy and repeatability on every production run.
The push button controls and ergonomic knee control work together seamlessly, allowing operators to quickly locate and secure tubes hands-free, dramatically speeding up cycle times and reducing operator fatigue. Whether you're prototyping a custom exhaust system or running production bends for roll cages, the 2600HD delivers the control and speed you need.
The machine also features rugged I-Beam construction, reinforced bending gates and frame, an elevated center of bend for improved material handling, and a large-volume reservoir for consistent hydraulic performance. The included bending die retainer ensures secure tooling, and the exclusive safety guard package provides peace of mind during operation. Front swivel casters without brakes allow easy positioning in your shop, while 220-volt, 60-Hz operation supports both single-phase (50-amp service required) and three-phase (30-amp service required) configurations, with high voltage and high-speed options available.
Note:Control Wrinkle Die H5531 is now available for this model to bend 304 Stainless Steel with superior control and precision.
Complete End-Finishing Capabilities
The heavy-duty swager/expander on the 2600HD gives you complete end-finishing capabilities in one versatile machine. The swager end accommodates 1" to 3" tubing, perfect for creating tight, secure connections. The expander end allows for expansions from 1" to 5-1/2", giving you the flexibility to handle a wide range of tube sizes and applications. With Huth's Accu-Sizer bulls-eye expanding system, you can dial in precise expansions every time, ensuring consistent results and eliminating guesswork.
Optional tooling expands the capabilities even further, including segmented expander tooling, segmented flaring tooling, segmented V-band tools, segmented bead tooling, segmented header flange tooling, solid swagers, collets, reducers, solid ball tools, and header collector tools. Call our Sales Team to identify the best tube forming tooling for your specific applications.
The Easy-to-Use Pipe Bender
A compression pipe bender is an extremely powerful and versatile tool, but many who have not used one don't fully appreciate just how easy it is to operate. When we get people to do their first bend, intimidation tends to fade away and enthusiasm to do more takes over!
There are two ends to the machine—the bending end and the end-forming end. Let's focus on the bending end to show just how simple this tool is. There are three things you need to know in advance: the distance between bends, the orientation of the desired bend, and the depth of the desired bend.
Plot your distances with a marker: Mark your pipe where you want your bends, working from left to right.
Now turn the bender on—you are almost ready to go: Apply lubrication and set your pipe in the jaws.
Setting a rotation dial to keep oriented: Prior to your first bend, setting a rotation dial on the far right end of your pipe, set to zero, will keep you oriented as you progress through multiple bends on each pipe. This is especially important if you are using bending program cards.
Choose bend radius: Smaller radii give tighter bends, larger radii are more forgiving. Normally smaller tubes utilize smaller radii (larger tubes use larger radii) with a minimum of 1.5-2X the tube OD.
Bend to the right depth: Every bender has a depth-of-bend indicator, and automatic benders let you pre-set the depth of bend. The pointer tells you when you reach your target bend angle.
Basically, that's it. There are times when a bit more knowledge helps (When do I use a ½ shoe? What do I use for thin-walled material?). But these are compression bender basics for bending with your machine!
See the Huth 2600HD in Action
Watch these videos to see the Huth 2600HD in action, learn bending techniques, and discover tips for getting the most out of your machine:
"Bending exhaust pipe without cards? Watch this!"
Optional Die Tooling Packages
Expand the versatility of your Huth 2600HD with optional die tooling packages tailored to specific bending applications. Each package includes precision-engineered dies for different tube sizes and bend radii:
Die Package Tooling (Use with 1674 Expander Only)
View Package
Optional Accessories
Optional 95458 Foot Pedal Kit
Add even more hands-free control flexibility with the optional foot pedal kit, ideal for operators who prefer foot-based control or need to alternate between knee and foot operation.
Alternative Model Available
Need a bender without the swager box?
The Huth 2600HD is also available without the swager as Model 2601.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
This warranty is made for the exclusive benefit of the original owner and is not transferable. There is no other warranty applicable to HUTH PRODUCTS, and no representative has any authority to make any representation, promise or agreement except as stated in the warranty.
One year warranty *
For one year from the date of invoice the Huth will repair the bender if found to be defective in material and workmanship without cost to the purchaser. Following the first 90 days from the date of original invoice, replacement parts are shipped from the seller to the purchaser freight collect. Return parts are shipped prepaid to the Huth. In effecting such repairs, the Huth may at its election, repair or replace any part which it finds to be defective. Tools and dies are warranted for a period of (90) ninety days against defect in material and workmanship.
* During the first 90 days from date of original invoice the Huth will pay freight charges for replacement of defective parts.
NOTE: Designs SUBJECT TO CHANGE WITHOUT NOTICE. Huth reserves the right to make changes and/or improvements without incurring any obligation to do so on previously sold products.
