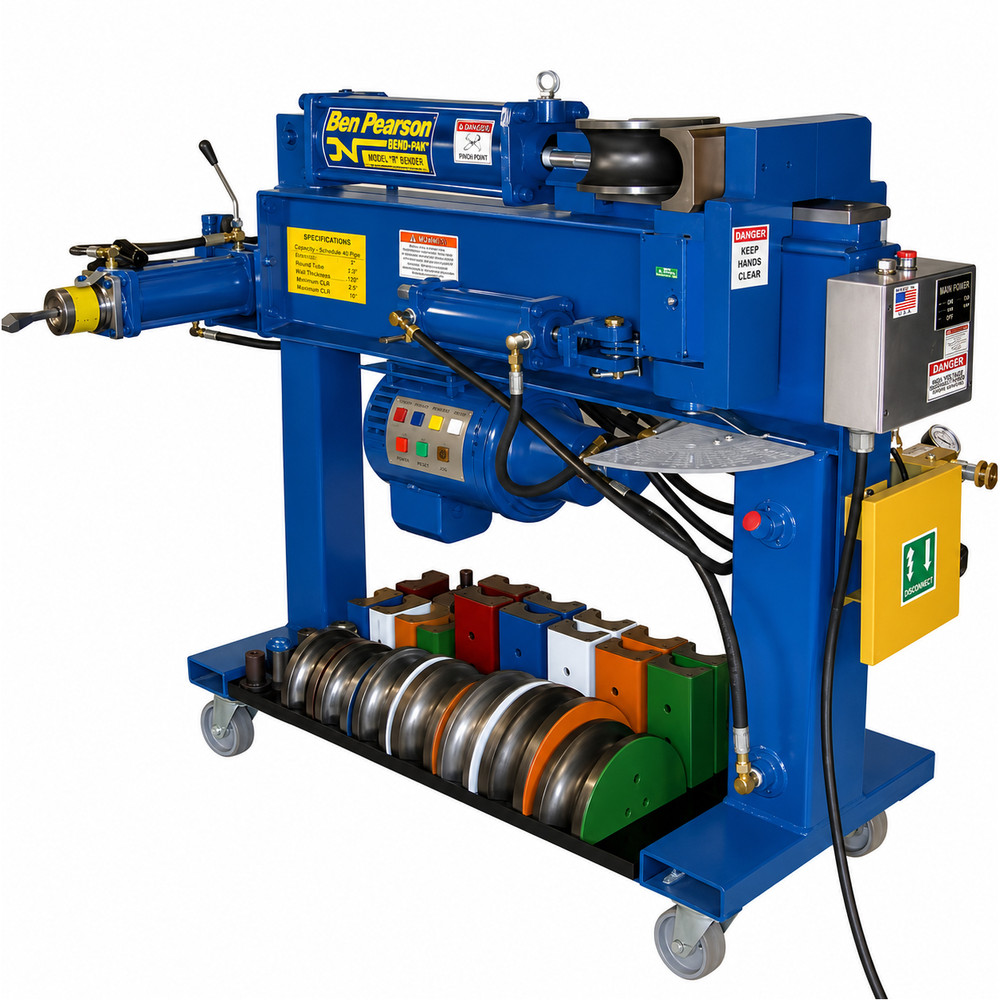

Huth / Ben Pearson is excited to introduce the BPC-09, a powerful combination of Huth's legendary I-beam construction and Ben Pearson's proven quality design and features all in one exceptional package. This manually operated pipe bender delivers professional-grade performance with intuitive knee pad control, maintenance-free operation, and a sleek main frame design that provides maximum clearance for hard-to-bend pipes and complex bend data applications. Powered by a robust 5 horsepower motor and featuring quick-disconnect end-finishing tooling, the BPC-09 is the ideal low-cost solution for shops just starting up, adding a second bender, or replacing aging equipment.
This complete package includes the Super 110 Die Package (part #62898), giving you an extensive tooling set right out of the box. The combination of a versatile, durable bender and a comprehensive tooling package makes the Huth / Ben Pearson family of benders an unbeatable choice for exhaust shops, fabrication facilities, and performance enthusiasts.
The BPC-09 is built on Huth I-beam construction with a maintenance-free guide plate, ensuring years of dependable service with minimal upkeep. The design accommodates Ben Pearson bending dies and end-finishing tooling, giving you access to a vast ecosystem of accessories and expansion options as your needs grow.
The bender features a manual depth-of-bend selector for precise control over your bending operations, and uses a double-ended cylinder for both solid and segmented end finishing. The easy toggle clamp design simplifies clamping collets, speeding up setup and changeovers between jobs.
Looking for the bender without tooling?
The BPC-09 bender is also available as Model BP-08 without the die package.
The BPC-9 Package comes complete with the Super 110 Die Package (part #62898), an extensive tooling set that covers a wide range of pipe sizes and operations. This package includes:
| Part # | Item Name |
| 60221 | 3" Radius Die 1½" |
| 60225 | 3" Radius Die 1¾" |
| 60236 | 4" Radius Die 2 |
| 60237 | 5" Radius Die 2" |
| 60241 | 4" Radius Die 2¼" |
| 60242 | 5" Radius Die 2¼" |
| 60246 | 5" Radius Die 2½" |
| 62999 | 5" Radius Die 3" |
| 61000 | (2) Back Shoes 1½" |
| 61001 | (2) Back Shoes 1¾" |
| 61003 | (2) Back Shoes 2" |
| 61004 | (2) Back Shoes 2¼" |
| 61005 | (2) Back Shoes 2½" |
| 63000 | (2) Back Shoes 3" |
| 61014 | Half Shoe 1½" |
| 61015 | Half Shoe 1¾" |
| 61017 | Half Shoe 2" |
| 61018 | Half Shoe 2¼" |
| 61019 | Half Shoe 2½" |
| 61967 | Expander Segments 1½" - 1 5/8" |
| 61548 | Expander Segments 1¾" - 2" |
| 61549 | Expander Segments 2 1⁄8"-2½" |
| 61548 | Expander Segments 2 5/8" - 5" |
| 61430 | (2) Collet 1½" |
| 61428 | (2) Collet 1¾" |
| 61426 | (2) Collet 2" |
| 61424 | (2) Collet 2¼" |
| 61423 | (2) Collet 2½" |
| 61241 | Swage Assembly 1½" |
| 61237 | Swage Assembly 1¾" |
| 61231 | Swage Assembly 2¼" |
| 61229 | Swage Assembly 2½" |
| 555 | Female Ball Die 1¾"-2" (Supercedes 60780) |
| 556 | Female Ball Die 2¼"- 2½" (Supercedes 60779) |
| 853 | Solid Die Flare - Pipe Flanger 45°/90° Flare 1½"-3½" (Supercedes 617049) |
| 614841 | O-Ring Kit |
* Additional tooling available at extra charge.
Need to tackle more specialized jobs? The BPC-09 is compatible with a wide range of optional tooling to expand your tube forming capabilities:
Need help choosing the right tooling?
Call our Sales Team to identify the best tube forming tooling for your specific applications!
Looking for a different die package configuration? Ben Pearson offers several alternative die package options to suit different shop needs and budgets:
| Part # | Item Name |
| 62139 | Super 80 Die Package Tooling |
| 62898 | Super 110 Die Package Tooling To View Package |
| 62140 | Super 120 Die Package Tooling To View Package |
| 62141 | Super 120-7 Die Package Tooling To View Package |

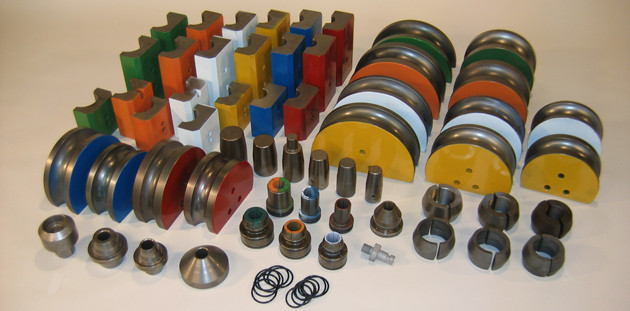

| 62213 | Super 150 Die Package Tooling To View Package |
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Warranty of Ben Pearson Products
This warranty is made for the exclusive benefit of the original owner and is not transferable. There is no other warranty applicable to Ben Pearson PRODUCTS, and no representative has any authority to make any representation, promise or agreement except as stated in the warranty.
One year warranty *
For one year from the date of invoice the Ben Pearson will repair the bender if found to be defective in material and workmanship without cost to the purchaser. Following the first 90 days from the date of original invoice, replacement parts are shipped from the seller to the purchaser freight collect. Return parts are shipped prepaid to the Ben Pearson. In effecting such repairs, the Ben Pearson may at its election, repair or replace any part which it finds to be defective. Tools and dies are warranted for a period of (90) ninety days against defect in material and workmanship.
* During the first 90 days from date of original invoice the Ben Pearson will pay freight charges for replacement of defective parts.
NOTE: Designs SUBJECT TO CHANGE WITHOUT NOTICE. Ben Pearson reserves the right to make changes and/or improvements without incurring any obligation to do so on previously sold products.
