The Ben Pearson 3012 Raised Pipe Bender is a precision-engineered tube bending solution designed for professionals who demand accuracy, power, and versatility. With 58,000 lbs of bending force and a robust 5 horsepower motor, this raised bender delivers exceptional performance for tubing up to 3 inches. Built on rugged I-beam construction and proudly Made in USA, the Model 3012 combines innovative automatic controls with heavy-duty end finishing capabilities—all in one complete workstation.
Whether you're fabricating exhaust systems, custom headers, roll cages, or complex chassis components, the Model 3012 ensures smooth, clean bends every time. Its raised design allows you to bend completely around the bending dies on the same centerline, giving you the freedom to create intricate, continuous curves without repositioning your workpiece. Compatible with the full line of Ben Pearson tooling, this bender adapts to your exact specifications with optional die packages and tube forming tools available for nearly every application.
The 3012 offers multiple control options to fit your workflow. An easy-to-use manual knee pedal control keeps your hands free for positioning tubing, while push button controls provide fingertip operation when precision is paramount. The reduced-size control panel allows the operator to get closer to the work area, reducing fatigue and increasing accuracy during long fabrication sessions.
The Smart Automatic Mode features an adjustable return-to-home position control—a unique, time-saving feature that ensures fast and easy transitions between multiple bends. The Automatic Depth-Of-Bend selector gives you precise bending control through an easy-to-read, easy-to-adjust depth of bend plate. Dial in your measurements once, and the bender will repeat them flawlessly, bend after bend.

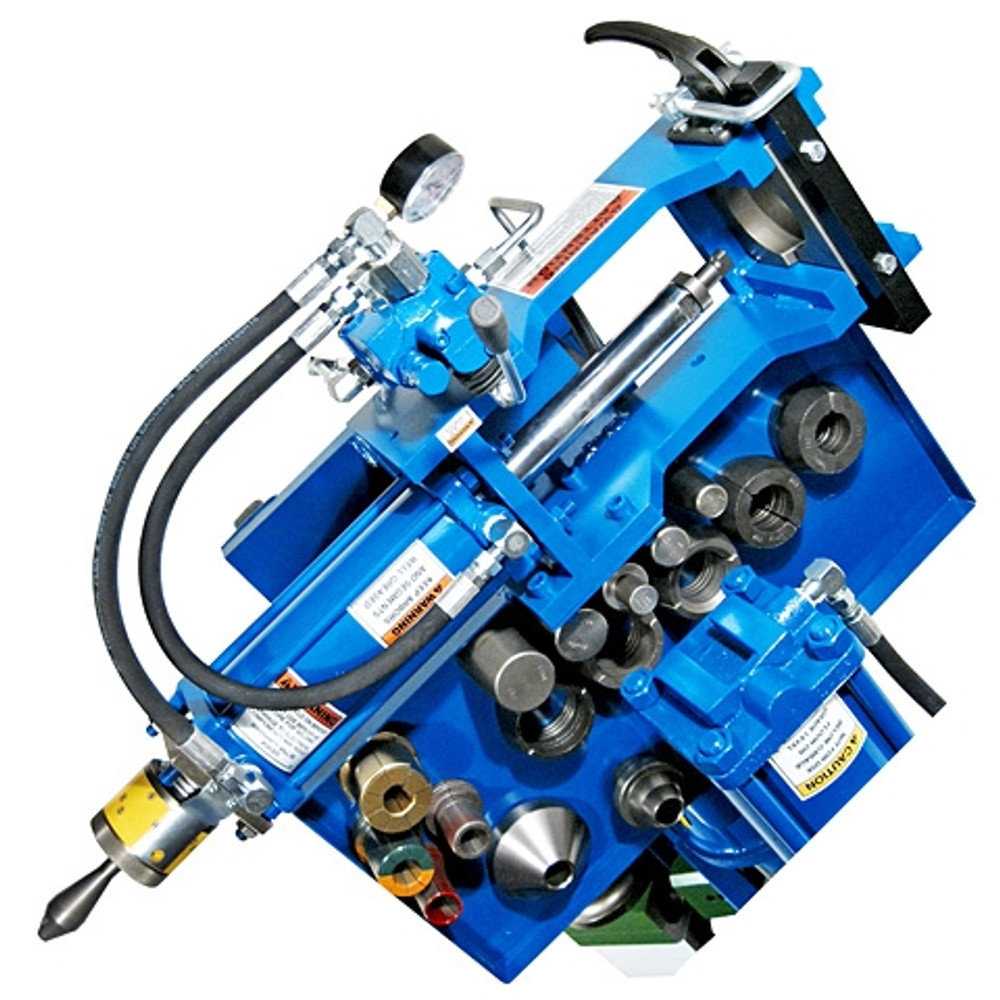

The heavy duty swager/expander built into the Model 3012 gives you complete end finishing capabilities right at your workstation. The swager end accommodates 1" to 3" tubing, while the expander end allows for expansions from 1-1/4" to 4". With the bull's-eye expanding system, you can dial in precise expansions every time, ensuring perfect fitment for slip joints, collectors, and transitions.
No need for separate machinery or additional equipment—the 3012 handles bending, expanding, swaging, and forming all in one powerful platform.
Constructed with rugged I-beam construction and featuring an agricultural main cylinder, the Model 3012 is engineered to withstand the demands of high-volume fabrication shops. Front swivel casters provide easy maneuverability around your workspace, while the integrated deluxe tool tray keeps your tooling organized and within reach.
The bender operates on 220 volt, 60Hz power and is available in both single phase (requires 30 amp service) and three phase (requires 20 amp service) configurations. High voltage and high speed options are also available to meet specialized production needs.
The Model 3012 uses Ben Pearson tooling, giving you access to a comprehensive range of bending dies and tube forming tools. Choose the tooling package that best fits your needs—bending dies are available for both round and square tubing applications. Tooling and dies are sold separately.
Optional Tooling Available:
Call our Sales Team to identify the best tube forming tooling for you!
*Optional tooling available at extra charge.
| Part # | Item Name |
| 62139 | Super 80 Die Package Tooling |
| 62898 | Super 110 Die Package Tooling To View Package |
| 62140 | Super 120 Die Package Tooling To View Package |
| 62141 | Super 120-7 Die Package Tooling To View Package |
| 62213 | Super 150 Die Package Tooling To View Package |
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Warranty of Ben Pearson Products
This warranty is made for the exclusive benefit of the original owner and is not transferable. There is no other warranty applicable to Ben Pearson PRODUCTS, and no representative has any authority to make any representation, promise or agreement except as stated in the warranty.
One year warranty *
For one year from the date of invoice the Ben Pearson will repair the bender if found to be defective in material and workmanship without cost to the purchaser. Following the first 90 days from the date of original invoice, replacement parts are shipped from the seller to the purchaser freight collect. Return parts are shipped prepaid to the Ben Pearson. In effecting such repairs, the Ben Pearson may at its election, repair or replace any part which it finds to be defective. Tools and dies are warranted for a period of (90) ninety days against defect in material and workmanship.
* During the first 90 days from date of original invoice the Ben Pearson will pay freight charges for replacement of defective parts.
NOTE: Designs SUBJECT TO CHANGE WITHOUT NOTICE. Ben Pearson reserves the right to make changes and/or improvements without incurring any obligation to do so on previously sold products.
