Quick Reference: For the Quick Assembly Guide, click here.
PowerLine Vantage introduces the ELT-3300L electric/hydraulic lift table, a purpose-built solution designed and engineered specifically for the safe removal, repair, and installation of EV powertrains and battery packs. With electric vehicle sales surging dramatically over recent years, the automotive service industry has faced a critical need for specialized equipment capable of handling the unique demands of EV maintenance and battery pack service. The ELT-3300L answers that call with a robust, portable platform that combines substantial lifting capacity with precision control, adaptability, and industry-leading safety features.
This portable electric lift table delivers a commanding 3,300 lb lifting capacity and an impressive maximum lifting height of 74 inches, providing ample clearance and reach for accessing undercar battery pack components on a wide range of electric vehicles—from compact EVs to full-size electric trucks and SUVs. The adjustable table top is engineered with threaded adapter anchor points, enabling technicians to configure custom support systems tailored to the exact dimensions and mounting requirements of different battery pack geometries and powertrain assemblies from any manufacturer.
The ELT-3300L is designed for real-world shop environments where versatility, safety, and productivity are paramount. Its portable design with 6-inch diameter wheels allows for easy positioning and maneuvering under raised vehicles, while the compact base height of just 9.3 inches off the floor ensures the lift table can slide beneath most EVs without difficulty. The integrated safety mechanism prevents rapid descent, ensuring controlled lowering operations that protect both technicians and expensive EV components throughout the entire service procedure.
The platform provides a generous 60" x 32" of working space in its standard configuration and extends to an impressive 80 inches in length when fully deployed, accommodating even the largest battery pack assemblies found in modern electric trucks, SUVs, and commercial EV platforms. With a collapsed height of just 32 inches, the table stores compactly and deploys quickly, keeping your shop floor organized and service bays productive.
Key Advantages of the ELT-3300L
3,300 lb lifting capacity handles heavy EV battery packs and complete powertrain assemblies with confidence and a generous safety margin
74-inch maximum lift height provides exceptional clearance and ergonomic working positions for technicians, reducing strain and improving service quality
Adjustable platform extends from 68" to 79" in length, with threaded anchor points enabling custom adapter configurations for virtually any EV make or model
Integrated safety mechanism prevents rapid descent, ensuring controlled lowering operations for maximum protection of both personnel and high-value EV components
110V single-phase power supply (60Hz) means no special electrical infrastructure required—plugs into standard shop outlets and operates reliably anywhere
Engineered for Professional EV Service
The PowerLine Vantage ELT-3300L operates on standard 110V, 60Hz single-phase power, eliminating the need for specialized electrical infrastructure, expensive power upgrades, or dedicated circuits in your shop. With a raise time of just 25 seconds and a lowering time of 26 seconds, the lift table delivers efficient cycle times that keep your service bays productive and minimize vehicle downtime. Fast, smooth operation means technicians spend more time working and less time waiting.
Built with heavy-duty construction to withstand the rigors of daily professional shop use, the ELT-3300L features a robust 4.5-inch thick deck and 3.25-inch thick adjustable platform, delivering the structural integrity and load stability required for safely supporting heavy EV battery packs and powertrain assemblies. The distance from the top of the deck to the top of the adjustable platform is 8.5 inches, providing ample clearance for mounting hardware, adapter systems, and battery pack attachment points.
The overall platform dimensions of 36 inches wide by 96.5 inches long (without platform extended) or 108 inches long with platform fully extended provide a stable, generous work surface that accommodates the full range of EV battery pack sizes currently on the market. The platform width of 32 inches and deck width of 29.75 inches ensure compatibility with various battery pack configurations while maintaining a compact footprint that doesn't consume excessive shop floor space.
The deck length of 64 inches provides a solid central platform for supporting battery pack weight, while the adjustable platform sections extend beyond the deck to create an exceptionally versatile support surface. This engineered design distributes load evenly across the lift table structure and maximizes stability during lifting, positioning, and lowering operations.
See the ELT-3300L in Action
See how the ELT-3300L simplifies EV battery pack removal and installation
See how the ELT-3300L simplifies EV battery pack removal and installation
See how the ELT-3300L simplifies EV battery pack removal and installation
See how the ELT-3300L simplifies EV battery pack removal and installation
Optional Table Top Adapter System (ELT-ADPT)
The ELT-ADPT Table Top Threaded Adapter Set is available as an optional accessory (sold separately) and dramatically expands the versatility and utility of the ELT-3300L lift table system. This precision-engineered adapter system can be positioned and configured in an almost infinite number of arrangements to provide elevated support for battery packs, subframes, and other component parts that need to be held securely above the lift table surface during removal or installation procedures.
The adapters install into the threaded anchor points integrated throughout the lift table platform, allowing technicians to create custom support configurations that match the exact mounting geometry of different EV battery pack designs—whether you're working on Tesla, Ford, GM, Rivian, Lucid, or any other manufacturer's battery systems. This flexibility makes the ELT-3300L a truly universal solution capable of servicing vehicles from multiple manufacturers without the need for expensive vehicle-specific tooling or multiple dedicated lift tables.
Each ELT-ADPT set is built to withstand professional shop use and ships in a compact package measuring 18"L x 13"W x 9"H with a total weight of 140 lbs. The adapters may be configured to support battery packs at various heights and angles, providing the precise positioning required for safe, damage-free component handling.
Designed with Safety and Efficiency in Mind
Safety is paramount when working with high-voltage EV battery systems. The ELT-3300L incorporates a critical safety mechanism to prevent rapid descent, ensuring that even in the event of hydraulic pressure loss or operator error, the lift table will lower in a controlled, predictable manner. This safety feature protects technicians working beneath or around the lifted battery pack and prevents catastrophic damage to expensive EV components that can cost tens of thousands of dollars to replace.

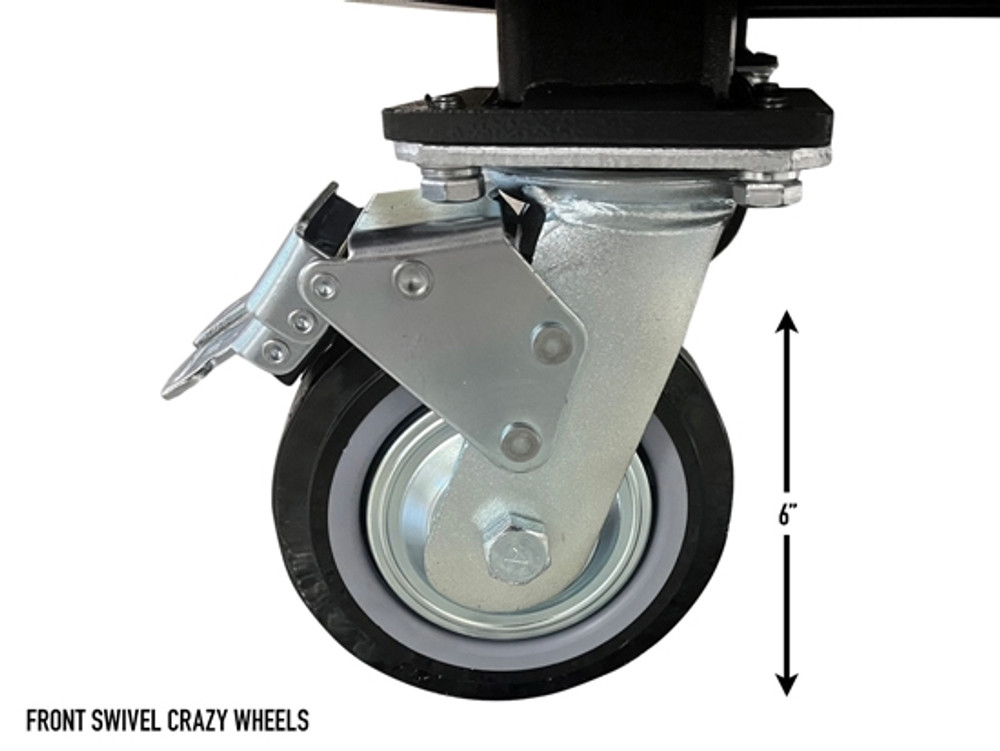

The portable design with 6-inch diameter wheels makes the ELT-3300L easy to maneuver and position, even when navigating tight shop spaces or positioning beneath vehicles on alignment racks or standard two-post lifts. Once in position, the stable base and low center of gravity ensure the lift table remains secure and steady throughout the entire lifting and lowering cycle, even when handling off-center loads or irregularly shaped battery pack assemblies.
With an overall width of 36 inches, the table fits easily through standard shop doorways and between vehicle lifts. The combination of 6-inch diameter wheels and sturdy construction ensures smooth, stable transport across shop floors, while the low-profile design allows technicians to position the lift table precisely where needed without struggling with bulky, unwieldy equipment.
Shipping and Installation
The ELT-3300L ships in a single crate measuring 87"L x 38"W x 43"H with a total shipping weight of 1,720 lbs. This robust packaging ensures the lift table arrives safely and ready for assembly in your shop. The included installation manual provides step-by-step assembly instructions, and our Quick Assembly Guide offers a streamlined reference for experienced technicians.
Once assembled, the lift table requires only a standard 110V electrical outlet to operate—no special wiring, transformers, or electrical modifications needed. This plug-and-play convenience means the ELT-3300L can be up and running quickly, minimizing downtime and getting your EV service operations productive faster.
Universal Compatibility for Today's EV Market
The ELT-3300L is engineered to support the diverse range of EV battery pack designs currently on the market and those coming in the future. The adjustable platform length—ranging from 68 inches to 79 inches—combined with the threaded anchor point system, allows technicians to configure the lift table for vehicles from compact passenger EVs to full-size electric trucks and SUVs.
Whether you're servicing battery packs on Tesla Model 3, Ford F-150 Lightning, Chevrolet Bolt, Rivian R1T, Hyundai Ioniq 5, Kia EV6, Volkswagen ID.4, Nissan Ariya, or any other electric vehicle platform, the ELT-3300L provides the lifting capacity, adjustability, and safety features required for professional-quality service work. This universal compatibility protects your equipment investment and ensures your shop remains ready to handle the full spectrum of EV service demands.
Built for Long-Term Reliability
PowerLine Vantage builds the ELT-3300L to professional-grade standards with heavy-duty materials and precision engineering throughout. The electric/hydraulic lift system is designed for thousands of reliable cycles, while the robust steel construction and reinforced platform handle the demanding loads and stresses of daily EV service operations.
The platform thickness of 3.25 inches and deck thickness of 4.5 inches provide exceptional rigidity and load distribution, ensuring the lift table maintains its structural integrity even under maximum load conditions. The engineered design minimizes flexing and deflection, delivering stable, secure support throughout the entire lift range from the collapsed height of 32 inches up to the maximum lifting height of 74 inches.
Investment in Your EV Service Future
As electric vehicles continue to gain market share and more EVs enter the service market, shops equipped to handle EV battery pack service will capture a growing and highly profitable segment of the automotive service industry. The PowerLine Vantage ELT-3300L represents a strategic investment in your shop's capabilities, enabling you to offer comprehensive EV maintenance, battery pack service, and powertrain repair with confidence.
The combination of 3,300 lb capacity, 74-inch maximum lift height, adjustable platform dimensions, threaded adapter mounting points, and integrated safety features makes the ELT-3300L one of the most versatile and capable EV battery lift tables available at this price point. This exceptional value proposition delivers the performance and safety of far more expensive systems while maintaining the accessibility and affordability independent shops need.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
