The iDeal LT-PT2500AH-X Powertrain Lift Table is an innovative, professional-grade air-hydraulic scissor lift designed to transform how automotive technicians handle heavy powertrain service work. With a robust 2,500 lb. capacity, this portable high-rise lift table delivers the strength, precision, and versatility needed to safely remove, install, and service engines, transmissions, drive axles, transaxle assemblies, and other demanding powertrain components. Whether you're operating an automotive repair shop, fleet maintenance facility, or industrial service center, the LT-PT2500AH-X provides the reliable lifting performance and ergonomic positioning that professional technicians demand.

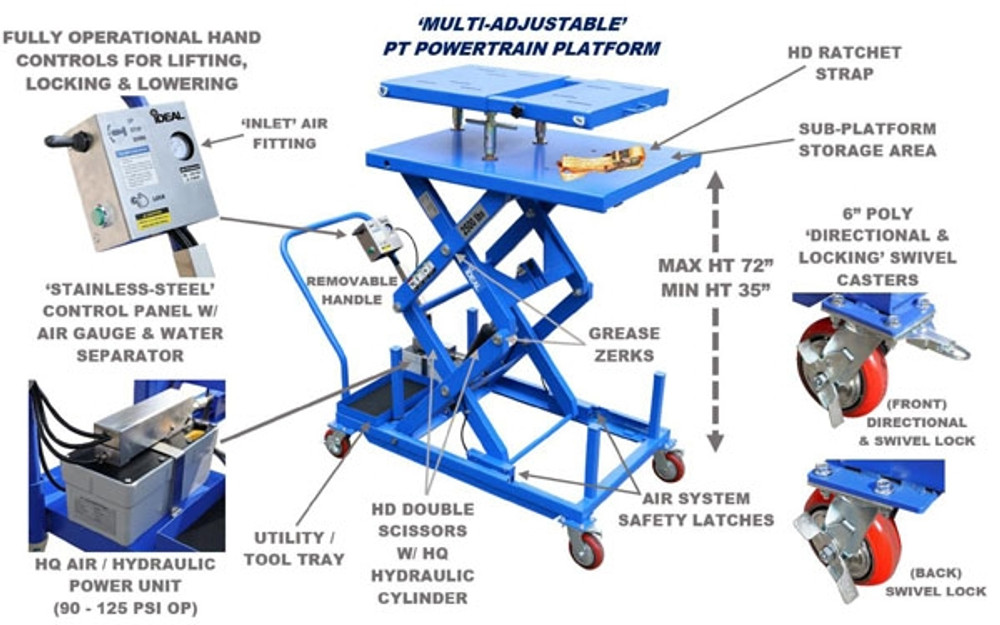

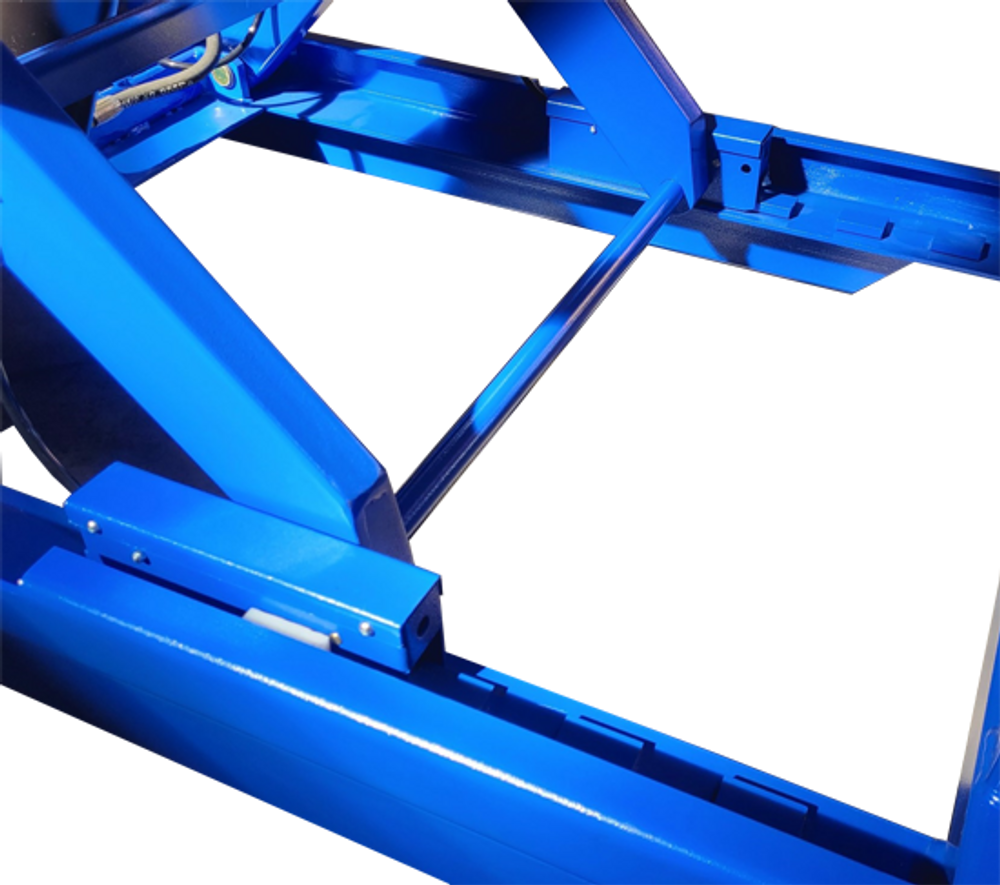

Built around a double scissor HD design with a high-quality hydraulic cylinder, this lift table combines exceptional structural strength with smooth, controlled operation. The exclusive pneumatic hand-operated stainless-steel control panel puts complete fingertip control at your command, allowing you to lift, lock, and lower heavy components with precision and confidence. An integrated air gauge with water separator ensures clean, moisture-free compressed air operation at 90 to 125 psi (6 to 9 bar), while the intelligent control system delivers a 72-second lifting rate and 33-second lowering rate for efficient workflow.

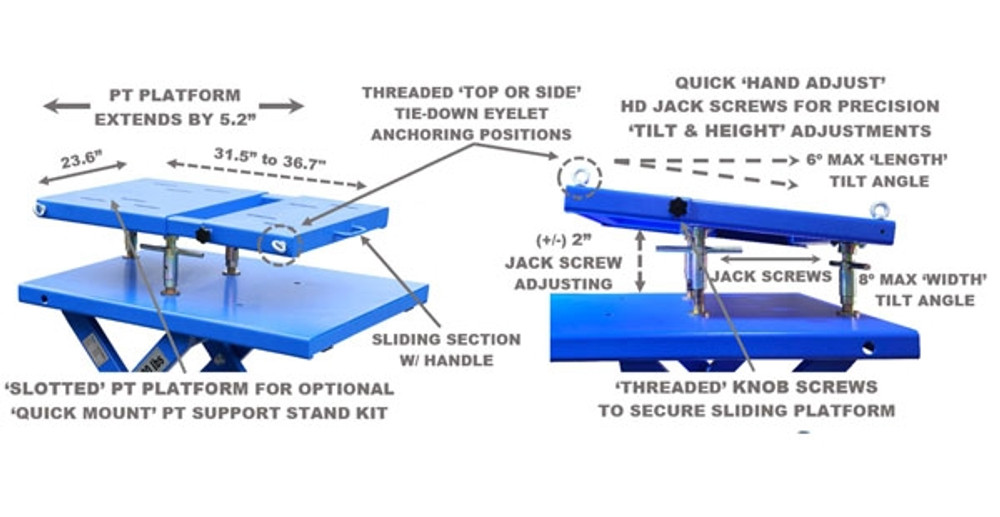

The heart of the LT-PT2500AH-X is its sophisticated multi-adjustable powertrain platform system. This extendable and slotted HD platform adjusts from 31.5" to 36.7" in length (5.2" of adjustment) and measures 23.6" wide, accommodating a wide range of powertrain components. The platform features adjustable tilt capability (+/- 6° to 8°) controlled by heavy-duty jack screws, enabling precise alignment and positioning for optimal component access. With three convenient locking height positions at 49", 61", and 68", you can secure your load at the perfect working height and maintain hands-free stability throughout extended service procedures.
This lift table also features an insulated, multi-directional sliding EV platform equipped with 6 adjustable latch clamps, making it exceptionally well-suited for safely handling electric vehicle and hybrid powertrain components. The specialized design provides secure mounting and safe handling of sensitive EV systems, positioning this lift as a forward-thinking solution for modern automotive service needs. An impressive maximum platform height of 72" and minimum height of 35" delivers exceptional vertical range for working with vehicles of all sizes and clearances.

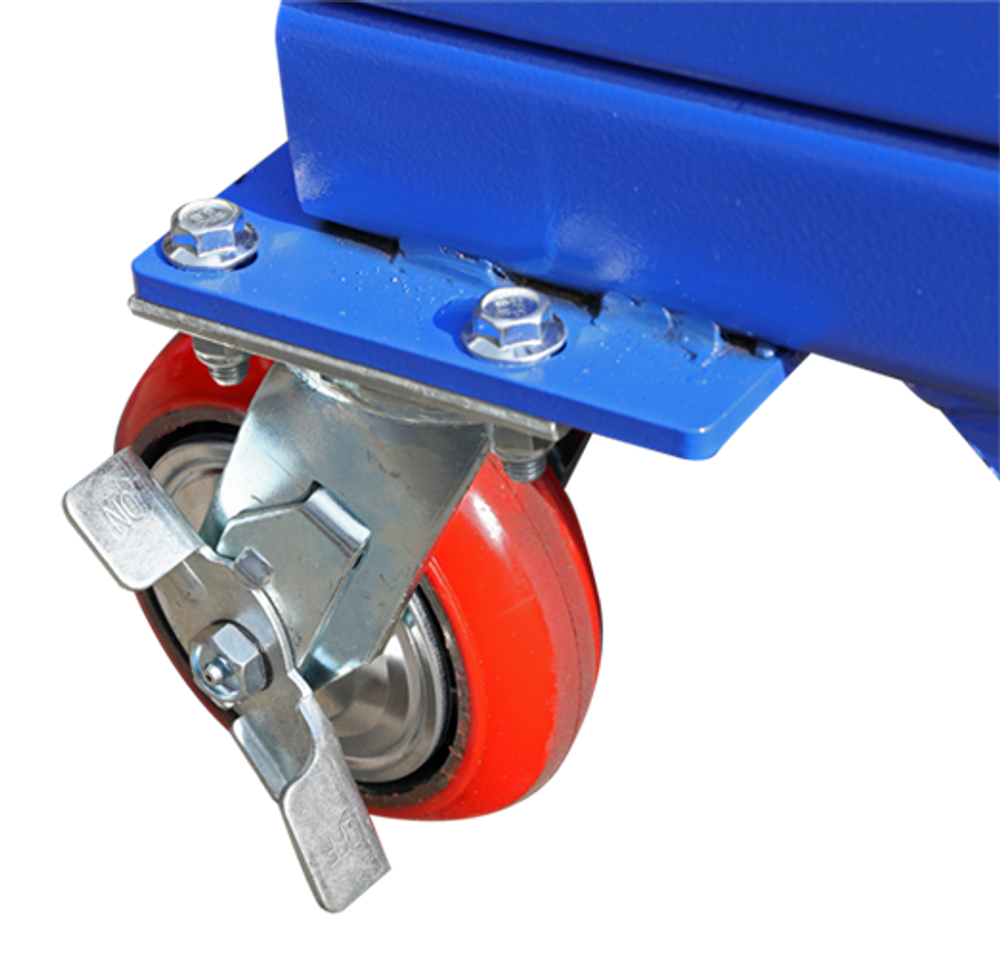

The LT-PT2500AH-X incorporates thoughtful design features that enhance both functionality and convenience. The lift table includes an integrated utility/tool tray and sub-platform storage area to keep essential tools, hardware, and components organized and within easy reach throughout the service process. A removable hand bar provides flexible workspace access when needed, while durable 6" poly swivel casters with directional and locking capability deliver smooth maneuverability around the shop and rock-solid stability when positioned for work.
Measuring 71.3" in overall length and 33.5" in overall width, this lift table maintains a compact footprint while delivering professional-grade capacity and performance. The 39.2" hand bar height provides comfortable operation for technicians of various heights. Despite its robust construction and 798 lb. shipping weight, the lift table remains highly portable thanks to its wheeled design and balanced engineering.
Built for Professional Powertrain Service
The LT-PT2500AH-X represents an efficient and safe method to install or remove heavy vehicle powertrain components. With its combination of compressed air/hydraulic operation, multi-adjustable platform, and precision control system, this lift table eliminates the physical strain and safety risks associated with manual powertrain handling, while significantly improving service efficiency and quality.
The iDeal LT-PT2500AH-X arrives fully equipped with all essential accessories and components needed for immediate use:
Innovative, High-Quality Portable Scissor Lift Design
The LT-PT2500AH-X represents iDeal's commitment to delivering innovative solutions for professional automotive service. This lift table combines portability, precision control, and professional capacity in a single versatile package. The double scissor HD construction paired with the high-quality hydraulic cylinder ensures consistent, reliable performance under demanding shop conditions. With its comprehensive array of adjustments—including extendable length, tilt capability, three locking heights, and multiple latch points—this lift table provides the flexibility to handle virtually any powertrain service scenario with confidence.
Safety, Efficiency, and Ergonomic Excellence

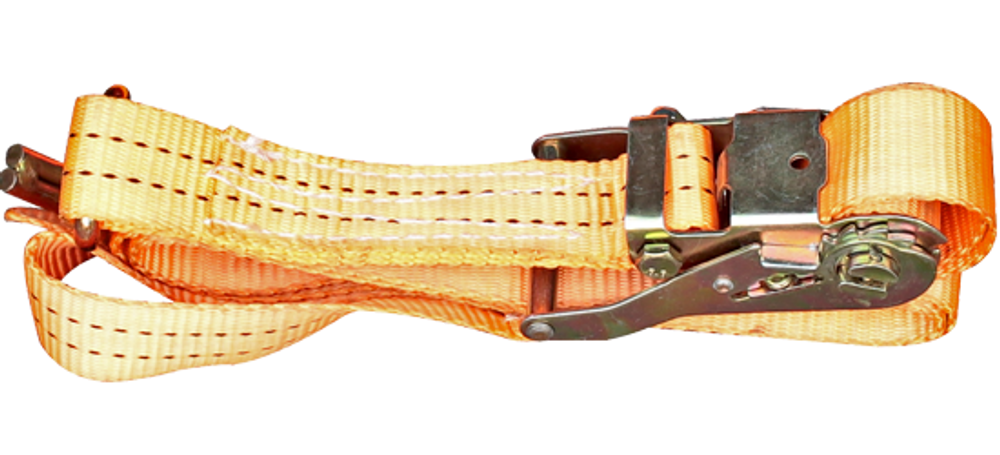

Safety is paramount when working with heavy powertrain components. The LT-PT2500AH-X delivers multiple layers of safety protection, including three positive locking height positions, adjustable latch clamps for secure component mounting, tie-down ring eyelets, and a heavy-duty ratchet strap—all designed to keep loads stable and secure throughout the entire service process. The pneumatic hand control system provides smooth, controlled movements that minimize sudden jerks or drops, while the wide stance and locking casters ensure rock-solid stability. Beyond safety, the lift table dramatically improves ergonomics by positioning heavy components at comfortable working heights, reducing technician fatigue and strain while improving service quality and efficiency.
Ready for EV and Hybrid Powertrain Service
As the automotive industry rapidly transitions to electric and hybrid vehicles, the LT-PT2500AH-X positions your shop for the future. The specialized insulated, multi-directional sliding EV platform with 6 adjustable latch clamps provides safe, secure handling of sensitive electric vehicle and hybrid powertrain components. This forward-thinking design feature ensures your shop is equipped to service both traditional and next-generation vehicles with the same lift table, maximizing your equipment investment and shop versatility.
The iDeal LT-PT2500AH-X is engineered for the demanding conditions of professional automotive service environments. The durable powder-coat finish resists corrosion, chemicals, and daily shop wear, maintaining professional appearance and protecting the underlying metal structure for years of reliable service. High-quality poly casters resist shop chemicals and floor contaminants while providing smooth rolling action. The heavy-duty construction throughout—from the double scissor frame to the hydraulic cylinder to the stainless-steel control panel—ensures this lift table will serve as a dependable workhorse in your shop for the long term.
With a shipping weight of 798 lbs., this lift table delivers substantial, confidence-inspiring mass and stability while remaining practical to position and maneuver within your facility. The combination of professional capacity, precision control, comprehensive adjustability, and durable construction makes the LT-PT2500AH-X an exceptional investment for shops serious about efficient, safe, and professional-quality powertrain service work.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Structural Warranty:
The following parts and structural components carry a five year warranty:
Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of iDeal Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Upon delivery of goods, the Customer has sole responsibility to notify Tuxedo Distributors, LLC of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo Distributors, LLC of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Tuxedo Distributors, LLC will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo Distributors, LLC reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the iDeal lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state
