The iDeal LT-EV2500AH-X represents the cutting edge in electric and hybrid vehicle component service equipment. This 2,500 lb. capacity portable, high-rise commercial and industrial grade air hydraulic platform lift table is specifically engineered to meet the demanding requirements of modern EV and hybrid vehicle maintenance. With its innovative multi-adjustable EV platform design, this lift table provides the efficient and safe method your shop needs to install or remove heavy electric vehicle components including battery packs, motors, and heavy powertrain assemblies.
Built with a focus on both safety and functionality, the LT-EV2500AH-X comes standardly equipped with a durable multi-adjustable insulated EV platform that features multi-directional sliding capability with six adjustable latch clamps for secure component positioning. This electrically insulated platform is critical for safe EV battery pack service, protecting both technicians and vehicle electrical systems during component removal and installation. The lift table incorporates an exclusive fully operational pneumatic hand-operated stainless-steel control panel with integrated air gauge and water separator, giving technicians complete control over lifting, locking, and lowering operations. Heavy-duty jack screws provide precision tilt and height platform adjustments, ensuring perfect alignment every time.
The double scissor heavy-duty design with high-quality hydraulic cylinder delivers exceptional lifting performance, raising the platform to a maximum height of 72.6 inches and lowering to a minimum height of 35.4 inches. The 59" L x 31.5" W EV platform offers ample workspace for even the largest EV battery assemblies and hybrid powertrains, while the unit's overall compact footprint of 74.6" L x 35.4" W ensures it fits efficiently in your shop. Three locking height positions at 49", 61", and 68" provide secure working platforms at multiple service points, allowing safe technician access throughout the entire service procedure. Compressed air/high-pressure hydraulic operation (90 to 125 psi / 6 to 9 bar) with a lifting rate of 72 seconds and lowering rate of 33 seconds ensures smooth, controlled operation that protects both sensitive EV components and your technicians.
The iDeal LT-EV2500AH-X is purpose-built to handle the unique challenges of electric and hybrid vehicle service. Unlike standard lift tables, this specialized equipment features an insulated platform design that provides critical electrical isolation when working with high-voltage EV battery systems. The multi-directional sliding platform capability allows technicians to precisely position heavy battery packs and electric motors for perfect alignment with vehicle mounting points, while the adjustable tilt angle of +/- 4° to 8° compensates for vehicle variations and ensures seamless component installation.
The innovative platform design incorporates six heavy-duty adjustable latch clamps that securely hold EV components in place during the entire lifting and positioning process. Combined with the HD jack screws for precision height adjustment, this system gives technicians the exact control needed to safely guide components weighing up to 2,500 lbs. into place without risk of damage or misalignment. The integrated utility/tool tray and sub-platform storage area keep specialized EV service tools and safety equipment within easy reach throughout the procedure.
The LT-EV2500AH-X combines innovative design with professional-grade construction to deliver exceptional performance in demanding commercial service environments. The pneumatic hand-operated control system provides intuitive, precise control over all lifting, locking, and lowering functions, giving technicians complete confidence when maneuvering expensive EV components. The integrated air gauge with water separator protects the hydraulic system and ensures consistent performance, while the stainless-steel construction provides lasting durability against shop chemicals and environmental factors.
The double scissor lift mechanism with high-quality hydraulic cylinder ensures smooth, stable operation throughout the entire lift range. This HD design provides exceptional strength and rigidity even at maximum extension, eliminating the flex and instability common in lighter-duty equipment. The durable powder-coat finish protects all steel components against corrosion and wear, maintaining professional appearance and structural integrity through years of heavy use. At 978 lbs. ship weight, this substantial lift table is built to last.

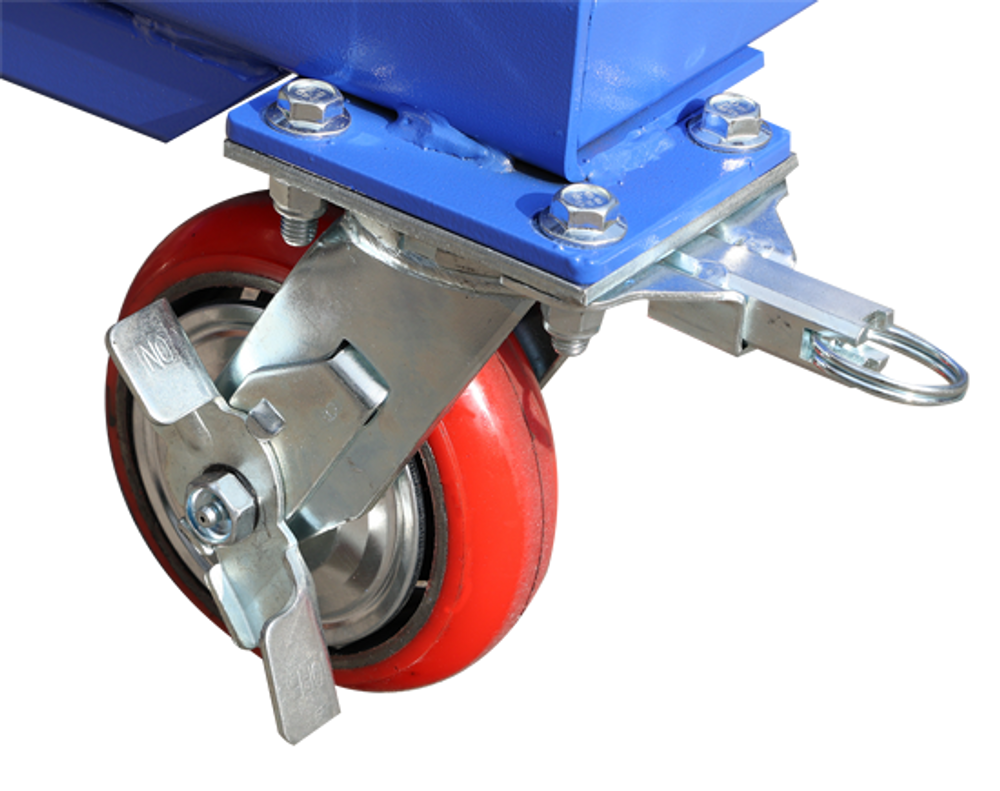

Despite its substantial construction and 2,500 lb. capacity, the LT-EV2500AH-X offers excellent mobility throughout your facility. The durable 6-inch poly swivel casters feature both directional and locking capabilities, allowing smooth movement when positioning the lift and rock-solid stability during operation. This portable design means you can bring the lift table to any service bay or work area, maximizing flexibility in your shop layout and workflow.
The removable hand bar provides convenient leverage when moving the lift table into position, while the locking casters ensure it stays exactly where you need it during service operations. The compact 74.6" L x 35.4" W overall footprint allows the lift to maneuver through standard shop doorways and fit into service bays alongside vehicle lifts and other equipment. When not in use, the lift table's compact design allows efficient storage without consuming valuable shop floor space.
✓ EV-Specific Insulated Platform: Purpose-built with electrical insulation and specialized adjustments for safe electric vehicle battery and motor service
✓ Impressive 2,500 lb. Capacity: Handles the heaviest EV battery packs and powertrain assemblies with ease and stability
✓ Maximum Versatility: Multi-directional sliding platform with 6 adjustable latch clamps and tilt adjustment adapts to any vehicle service position
✓ Precision Control: HD jack screws and pneumatic hand controls provide exact positioning for perfect component alignment
✓ Three Locking Heights: Secure working positions at 49", 61", and 68" for safe technician access throughout service procedures
✓ Portable Convenience: High-quality locking swivel casters and compact design allow easy positioning wherever needed in your facility
The LT-EV2500AH-X arrives as a complete, ready-to-deploy solution for your EV service operations. The package includes four protective rubber pads measuring 6.4" L x 4" W x 1.45" H for secure component positioning and surface protection when handling expensive EV battery packs and motors. These rubber pads protect both the lift platform and the vehicle components, preventing slippage and surface damage during service procedures.
The lift table integrates seamlessly with your shop's existing air system, requiring 90 to 125 psi (6-9 bar) compressed air for operation. The integrated air gauge with water separator ensures optimal performance and protects the hydraulic system from moisture contamination, a critical feature for maintaining long-term reliability. The innovative portable scissor lift design combines maximum strength, stability, and safety for added efficiency and convenience in your EV service operations, while the durable powder-coat finish provides lasting protection against shop chemicals and wear.
The integrated utility/tool tray keeps essential tools within arm's reach during service procedures, while the sub-platform storage area provides convenient space for EV service documentation, safety equipment, and specialized tools. The removable hand bar adds convenience for positioning and storage, making the lift table easy to maneuver despite its substantial 978 lb. construction weight. Every aspect of this lift table is designed to maximize safety, efficiency, and convenience in modern EV and hybrid vehicle service.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Structural Warranty:
The following parts and structural components carry a five year warranty:
Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of iDeal Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Upon delivery of goods, the Customer has sole responsibility to notify Tuxedo Distributors, LLC of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo Distributors, LLC of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Tuxedo Distributors, LLC will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo Distributors, LLC reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the iDeal lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state
