Overview

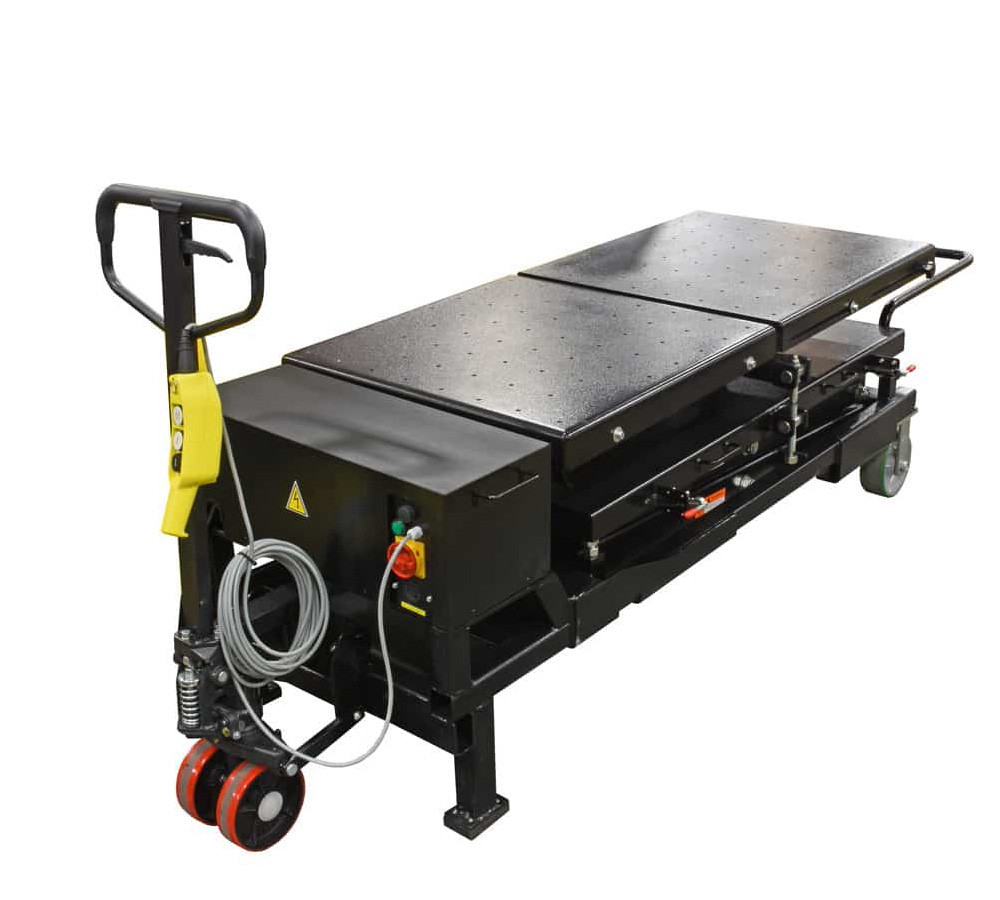

The Challenger BT3300 Battery Lift Table is purpose-built to meet the growing demands of electric vehicle service and heavy-duty shop operations. With a robust 3,300-lb capacity (1,500 kg) and an impressive rise height of 76.77 inches (1,950 mm), the BT3300 delivers the lifting power and precision your shop needs to safely handle high-voltage EV batteries, engines, drivetrains, rear differentials, and fuel tanks. Engineered with a scissor-style hydraulic lifting system and a 2 HP (1.5 kW) motor powered by standard 110V, 60Hz, single-phase outlets, this lift table combines robust performance with convenient plug-and-play operation—no special electrical installation required.
Designed with a pallet-jack style handle, the BT3300 offers low rolling resistance and outstanding maneuverability throughout your facility. The extending, adjusting, and tilting top plate includes a 6° angle adjustment that enables precise positioning of heavy loads, while side-shift functionality allows the table to move laterally for faster battery installation and removal. Fastener holes spaced every 4 inches on the top surface accommodate a wide range of OEM adapter configurations, ensuring versatility across multiple vehicle platforms and service applications.
Operated via a simple pendant control, the BT3300 is easy to use and includes critical safety features such as a safety limit switch for secure operation. With a full stroke time of 45 seconds and a descent time of 55 seconds under rated load, this lift table delivers efficient cycle times that keep your technicians productive without compromising safety. The BT3300 complies with ASME PASE-2019 standards, providing peace of mind and regulatory confidence as you expand your EV service capabilities and heavy-duty automotive repair operations.
Built to support evolving service demands and engineered for long-term reliability, the Challenger BT3300 helps your shop and technicians stay ready for the future of electric vehicle maintenance and advanced automotive repair.
Key Highlights
3,300-lb lift capacity (1,500 kg) – handles the majority of EV batteries and heavy shop loads with confidence and stability
76.77" maximum rise height (1,950 mm) – provides ample clearance for efficient battery removal, installation, and undercarriage access
Pallet-jack style handle – ensures easy maneuvering and positioning throughout your facility with minimal effort
Extending, adjusting, and tilting top plate with 6° angle adjustment – precision positioning and side-shift function accelerate service and improve load alignment
ASME PASE-2019 compliant – meets rigorous industry safety and quality standards for professional EV service equipment
Video Overview
Watch the Challenger BT3300 Battery Lift Table in action. See how the scissor-style lifting system, adjustable top plate, and pallet-jack handle deliver the precision, safety, and maneuverability your EV service operation demands. This video demonstrates real-world use cases and highlights the features that make the BT3300 an essential tool for modern automotive service facilities.
Power & Performance

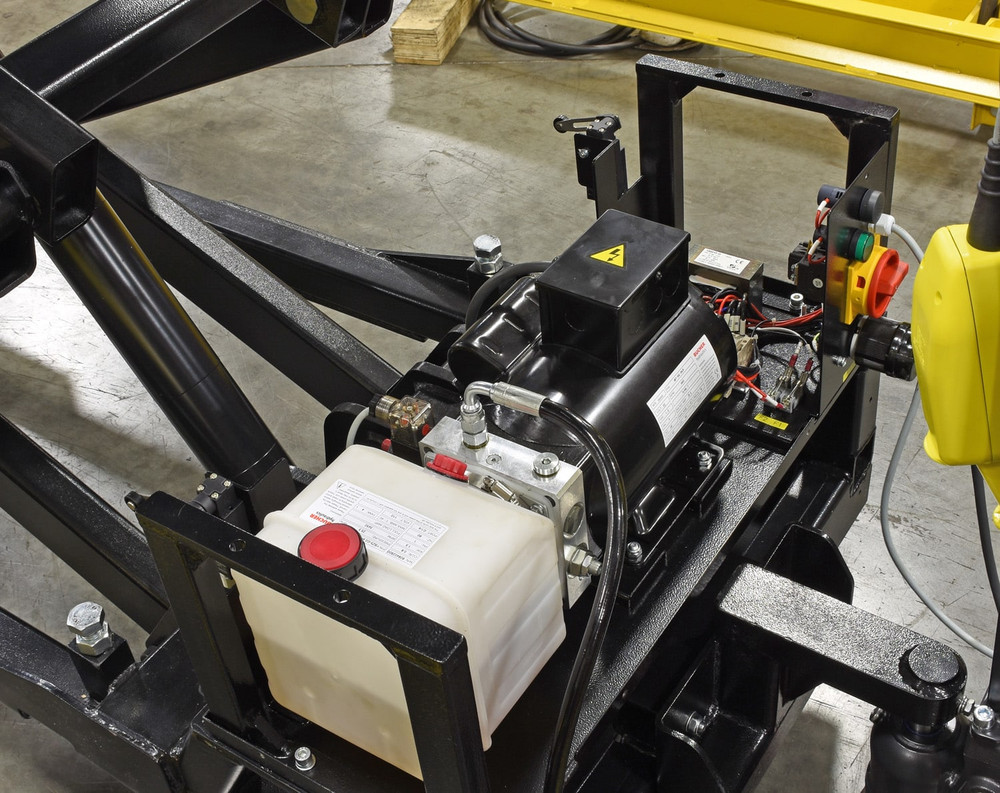

The BT3300 is powered by a 2 HP (1.5 kW) motor that operates on 110V, 60Hz, single-phase power, making it easy to integrate into any shop with standard electrical outlets. The power cord is included, so you can start lifting as soon as the table is assembled and ready for use. The hydraulic cylinder operates at 3,626 psi (25 MPa) and uses a 1-gallon (4L) hydraulic oil tank filled with ISO 32 (3L) non-detergent hydraulic oil. This combination delivers smooth, reliable lifting and lowering action across the full range of motion, ensuring consistent performance under demanding shop conditions.
With a full stroke time of 45 seconds and a full descent time of 55 seconds under rated load, the BT3300 offers efficient cycle times that keep your technicians moving and maximize productivity. Lift and lower speeds may vary based on load weight, ensuring safe operation across a wide range of applications from lightweight components to heavy EV battery packs.
Simply plug into any 120V outlet and you're ready to work—no complicated wiring, no need for three-phase power, and no delays waiting for electricians. The BT3300 brings professional-grade lifting capability to your shop without the infrastructure headaches.
Dimensions & Capacity
The BT3300 features a collapsed height of 29.53 inches (750 mm), making it easy to slide under vehicles and loads with minimal clearance requirements. The platform length adjusts from 68.54" to 81.34" (1,741-2,066 mm), and the platform width is 31.5 inches (80 mm), providing a versatile work surface that adapts to different load sizes and configurations. The deck length measures 59.06 inches (1,500 mm), and the overall length is 116.38 inches (2,956 mm), providing a stable footprint for heavy loads and ensuring safe operation even when fully extended.

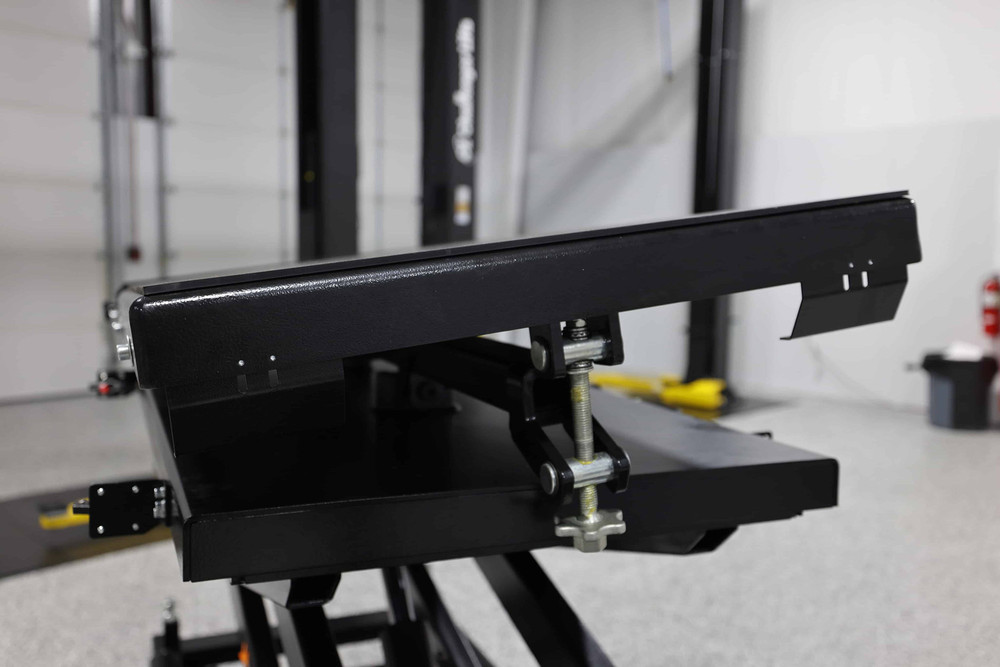

A 1.77-inch (45 mm) platform adjust height allows fine-tuning for optimal load alignment, and the 6° tilt function enables precise battery positioning and controlled load manipulation. The base height is 8.07 inches (205 mm), and the wheel diameter is 7.87 inches (200 mm), ensuring smooth rolling, excellent ground clearance, and easy navigation across shop floors. The shipping weight is 1,900 lbs (850 kg), reflecting the heavy-duty construction and durable components designed for demanding shop environments and long-term reliability.
These generous dimensions and thoughtful engineering ensure the BT3300 can accommodate a wide variety of electric vehicle battery packs, powertrain components, and heavy automotive parts with the stability and capacity your shop demands.
Safety & Compliance
Safety is a top priority with the BT3300. The lift table is equipped with a safety limit switch that helps prevent over-extension and ensures controlled operation throughout the lifting and lowering cycle. The BT3300 complies with ASME PASE-2019 standards, meeting rigorous industry requirements for portable automotive service equipment. This compliance gives you confidence that the lift table is built to professional standards and ready for demanding EV service work, heavy-duty repairs, and daily shop operations.
The BT3300 is designed with operator safety and load security in mind. The scissor-style lifting mechanism provides stable, controlled movement, while the hydraulic system ensures smooth operation without sudden drops or jerks. These features combine to create a safe working environment for technicians handling high-value EV batteries and critical vehicle components.
Note: Lift capacity ratings are based on loads equally distributed. Lifting and lowering speeds may vary depending on the weight of the load.
Versatility & Adaptability
The BT3300 is engineered to adapt to a wide range of automotive service applications. The extending, adjusting, and tilting top plate provides exceptional flexibility when positioning loads, while fastener holes spaced every 4 inches on the top surface allow you to mount custom fixtures, adapters, and OEM-specific battery cradles. This versatility means the BT3300 can handle not only EV batteries but also engines, transmissions, fuel tanks, differentials, and other heavy components across your entire service lineup.
Whether you're servicing hybrid vehicles, full electric platforms, or traditional internal combustion engines, the BT3300 adapts to your workflow. The combination of adjustable length, tilt functionality, and universal mounting points makes this lift table a true multi-purpose workhorse that grows with your business and handles new vehicle models as they arrive in your bays.
The pallet-jack style handle ensures easy maneuvering even when loaded, so your technicians can position the table precisely where needed without struggling or wasting time. This mobility, combined with the extending and tilting platform, means faster turnaround times and more efficient use of your shop space.
Built for the Future of Automotive Service
As electric vehicles become a larger part of your daily workload, the Challenger BT3300 Battery Lift Table ensures your shop is equipped to handle the unique challenges of EV service. From safely removing and installing heavy battery packs to providing precise positioning for intricate electrical work, the BT3300 delivers the capability, safety, and reliability your technicians need to work confidently on tomorrow's vehicles today.
Backed by Challenger's reputation for quality and performance, the BT3300 is an investment in your shop's capability, your team's safety, and your business's growth. With its combination of 3,300-lb capacity, 76.77" rise height, and ASME PASE-2019 compliance, this lift table is ready to meet the demands of modern automotive service—now and in the years to come.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
