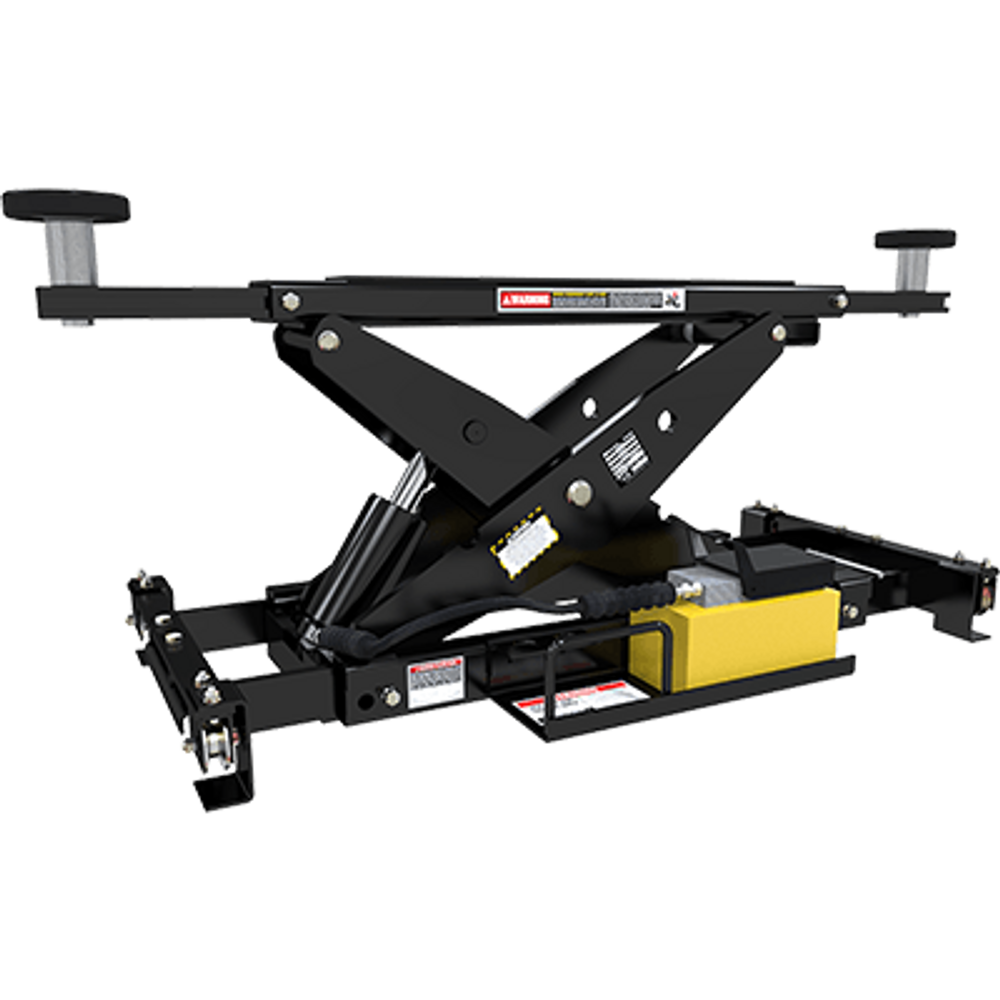

Transform your BendPak HD-14 Series, HDS-14 Series, or HDSO14P four-post lift into a complete wheel service station with the RJ7W rolling bridge jack. Engineered for professional shops that demand 7,000-lb. lifting capacity per jack, this pneumatic bridge jack delivers the precision and power needed to safely raise vehicles for tire changes, brake service, suspension work, and undercarriage access. Built with easy-roll wheels, stackable adapters, and a commercial-grade air-hydraulic pump, the RJ7W is designed to glide effortlessly along your lift runways and provide versatile access to a wide range of vehicle types—from low-stance sports cars to medium-duty trucks and SUVs.
Complete Wheel Service Capability for Your Four-Post Lift

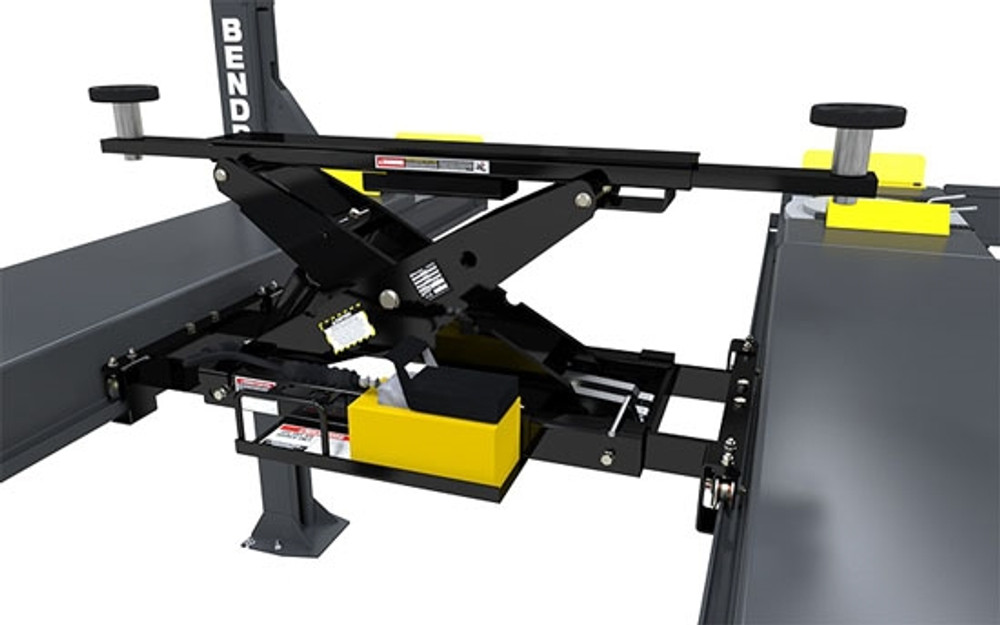

The BendPak HDS-14 series four-post car lift is one of the most popular units for lifting medium-duty vehicles and low-stance sports cars. Its extended approach ramps make it easy to safely engage your vehicle's wheels, but what do you do when it's time for a tire swap, suspension service, or brake job? Unless you want to expand your capabilities with an additional two-post lift, a pair of RJ7W rolling bridge jacks is the perfect solution to lift the vehicle frame and free the wheels for complete service access. Each jack lifts half the vehicle, providing stable, balanced support for safe and efficient wheel-off service.
With a 7,000-lb. lifting capacity, the RJ7W delivers the muscle needed for a wide variety of vehicles. Whether you're servicing sedans, coupes, crossovers, or light trucks, this rolling jack is built to handle the load. It operates independently from your four-post lift, using a dedicated air-hydraulic pump that requires 125 PSI and 10-20 CFM from your shop air supply. A convenient foot pedal provides hands-free control, letting you position and lift vehicles with precision and ease.
Engineered for Smooth Operation and Professional Performance
Easy-Roll Wheels Come Standard

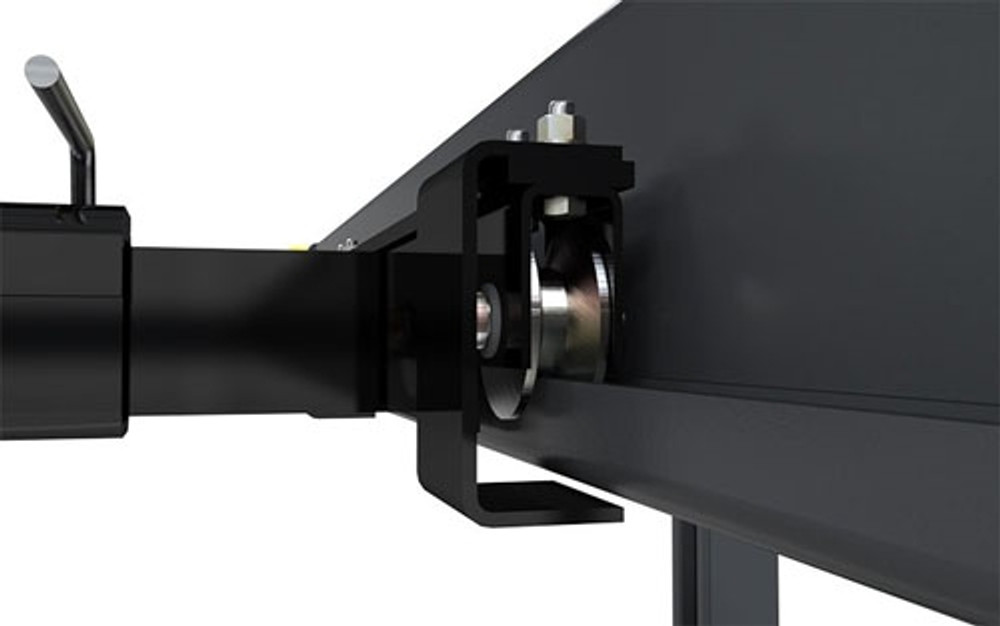

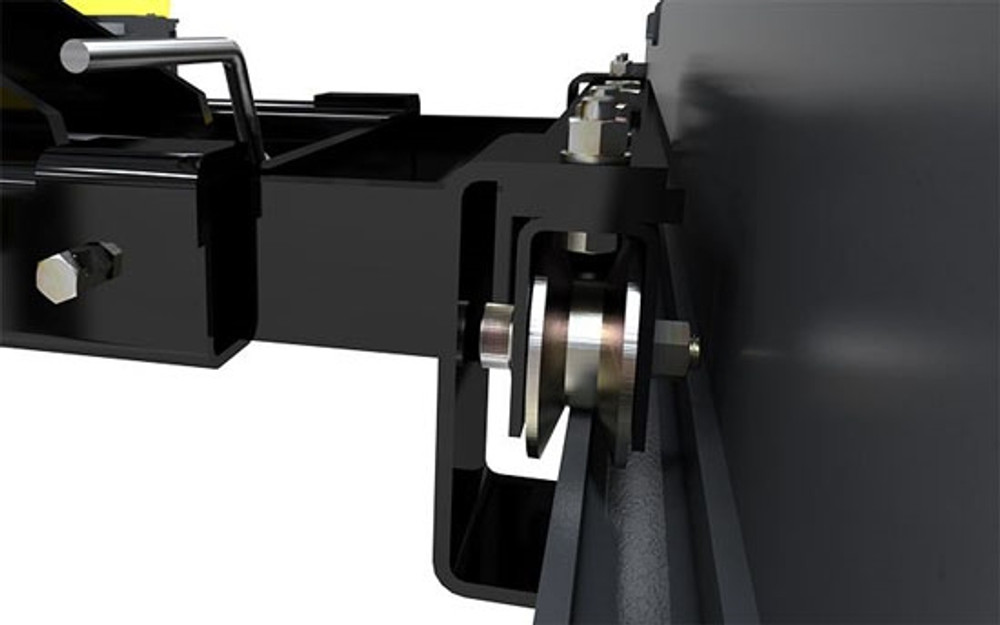

The RJ7W rolling bridge jack comes standard with precision-engineered easy-roll wheels that fit seamlessly into the runway channels on standard four-post lift models with 14,000-lbs lifting capacity or greater. These wheels provide effortless gliding along the runways for easy positioning and adjustability, so you can quickly move the jacks into place without heavy lifting or awkward maneuvering. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability, ensuring smooth operation and long service life in demanding shop environments.
Rubber Contact Pads for Safe Chassis Engagement BendPak rubber contact pads are included with every rolling bridge jack we sell. These durable pads engage the lift points of large vehicle chassis with ease, protecting frame rails and providing secure contact during the lift. For shops servicing larger trucks and SUVs, we recommend purchasing the optional frame cradle pads for even greater surface contact and stability on heavier frames.
Stackable Adapters for Versatile Height Adjustment
Because different suspension rigs and vehicle bodies sit at different heights above the ground, the RJ7W includes stackable adapters that work with the rubber contact pads. This feature allows you to reach the lift points without sacrificing how much rise you get from the jack. The adapters provide flexibility across a wide range of vehicle types—from low sports cars to tall SUVs—so you can confidently service any vehicle that comes into your bay. The minimum drive-over height is just 4 inches with pad only, and extends to 9.5 inches with the 5.5-inch adapter, while the maximum lifting height reaches up to 20.25 inches with the tallest adapter configuration.
Powerful Air-Hydraulic System and Independent Operation
High-Pressure Hydraulic Power Unit
A single, commercial-grade air-hydraulic pump is fitted to the side of the RJ7W rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack's pneumatic system, so there's no interference or shared controls. After connecting the air line to the jack (requires 125 PSI and 10-20 CFM from your shop compressor), an easy-to-use foot pedal activates the jack, giving you hands-free operation for smooth, controlled lifting. The system operates at a maximum hydraulic pressure of 4,550 PSI and reaches full rise in approximately 55 seconds, providing fast, efficient service cycles without electrical power requirements.
Three Automatic Lock Levels for Safety and Convenience
For your convenience and safety, BendPak rolling bridge jacks can be lifted to three different positions. They lock automatically as the jack rises and release together as the jack descends, providing secure, stable support at each height setting. Your car lift operations are completely separate from those of the bridge jack, allowing you to work on the vehicle with confidence and flexibility. The adjustable support base width ranges from 36.25 inches to 46.5 inches, accommodating a variety of lift runway widths, while the arm reach extends from 42 inches to 56 inches, giving you the flexibility to position the jacks precisely where you need them.
Key Features at a Glance
7,000-lb. lifting capacity per jack for professional-grade performance
Designed for use with BendPak HD-14 Series, HDS-14 Series, and HDSO14P four-post lifts
Easy-roll wheels with hardened stainless-steel rollers and zinc plating for smooth, durable operation
Included rubber contact pads and stackable adapters for versatile vehicle compatibility
Air-hydraulic pump system with foot pedal control—no electrical power required
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Note: An optional air-line kit is available for extended reach and enhanced convenience. All dimensions and measurements are taken from the upper surface of the suitable four-post lift runway.
