Atlas Platinum
Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs
Transform your Atlas Platinum PVL-14 four-post lift into a full-featured alignment station with the AP-PVL-ALIKIT Alignment Kit. This ALI Certified alignment system is engineered specifically for shops that want the flexibility to perform professional two-wheel or four-wheel alignments without dedicating an entire lift permanently to alignment work. Designed with serviceability and versatility in mind, this kit delivers the precision and durability your shop demands.
If you are considering performing two-wheel or four-wheel alignments in your shop, then the ALI Certified Atlas Platinum Alignment Kit is the perfect addition to your ALI Certified Platinum PVL-14. Many customers do not want to dedicate one of their four-post lifts as a permanent alignment station. The versatile Atlas Platinum Alignment Kit can be added or removed as needed, allowing you to turn your ALI Certified PVL-14 four-post lift into a professional alignment lift whenever your workflow requires it.

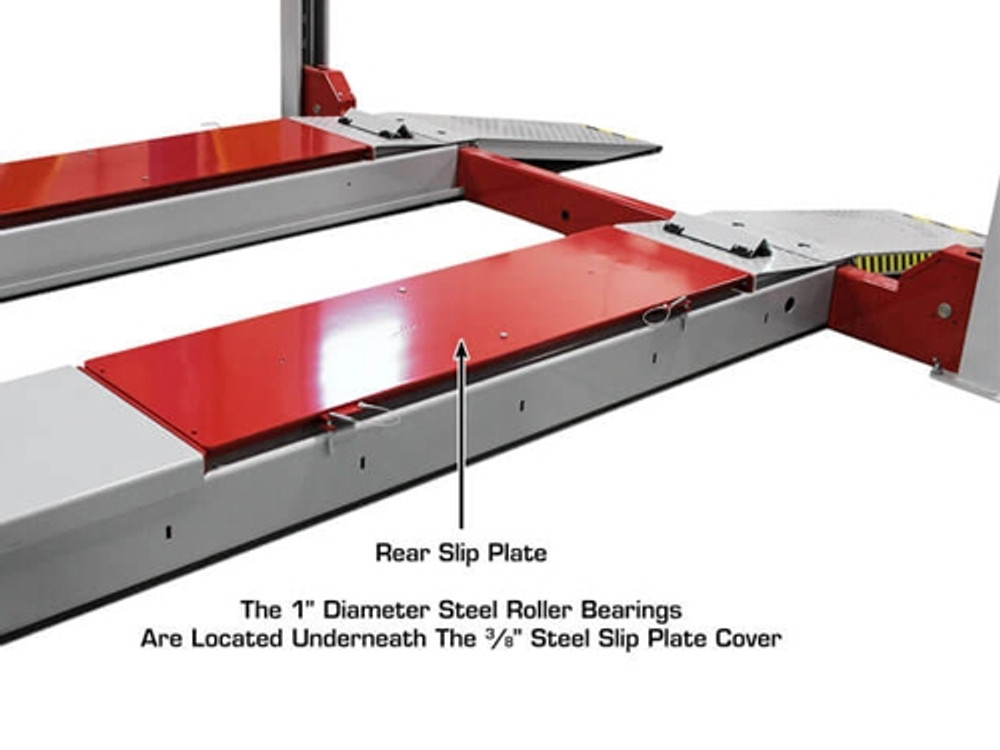

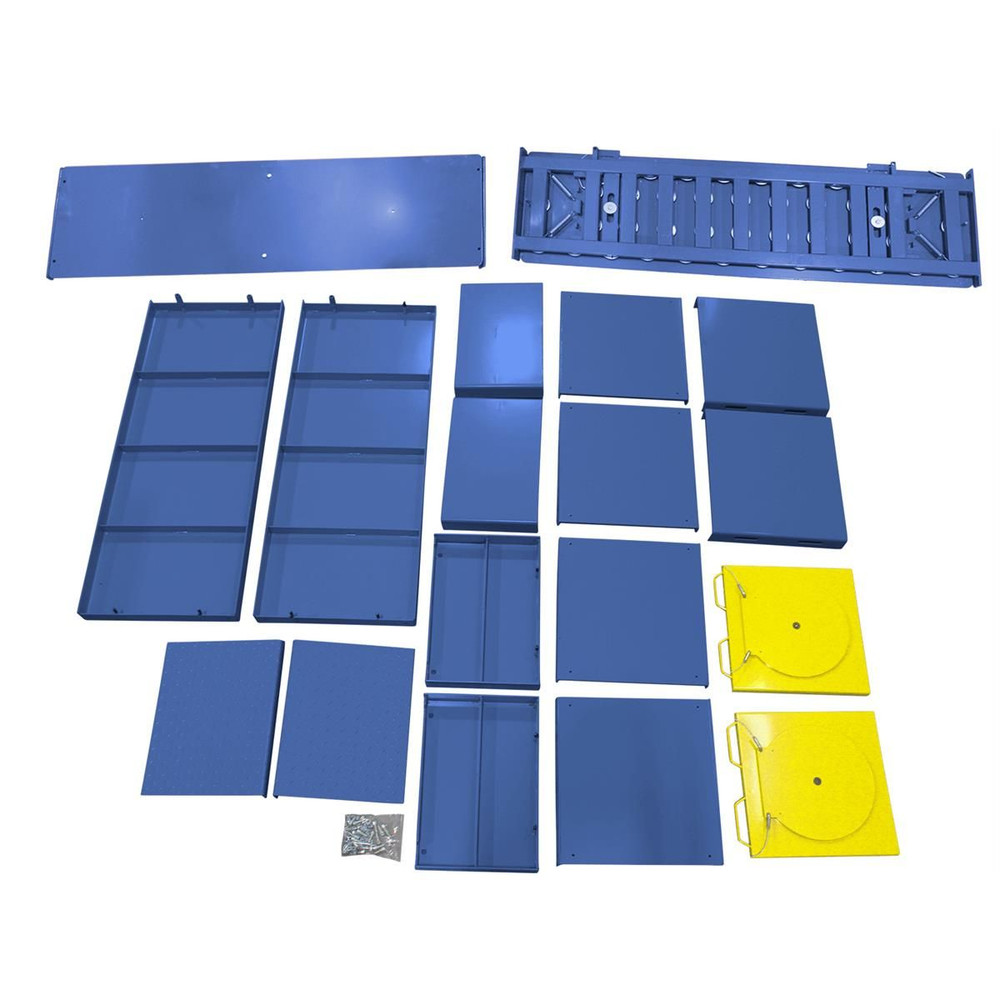

This kit includes precision slip plates and turntables that mount above the lift runways, ensuring superior access for cleaning and maintenance—a critical advantage over traditional embedded alignment systems. The turntable dimensions measure 17¾" x 17¾", and the system accommodates a minimum wheelbase of 75 2/5" (1915mm) up to a maximum wheelbase of 148 2/3" (3776mm), making it compatible with a wide range of passenger vehicles, light trucks, and SUVs.
Many permanent alignment kits found on four-post alignment lifts are recessed into the runways of the lift. It is very difficult to prevent dirt, chemicals, salt, and other foreign material from becoming embedded in the rolling or sliding mechanisms of the turntables or the slip plates. The Atlas Platinum Alignment Kit is positioned above the runways to allow easy access for service and cleaning. Even if you permanently mount the kit, it can still be removed periodically (simply remove the bolts) to allow a thorough cleaning and servicing of all moving parts. This elevated design dramatically extends the service life of your alignment components and ensures consistent, accurate operation over years of heavy use.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
