Supersedes RJ-6000 & ATPK-RJ6BK-AH-KIT
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
The Atlas® ATTD-RJ6BK RJ-6000 rolling air/hydraulic jack is the ultimate solution for lifting vehicles on four-post lifts. Engineered for professional-grade performance, this 6,000 lb capacity center jack combines air-powered speed with hydraulic lifting precision. Designed specifically to work with Garage Pro 9000, Atlas 412, Atlas 412A, Atlas 414, and Atlas 414A four-post lifts, the RJ6BK features telescoping arms that extend over the runways to position lift pads directly under the vehicle's factory lifting points. With airline kit and truck adapters included, this complete system is ready to handle everything from low-profile sports cars to full-size trucks right out of the box.
The Atlas® RJ6BK air/hydraulic rolling jack has telescoping arms that can be extended over the runways of a four-post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four-post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four-post above-ground lifts. The adjustable width ranges from 35 inches minimum to 55 inches maximum, with a distance between runway capability of 32 to 52 inches. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle, ensuring smooth positioning and operation.

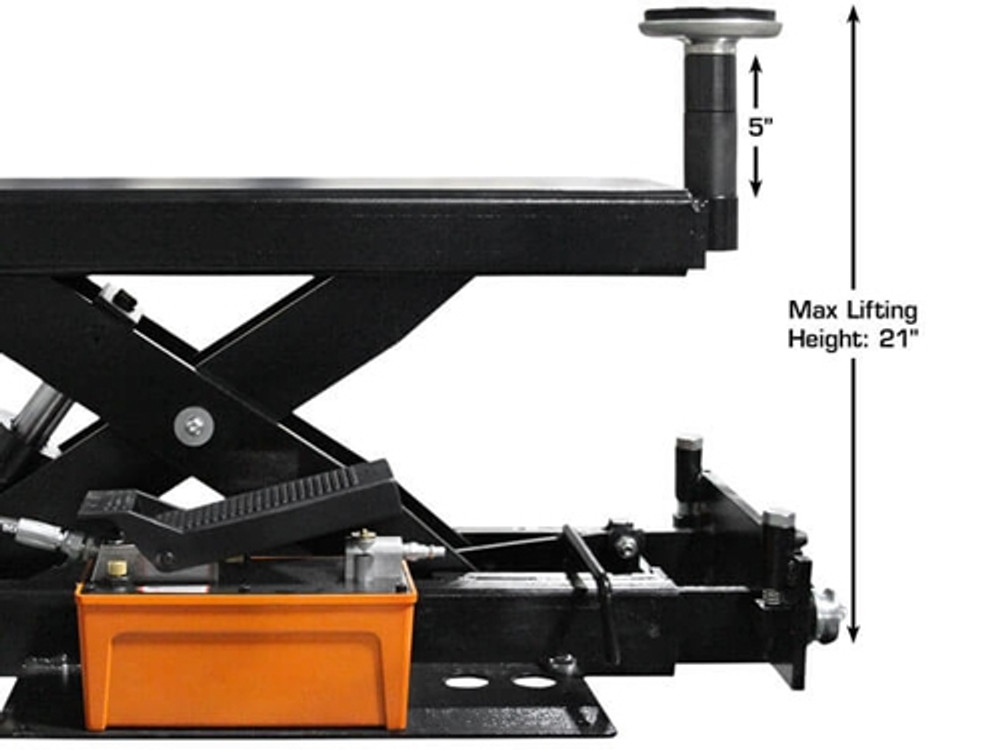

The Atlas® RJ6BK rolling bridge jack comes standard with a set of peg-style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ6BK to raise most pickup and larger trucks that will sit higher than the average passenger car. The kit includes four-piece truck adapters in two heights: 2 inches and 3 inches (two adapters of each height), giving you maximum flexibility for different vehicle types. With adapters, the maximum lifting height reaches an impressive 21 inches, while the minimum lifting height starts at just 8 1/4 inches for low-profile applications.
The RJ6BK rolling hydraulic jack features multiple solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack, providing critical safety redundancy during service work. The scissor mechanism design ensures level lifting every time, preventing the vehicle from tilting or shifting during the lift cycle.
Important Air Pressure Requirement:
The Atlas® RJ6BK is designed and engineered to operate on "delivered" air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.
This complete kit supersedes the previous RJ-6000 and ATPK-RJ6BK-AH-KIT part numbers, consolidating everything you need into one comprehensive package.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Limited Warranty Information
To View Atlas® Automotive Equipment 4 Post Lift Jacks Warranty Click Here
