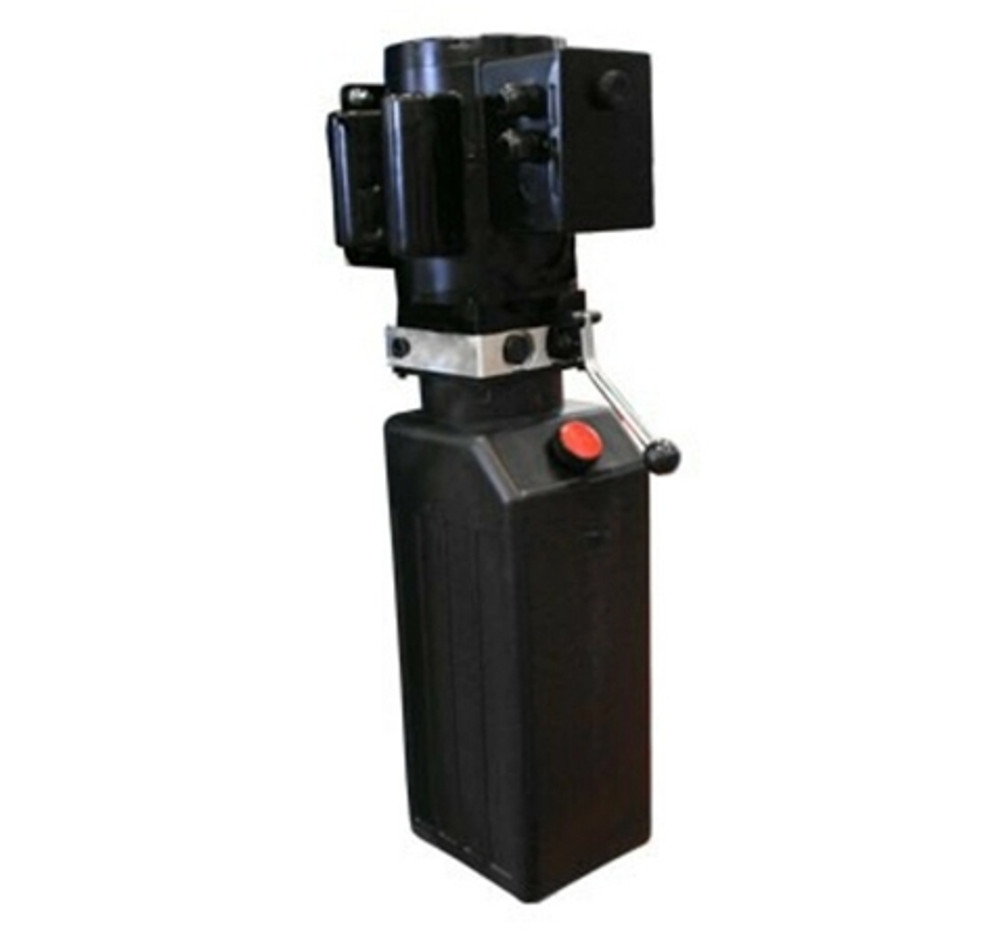

Atlas® Automotive Equipment XHP-POWERUNIT220vETL Electric/Hydraulic 220V Single Phase 60Hz 3HP Power Unit

This Atlas® 220 volt electric/hydraulic 3HP power unit is engineered and designed to replace most factory original electric/hydraulic power units.

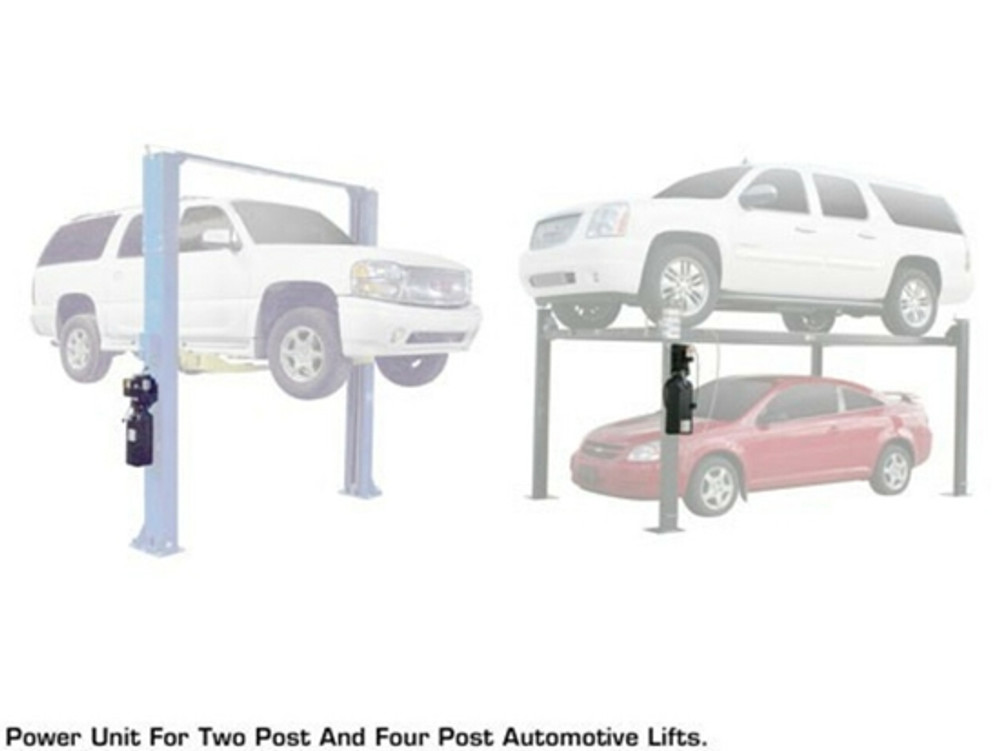

This power unit should be used on 2 post and 4 post lifts with capacities from 8,000 lbs. to 10,000 lbs. Normally, the only modification needed would be to drill some additional mounting holes in the mounting bracket or purchase a longer/shorter supply hose.

The hydraulic pump pressure setting is factory adjusted. There is a 10 liter (2.64 gallon) hydraulic oil reservoir.

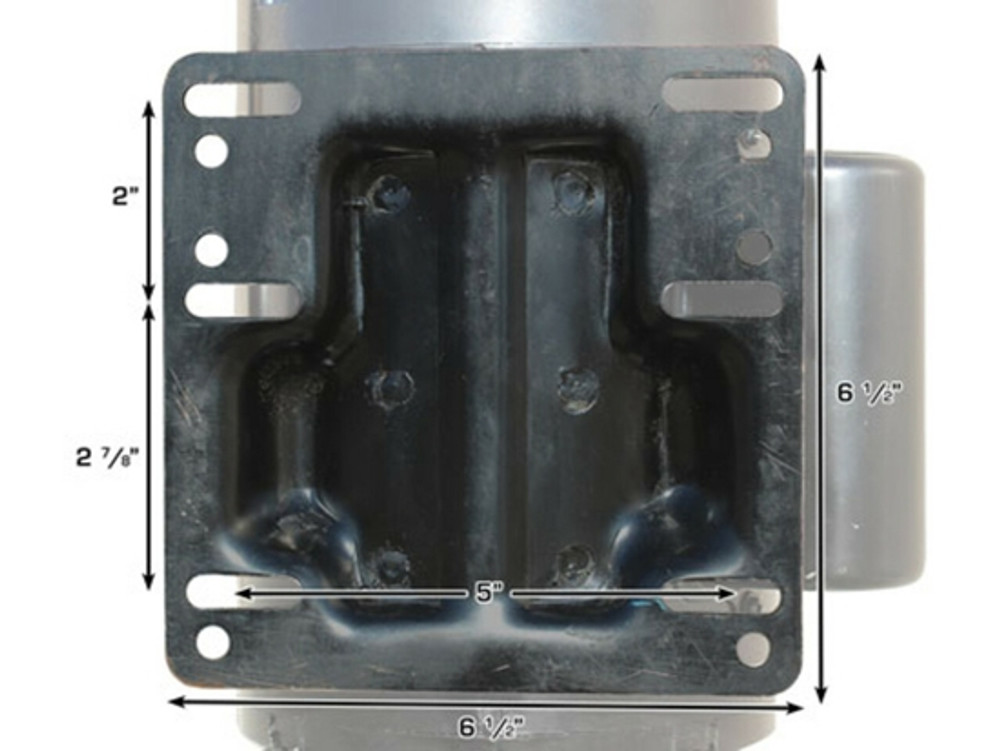

The mounting bracket has elongated holes which allow the customer to mount this power unit to most two post and four post lift column mounting brackets.

Atlas Automotive Equipment Sales has sold thousands of these power units over the last several years.

We stock hundreds of power units and all the motor capacitors, dump valves, pressure switches and other integral parts needed to keep your power unit working for many years.
