Challenger 44030XAR HD XL Ex-Length 4-Post Hydraulic Alignment Lift 30,000 - New Black Color

Previous Next

Challenger

Challenger 44030XAR HD XL Ex-Length 4-Post Hydraulic Alignment Lift 30,000 - New Black Color

Name: Challenger 44030XAR HD XL Ex-Length 4-Post Hydraulic Alignment Lift 30,000 - New Black Color
Brand: Challenger
SKU: 44030XAR
Price: 46285.29 USD
Availability: InStock

0 review Write a Review

This Item has a 70-Business Day Lead-time

$46,285.29

(You save: $26,035.48 )

This equipment pays for itself in

See our ROI Calculator to learn how →

Product Code: 44030XAR

Hurry up! Current stock:

Delivery Options: *

Delivery Notice: *

Optional Voltage:

Quantity:

Product Details

Warranty Information

Product Features

Product Specs

Product Details

Challenger 44030XAR HD XL Ex-Length 4-Post Hydraulic Alignment Lift 30,000 - New Black Color

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

The Challenger 44030XAR is the ultimate heavy-duty truck alignment solution for shops that service large commercial vehicles, buses, and extended-wheelbase fleets. With a massive 30,000 lb. capacity and an extra-long 34' 7-1/2" overall length accommodating wheelbases up to 350 inches, this alignment rack four-post hydraulic lift is built to handle your biggest jobs with confidence. The XAR (alignment rack) model features turning radius gauge cutouts ready for optional flush-mounted gauges, transforming your shop into a full-service truck alignment and repair center. Now available in a sleek new black finish, the 44030XAR combines industrial-grade construction with modern aesthetics.

30,000 Pounds of Heavy Duty Truck Lifting Power

The 30,000 lb. capacity heavy duty four post truck lift features a superior lifting system with high tensile strength leaf chain and sealed roller bearings for maximum reliability and smooth, consistent operation. Heavy duty hydraulic cylinders provide optimum lifting performance with minimum maintenance, ensuring years of dependable service in demanding commercial environments. The robust construction and precision engineering make the Challenger 44030XAR ideal for transit buses, large commercial trucks, RVs, and other oversized vehicles.

Other features and benefits of the 44030 series four post lifts include a single point air lock release to disengage all post column locks simultaneously for fast, safe operation, diamond plate approach ramps and anti-skid runway surfaces for positive traction upon approach and unload, and adjustable runways that accommodate a variety of commercial transit buses and other large vehicles.

An All-in-One Hydraulic Truck Alignment and Service Lift

The 44030XAR alignment rack four post truck lift accommodates heavy duty vehicles and can be transformed into a complete productivity solution with optional accessories including ramp kits, oil drain pans, heavy duty turning radius gauges, and rolling jacks for brake and wheel work. The built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pans, maximizing your shop's efficiency and service capabilities.

The 44030 series truck lifts are available in three different lengths to handle a wide range of vehicle sizes: standard length models accommodate wheelbases up to 230 inches, extended length (E) models handle up to 290 inches, and the extra extended length 44030X/XAR models accommodate wheelbases up to 350 inches. This 44030XAR extra extended model offers the longest platform in the series, perfect for super-duty trucks, extended buses, and specialty commercial vehicles.

Alignment Rack (AR) truck lifts feature turning radius gauge cutouts and are designed for optional flush mounted 10500HD gauges. (Turning radius gauges and rolling jacks are sold separately.) Alignment rack auto lifts are perfect for increasing your truck repair and alignment service offering, making your shop more profitable and competitive in the heavy-duty market.

Key Features & Benefits

Extra Extended Length Platform: 34' 7-1/2" overall length accommodates wheelbases up to 350 inches – ideal for large commercial buses, extended chassis trucks, and specialty vehicles

Alignment-Ready Design: Turning radius gauge cutouts on the AR model allow for precise two-wheel alignment work with optional flush-mounted gauges (up to 326" max 2-wheel align)

Heavy Duty Hydraulic System: 3HP motor with 208v-230v voltage delivers fast 105-second rise time to a full 68" rise height, powered by rugged hydraulic cylinders designed for minimal maintenance

Single Point Air Lock Release: Convenient air-actuated lock release system allows technicians to disengage all column locks simultaneously for faster, safer operation

Adjustable Runways with Built-In Rail System: 24" wide runways adjust from 54" to 75" apart to fit various axle widths, with integrated rail system for optional rolling jacks and accessories

Rugged Construction & Components

Diamond Plate Ramps
Diamond plate approach ramps provide superior drive-on tread traction and feature heavy duty steel rolling wheels for high volume durability and long service life. The anti-skid surfaces ensure positive vehicle traction during loading and unloading operations.

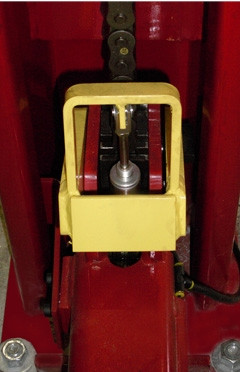

Internal Lock Ladder
Multi-position internal lock ladder provides a wide variety of comfortable and safe work heights. The robust locking mechanism ensures secure positioning at any height throughout the 68-inch rise range.

Heavy-Duty Chain
Heavy-duty, high tensile strength leaf chain with sealed roller bearings ensures smooth, reliable lift operation for years of trouble-free service. The single point air actuated lock release system works in conjunction with the robust chain drive for safe, efficient operation.

See the Challenger 44030 Series in Action

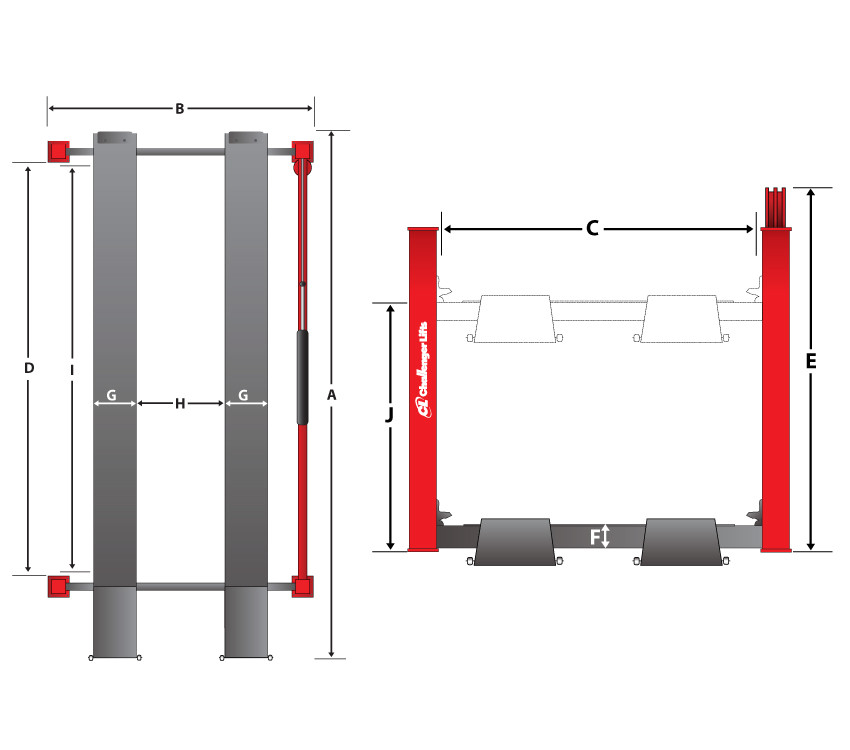

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

Warranty Information

LIMITED WARRANTY

Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.

Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
