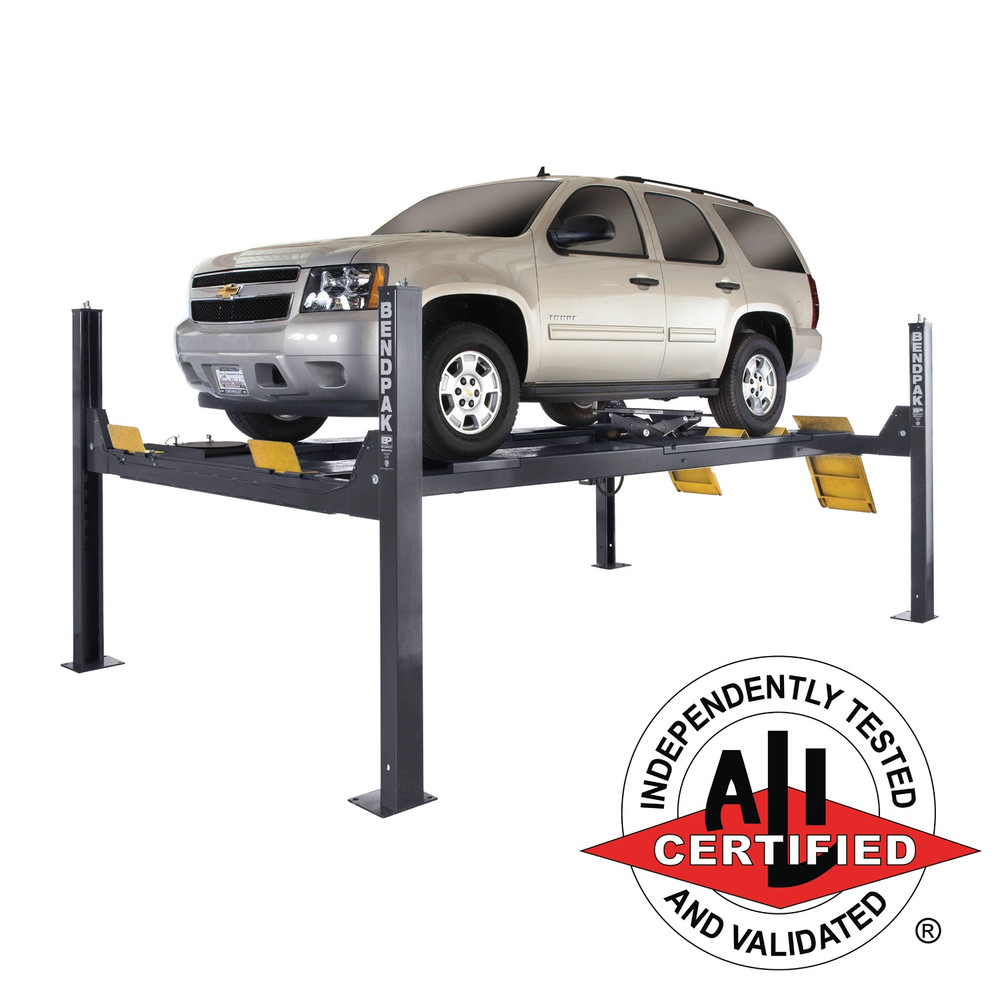

The BendPak HDS-14LSXE is a professional-grade, extended-length alignment lift designed for high-volume shops that service everything from compact sedans to heavy-duty trucks, municipal vehicles, and even farming equipment. With a massive 14,000-lb. lifting capacity, 229-inch extended runways, and integrated heavy-duty turnplates and rear slip-plates, this model delivers the power, precision, and versatility your shop needs to handle virtually any vehicle that rolls through the door. CE Approved and Certified, meeting or exceeding European Standard EN 1493, the HDS-14LSXE is built to world-class safety and performance standards.
The HDS-14LSXE is essential for busy alignment bays that must be ready for the unexpected. You'll work on sedans one day and full-size pickups the next—this lift ensures you're prepared for both. Featuring an automatic leveling system, multi-position turnplate pockets, and a quiet, efficient electric/hydraulic power system, the HDS-14LSXE combines operator convenience with robust engineering. The runways are equipped with rail-kits for optional accessories, and the entire lift is designed for low-maintenance, long-term reliability.
Extended-Length Design for Heavy-Duty Applications
The HDS-14LSXE offers an impressive 14,000-lb. lifting capacity, evenly distributed with 7,000 lbs. on the front axle and 7,000 lbs. on the rear axle. This extended-length model features 229-inch runways, making it ideal for limos, large SUVs, heavy-duty trucks, and any other oversized vehicle requiring professional alignment services. With a 70-inch max rise and 77.625-inch max lifting height, the lift provides exceptional working clearance for technicians. The entire lift reaches full rise in just 60 seconds, keeping bay turnaround times efficient.
The 243-inch outside length and 271-inch overall length accommodate vehicles with wheelbases up to 212 inches for two-wheel alignment and up to 156 inches for four-wheel alignment. Even at reduced capacity, the lift handles vehicles with wheelbases down to 95 inches at 25% capacity. The 120-inch width between columns and 98-inch drive-thru clearance provide ample room for a wide range of vehicle body styles.
Precision Alignment Tools Built Right In
Slip plates and turnplates
Integrated heavy-duty turnplates in the front and integrated rear slip-plates provide perfectly precise, free-floating alignments. The deluxe aluminum-alloy turnplates are easily positioned using BendPak's multi-position turnplate pockets. Larger and more robust than previous slip-plate designs, these turnplates are lightweight yet incredibly strong, and they feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use the lift strictly as a maintenance or storage lift, rather than for alignment work.
Automatic leveling system
The HDS-14LSXE features an integrated automatic leveling system that compensates for slight slopes in your shop floor, ensuring that both runways rise evenly and consistently. This critical feature guarantees accurate alignment readings and enhances operator safety by preventing uneven lifting.
Robust Engineering for Years of Reliable Service

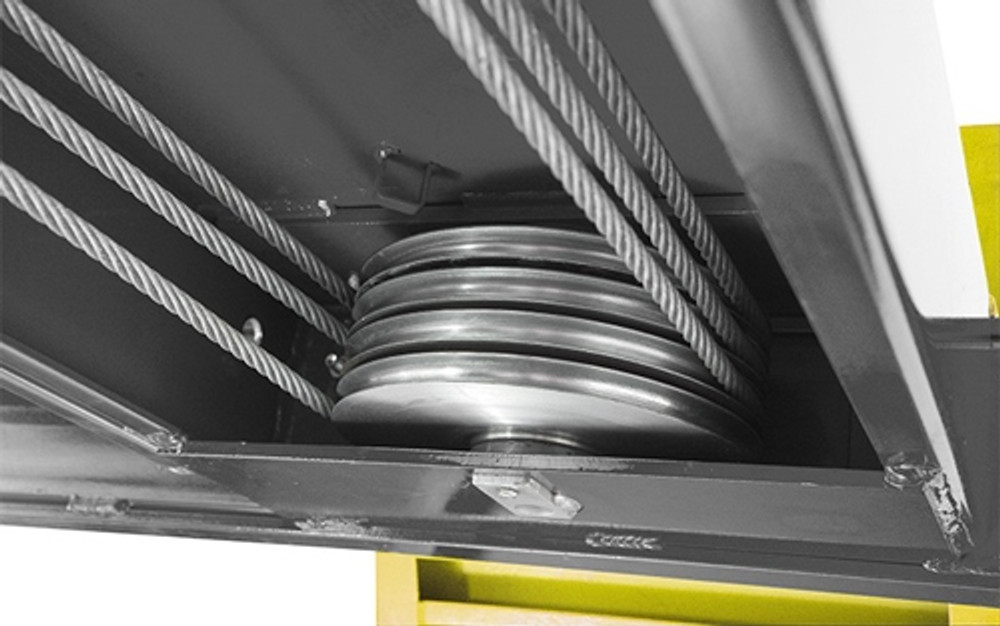

Dual-hub cable sheaves
To maximize longevity and minimize maintenance over the life of the lift, the HDS-14LSXE uses the largest and most robust sheaves in the industry. Massive 10.5-inch diameter cable sheaves are housed within the runway cross tubes and mounted on 2.25-inch diameter sheave axles—built to handle continuous daily use for years on end. Oversize self-lubricating cable sheaves and rugged 1-3/8-inch roller axles ensure smooth, reliable operation with minimal wear.
Heavy-duty aircraft cable
Each column is equipped with 1/2-inch diameter 6 x 25 aircraft-quality stainless-steel lifting cable. These cables are engineered to resist rubbing, abrasion, weather, chemicals, and hydraulic oil, providing unmatched durability and safety. The heavy-duty cable design is a hallmark of BendPak's commitment to building lifts that last.
Internal "Anti-Sway" slider blocks
Each column features internal "Anti-Sway" slider blocks that keep the runways stable and prevent lateral movement during lifting and lowering. This critical design element enhances operator confidence and vehicle safety, especially when working with heavy or unevenly loaded vehicles.

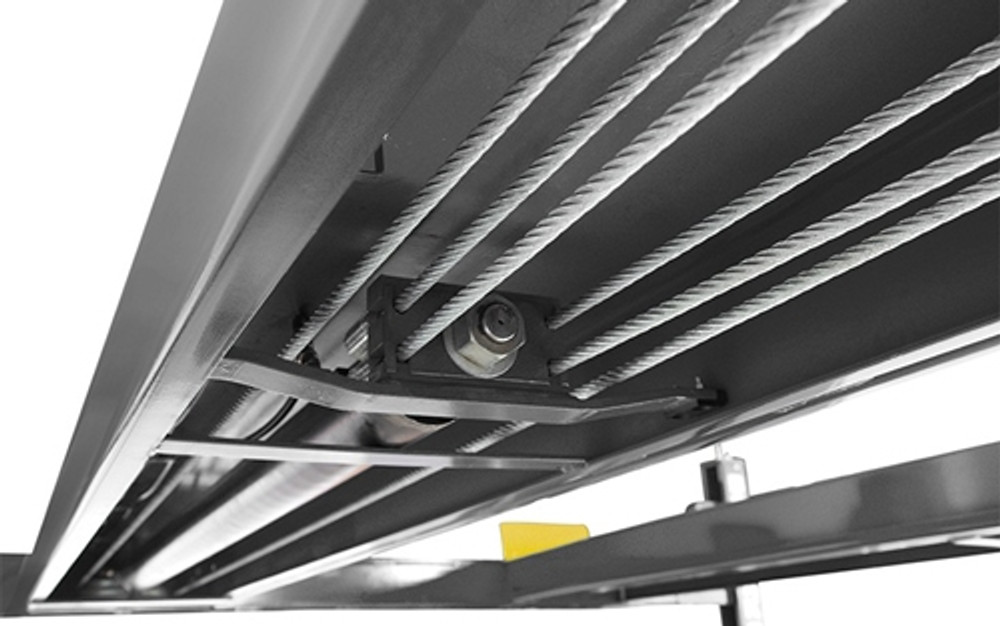

Integrated design
The cables, sheaves, airlines, and single hydraulic cylinder mounted underneath the runway all run within the lift structure. This integrated approach not only improves aesthetics but also protects critical components from shop traffic, debris, and accidental damage. The result is a clean, professional appearance combined with superior user safety and convenience.
Safety Systems You Can Trust
Multi-position safety locks with push-button release
The HDS-14LSXE features 13 locking positions with 4-inch lock spacing, allowing you to position the vehicle at the perfect working height. Spring-loaded safety locks in each column automatically "snap" into place as the runways rise, holding the vehicle securely at the selected height. The multi-position safety lock system is adjustable and compensates for slight slopes in your garage floor.
Lowering the lift is simple and safe with the push-button pneumatic safety release. Stainless steel and aluminum pneumatic cylinders provide years of maintenance-free service. An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage—it is the responsibility of the end-user to provide, install, and maintain the air supply.
Secondary lock system
BendPak goes above and beyond required safety standards by including a slack-cable lock system as a backup safety mechanism. This secondary system is ready at all times to shut off the lift in the unlikely event of dangerous cable slack, providing an extra layer of protection for you and your customers.
Flow restrictor
The lift's unique hydraulic flow divider provides a smooth, controlled descent even in the event of a hose rupture. This safety feature ensures that the lift structure remains safe to operate at all times, giving you peace of mind during every service.
Operator-Friendly Design and Low Maintenance
Electric-hydraulic power system
The zero-maintenance electric/hydraulic power system features ergonomically located controls for easy operator access during repetitive daily use. Powered by a 220 VAC / 60 Hz / 1 Ph motor, the system operates at a remarkably quiet 45 dB noise level, creating a more comfortable work environment for your technicians.
Built-in lubrication
Grease fittings are strategically placed throughout the lift, making it easy to maintain the sheaves and moving components without interrupting your workflow. You can focus on the alignment work at hand without worrying about constant lubrication schedules.
Non-skid runways
The 20-inch wide runways feature a rugged, non-skid surface that provides excellent grip in all shop conditions. Liquids and hazardous oil spills will not compromise the traction of the runways, ensuring that your customers' vehicles remain secure on the turnplates without slipping off the ramps.
Longer approach ramps
Extended approach ramps make it easier to load low ground-clearance vehicles onto the lift. Whether you're aligning a low-slung sports car or a lifted pickup truck, the 7.625-inch minimum runway height combined with longer ramps provides smooth, hassle-free loading.
Flexible protective conduit
An extra-tough yet flexible conduit protects all airlines and hydraulic hoses from daily wear and tear. This protective sheathing guards against abrasion, accidental damage, and fluid leaks, ensuring long-term reliability and reducing the risk of sudden shocks or ruptures.
Expand Your Service Capabilities
Runways include rail-kit for optional accessories
The runways come pre-equipped with a rail-kit, allowing you to easily add optional accessories as your service needs grow.
Optional Rolling Bridge Jacks
Convert your four-post lift into a fully functional wheel service lift with the optional RBJ7000 rolling bridge jacks (7,000-lb. capacity). These jacks raise vehicles by the frame, allowing you to perform wheel and brake service without moving the vehicle to a different lift. The telescoping arms and frame contact pads extend over the runways and target the vehicle's lifting points. The runways are fully adjustable for different tread widths, and three locking positions offer additional operator control. Bridge jacks make a great addition to the HDS-14LSXE and significantly increase your bay's service capacity.
Adjustable runways for different tread widths
The runways can be adjusted to accommodate different vehicle tread widths—37.5 inches or 51 inches between runways—providing flexibility for a wide range of vehicle types and sizes.
Key Highlights
14,000-lb. lifting capacity with 229-inch extended runways for limos, heavy-duty trucks, and large SUVs
Integrated heavy-duty turnplates and rear slip-plates with multi-position turnplate pockets for precision alignment work
Automatic leveling system ensures even runway rise and accurate alignment readings
CE Approved and Certified; meets or exceeds European Standard EN 1493
Electric/hydraulic power system with zero-maintenance design and 45 dB quiet operation
13 locking positions with push-button pneumatic safety release and secondary slack-cable lock system
Internal "Anti-Sway" slider blocks, oversize sheaves, and heavy-duty 1/2-inch aircraft cable for superior durability
Runways include rail-kit for optional accessories and are fully adjustable for different tread widths
Optional RBJ7000 rolling bridge jacks (7,000-lb. capacity) available to convert lift into a full wheel service station
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Important Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.
Certification Notice: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list of certified lifts.
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's
published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO
THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
Any damage caused by overloading Product beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any failure that results from improper installation or use not according to specifications
Damage caused by disasters such as fire, flood, wind, and lightning
Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any
damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States.
Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts
(excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following
1/1/2011.
