Important: 4-Post Cylinder Bleeding Procedure
To view the Atlas 4-Post Cylinder Bleeding Procedure, click here. This should be done immediately after installation.
The Atlas® 414A is a 14,000 lb capacity four-post alignment lift designed and built to commercial-grade standards for years of reliable service. This lift offers features not found on many competing models, all at a competitive price point. Built to the same exacting specifications that Atlas has maintained for many years, the 414A is tested to ensure flawless performance at its rated capacity.
The 414A alignment lift includes a complete set of front turntables and slip plates built right into the runways, flush with the turntable surface for seamless operation. The turntables can be positioned at different locations along the runway to accommodate a wide variety of wheelbases — from compact cars to full-size trucks. Metal cover plates are also included to cover the turntable cutouts when the lift is not being used for alignment work, ensuring safe, level vehicle support.

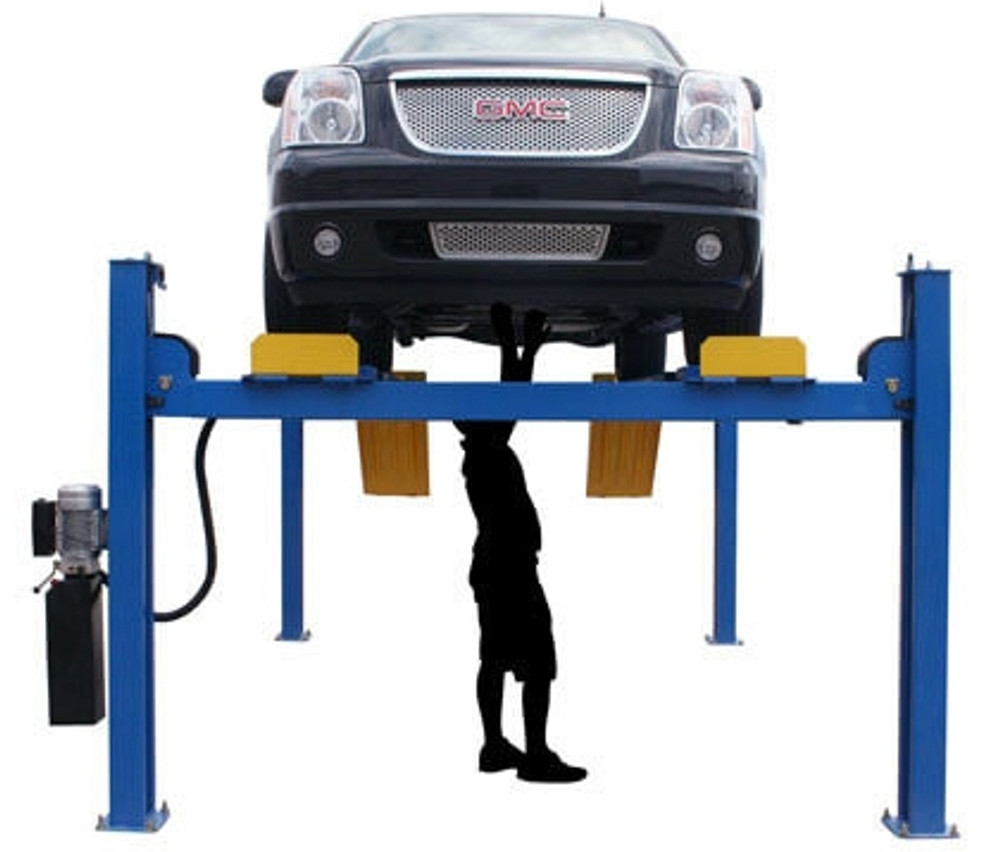

With an impressive 80-inch lift height (6 feet 8 inches), the Atlas 414A provides ample working space under virtually any vehicle. The 208 5/8-inch runways (over 17 feet) and 197-inch maximum wheelbase capacity mean you can handle everything from compact sedans to extended-cab pickups with ease.
The Atlas® 414A incorporates many structural and cosmetic features that are typically found on lifts costing thousands of dollars more. Unlike many competitors who still rely on an old-style chain lifting system with exposed hydraulic cylinders, the 414A uses a modern high-strength cable system powered by an under-runway oversized hydraulic cylinder. This design eliminates the risk of door dings from exposed cylinders and provides easier leveling and smoother operation.

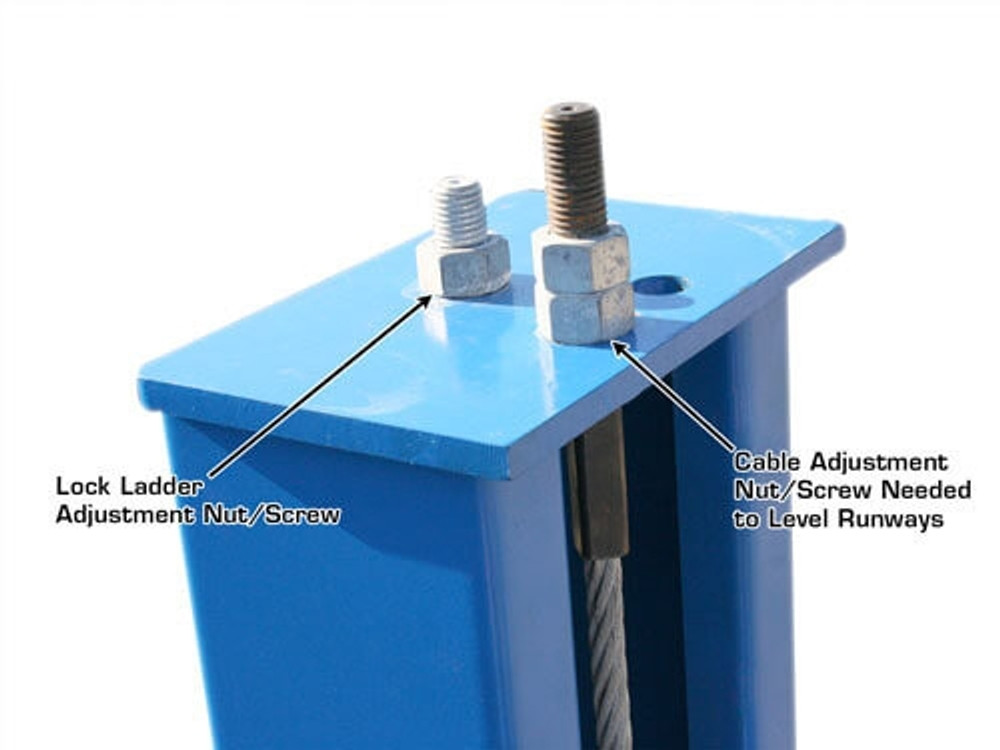

The lock ladder column design provides secure engagement at any height, while the air-operated single point lock release makes operation fast and convenient. An automatic shut-off switch ensures safe operation, and the diamond plate runway surface delivers superior traction and durability. The entire lift is finished with the signature Atlas® powder coat finish for long-lasting appearance and corrosion resistance.
Powered by a 220V single-phase motor requiring a 30-amp breaker, the 414A delivers reliable lifting power. The lift requires an external air supply of 85-115 PSI for the lock release and alignment equipment operation. With an oil requirement of just 3-5 gallons of AW32/AW46 hydraulic oil (not included), maintenance is straightforward and economical.
Your Atlas® 414A alignment lift ships complete and ready to install:
Note: Hydraulic oil (3-5 gallons AW32/AW46) is not included and must be purchased separately. External air supply (85-115 PSI) is required for operation.

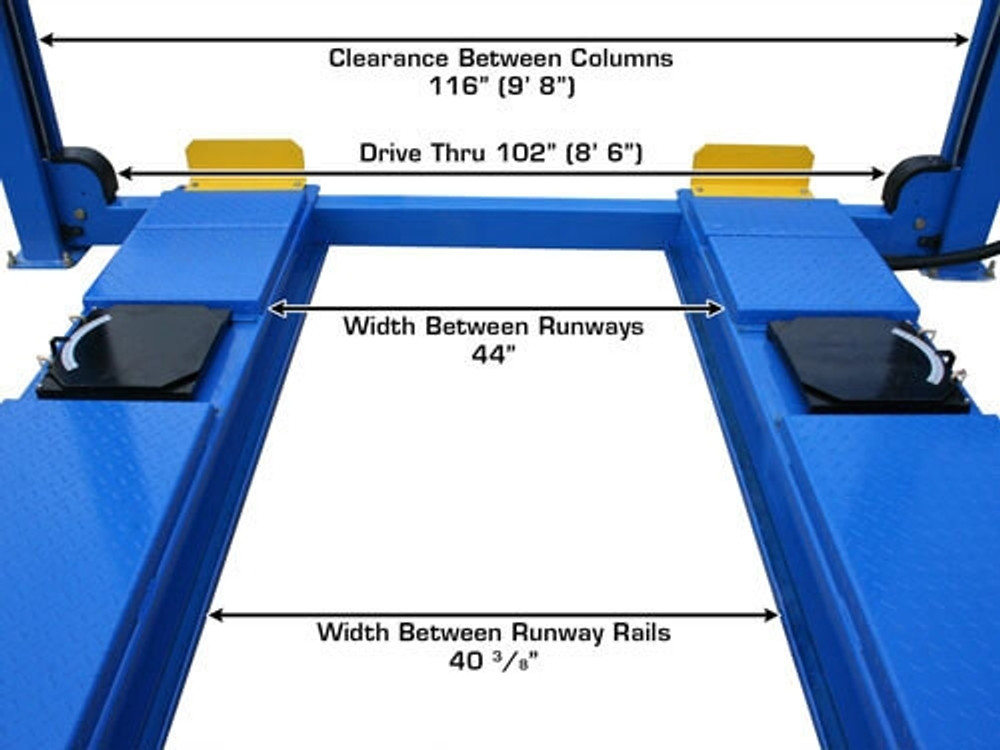

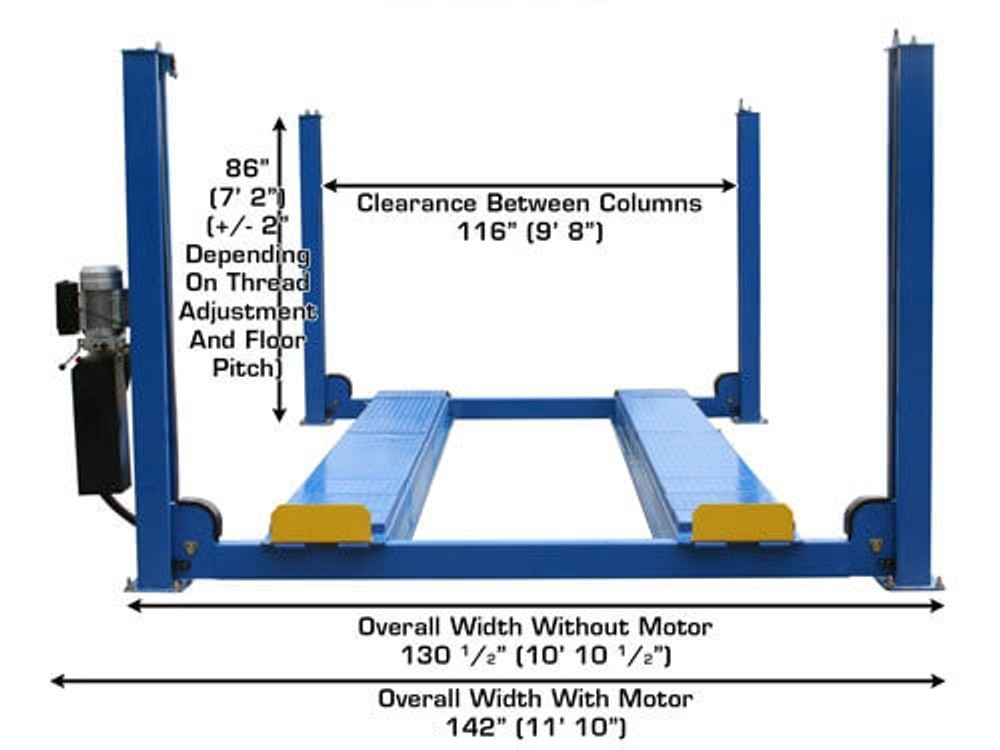

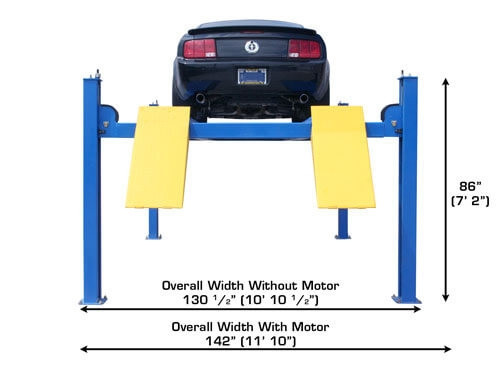

With an overall width of 130 7/8 inches (just under 11 feet with motor) and an overall length of 255 inches (21 feet 3 inches with approach ramps), the 414A fits comfortably in most professional shop environments. The drive-through clearance of 102 1/8 inches (over 8.5 feet) allows vehicles to be positioned quickly and easily.

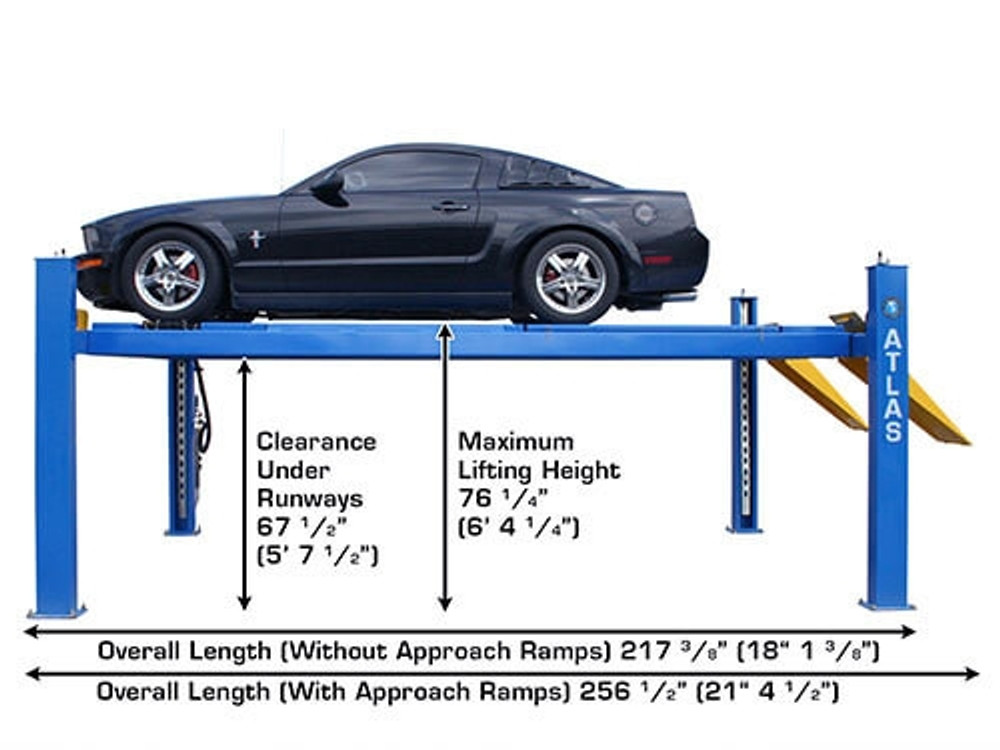

The runways themselves are a robust 8 3/4 inches thick and positioned with 46 7/8 inches between them (44 3/8 inches with optional rails installed), accommodating a wide range of vehicle track widths. The clearance under the runways is 71 1/4 inches (nearly 6 feet), and the clearance between columns is 116 inches (9 feet 8 inches), providing excellent access for technicians and equipment.
Weighing in at 3,200 lbs (shipping weight approximately 3,500 lbs), the Atlas 414A is a substantial, heavy-duty piece of equipment designed for daily professional use. All mounting hardware is included for a straightforward installation process.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Warranty Information
To View Atlas® Automotive Equipment 414A Warranty Click Here
