Important: Cylinder Bleeding Procedure Required
To view the Atlas 4 Post Cylinder Bleeding Procedure, click here. This must be done immediately after installation to ensure proper operation.
The Atlas® 412A is a 12,000 lb. capacity four post alignment lift designed and built to meet commercial grade standards for shops that demand reliability, precision, and long-term performance. Engineered to deliver many years of dependable service, this alignment lift incorporates exclusive features and structural enhancements typically found on lifts costing thousands of dollars more. Whether you're running a busy alignment shop, a general automotive service center, or an independent garage, the Atlas® 412A offers the capacity, versatility, and professional-grade construction you need.
Every Atlas® 412A alignment lift includes a complete set of front turntables and built-in slip plates that sit level with the turntables, providing a flush, seamless alignment surface. The turntables are fully adjustable and can be positioned at different locations along the runway to accommodate a wide variety of wheelbases—from compact cars to full-size trucks. Included metal cover plates allow you to cover the turntable cutouts when the lift is being used for general service rather than alignment work, ensuring your vehicles sit on a solid, stable surface at all times.

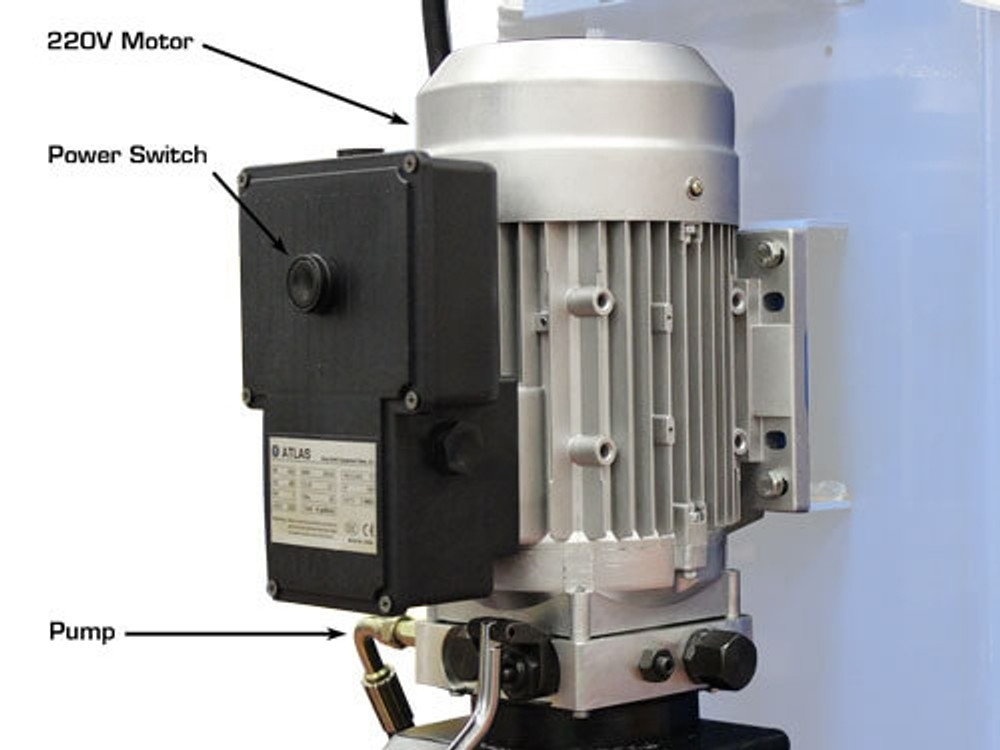

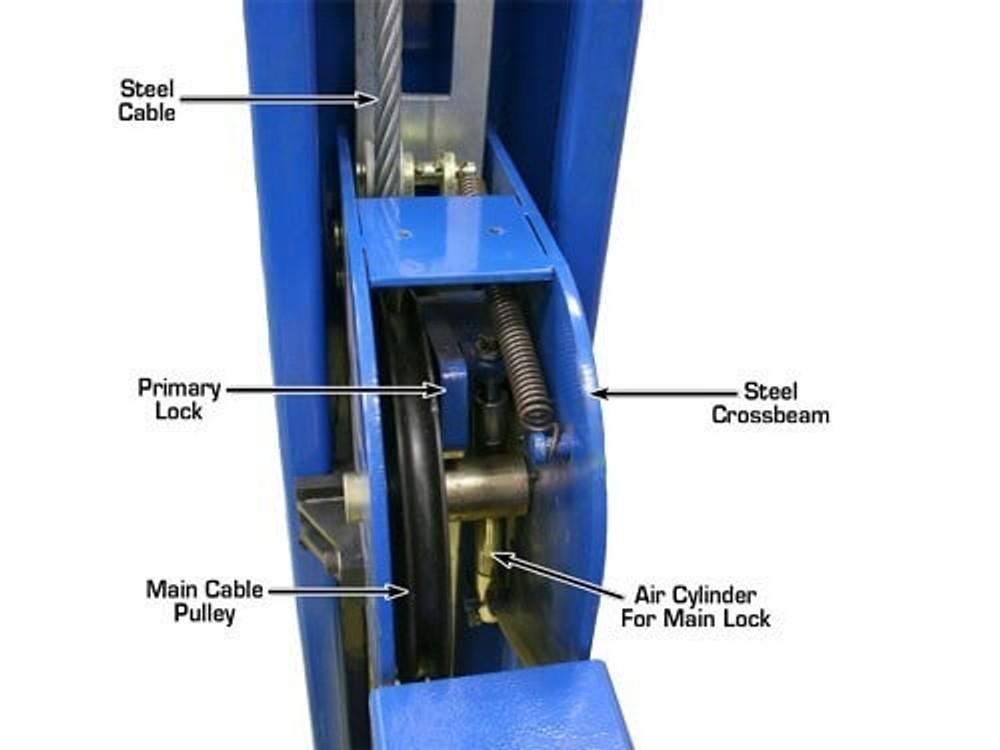

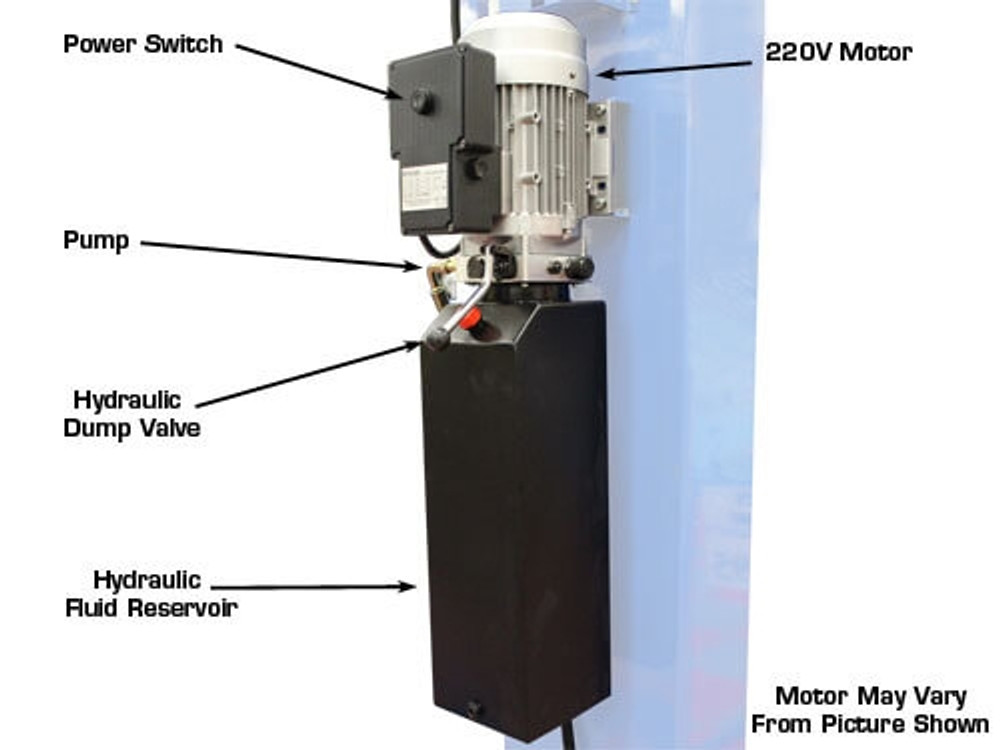

The Atlas® 412A is powered by a 2 HP, 220V single-phase motor (209-231V ±5%) paired with a heavy-duty high-strength cable lifting system and an under-runway oversized hydraulic cylinder. This modern cable design offers superior performance, easier leveling, and cleaner aesthetics compared to old-style chain lifts with exposed cylinders that are prone to causing door dings and maintenance headaches. With an automatic shut-off switch and air-operated single point lock release, the lift provides safe, smooth, and efficient operation every time.
The Atlas® 412A has been manufactured to the same exacting specifications for many years, and every unit is rigorously tested to ensure flawless performance at its rated capacity. This lift incorporates many structural and cosmetic features that set it apart from competitors, including a robust lock ladder column design for secure, stable lifting at any height, and a durable diamond plate runway surface that provides excellent traction and wear resistance.

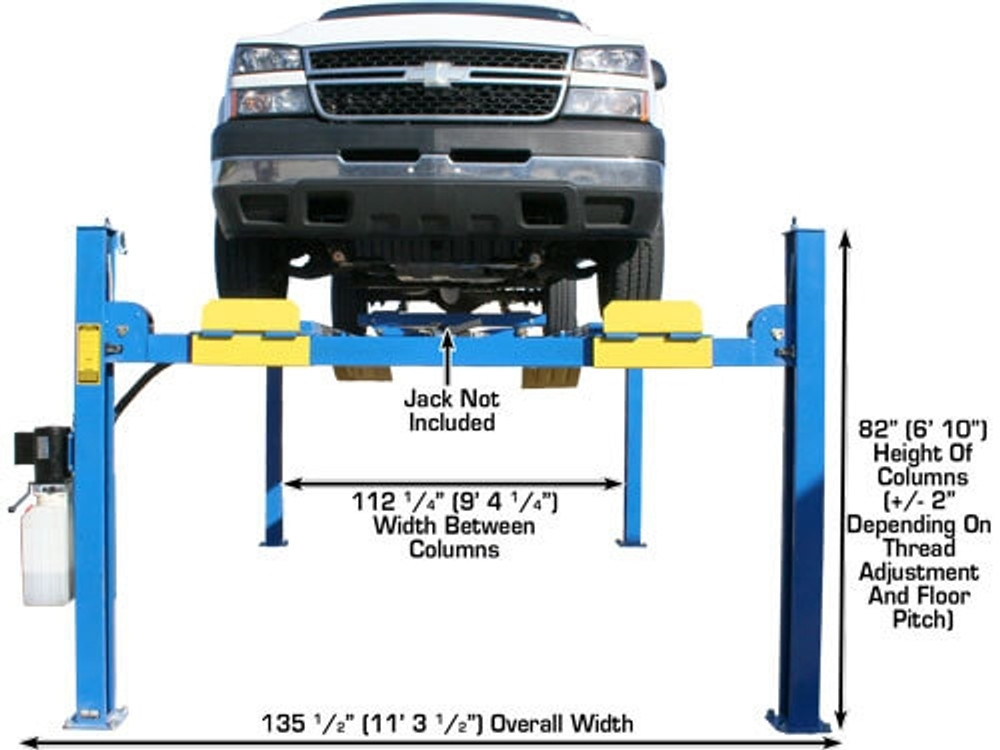

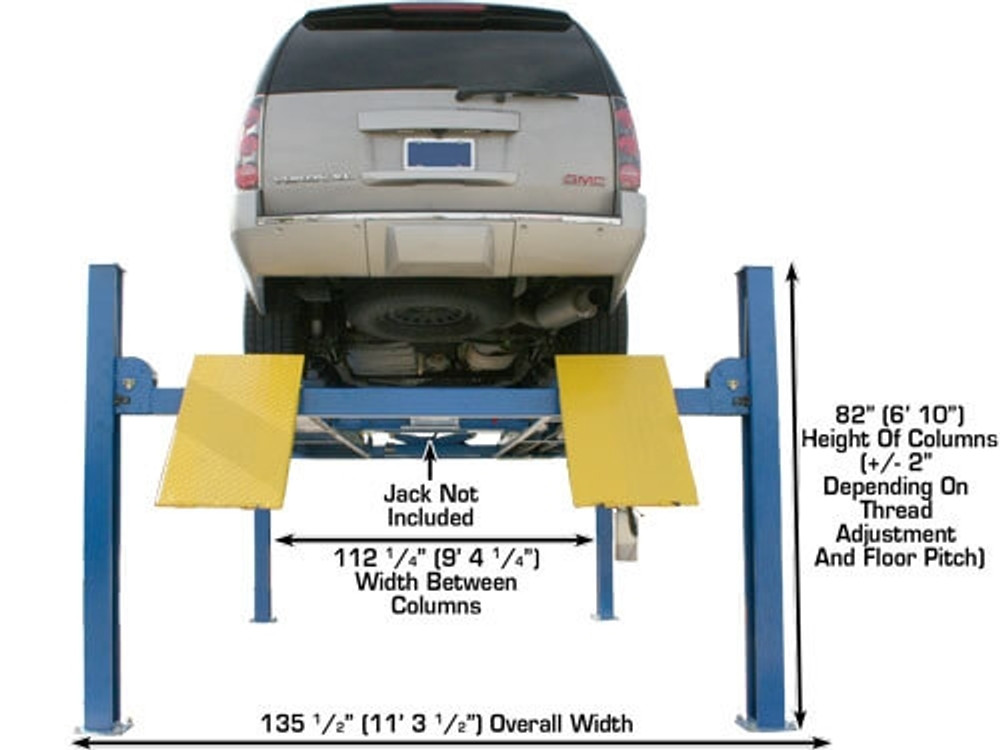

With a lifting height of 76 1/4" (6' 4 1/4"), the 412A provides ample clearance under the runways—68 1/2" (5' 8 1/2")—for easy access to suspension components, undercarriage work, and alignment adjustments. The lift's column height of 82" (6' 10") and runway length of 186 1/2" (15' 6 1/2") accommodate vehicles with wheelbases up to 175" (14' 7"), and the drive-thru clearance of 98 1/2" (8' 2 1/2") ensures smooth vehicle entry and exit.
The lift is finished with a professional Atlas® powder coat finish that resists corrosion, chipping, and fading, maintaining a clean, polished appearance even in the toughest shop environments. All mounting hardware is included, making installation straightforward and hassle-free.
When you order the Atlas® 412A alignment lift, you receive everything you need to get your shop up and running:
Note: When you purchase the "combo package" (lift + 2 rolling jacks), you also receive a FREE air line kit (a $300 value).
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Warranty Information
To View Atlas® Automotive Equipment 412A Warranty Click Here
