Professional-Grade Alignment Lift for Your Shop

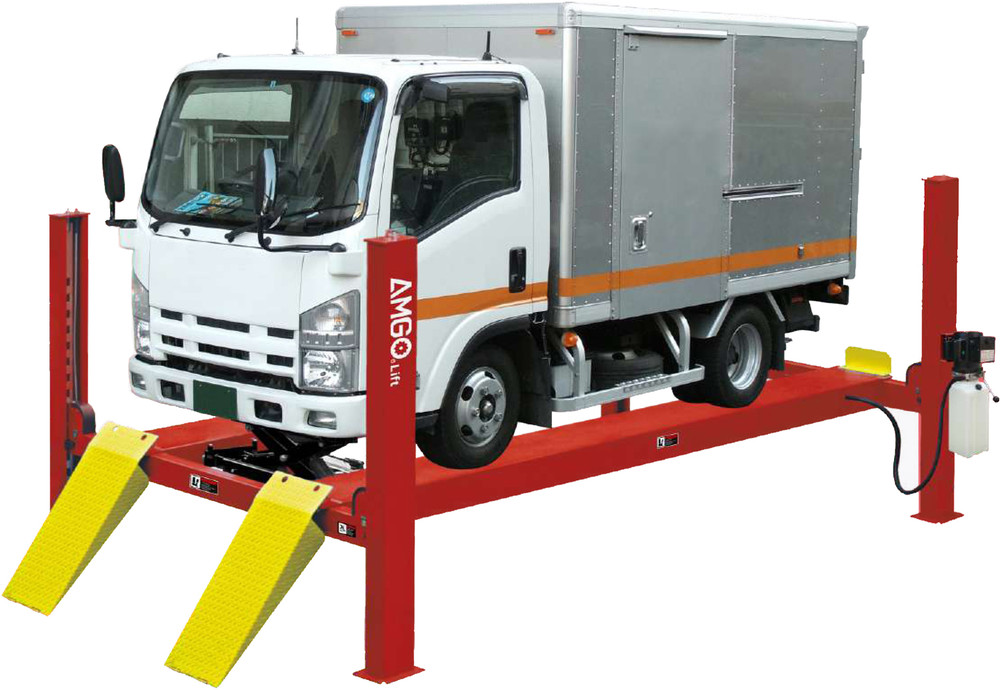

The AMGO PRO-14A is a powerful commercial-grade 4-post alignment lift engineered to deliver a generous 14,000 lbs lifting capacity with the precision and features professional shops demand. Built on the proven foundation of the PRO-14 model, the PRO-14A alignment version provides the same exceptional lifting performance while adding alignment-specific capabilities to expand your shop's service offerings.
Designed with extra wide runways and adjustable positioning, this lift accommodates a wide variety of vehicle types and wheel bases, from compact cars to full-size trucks. Whether you're performing routine maintenance, tire service, exhaust work, or precision wheel alignment procedures, the PRO-14A delivers the stability, clearance, and accessibility you need to work efficiently and safely.
With a maximum lifting height of 75 3/8 inches and 66 3/4 inches of underneath clearance, technicians enjoy comfortable standing room beneath raised vehicles. The drive-through design provides 102 1/8 inches of clearance, allowing easy vehicle entry and exit. Built to commercial grade standards with robust construction and safety features, the PRO-14A is engineered to provide many years of reliable service in demanding professional environments.
Key Highlights
14,000 lbs capacity – handles a wide range of passenger vehicles and light trucks with confidence
Alignment-ready design – built specifically for wheel alignment work (turn plates sold separately)
Air-released safety lock system provides convenient operation with exceptional reliability and mechanical self-locking protection
High-quality hydraulic cylinders with flow restrictors ensure stable, smooth lifting and lowering operations
1/2-inch aircraft quality cable with cable-breaking protection for enhanced safety and durability
Skid-proof diamond platform provides secure footing and vehicle traction throughout the lift cycle
Adjustable runway width – accommodates various vehicle track widths from 47 inches to 54 1/2 inches between runways
Powered by 2.0HP motor on 220V/60Hz single phase power for efficient operation
Note: Turn plates are NOT included as standard equipment with the PRO-14A. Front turn plates must be purchased separately to perform alignment services. See optional accessories below for available turn plate kits and other add-ons.
Alignment Capabilities
The PRO-14A is specifically engineered to support professional wheel alignment procedures. The lift accommodates four-wheel alignment for vehicles with wheelbases ranging from 92 1/2 inches minimum to 169 5/8 inches maximum. For two-wheel alignment applications, the lift supports wheelbases up to 175 1/4 inches, providing exceptional versatility for virtually any passenger vehicle or light truck in your shop.
The generous 116-inch width between columns ensures ample clearance for wide vehicles, while the adjustable runway positioning allows precise setup for each specific vehicle. Combined with the lift's stable platform and precise height control, technicians can perform accurate alignment measurements and adjustments with confidence.
Safety and Reliability
Safety is engineered into every aspect of the PRO-14A. The air-released safety lock mechanism provides reliable load holding throughout the entire lift range, while the mechanical self-lock system offers redundant protection in the unlikely event of hydraulic failure. Cable-breaking protection adds another layer of security, and the use of 1/2-inch aircraft quality cable ensures exceptional strength and longevity under continuous commercial use.
The hydraulic cylinders undergo strict quality control during manufacturing and are designed to exacting standards. Each cylinder features an integrated flow restrictor that ensures smooth, stable lifting and lowering speeds, preventing sudden movements and enhancing both operator safety and vehicle protection.
Optional Accessories
Enhance your PRO-14A with these available accessories designed to expand functionality and improve shop efficiency:
41403 Extension Platform Set for PRO-14 & PRO-14A (2 pieces) – extends usable platform length
40101 Front Turnplate Kit – essential for performing alignment services
RJ-8A Pneumatic Rolling Jacks (8,000 lbs capacity) – convenient for lifting individual axles or corners
40102 Airline Kit for 4 Post Lifts less than 18K – integrate compressed air service into your lift
40103 LED Light Kit for 4 Post Lifts – illuminate the undercarriage work area
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
