Professional Alignment Lift for Your Shop

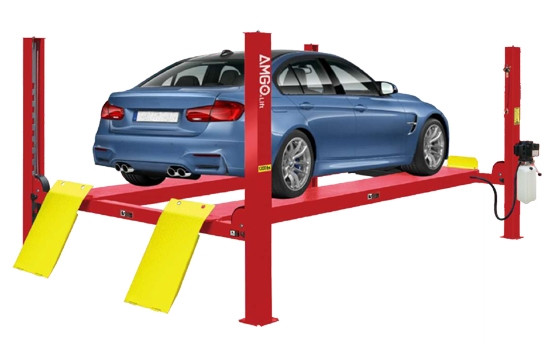

The AMGO PRO-12ASX represents the pinnacle of four-post alignment lift technology for shops that demand precision alignment capabilities alongside reliable lifting performance. With a robust 12,000 lbs lifting capacity, this wider four-post design delivers all the advanced features AMGO Hydraulics is known for, now optimized specifically for alignment work. Whether you're performing routine maintenance or precise four-wheel alignment on passenger cars, light trucks, and SUVs, the PRO-12ASX provides the stability, accessibility, and safety your shop requires.
Need alignment work done on everyday vehicles? This is the lift for you! Designed with double safety locks and mechanical self-locking technology, the PRO-12ASX ensures you and your vehicle are always safe during service. You can feel secure and confident with every job, knowing that AMGO's engineering and quality control standards are protecting your investment and your team.
The PRO-12ASX features optional adjustable turnplate pockets that accommodate different wheelbases, making it versatile for a wide range of vehicles. The skid-proof diamond plate platform provides secure footing, while the 75 3/8" lifting height and 67 7/8" max underneath height give you ample working clearance for undercarriage work, brake service, suspension repairs, and comprehensive alignment procedures. With a 104 1/8" drive-thru clearance and adjustable runway width, this lift adapts to your shop's workflow and vehicle mix.
Key Features & Advantages
12,000 lbs capacity — Handles most cars, light trucks, and SUVs with confidence

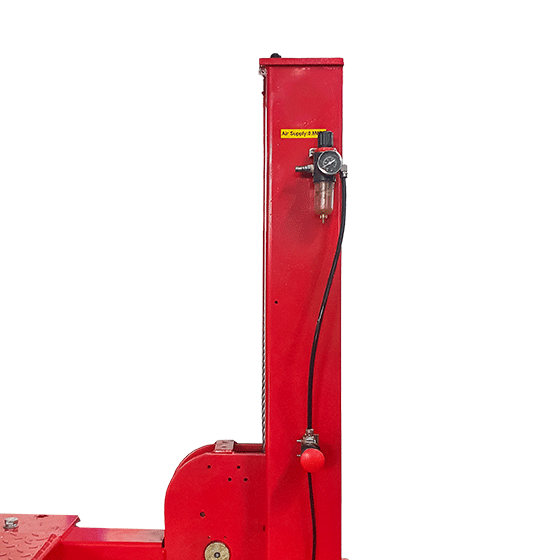

Air-released safety lock system — Convenient operation with reliable mechanical backup protection

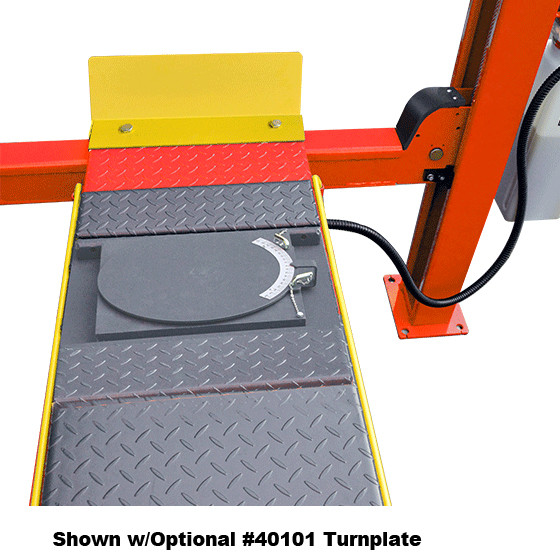

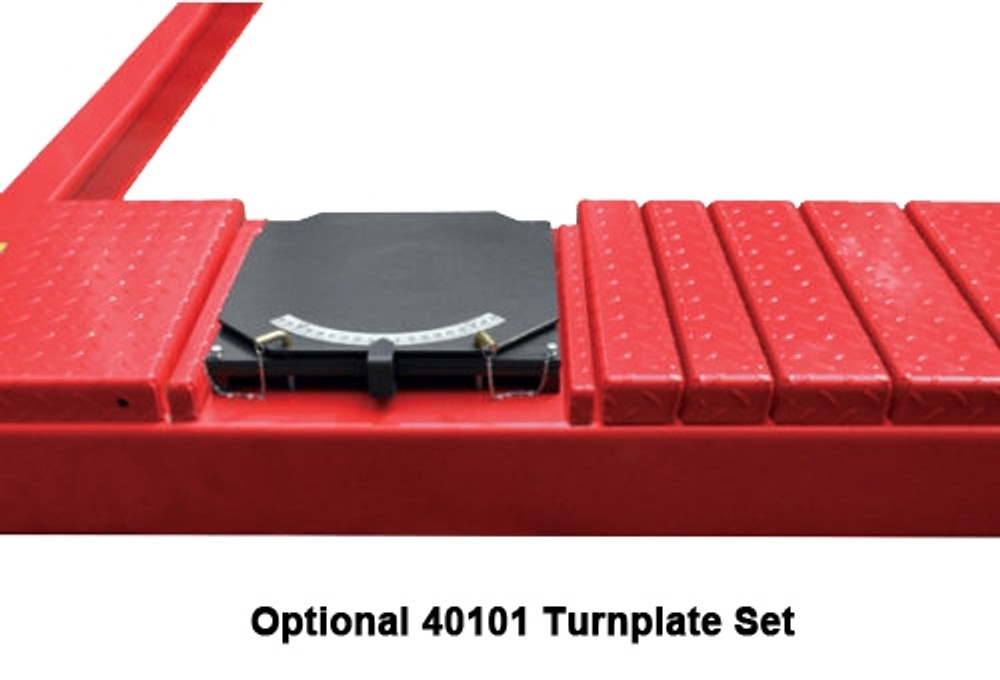

Alignment-ready design — Optional adjustable turnplate pockets fit different wheelbases for four-wheel and two-wheel alignment work
High-quality hydraulic cylinders — Built to exacting standards with NOK seals and flow restrictors for consistent, smooth operation
3/8" aircraft-quality lifting cables — Combined with cable breaking protection for maximum reliability and safety

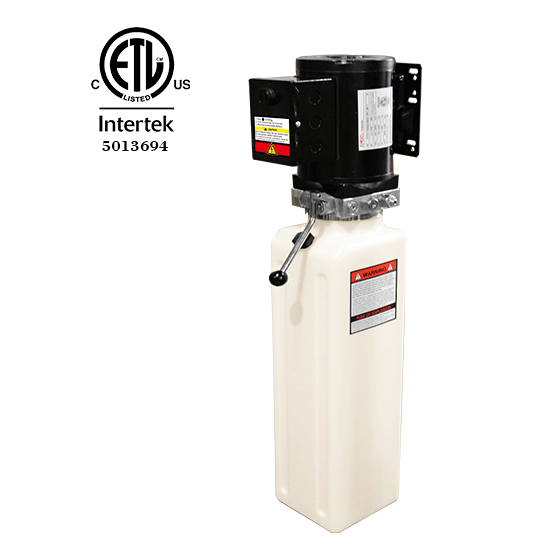

Powered by a 2.0HP, 220V/60Hz single-phase motor, the PRO-12ASX lifts vehicles smoothly to full height in just 45 seconds, maximizing your shop's productivity without sacrificing safety or precision. The strict quality control applied to every hydraulic cylinder ensures constant low-speed operation that protects both vehicle and technician.
Built for Safety & Reliability
Safety is paramount in any professional shop environment. The PRO-12ASX incorporates multiple layers of protection, including mechanical self-locking mechanisms and cable breaking protection systems that guard against unexpected failures. The air-released safety lock design allows for smooth, controlled lowering while maintaining a secure hold at any height. Combined with the skid-proof diamond platform and sturdy column construction, this lift provides a rock-solid foundation for even the most demanding alignment and undercarriage service tasks.

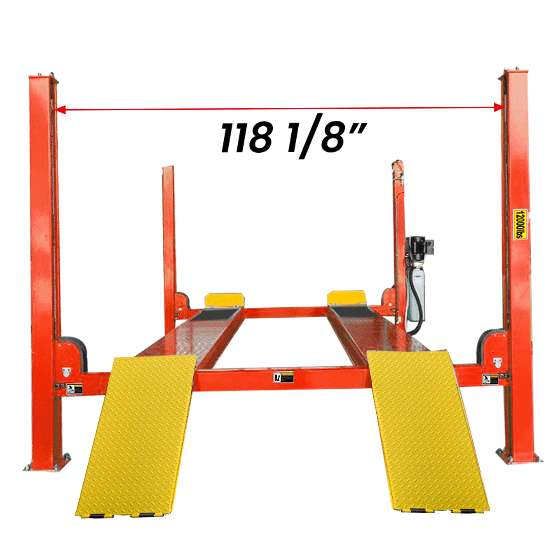

The PRO-12ASX offers a minimum height of just 8 5/8", allowing low-clearance vehicles to drive on easily, while the maximum lifting height of 75 3/8" ensures you have plenty of working room underneath. The 118 1/8" width between columns and adjustable runway spacing (43 1/4" to 53 3/4" between runways) provide flexibility for different vehicle sizes and service scenarios.
Alignment Capabilities
What sets the PRO-12ASX apart from standard four-post lifts is its alignment-ready design. With turnplate pockets and the proper accessories, this lift supports both four-wheel alignment (wheelbase range 81 7/8" to 151 5/8") and two-wheel alignment (up to 157 1/2" wheelbase). This versatility makes the PRO-12ASX an ideal choice for shops that want a single lift capable of handling general service, maintenance, and precision alignment work without compromise.
Optional Accessories to Enhance Your PRO-12ASX:

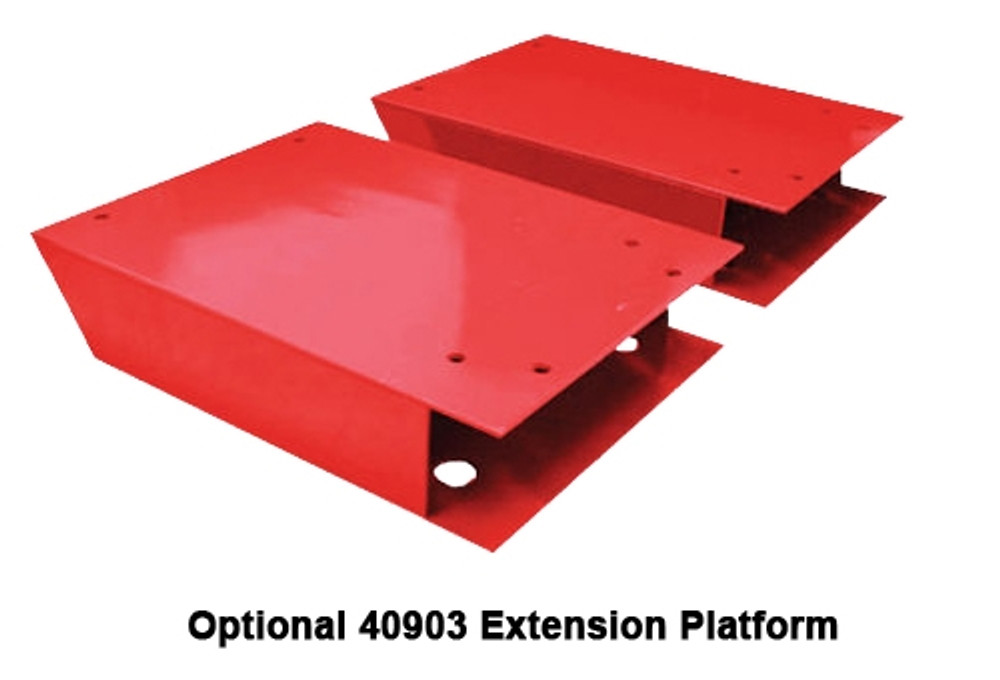

Expand the capabilities of your lift with available accessories including 40902 Extension Platform Sets, 40901 Turnplate Adjustment Blocks, RJ-6A Pneumatic 6,000 lbs Rolling Jacks, 40102 Airline Kits, and 40103 LED Light Kits. Ask about these upgrades to customize your lift for your shop's specific needs.
Why Choose the AMGO PRO-12ASX?
AMGO Hydraulics has built a reputation for delivering professional-grade lifting equipment that combines innovative safety features, precision engineering, and exceptional value. The PRO-12ASX continues that tradition, offering a wider platform design with alignment capabilities that meet the demands of busy automotive shops. From the high-quality NOK seals in every hydraulic cylinder to the robust 3/8" aircraft-quality cables, every component is selected and tested to ensure long-term performance and reliability.
With a gross weight of 2,798 lbs, an overall length of 232 5/8" with ramp (or 196 3/4" without), and an overall width of 132 1/8", this lift is designed to fit into most professional shop environments while providing maximum utility. The 86" overall height ensures compatibility with standard shop ceilings, and the efficient 45-second lifting time keeps your workflow moving.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
