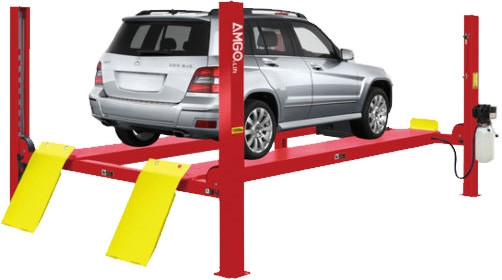

Professional Alignment Lift for Complete Wheel Service
The AMGO PRO-12A is a purpose-built alignment-ready 4-post lift designed for professional automotive service facilities that demand precision wheel service capabilities. With a robust 12,000 lb lifting capacity and integrated alignment features including rear slip plates and adjustable turn plate pockets, this lift delivers the versatility needed for comprehensive wheel maintenance, alignment diagnostics, and general vehicle service.
Built to accommodate various wheelbases, the PRO-12A features adjustable turn plate pockets that adapt to different vehicle configurations, making it ideal for shops servicing cars, light trucks, and SUVs. The alignment-specific design includes 22" wide runways and a 75 3/8" lifting height, providing excellent access for suspension work, brake service, and precise wheel alignment procedures.
Engineered with safety and reliability at its core, this lift incorporates air-released safety locks for convenient operation, mechanical self-lock protection, and cable breaking protection systems. The hydraulic cylinders are manufactured to high quality standards, while the 1/2" aircraft quality cables ensure dependable performance lift after lift. A skid-proof diamond platform provides secure footing during service operations.
Key Features & Capabilities
12,000 lbs lifting capacity handles a wide range of passenger vehicles and light trucks

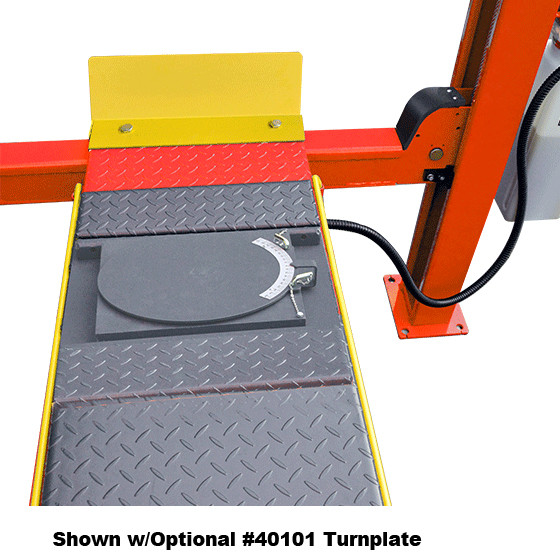

Alignment-ready design with integrated rear slip plates and adjustable turn plate pockets to fit various wheelbases
Air-released safety locks provide convenient operation with maximum reliability during vehicle service
22" wide runways (vs. 20" on non-alignment model) deliver superior access for alignment and wheel work
75 3/8" maximum lifting height offers excellent working clearance for suspension and undercarriage service
98 3/8" drive-thru clearance accommodates various vehicle lengths and service requirements
62-second lifting time powered by a 2.0HP single-phase motor for efficient workflow
Safety & Reliability Features
Safety is paramount in any professional shop environment. The PRO-12A incorporates multiple safety systems to protect both technicians and vehicles. The mechanical self-lock system provides redundant protection, while cable breaking protection guards against unexpected failures. The 1/2" aircraft quality cables are engineered for durability and long service life, and the skid-proof diamond platform ensures secure footing during all service operations.
High-quality hydraulic cylinders are designed and manufactured to rigorous standards, delivering smooth, consistent operation across thousands of lift cycles. The air-released safety lock system makes raising and lowering vehicles both safe and convenient, streamlining your shop's workflow without compromising on protection.
Alignment Specifications
The PRO-12A is designed specifically for alignment work with precise dimensional capabilities:
Adjustable runway width: 43 1/4" standard, expandable to 51 1/8" maximum
These specifications ensure compatibility with virtually all passenger vehicles, crossovers, and light trucks requiring alignment services.
Expand Your Capabilities with Optional Accessories
Customize your PRO-12A to match your shop's specific needs with a range of available accessories:
41203 Extension Platform Set (2-piece) for PRO-12 & PRO-12A models
40905 Turnplate Adjustment Blocks for PRO-12A (used with turnplates 40903)
RJ-6A Pneumatic Rolling Jacks with 6,000 lbs capacity for axle service
40102 Airline Kit designed for 4-post lifts under 18K capacity
40103 LED Light Kit for enhanced visibility during undercarriage work
Dimensions & Installation Requirements
The PRO-12A requires a footprint of 236 5/8" overall length with ramps (200 3/4" without ramps) and 126 1/4" overall width. The 112 1/4" width between columns provides generous drive-thru clearance for easy vehicle positioning. With an overall height of 86" and minimum height of 8 3/8", the lift fits in most professional shop environments with standard ceiling heights.
Powered by a 2.0HP, 220V/60Hz single-phase motor, the lift requires standard shop electrical service and completes full lifting cycles in approximately 62 seconds. The gross weight of 2,901 lbs ensures stability during operation while remaining manageable for installation.
PRO-12A dimensional specifications and measurements
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
