FS-Curtis ML7.5 80G Horizontal 7.5HP Simplex Tank Mounted Electric Air Compressor
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
The FS-Curtis ML7.5 represents the pinnacle of heavy-duty reciprocating air compressor technology. Built with a 7.5 HP motor, an 80-gallon horizontal ASME-approved tank, and the legendary C79 pump, this simplex compressor delivers 28.7 CFM at 175 PSI with unmatched reliability. Designed for 100% continuous duty, the ML7.5 is the perfect choice for demanding shop environments where rugged construction, efficient performance, and minimal maintenance are non-negotiable. Available in both single-phase (1/60/230V) and multiple three-phase configurations (200-208V, 230V, and 460V), this American-made compressor is engineered to outlast and outperform splash-lubricated and small rotary competitors.
The Masterline Advantage: Built Tough, Built Smart
Masterline is the most robust, heavy-duty reciprocating air compressor lineup available. The perfect combination of quality components and efficient design make the ML Series rugged, affordable, and smart. Because every model is built tough to last a lifetime in demanding working conditions, the ML Series is an outstanding alternative to splash-lubricated reciprocating compressors and small rotary compressors. Choose higher quality. Choose superior durability. Choose ML Series pressure lubricated air compressors.
Simplex compressors like the ML7.5 are ideally suited for common applications where only one compressor is needed. With its horizontal configuration and factory oil-filled construction, this unit ships ready to perform right out of the crate.

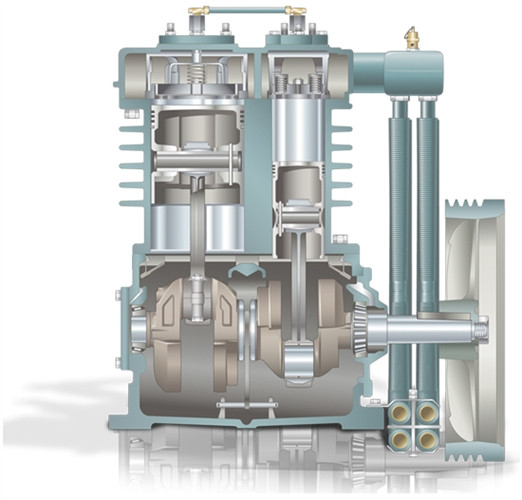

Centro-Ring Pressure Lubrication – Patented FS-Curtis Design
The Centro-Ring pressure lubrication system is a proprietary FS-Curtis exclusive that sets the ML7.5 apart from all competitors. This patented technology supplies pressurized oil internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods. By ensuring that every moving part receives consistent, pressurized lubrication, Centro-Ring helps ensure maximum uptime and dramatically increases service life. It's the secret behind the ML Series' legendary durability.
100% Cast-Iron Construction – Where It Counts
When FS-Curtis says 100% cast-iron, we mean it. The ML7.5 features 100% cast-iron cylinders, cylinder heads, connecting rods, and crankshaft — all cast-iron where it counts for longer life with less maintenance. Some pumps claim 100% cast-iron yet still have aluminum cylinders, cylinder heads, connecting rods, and crankshafts – not FS-Curtis.
The ductile cast-iron crankshaft and connecting rods are stronger, more corrosion-resistant, and far less likely to break under heavy industrial use. Combined with a slow-turning pump design, this rugged construction delivers true industrial performance and service life that outlasts aluminum and composite alternatives year after year.
Quality Components – Engineered for Continuous Duty
Every component of the ML7.5 is selected for 100% continuous duty operation. The compressor features industry-leading stainless-steel valve assemblies for increased airflow and reliability, oversized tapered main roller bearings to ensure long life, and a premium finned intercooler that maximizes heat dissipation. The metal intake filter/silencer is superior to plastic, the heavy-duty stamped-steel belt guard is OSHA approved, and suction valve head unloaders enable true continuous running without compromise.
Other quality features include a magnetic motor starter, automatic start-stop control, ASME-approved air receiver, manual condensate tank drain valve, dial read-out pressure gauge, UL-approved pressure switch, ASME-approved safety relief valve and discharge valve, dynamically balanced flywheel, slow V-belt drive, and a NEMA-1 control panel. Three-phase models also feature Premium Efficiency Motors. The ML7.5 also includes a tank shut-off valve and dual control with pilot valve for enhanced operation.
Key Highlights
- 7.5 HP motor delivers 28.7 CFM at 175 PSI with the proven C79 pump
- 80-gallon horizontal ASME-approved tank for extended runtime and reduced cycling
- Centro-Ring pressure lubrication and 100% cast-iron construction ensure maximum uptime and decades of reliable service
- Available in single-phase and multiple three-phase voltages to match any shop power configuration
- Made in the USA with premium components and industrial-grade quality throughout
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Voltage Options
Single Phase:
- 1/60/230V – FML07C79H8S-A2L1XX
Three Phase:
- 3/60/200-208V – FML07C79H8S-A9L1XX
- 3/60/230V – FML07C79H8S-A3L1XX
- 3/60/460V – FML07C79H8S-A4L1XX
See the ML Series in Action
Watch the FS-Curtis ML Series in action and see why it's the preferred choice for professionals who demand reliability.
Proudly designed, engineered, and manufactured in the United States of America.
1 Year Factory Warranty extends to 2 years with use of FS-Curtis Maintenance Products. See full Warranty Policy & Procedure Manual
