Ingersoll Rand 2340L5-V 5HP 2-Stage 60Gal Air Compressor
0 review
Write a Review
Write a Reviews
Ingersoll Rand
Ingersoll Rand 2340L5-V 5HP 2-Stage 60Gal Air Compressor
$2,334.00
(You save:
$412.93
)
Ingersoll Rand 2340L5-V 5HP 2-Stage 60Gal Air Compressor
Engineered for the demands of heavy shop and industrial environments, the Ingersoll Rand 2340L5-V delivers professional-grade performance with 5 HP of power and a 60-gallon vertical tank. This robust two-stage air compressor features a 100% cast iron pump capable of reaching 175 PSIG, delivering 14.3 ACFM at 175 PSIG for high-demand applications. Ideal for automotive service and body shops, fleet maintenance facilities, machine shops, production lines, woodworking operations, and general industrial maintenance, this compressor combines precision engineering with legendary Ingersoll Rand durability for continuous, reliable air delivery.
Voltage Options to Match Your Power Supply
The 2340L5-V is available in multiple voltage configurations to accommodate both single-phase and three-phase electrical systems, providing flexibility for virtually any shop or facility:
- Single Phase: 1/60/200V, 1/60/230V
- Three Phase (Special Order ~ Non-cancelable): 3/60/200V, 3/60/230V, 3/60/460V, 3/60/575V
- Electric Drive (Special Order ~ Non-cancelable): 230A / 2-Stage / 5 HP
Note: Three-phase and electric drive configurations are special order items and are non-cancelable. Please confirm your voltage requirements before ordering.
Built for 100% Continuous Duty
At the heart of this compressor is the legendary Ingersoll Rand Type 30 two-stage pump, engineered with 100% cast iron construction for exceptional durability and heat dissipation. The pump features a precision-balanced overhung crankshaft and one-piece connecting rods, delivering smooth operation and easy maintenance. With individually cast cylinders, service and repairs are straightforward, reducing downtime and extending the life of your investment.
The pump utilizes a simple yet highly reliable splash lubrication system that ensures consistent internal lubrication during operation. 360° radial cooling fins extend from the external surfaces of the barrel cylinders, maximizing heat dissipation for cooler, more efficient performance. A finned copper intercooler further enhances efficiency by lowering the inlet temperature at the second stage, improving compression efficiency and extending component life.
Designed for 100% continuous duty, this compressor is built to handle the toughest shop environments, providing dependable air power day in and day out. High-efficiency finger valves ensure optimal airflow and longevity, while the 175 PSIG maximum operating pressure delivers the high air capacity and pressure required for demanding pneumatic tools and applications.
Key Highlights
- 5 HP two-stage compressor with 100% cast iron pump for heavy-duty performance
- 60-gallon vertical ASME-coded tank provides ample air reserve for continuous tool operation
- 14.3 ACFM at 175 PSIG delivers high air capacity for professional applications
- Extended 2-year warranty available when used with Ingersoll Rand All Season Select® synthetic lubricant
- Multiple voltage options including single-phase and three-phase configurations for maximum flexibility
Complete Value Package
The 2340L5-V arrives ready to power your shop with a complete package of professional-grade components:
- Two-stage cast iron compressor pump
- NEMA 1 & ODP motor for reliable electrical operation
- Automatic start/stop control with pressure switch for hands-free operation
- ASME-coded 60-gallon vertical air receiver tank
- Manual drain valve for routine moisture removal
- 1/2" NPT outlet for standard air line connections
Extend Your Warranty & Maximize Performance

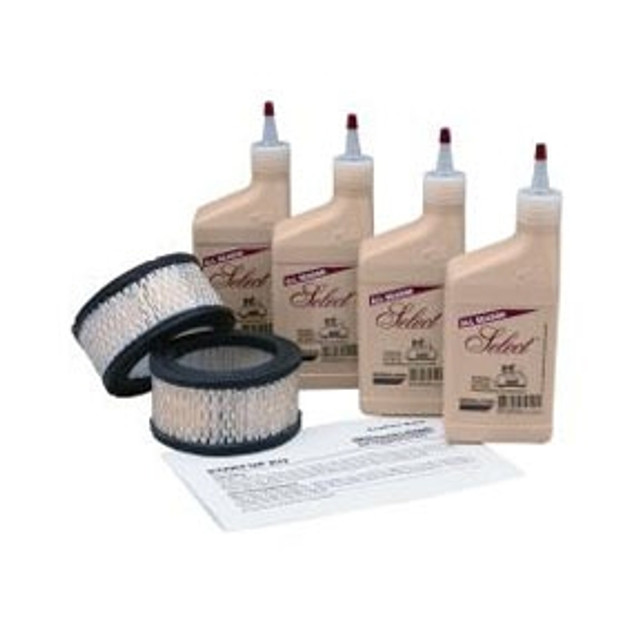

Ingersoll Rand offers an optional Start-Up Kit designed to provide superior protection and unlock an extended 2-year pump warranty. Each kit includes All Season Select® synthetic lubricant, specially formulated to deliver 2,000 hours of service between oil changes under normal operating conditions—far exceeding conventional oils.
Start-Up Kit Includes: (4 liters) All Season Select® lubricant, (2) air filter elements, product sheet, and proof of warranty decal. Additional valve assembly and gasket kits are available to drastically reduce service time.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
With compact dimensions of 48" L x 40" W x 76" H and a weight of 435 lbs, the 2340L5-V provides a powerful yet manageable footprint for professional shops. Backed by precision-engineered components and the trusted Ingersoll Rand name, this compressor delivers the high reliability and performance your operation demands.
WARNING: These products can expose you to chemicals including gas or diesel fumes, which is [are] known to the State of California to cause cancer, and gas or diesel fumes, which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
2-year pump, 1-year package with purchase of start-up kit. Maximum pressure is 175 PSIG.
