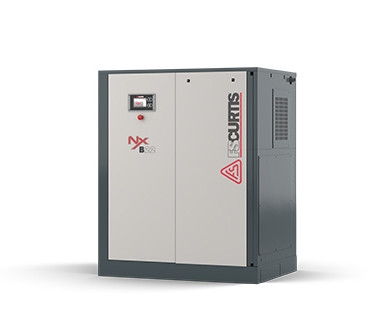

FS-Curtis NxB22 30HP Rotary Screw Air Compressor w/Fixed Speed Base Mounted
Write a Reviews
FSCurtis
FS-Curtis NxB22 30HP Rotary Screw Air Compressor w/Fixed Speed Base Mounted
FS-Curtis NxB22 30HP Rotary Screw Air Compressor w/Fixed Speed Base Mounted
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
The FS-Curtis NxB22 delivers the reliability and performance of industrial rotary screw technology in a compact, base-mounted package designed for automotive shops, light manufacturing, and demanding continuous-duty applications. Powered by a robust 30 HP motor (22 kW), this American-made compressor provides steady, pulsation-free air with outputs ranging from 95 to 134 CFM depending on pressure configuration. With 100% continuous-duty operation, exceptional energy efficiency, and whisper-quiet performance at just 72 dBA, the NxB22 is engineered to work as hard as you do—without the noise, vibration, or oil carryover common in reciprocating units.
Available in multiple voltage and pressure configurations—230V or 460V, and 100, 125, 150, or 175 PSI—the NxB22 can be tailored to your facility's exact compressed air requirements. Choose the standard base unit with iCommand Basic controller, or upgrade to a model with an integrated dryer for superior air quality right out of the box. Every unit ships factory-filled with FSC-8000 synthetic lubricant, includes a Premium Efficiency TEFC motor, and features FS-Curtis' exclusive eCool® Technology to extend component life and reduce thermal stress.
Why Choose the FS-Curtis NxB22?
Stable air pressure, steady airflow, and quieter continuous-duty operation are just a few of the advantages you get with FS-Curtis rotary screw compressors. These smart, compact units also offer better air quality with less oil carryover than reciprocating models—just 1–3 PPM thanks to the spin-on air/oil separator. Intuitive controls and diagnostics make them easy to use and service, too. It all adds up to an extremely reliable machine that can run 100% continuous duty, delivering more airflow and better efficiency in a space-saving design—making the Nx Series ideal for automotive, light industrial, and other applications that require reliable performance in demanding conditions.
Compact in design, robust in power, the Nx's smooth, quiet operation is ideal for a wide variety of applications ranging from auto body shops to light industrial facilities.
Designed for Quiet Operation
When noise matters, the NxB22 delivers. At just 72 dBA during operation, this compressor can be installed in noise-sensitive environments without disrupting your workspace.
- Integration of centrifugal blower and drive motors make for extremely smooth and quiet operation
- Extra-thick laminated sound insulation reduces operational noise
- Washable cabinet pre-filtration panels keep cooling airflow clean and efficient
- Can be installed in applications where a quiet setting is critical to the work environment
eCool® Technology – A Cool Innovation
Compressors generate heat. FS-Curtis' exclusive eCool® technology provides protection from heat and reduces thermal stress on critical components.
By combining smart compressor layout with intelligent component selection, eCool® technology maximizes cooling airflow for greater energy efficiency, improved reliability, and increases service life up to 50% longer for motors and electrical components and up to 30–50% longer for bearings, hoses, and seals.
The ultimate in system protection and reliability:
- Protects critical components from compressor-generated heat
- Extends component life and reduces downtime
- Compartmentalized airflow design and standard air-cooled oil cooler & aftercooler
Quality Components – Built for Dependability
The NxB22 is built to the highest levels of reliability using premium-grade components designed for extended service life and minimal maintenance.
- Premium Efficiency TEFC (IP55) motor protects the compressor from surrounding dirty air, increasing efficiency and prolonging motor life
- Spin-on air/oil separator allows for quick maintenance and results in 1–3 PPM oil carryover, translating into lower make-up oil costs and higher quality compressed air
- Spin-on oil filter for fast, hassle-free servicing
- Multi-function oil valve for reliable lubrication control
- Built-in heavy-duty air intake filter protects the airend from contaminants
- Leak-free design with heavy-duty piping and O-ring seals
Superior Package Design – Low Cost of Ownership
Designed for easy service and reliable performance, the NxB22 delivers more air per horsepower in a compact footprint.
- Space-saving base-mounted design – compact footprint fits in tight spaces
- Pulsation-free air for smoother operation of pneumatic tools and equipment
- 100% continuous duty rating for all-day, every-day operation
- Extended service intervals reduce maintenance time and cost
- More CFM per horsepower than comparable piston compressors
- Improved air quality with minimal oil carryover
- Energy efficiency at full load delivers more air for the money, integrated into a smaller footprint
- Exclusive FS-Curtis airends utilize the latest rotor profile to maximize efficiency
- Vibration isolators reduce vibration and extend component life
- Powder-coat painted enclosure for lasting durability and professional appearance
- Factory-filled with FSC-8000 synthetic lubricant for superior protection from day one
- Made in the USA
Key Highlights
- 30 HP (22 kW) motor delivers 95–134 CFM depending on pressure setting
- Available in 100, 125, 150, or 175 PSI configurations to match your exact air demand
- 230V or 460V, 3-phase/60Hz electrical options for flexible installation
- Whisper-quiet 72 dBA operation—ideal for noise-sensitive environments
- eCool® Technology extends component life up to 50% and reduces thermal stress
- iCommand Basic controller standard; optional iCommand Touch with full-color graphical data trending available
- Optional integrated dryer models for superior air quality
- Compact dimensions: 49" L × 35" W × 60" H (base unit), weighing 1,477 lbs
Standard Electrical Package
- Premium Efficiency TEFC (IP55) motor
- NEMA-1 electric panel
- Wye-Delta motor starter
- 115/18V control voltage transformer
Configuration Options
Standard Base Unit w/iCommand Basic Controller – 3/60/230V:
- 100 PSI / 134 CFM – FNB22CXX3HXXX
- 125 PSI / 116 CFM – FNB22CXX3JXXX
- 150 PSI / 109 CFM – FNB22CXX3KXXX
- 175 PSI / 95 CFM – FNB22CX3LXXX
Standard Base Unit w/iCommand Basic Controller – 3/60/460V:
- 100 PSI / 134 CFM – FNB22CXX4HXXX
- 125 PSI / 116 CFM – FNB22CXX4JXXX
- 150 PSI / 109 CFM – FNB22CXX4KXXX
- 175 PSI / 95 CFM – FNB22CXX4LXXX
Base Unit w/iCommand Basic & Integrated Dryer – 3/60/230V:
- 100 PSI / 134 CFM – FNB22CXD3HXXX
- 125 PSI / 116 CFM – FNB22CXD3JXXX
- 150 PSI / 109 CFM – FNB22CXD3KXXX
- 175 PSI / 95 CFM – FNB2CXD3LXXX
Base Unit w/iCommand Basic & Integrated Dryer – 3/60/460V:
- 100 PSI / 134 CFM – FNB22CXD4HXXX
- 125 PSI / 116 CFM – FNB22CXD4JXXX
- 150 PSI / 109 CFM – FNB22CXD4KXXX
- 175 PSI / 95 CFM – FNB22CXD4LXXX
Optional Accessory: iCommand Touch Controller
With the optional iCommand Touch controller, a full-color screen displays graphs which capture and track factual, real-time air usage by the hour, day, week, and month. Historical data can be retrieved at any time at the touch of the screen.
Data trending keeps your finger on the pulse of your entire compressed air system.
Continuously tracks pressure, temperature, air quality, and usage to easily diagnose and optimize your plant's air system.
- Simple touch screen control
- Intuitive navigation
- Capture real-time and historical data trending
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Extended Warranty Policy |
 |
Requirements
- All Rotary Screw air compressors are required to have the “start up” procedure completed by and authorized FS-Curtis distributor and returned to FSCurtis within 30 days of the compressor package start-up. Please email the completed check list to warranty@fscurtis.com. Form# WRSC-002.
- The NxGEN Extended Warranty Program requires the Nx product to be registered at http://info.us.fscurtis.com/support/warranty/register.htm.
- A minimum of one Annual Service Kit must be purchased on an annual basis, which is defined as 12 months. The Annual Service Kit should be purchased within 60 days prior to the anniversary date of the compressor package start-up date. Individual genuine parts and lubricants as specified in the service manual can be purchased. Nx products must be maintained in accordance with the maintenance schedules provided in the service manuals for the appropriate service interval using only FS-Curtis genuine parts and lubricants for the entire warranty period. Proof of purchase (i.e. product invoice) will be required in the event a warranty claim is filed and these purchases must correlate with the recommended maintenance guidelines in the service manual for the corresponding operating hours of equipment.
- Participation in the FS-Curtis oil analysis sampling program is required. An oil sample must be sent to our testing facility at minimum two times a year which is defined as 12 months or once every 6 months. Any recommendations detailed in the analysis report must be followed as outlined in the report. Oil sample kits are available upon request.
- The use of FSC-8000 lubricant is required. The lubricant must be changed as per the service manual intervals, oil analysis recommendations or at minimum every 12 months. Oil filter and separator must be replaced at the time of the lubricant change.
ALL OF THE ABOVE REQUIREMENTS MUST BE PERFORMED AND DOCUMENTED TO ENSURE THE NXGEN WARRANTY PROGRAM IS IN EFFECT FOR THE FULL WARRANTY PERIOD.
FS-Curtis reserves the right to change the extended warranty program and/or requirements as deemed appropriate by the company.FS-Curtis reserves the right to refuse participation in the extended warranty program to any distributor and/or end customer of the compressor.
