FS-Curtis NxB18 25HP Rotary Screw Air Compressor w/Fixed Speed 120G Tank Mounted
Write a Reviews
FSCurtis
FS-Curtis NxB18 25HP Rotary Screw Air Compressor w/Fixed Speed 120G Tank Mounted
FS-Curtis NxB18 25HP Rotary Screw Air Compressor w/Fixed Speed 120G Tank Mounted
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

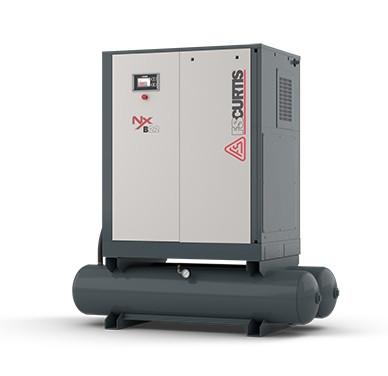

The FS-Curtis NxB18 delivers industrial-grade performance in a compact, tank-mounted package. With a powerful 25 HP motor driving an efficient rotary screw airend, this compressor provides up to 114 CFM at pressures ranging from 100 to 175 PSI — all mounted on a robust 120-gallon tank for optimal air storage and system stability. Built in the USA with premium components and eCool® Technology, the NxB18 is engineered for 100% continuous duty operation, making it the ideal choice for automotive shops, light industrial facilities, and any application demanding reliable, quiet, and efficient compressed air.
Stable air pressure, steady airflow, and quieter continuous-duty operation are just a few of the advantages you get with FS-Curtis rotary screw compressors. These smart, compact units offer better air quality with less oil carryover than reciprocating models. Intuitive iCommand Basic controller and diagnostics make them easy to use and service. It all adds up to an extremely reliable machine that delivers more airflow and better efficiency in a space-saving design — making the Nx Series ideal for automotive, light industrial, and other applications that require reliable performance in demanding conditions.
Key Selling Points
- 25 HP Premium Efficiency Motor: TEFC (IP55) motor protects against contaminants while delivering reliable power for continuous-duty operation
- 120-Gallon Tank Mounted: Large integrated air receiver provides excellent storage capacity and minimizes pressure fluctuations
- Whisper-Quiet Operation: At just 72 dBA (69 dBA with optional Ultra Pack), this compressor can be installed where noise control is critical
- eCool® Technology: Exclusive thermal management system extends component life up to 50% by protecting motors, bearings, and seals from heat stress
- Made in the USA: Factory-filled with FSC-8000 synthetic lubricant and built with quality components for long-term durability and low cost of ownership
Configuration Options
The NxB18 is available in multiple voltage and pressure configurations to perfectly match your facility's requirements. All units come standard with the iCommand Basic controller, providing intuitive operation and diagnostics at your fingertips.
Standard Unit Configurations (Voltage / Pressure / CFM):
- 3/60/230V Models:
- 100 PSI / 114 CFM - FNB18C1X3HXXX
- 125 PSI / 100 CFM - FNB18C1X3JXXX
- 150 PSI / 92 CFM - FNB18C1X3KXXX
- 175 PSI / 84 CFM - FNB18C1X3LXXX
- 3/60/460V Models:
- 100 PSI / 114 CFM - FNB18C1X4HXXX
- 125 PSI / 100 CFM - FNB18C1X4JXXX
- 150 PSI / 92 CFM - FNB18C1X4KXXX
- 175 PSI / 84 CFM - FNB18C1X4LXXX
Optional Ultra Pack for Superior Air Quality
Eliminate Downstream Oil and Water Contamination
Downstream oil and water can make a negative impact on your bottom line. The Nx Series compressors are also available with an optional Ultra Pack, which includes an integrated dryer and filter to keep your production high and your air system dry. The Ultra Pack configuration reduces sound levels to just 69 dBA while ensuring cleaner, drier compressed air for sensitive applications.
Optional Ultra Pack Configurations (Voltage / Pressure / CFM):
- 3/60/230V Ultra Pack Models:
- 100 PSI / 114 CFM - FNB18CX1U3HXXX
- 125 PSI / 100 CFM - FNB18C1U3JXXX
- 150 PSI / 92 CFM - FNB18C1U3KXXX
- 175 PSI / 84 CFM - FNB18C1U3LXXX
- 3/60/460V Ultra Pack Models:
- 100 PSI / 114 CFM - FNB18C1U4HXXX
- 125 PSI / 100 CFM - FNB18C1U4JXXX
- 150 PSI / 92 CFM - FNB18C1U4KXXX
- 175 PSI / 84 CFM - FNB18C1U4LXXX
Designed for Quiet, Smooth Operation
Compact in design, robust in power, the Nx's smooth, quiet operation is ideal for a wide variety of applications ranging from auto body shops to light industrial facilities. The compressor can be installed in applications where a quiet setting is important.
- Integration of centrifugal blower and drive motors make for extremely smooth and quiet operation
- Extra-thick sound insulation with laminated oil-proof material reduces noise to just 72 dBA
- Washable cabinet pre-filtration panels ensure clean cooling air and easy maintenance
- Powder-coat painted enclosure provides durable protection and a professional appearance
eCool® Technology: A Cool Innovation
Compressors generate heat. FS-Curtis' exclusive eCOOL® technology provides protection from heat and reduces thermal stress, ensuring maximum reliability and component longevity.
By combining smart compressor layout with intelligent component selection, eCOOL technology maximizes cooling airflow for greater energy efficiency, improved reliability, and increases service life up to 50% longer for motors and electrical components and up to 30-50% longer for bearings, hoses, and seals.
The ultimate in system protection and reliability:
- Protects critical components from compressor-generated heat
- Extends component life and reduces downtime
- Compartmentalized airflow design and standard aftercooler optimize thermal management
- Air-cooled oil cooler and aftercooler ensure efficient heat dissipation
Quality Components for Long-Term Reliability
Built to the highest levels of dependability and reliability, the NxB18 features premium components designed for low maintenance and maximum uptime.
- Premium Efficiency TEFC (IP55) Motor: Protects compressor from surrounding dirty air, increasing efficiency and prolonging motor life
- Spin-on air/oil separator: Allows for quick maintenance and results in one-to-three PPM oil carryover — translating into lower make-up oil costs and higher quality compressed air
- Spin-on oil filter: Easy replacement for simplified maintenance
- Multi-function oil valve: Ensures proper lubrication and system protection
- Leak-free design with heavy-duty piping and O-ring seals
- Built-in heavy-duty air intake filter protects internal components
- Vibration isolators: Minimize operational vibration and noise transmission
- Factory-filled FSC-8000 synthetic lubricant for extended service intervals and superior protection
Electrical Components:
- NEMA-1 electric panel for reliable control
- Wye Delta motor starter for smooth, controlled starts
- 115/18V control voltage transformer
- iCommand Basic electronic controller for intuitive operation and diagnostics
Superior Package Design

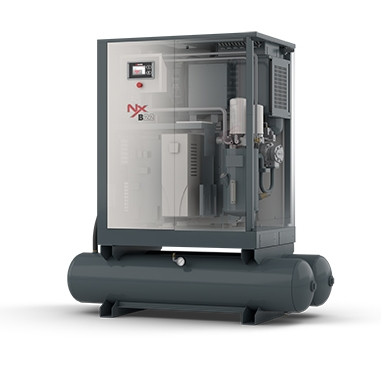

The NxB18 is designed for low cost of ownership and easy service. Its space-saving, tank-mounted design integrates the compressor, motor, controls, and 120-gallon receiver into a single, compact footprint.
- Space-saving design: All components integrated into a smaller footprint
- Pulsation-free air: Smooth rotary screw operation eliminates pressure spikes
- 100% continuous duty: Designed to run all day, every day
- Extended service intervals: Reduce maintenance time and costs
- More CFM per horsepower: Energy efficiency at full load delivers more air for the money
- Improved air quality: Better than reciprocating compressors with lower oil carryover
- Exclusive FS-Curtis airends utilize the latest rotor profile to maximize efficiency
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.

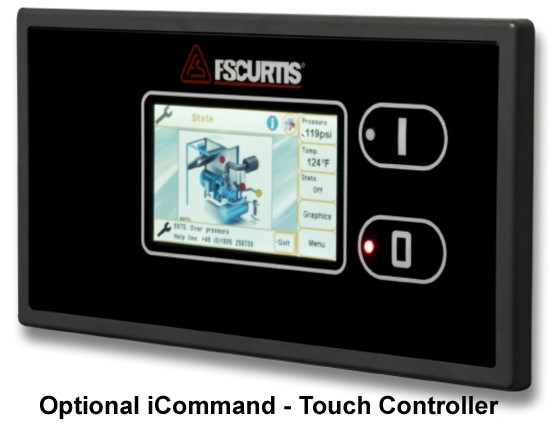

Optional iCommand Touch Controller
Upgrade your compressor with the optional iCommand Touch Controller for advanced monitoring and data tracking. This full-color touchscreen displays graphs which capture and track factual, real-time air usage by the hour, day, week, and month. Historical data can be retrieved at any time at the touch of the screen.
Data trending keeps your finger on the pulse of your entire compressed air system. Continuously tracks pressure, temperature, air quality, and usage to easily diagnose and optimize your plant's air system.
iCommand Touch Features:
- Simple touchscreen control for intuitive operation
- Intuitive navigation through menus and settings
- Capture real-time and historical data trending for system optimization
- Track and analyze pressure, temperature, air quality, and usage patterns
- Diagnose issues quickly with comprehensive system monitoring
Proudly Made in the USA — Built with quality American craftsmanship and backed by FS-Curtis' legacy of reliability.
Extended Warranty Policy |
 |
Requirements
- All Rotary Screw air compressors are required to have the “start up” procedure completed by and authorized FS-Curtis distributor and returned to FSCurtis within 30 days of the compressor package start-up. Please email the completed check list to warranty@fscurtis.com. Form# WRSC-002.
- The NxGEN Extended Warranty Program requires the Nx product to be registered at http://info.us.fscurtis.com/support/warranty/register.htm.
- A minimum of one Annual Service Kit must be purchased on an annual basis, which is defined as 12 months. The Annual Service Kit should be purchased within 60 days prior to the anniversary date of the compressor package start-up date. Individual genuine parts and lubricants as specified in the service manual can be purchased. Nx products must be maintained in accordance with the maintenance schedules provided in the service manuals for the appropriate service interval using only FS-Curtis genuine parts and lubricants for the entire warranty period. Proof of purchase (i.e. product invoice) will be required in the event a warranty claim is filed and these purchases must correlate with the recommended maintenance guidelines in the service manual for the corresponding operating hours of equipment.
- Participation in the FS-Curtis oil analysis sampling program is required. An oil sample must be sent to our testing facility at minimum two times a year which is defined as 12 months or once every 6 months. Any recommendations detailed in the analysis report must be followed as outlined in the report. Oil sample kits are available upon request.
- The use of FSC-8000 lubricant is required. The lubricant must be changed as per the service manual intervals, oil analysis recommendations or at minimum every 12 months. Oil filter and separator must be replaced at the time of the lubricant change.
ALL OF THE ABOVE REQUIREMENTS MUST BE PERFORMED AND DOCUMENTED TO ENSURE THE NXGEN WARRANTY PROGRAM IS IN EFFECT FOR THE FULL WARRANTY PERIOD.
FS-Curtis reserves the right to change the extended warranty program and/or requirements as deemed appropriate by the company.FS-Curtis reserves the right to refuse participation in the extended warranty program to any distributor and/or end customer of the compressor.
