FS-Curtis NxB06 7.5HP Rotary Screw Air Compressor w/Fixed Speed 60G Tank Mounted
Write a Reviews
FSCurtis
FS-Curtis NxB06 7.5HP Rotary Screw Air Compressor w/Fixed Speed 60G Tank Mounted
FS-Curtis NxB06 7.5HP Rotary Screw Air Compressor w/Fixed Speed 60 Gallon Tank Mounted
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
The FS-Curtis NxB06 delivers reliable, 100% continuous-duty performance with 7.5 HP of power mounted on a 60-gallon tank. Built in the USA with premium components and exclusive eCool® Technology, this rotary screw compressor provides stable air pressure, smooth operation, and whisper-quiet 65 dBA sound levels—ideal for automotive shops, light industrial facilities, and any application where reliability and low noise are essential. With flexible voltage options including 230V single-phase and tri-voltage configurations, pressure settings from 100 to 175 PSI, and an optional Ultra Pack with integrated dryer and filtration, the NxB06 is engineered for long-term dependability and easy serviceability.
Why Choose the FS-Curtis NxB06?
Stable air pressure, steady airflow, and quieter, continuous-duty operation are just a few of the advantages you get with FS-Curtis rotary screw compressors. These smart, compact units offer better air quality with less oil carryover than reciprocating models—resulting in just one-to-three PPM oil carryover thanks to the spin-on air/oil separator. Intuitive iCommand Basic controls and diagnostics make the NxB06 easy to use and service. It all adds up to an extremely reliable machine that can run 100% continuous duty, delivering more airflow and better efficiency in a space-saving design—making the Nx Series ideal for automotive, light industrial, and other applications that require reliable performance in demanding conditions.
Compact in design, robust in power, the Nx's smooth, quiet operation is ideal for a wide variety of applications ranging from auto body shops to light industrial facilities.
Key Features & Benefits
dBA Shield Noise Reduction
Designed for quiet operation at just 65 dBA. The integration of centrifugal blower and drive motors makes for extremely smooth and quiet performance. Extra-thick laminated oil-proof sound insulation further reduces noise, so the NxB06 can be installed in applications where a quiet setting is important—like shops near residential areas or noise-sensitive production environments.
- Integration of centrifugal blower and drive motors make for extremely smooth and quiet operation
- Extra-thick sound insulation reduces noise
- Can be installed in applications where a quiet setting is important
eCool® Technology – A Cool Innovation
Compressors generate heat. FS-Curtis' exclusive eCool® technology provides protection from heat and reduces thermal stress on critical components. By combining smart compressor layout with intelligent component selection, eCool technology maximizes cooling airflow for greater energy efficiency, improved reliability, and increases service life up to 50% longer for motors and electrical components and up to 30-50% longer for bearings, hoses, and seals. The ultimate in system protection and reliability.
- Protects critical components from compressor-generated heat
- Extends component life and reduces downtime
- Compartmentalized air flow design with washable cabinet pre-filter and standard aftercooler
Quality Components Built for Dependability
Built to the highest levels of dependability and reliability. The Premium Efficiency TEFC (IP55) motor protects the compressor from surrounding dirty air, increasing efficiency and prolonging motor life. The spin-on air/oil separator allows for quick maintenance and results in one-to-three PPM oil carryover—translating into lower make-up oil costs and higher quality compressed air. The NxB06 also features an encapsulated airend, spin-on oil filter, air cooled oil cooler, multi-function oil valve, and comes factory filled with synthetic lubricant for long-lasting performance.
- Standard TEFC motor protects compressor from surrounding dirty air, increasing efficiency and prolonging motor life
- Spin-on air/oil separator allows for quick maintenance and results in one-to-three PPM oil carryover, translating into lower make-up oil costs and higher quality compressed air
- Premium Efficiency TEFC (IP55) motor and NEMA-1 electric panel with full voltage motor starter
- Built-in heavy duty air intake filter and washable cabinet pre-filter
Superior Package Design
Designed for low cost of ownership and easy service. The NxB06 is built with a space-saving design that delivers pulsation-free air, 100% continuous duty operation, extended service intervals, and more CFM per horsepower. Energy efficiency at full load delivers more air for the money integrated into a smaller footprint. Exclusive FS-Curtis airends utilize the latest rotor profile to maximize efficiency, ensuring improved air quality and long-term reliability.
- Space-saving design with powder-coat painted enclosure
- Pulsation-free air
- 100% continuous duty operation
- Extended service intervals
- More CFM per horsepower
- Improved air quality
- Energy efficiency at full load delivers more air for the money
- Exclusive FS-Curtis airends utilize the latest rotor profile to maximize efficiency
- Includes vibration isolators for smooth operation
- Made in the USA
Flexible Configuration Options
Standard Available w/iCommand Basic – Voltage / Pressure PSI
230V 1 Phase:
- 1/60/230V 100 PSI – FNB06A6X2HXXX
- 1/60/230V 125 PSI – FNB06A6X2JXXX
- 1/60/230V 150 PSI – FNB06A6X2KXXX
- 1/60/230V 175 PSI – FNB06A6X2LXXX
Tri-voltage:
- Tri-voltage 100 PSI – FNB06A6XTHXXX
- Tri-voltage 125 PSI – FNB06A6XTJXXX
- Tri-voltage 150 PSI – FNB06A6XTKXXX
- Tri-voltage 175 PSI – FNB06A6XTLXXX
Optional Ultra Pack – Integrated Dryer & Filtration
Downstream oil and water can make a negative impact on your bottom line.
The Nx series compressors also have an optional Ultra Pack which includes an integrated dryer and filter to keep your production high and your air system dry. Protect your tools, equipment, and finished products from moisture damage—ensuring cleaner, drier compressed air.
Optional Ultra Pack Available w/iCommand Basic – Voltage / Pressure PSI
230V 1 Phase:
- 1/60/230V 100 PSI – FNB06A6U2HXXX
- 1/60/230V 125 PSI – FNB06A6U2JXXX
- 1/60/230V 150 PSI – FNB06A6U2KXXX
- 1/60/230V 175 PSI – FNB06A6U2LXXX
Tri-voltage:
- Tri-voltage 100 PSI – FNB06A6UTHXXX
- Tri-voltage 125 PSI – FNB06A6UTJXXX
- Tri-voltage 150 PSI – FNB06A6UTKXXX
- Tri-voltage 175 PSI – FNB06A6UTLXXX

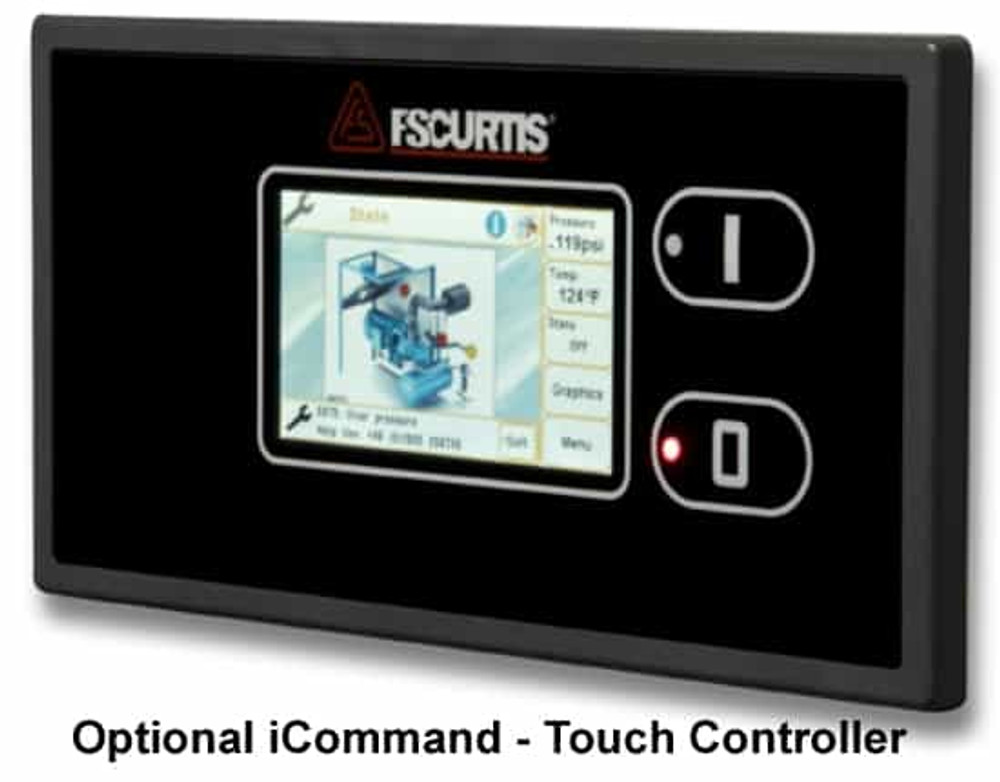

Optional iCommand Touch Controller
With the optional iCommand Touch, a full-color screen displays graphs which capture and track factual, real-time air usage by the hour, day, week, and month. Historical data can be retrieved at any time at the touch of the screen. Data trending keeps your finger on the pulse of your entire compressed air system.
Continuously tracks pressure, temperature, air quality, and usage to easily diagnose and optimize your plant's air system.
- Simple Touch Screen Control
- Intuitive Navigation
- Capture Real-time and Historical Data Trending
NxB06 At a Glance
- 7.5 HP / 6 kW Premium Efficiency TEFC motor
- 60-gallon tank mounted for stable air supply
- 65 dBA whisper-quiet operation
- 100% continuous duty – run all day, every day
- Compact dimensions: 61" L x 24" W x 63" H
- iCommand Basic electronic controller included (iCommand Touch optional)
- eCool® Technology for extended component life
- Made in the USA with quality components
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
|
Extended Warranty Policy |
|
Requirements
- All Rotary Screw air compressors are required to have the “start up” procedure completed by and authorized FS-Curtis distributor and returned to FSCurtis within 30 days of the compressor package start-up. Please email the completed check list to warranty@fscurtis.com. Form# WRSC-002.
- The NxGEN Extended Warranty Program requires the Nx product to be registered at http://info.us.fscurtis.com/support/warranty/register.htm.
- A minimum of one Annual Service Kit must be purchased on an annual basis, which is defined as 12 months. The Annual Service Kit should be purchased within 60 days prior to the anniversary date of the compressor package start-up date. Individual genuine parts and lubricants as specified in the service manual can be purchased. Nx products must be maintained in accordance with the maintenance schedules provided in the service manuals for the appropriate service interval using only FS-Curtis genuine parts and lubricants for the entire warranty period. Proof of purchase (i.e. product invoice) will be required in the event a warranty claim is filed and these purchases must correlate with the recommended maintenance guidelines in the service manual for the corresponding operating hours of equipment.
- Participation in the FS-Curtis oil analysis sampling program is required. An oil sample must be sent to our testing facility at minimum two times a year which is defined as 12 months or once every 6 months. Any recommendations detailed in the analysis report must be followed as outlined in the report. Oil sample kits are available upon request.
- The use of FSC-8000 lubricant is required. The lubricant must be changed as per the service manual intervals, oil analysis recommendations or at minimum every 12 months. Oil filter and separator must be replaced at the time of the lubricant change.
ALL OF THE ABOVE REQUIREMENTS MUST BE PERFORMED AND DOCUMENTED TO ENSURE THE NXGEN WARRANTY PROGRAM IS IN EFFECT FOR THE FULL WARRANTY PERIOD.
FS-Curtis reserves the right to change the extended warranty program and/or requirements as deemed appropriate by the company.FS-Curtis reserves the right to refuse participation in the extended warranty program to any distributor and/or end customer of the compressor.
