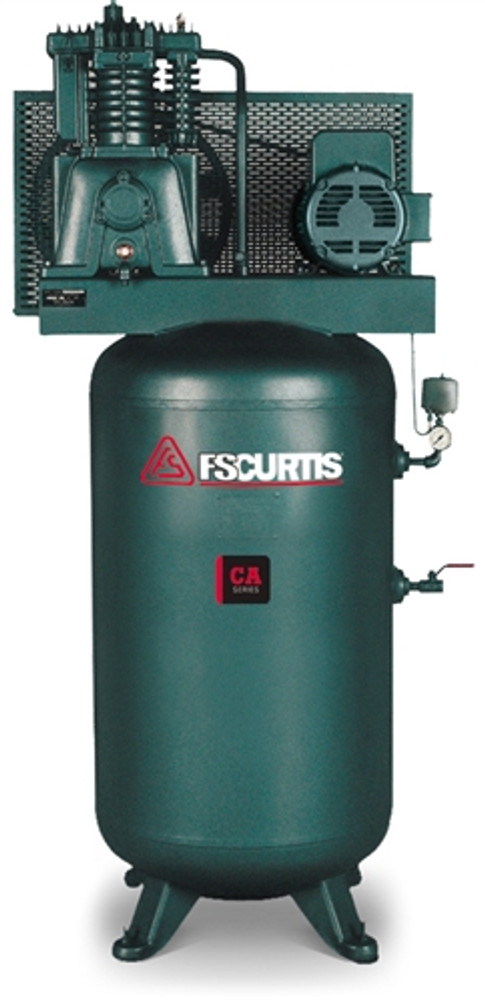

FS-Curtis CT7.5 Simplex 7.5HP 80G Vertical 2-Stage Air Compressor
Write a Reviews
FSCurtis
FS-Curtis CT7.5 Simplex 7.5HP 80G Vertical 2-Stage Air Compressor
FS-Curtis CT7.5 Simplex 7.5HP 80G Vertical 2-Stage Air Compressor
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
You shouldn't have to sacrifice quality and durability with your air compressor purchase. That's why FS-Curtis created the CT Series. The CT7.5 Simplex is a 7.5HP two-stage reciprocating air compressor featuring an 80-gallon vertical ASME tank and delivering 24.2 CFM at 175 PSI. These field-proven compressors combine FS-Curtis's signature performance and reliability with a simple industrial design, making them the most rugged — and affordable — compressors in their category. Ideal for light automotive, light industrial, and demanding workshop applications, the CT7.5 will last longer in the same conditions than other compressors that claim 100% cast-iron construction but still use aluminum for critical components.
100% Cast-Iron Cylinders, Cylinder Heads, Connecting Rods, and High Pressure Pistons
The CT Series uses more cast-iron components than competitors — where it counts — for significantly longer service life and reliable performance under continuous-duty conditions.
- Two-stage cast-iron pump is significantly more durable than pumps with aluminum components
- Deep-finned cast-iron cylinders and heads for cool, efficient operation even during extended run times
- Industry-leading cast-iron high-pressure pistons for extreme durability in demanding applications
- Ductile iron crankshaft is stronger, more corrosion-resistant, and less likely to break under load
Quality Components for Extended Product Life and Continuous Performance
Every component in the CT7.5 Simplex is engineered for reliability. From the valve system to the bearings and intercooler, this compressor is built to deliver years of trouble-free service.
- High-flow, heavy-duty stainless steel channel valve system delivers more CFM per horsepower
- Precision-fit, industrial-grade main roller bearings support all rotating parts for longer pump life
- Robust intercooler increases compressor efficiency by cooling compressed air between stages
- Oil level sight glass is conveniently located for easy monitoring and maintenance
- Metal intake filter/silencer is superior to plastic alternatives for durability and longevity
Value-Minded Industrial Design — Robust Performance at a Lower Cost
The CT7.5 delivers professional-grade performance without breaking the bank. It follows the same world-class quality design standards as other FS-Curtis products, giving you exceptional value in an entry-level industrial compressor.
- Two-stage design provides higher pressures and longer pump life than single-stage compressors
- Follows the same world-class quality design standards as other FS-Curtis products
- Slow-turning pump (operates at lower RPM) increases pump life and reduces wear
- Robust design sets the CT Series apart from comparable entry-level models on the market
Key Features & Specifications
- 7.5 horsepower with CT75 two-stage splash lubricated pump
- 24.2 CFM at 175 PSI — consistent air delivery for demanding tools and equipment
- 80-gallon vertical ASME air receiver provides ample air storage in a space-saving design
- Magnetic starter included (60Hz) with UL-approved pressure switch for safe, reliable operation
- Available in single-phase 230V or three-phase 200-208V, 230V, and 460V configurations
- Premium Efficiency Motors on three-phase models reduce energy costs
- Factory-filled lubricant and automatic start-stop control for plug-and-play convenience
Available Voltage Configurations
The CT7.5 Simplex is available in multiple voltage configurations to match your facility's power supply:
Single Phase:
- 1/60/230V – Model FCT07C75V8S-A2L1XX (additional cost)
Three Phase:
- 3/60/200-208V – Model FCT07C75V8S-A9L1XX
- 3/60/230V – Model FCT07C75V8S-A3L1XX
- 3/60/460V – Model FCT07C75V8S-A4L1XX
Standard Equipment & Safety Features
The CT7.5 Simplex comes fully equipped with professional-grade safety features and convenience items:
- Magnetic starter included (60Hz) for safe motor control
- UL-approved pressure switch ensures reliable and safe operation
- ASME approved safety valve protects against over-pressurization
- OSHA-approved totally enclosed metal belt guard for operator safety
- Slow V-belt drive reduces vibration and extends component life
- Dial read-out pressure gauge indicator for easy monitoring
- Manual tank condensate drain valve for routine maintenance
- Oil level sight indicator ensures proper lubrication at a glance
- Automatic start-stop control conserves energy and extends motor life
Watch the FS-Curtis CT Series in Action
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
1 Year Factory Warranty extends to 2 years with use of FS-Curtis Maintenance Products. See full Warranty Policy & Procedure Manual
