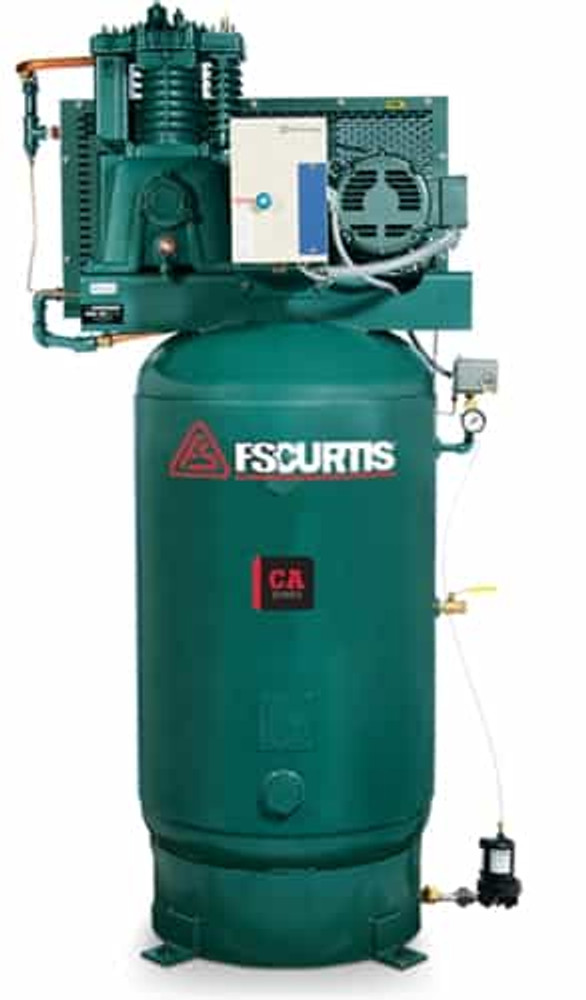

FS-Curtis CA5+ Simplex 5hp 80g Ultra Pack Vertical Air Compressor
Write a Reviews
FSCurtis
FS-Curtis CA5+ Simplex 5hp 80g Ultra Pack Vertical Air Compressor
FS-Curtis CA5+ Simplex 5HP 80-Gallon Vertical Ultra Pack Air Compressor
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
The FS-Curtis CA5+ Simplex Ultra Pack combines 5 horsepower of robust performance with an 80-gallon vertical tank to deliver 18.5 CFM at 175 PSI. Designed for automotive shops, light industrial facilities, and demanding commercial applications, this American-made compressor is engineered to handle harsh environments while delivering reliable compressed air day after day. The Ultra Pack configuration means you get a fully packaged system with an air-cooled aftercooler, automatic tank drain, low oil level shutdown, and tank isolator pads — all the essential accessories in one complete, value-packed system.
The CA Series isn't just built to handle rugged working conditions — it's available in a wide range of electrical configurations to meet your exact power requirements. Whether you need single-phase 230V or three-phase 200-208V, 230V, or 460V, there's a model ready for your facility. With meticulous attention to material selection and precision-machined components, this compressor is built to deliver long-term reliability where other units fall short.
Built to Last – Industrial-Grade Construction
For automotive, light industrial, and other challenging applications, CA Series compressors are built to last. Components are selected based on durability and performance, ensuring that your CA Series compressor delivers reliable operation in demanding environments. Precision-machined parts and a dedication to materials of construction meant for real-world working conditions further assure long-term durability and consistent compressed air delivery.
The Most Durable Pump Construction Available — Meticulous material selection ensures long-term reliability and performance you can count on:
- 100% cast-iron cylinders and cylinder heads for maximum durability and heat dissipation
- Long-lasting, corrosion-resistant crankshaft built to withstand years of continuous operation
- Deep-finned cast-iron cylinders and cylinder head for superior cooling and reduced thermal stress
- Slow-turning pump design increases pump life and reduces wear on critical components
- Industrial-grade main roller bearings precision-fit for support of all rotating parts
Industrial Design — This is the most robust reciprocating air compressor in its class, ready to handle rugged, heavy-duty applications while providing higher pressures, better efficiency, and longer life than competitive units.
Ultra Pack – Fully Equipped for Maximum Value
CA Series compressors are already an outstanding value, and an FS-Curtis Ultra Pack gives you even more. An Ultra Pack includes a CA Series compressor fully packaged with the most common options and accessories. You'll save money and time by getting it all in one package, and you'll be assured of increasing air quality while reducing maintenance needs. Industry-leading five-year bumper-to-bumper warranty available.
The Ultra Pack configuration includes premium features designed to enhance performance, protect your investment, and simplify maintenance:
- Air-cooled aftercooler reduces moisture in your compressed air lines
- Magnetic motor starter for reliable starting and motor protection
- Low oil level shutdown protects the pump from damage due to inadequate lubrication
- Automatic tank drain eliminates manual draining and removes condensate automatically
- Tank isolator pads reduce vibration and noise transmission
- No Start-up Kit Required! Factory-filled with RC-1000 lubricant for immediate operation
Quality Components for Extended Life
Every component in the CA5+ Simplex is selected for extended product life and continuous performance in demanding environments:
- High-flow, heavy-duty stainless-steel valve system delivers more CFM per horsepower
- Robust intercooler increases compressor efficiency and reduces operating temperatures
- Metal intake filter/silencer — superior durability compared to plastic alternatives
- Heavy-duty stamped-steel belt guard meets OSHA approved safety standards
- Suction valve head unloaders for continuous-running applications
- Slow V-belt drive reduces wear and extends component life
- ASME air receiver tank with vertical configuration for space-efficient installation
- UL approved pressure switch for reliable operation and safety
- ASME approved safety relief valve and discharge air service valve
- Oil sight glass and manual tank drain for easy maintenance monitoring
- Splash lubricated and factory oil-filled for immediate startup
Key Highlights
- 5 HP motor with E57 two-cylinder pump delivers 18.5 CFM at 175 PSI
- 80-gallon vertical tank provides ample reserve capacity in a compact footprint (39" L x 40" W x 74" H)
- Multiple voltage options: Single-phase 230V or three-phase 200-208V, 230V, and 460V
- Ultra Pack configuration includes aftercooler, automatic drain, low oil shutdown, and isolator pads
- Made in USA with five-year bumper-to-bumper warranty available for ultimate peace of mind
Available Voltage Configurations
Choose the electrical configuration that matches your facility's power supply:
Single Phase
- 1/60/230V — Model FCA05E57V8U-A2L1XX
Three Phase
- 3/60/200-208V — Model FCA05E57V8U-A9L1XX
- 3/60/230V — Model FCA05E57V8U-A3L1XX
- 3/60/460V — Model FCA05E57V8U-A4L1XX
What's Included
Your CA5+ Simplex Ultra Pack comes complete with everything you need for immediate installation and operation:
- Set of 4 80-gallon anti-vibration pads (Model #FVF134B) for reduced noise and vibration
- Factory-filled with RC-1000 lubricant — no start-up kit required
- All Ultra Pack premium features pre-installed and ready to perform
See the CA Series in Action
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
1 Year Factory Warranty extends to 5 year Ultrashield "bumper-to-bumper" warranty with registration and use of FS-Curtis maintenance products. See full Warranty Policy & Procedure Manual
