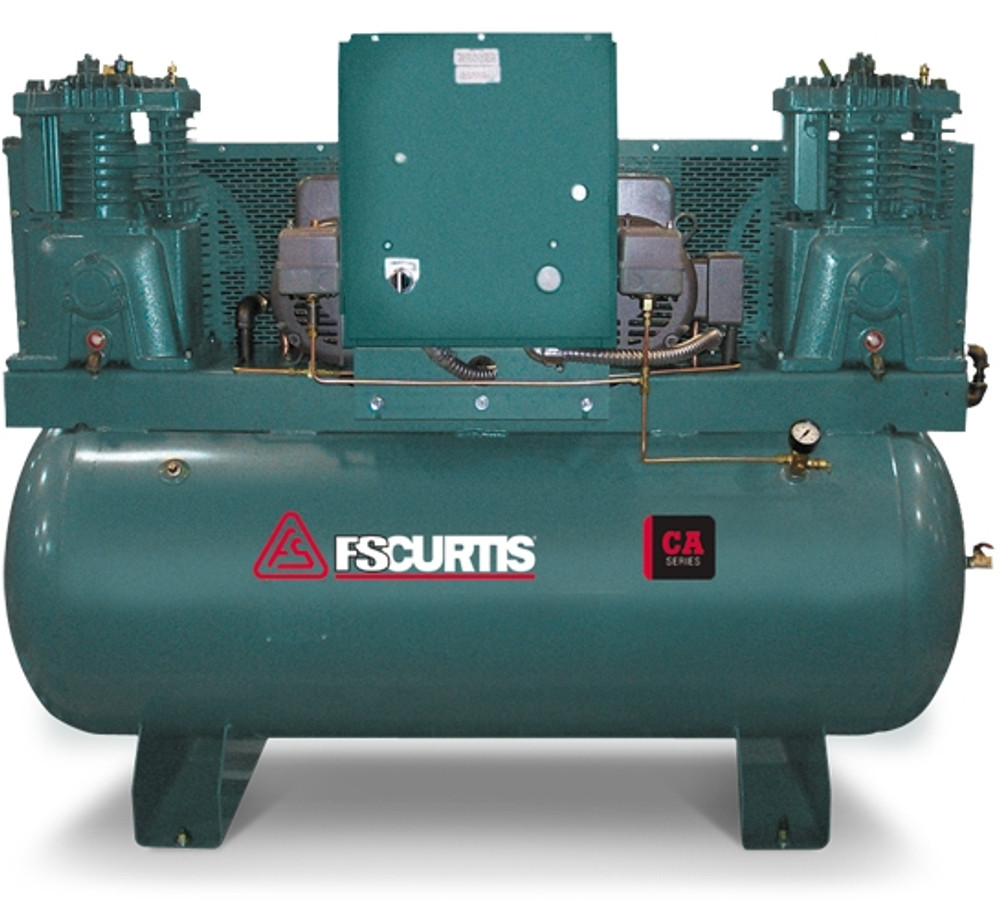

FS-Curtis CA5+ 120G Duplex 5(2)HP Ultra Pack Air Compressor
Write a Reviews
FSCurtis
FS-Curtis CA5+ 120G Duplex 5(2)HP Ultra Pack Air Compressor
FS-Curtis CA5+ 120G Duplex 5(2)HP Ultra Pack Air Compressor
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
When your operation demands reliable compressed air with zero downtime, the FS-Curtis CA5+ 120-Gallon Duplex Ultra Pack delivers industrial-grade performance wrapped in a maintenance-friendly package. Designed for automotive, light industrial, and heavy-duty applications, this 5 HP duplex system features two independent pumps that alternate operation to extend pump life while ensuring you always have air available—even during service intervals. With an impressive 37 CFM at 175 PSI and a robust 120-gallon ASME horizontal tank, this compressor handles fluctuating demand with ease. The Ultra Pack configuration means you get factory-installed premium accessories—including an air-cooled aftercooler, automatic tank drain, low oil shutdown protection, and anti-vibration tank isolator pads—all backed by FS-Curtis's industry-leading quality. Available in single-phase 230V and multiple three-phase voltages (200-208V, 230V, and 460V), this Made in USA compressor is built with 100% cast-iron construction and precision components designed to outlast entry-level competitors in the toughest working conditions.
Built for the Toughest Environments
The CA Series from FS-Curtis isn't just built to handle harsh environments—it's engineered to thrive in them. For automotive, light industrial, and other challenging applications, CA Series compressors are built to last. Components are selected based on durability and performance, ensuring that your compressor delivers reliable service in demanding real-world conditions. Precision-machined components and a dedication to materials meant for tough working environments further assure long-term durability. The industrial design delivers the most robust air compressor in its class, providing higher pressures, better efficiency, and longer life than entry-level models, making the CA Series ready to handle the most rugged, heavy-duty applications.
The Ultra Pack configuration means you can easily pair the unit with a standard refrigerated dryer to stop damage from moisture in your air system. Plus, you can rest assured that you'll avoid unnecessary downtime due to excess water in the tank or damage from low oil levels—the system comes factory-equipped with automatic tank drain and low oil shutdown protection.
The Duplex Advantage: Redundancy, Efficiency, and Longevity
Duplex compressors are ideal when there are varying demand levels during operation. By alternating demand across two pumps, a duplex compressor delivers longer pump life and reduced wear on individual components. The redundant pumps ensure you'll always have air, eliminating maintenance downtime. During normal operation, the compressors alternate to balance run time. When system demand spikes, both compressors run simultaneously to meet the load. This duplex design reduces electrical cost by avoiding oversized single-motor installations and eliminates downtime during routine service.
The system includes an alternator control panel mounted with magnetic motor starters and thermal overload protection. A 3-position alternator switch and NEMA-1 rated panel offer flexible control. The duplex configuration is powered by two independent power sources with automatic start-stop control, ensuring seamless, efficient operation.
Most Durable Pump Construction Available
Meticulous material selection ensures long-term reliability. The E57 pump features 100% cast-iron cylinders and cylinder heads, providing unmatched thermal stability and resistance to wear. A long-lasting, corrosion-resistant crankshaft reduces thermal stress for increased reliability. Deep-finned cast-iron cylinders and cylinder heads promote cool operation even under continuous demand. The slow-turning pump design significantly increases pump life compared to faster-running competitors.
Industrial-grade main roller bearings are precision-fit to support all rotating parts. A high-flow, heavy-duty stainless-steel valve system delivers more CFM per horsepower than standard valves. The robust intercooler increases compressor efficiency, while the metal intake filter/silencer is superior to plastic alternatives found on cheaper models. A heavy-duty stamped-steel belt guard meets OSHA approval standards, and suction valve head unloaders support continuous-run applications.
Ultra Pack: Complete System, Maximum Value
The CA Series compressors are already an outstanding value, and an FS-Curtis Ultra Pack gives you even more. An Ultra Pack includes a CA Series compressor fully packaged with the most common options and accessories. You'll save money and time by getting it all in one package, and you'll be assured of increasing air quality while reducing maintenance needs. Industry-leading five-year bumper-to-bumper warranty available—talk with your FS-Curtis representative for more details.
Every Ultra Pack includes:
- Air-cooled aftercooler for improved air quality and reduced moisture
- Alternator control panel (duplex configuration)
- Low oil level shutdown protection to prevent damage
- Automatic tank drain to eliminate manual maintenance
- Tank isolator pads (Set of 4 anti-vibration pads - #FVF134C included)
- Factory-filled with RC-1000 lubricant—No start-up kit required!
Key Highlights
- 37 CFM at 175 PSI from dual 5 HP motors with E57 pumps and 2 cylinders each (horizontal configuration)
- 120-gallon ASME horizontal tank with splash lubrication, providing ample reserve capacity
- Duplex alternating operation extends pump life and eliminates downtime; both pumps run when demand peaks
- Ultra Pack accessories included: aftercooler, automatic tank drain, low oil shutdown, anti-vibration pads, factory-filled lubricant
- 100% cast-iron construction, slow V-belt drive, premium efficiency motors (3-phase), and Made in USA quality
Available Voltages and Model Numbers
This compressor is available in multiple voltage configurations to suit your facility's electrical system:
Single Phase:
- 1/60/230V - FCA05E57D1U-A2L1XX
Three Phase:
- 3/60/200-208V - FCA05E57D1U-A9L1XX
- 3/60/230V - FCA05E57D1U-A3L1XX
- 3/60/460V - FCA05E57D1U-A4L1XX
Quality Components for Extended Product Life
Every CA5+ Duplex Ultra Pack is built with components selected for continuous performance:
- Splash lubricated pump design with oil level sight indicator
- ASME air receiver (horizontal tank configuration)
- UL approved pressure switch and ASME approved safety relief valve
- OSHA approved totally enclosed belt guard for safe operation
- ASME approved discharge air service valve and tank shut-off valve
- Slow V-belt drive reduces wear and extends belt life
- Large metal intake filter-silencers for superior filtration and quieter operation
- Manual condensate tank drain valve (plus automatic drain in Ultra Pack)
- Dial read-out pressure gauge indicator for easy monitoring
- Premium Efficiency Motors (3-phase models only) reduce operating costs
Video: FS-Curtis CA Series Overview
Made in the USA
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Additional Resources
1 Year Factory Warranty extends to 5 years Ultrashield "bumper-to-bumper" Warranty with Registration and use of FS-Curtis Maintenance Products. See full Warranty Policy & Procedure Manual
