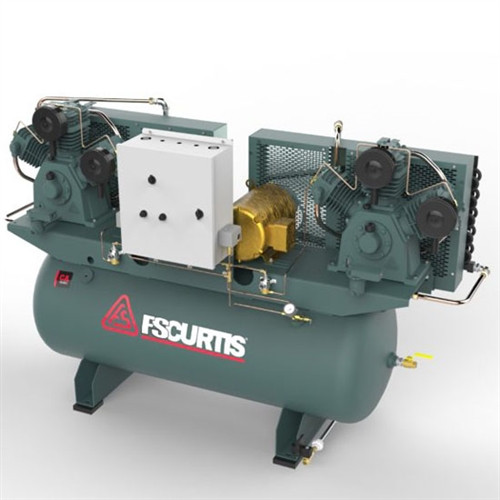

FS-Curtis CA10 120 Gallon Duplex 10(2)HP Ultra Pack Air Compressor
Write a Reviews
FSCurtis
FS-Curtis CA10 120 Gallon Duplex 10(2)HP Ultra Pack Air Compressor
FS-Curtis CA10 120 Gallon Duplex 10(2)HP Ultra Pack Air Compressor
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.
The FS-Curtis CA10 Duplex Ultra Pack is engineered for demanding automotive, light industrial, and heavy-duty applications where consistent air delivery, minimal downtime, and maximum reliability are essential. This dual-pump duplex system features two 10 HP compressors with a 120-gallon horizontal tank, delivering 68.4 CFM at 175 PSI. The duplex design alternates between pumps during normal operation and runs both when demand spikes, ensuring you always have air while extending pump life through balanced workload distribution. Factory-packaged as an Ultra Pack, this system arrives complete with an air-cooled aftercooler, automatic tank drain, low oil level shutdown, and alternator control panel with magnetic motor starters—delivering exceptional value, enhanced air quality, and reduced maintenance right out of the box.
Built for Real-World Durability
CA Series compressors aren't just built to handle harsh environments—they're designed from the ground up for long-term reliability in the most challenging conditions. Every component is selected based on durability and performance, ensuring your compressor delivers consistent results day after day. Precision-machined components and a commitment to materials meant for real-world working conditions guarantee that this is the most robust reciprocating air compressor in its class, providing higher pressures, better efficiency, and longer life than entry-level models.
The Ultra Pack configuration takes an already outstanding CA Series compressor and equips it with the most commonly needed options and accessories in one complete package. You save money and time by getting everything you need pre-installed, and you gain peace of mind knowing you'll avoid unnecessary downtime from excess water in the tank or damage from low oil levels. Easily pair this unit with a standard refrigerated dryer to stop moisture damage in your air system.
The Most Durable Pump Construction Available
Meticulous material selection ensures long-term reliability you can count on. The E71 three-cylinder pump features 100% cast-iron cylinders and cylinder heads, delivering exceptional strength and heat dissipation. A long-lasting, corrosion-resistant crankshaft and deep-finned cast-iron construction reduce thermal stress for cool, reliable operation. The slow-turning pump design significantly increases pump life by reducing wear, while industrial-grade main roller bearings are precision-fit to support all rotating parts with minimal vibration.
- 100% cast-iron cylinders and cylinder heads for maximum durability
- Long-lasting, corrosion-resistant crankshaft reduces thermal stress
- Deep-finned cast-iron cylinders and heads for cool operation
- Slow-turning pump increases pump life and reduces wear
- High-flow, heavy-duty stainless-steel valve system delivers more CFM per horsepower
- Robust intercooler increases compressor efficiency
- Metal intake filter/silencer superior to plastic for long-term durability
- Heavy-duty stamped-steel belt guard with OSHA-approved total enclosure
- Suction valve head unloaders for continuous running air compressors
Duplex Design: Redundancy, Efficiency, and Zero Downtime
Duplex compressors are ideal when there are varying demand levels during operation. By alternating demand across two pumps, this duplex system delivers longer pump life through balanced workload distribution. The redundant pumps ensure you'll always have air, completely eliminating maintenance downtime. The included alternator control panel comes mounted with magnetic motor starters and thermal overload protection, automatically managing pump operation.
- Compressors alternate during normal operation for balanced wear
- Both compressors run when system demands for maximum output
- Duplex design reduces electrical cost and eliminates downtime
- 3-position alternator switch for flexible control
- NEMA-1 alternator control panel with magnetic starters and overload protection
- Standard two power source configuration
- Automatic start-stop control for hands-free operation
Ultra Pack Advantages: Pre-Configured for Maximum Value
The Ultra Pack includes the most common options and accessories in one complete, factory-packaged system. You'll save money and time by getting it all together, and you'll be assured of increasing air quality while reducing maintenance needs. Industry-leading five-year bumper-to-bumper warranty available—talk with your FS-Curtis representative for more details.
- Air-cooled aftercooler reduces moisture and extends system life
- Alternator panel for duplex control and operation
- Low oil level shutdown prevents engine damage
- Automatic tank drain eliminates manual maintenance
- Tank isolator pads reduce vibration (Set of 4 120G Anti-Vibration Pads included)
- No start-up kit required! Factory-filled with RC-1000 lubricant
- Premium efficiency motors (3-phase) for reduced energy consumption
- Large metal intake filter-silencers for quiet, efficient operation
Quality Components Throughout
Every component on the CA10 Duplex Ultra Pack is selected for extended product life and continuous performance in demanding environments:
- Splash lubricated pump for reliable oil distribution
- ASME air receiver (120-gallon horizontal tank)
- UL approved pressure switch for safe operation
- ASME approved safety relief valve and discharge air service valve
- Slow V-belt drive reduces wear and noise
- Tank shut-off valve for easy service access
- Manual condensate tank drain valve with automatic drain included
- Dial read-out pressure gauge indicator for at-a-glance monitoring
- Oil level sight indicator for quick visual inspection
Key Selling Points at a Glance
- Dual 10 HP compressors deliver 68.4 CFM at 175 PSI with redundant backup
- 120-gallon horizontal ASME tank provides ample air storage for demanding applications
- Alternating duplex design extends pump life and eliminates maintenance downtime
- Complete Ultra Pack with aftercooler, auto drain, low oil shutdown, and more
- 100% cast-iron construction with slow-turning pump for maximum durability
- Made in USA with industry-leading warranty options available
Available Voltage Configurations
The CA10 Duplex Ultra Pack is available in multiple three-phase voltage configurations to match your facility's power requirements:
- 3/60/200-208V - Model FCA10E71D1U-A9L1XX
- 3/60/230V - Model FCA10E71D1U-A3L1XX
- 3/60/460V - Model FCA10E71D1U-A4L1XX
Product Videos
Watch the FS-Curtis CA Series in action and learn more about its construction and features:
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
1 Year Factory Warranty extends to 5 years Ultrashield "bumper-to-bumper" Warranty with Registration and use of FS-Curtis Maintenance Products. See full Warranty Policy & Procedure Manual
