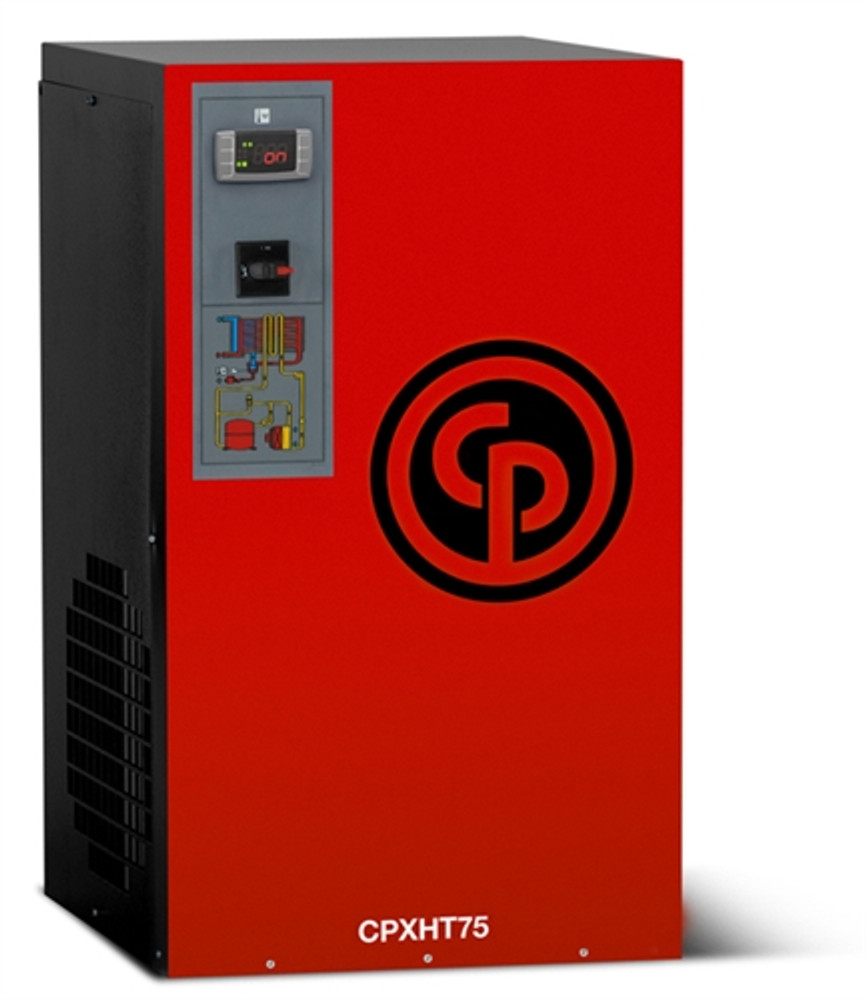

The Chicago Pneumatic CPXHT-75 is engineered for demanding compressed air applications where high inlet temperatures up to 180°F are common—eliminating the need for a separate aftercooler and saving you valuable floor space and installation costs. Delivering 75 CFM for 15 HP compressors, this all-in-one refrigerated dryer solution combines advanced filtration technology with robust construction to ensure you get clean, dry compressed air every time. The integrated design incorporates an air-cooled aftercooler, refrigerated air dryer, moisture separator, electronic water drain, and 3-micron coalescing filter all in one compact footprint.
Installation is remarkably straightforward thanks to 115V single-phase power—no special wiring or electrician required—and the space-saving design with 1" NPT inlet/outlet connections. Built with a stainless steel and copper heat exchanger and R-404A refrigerant, the CPXHT-75 achieves a reliable 50°F dew point while operating efficiently at just 1/2 kW. Whether you're running automotive equipment, manufacturing machinery, or paint booths, this dryer protects your tools and processes from moisture damage and contamination.
The CPXHT-75 integrates multiple air treatment components that would typically require separate equipment, plumbing, and installation labor. The inlet strainer captures large particles before they enter the system, while the precooler/reheater efficiently manages temperature to optimize moisture removal. The refrigerated dryer core brings the air down to a consistent 50°F dew point (+/- 2°F), condensing water vapor that's then removed by the moisture separator and automatic drain valve.
Finally, the 3-micron coalescing filter captures oil aerosols and submicron contaminants, delivering air clean enough for the most demanding applications. The entire system operates within an ambient temperature range of 34°F to 95°F, making it suitable for both climate-controlled facilities and tougher industrial environments.
Advanced feature diagram highlighting integrated components
Detailed view of high temp dryer construction and components
Capacity: 75 CFM maximum (for use with 15 HP compressors)
Electrical: 115V/60Hz/1-Phase, 1/2 kW operating power, 6-foot power cord included
Temperature Range: 180°F max inlet temp, 34°F min ambient, 95°F max ambient
Pressure Rating: 232 psig maximum with 1" NPT inlet/outlet connections
Dew Point: 50°F +/- 2°F for consistent moisture removal
Dimensions: 23" x 18" x 31", weighs 183 lbs
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
BelAire Compressors, Seller, warrants products against defects in workmanship and materials under normal use and service, as follows:
Refrigerated non-cycling, high temperature and heatless desiccant dryers shall be warranted for twelve (12) months from date of start-up or eighteen (18) months from date of shipment from the factory, whichever occurs first, to include parts and labor. Parts shall be warranted for ninety (90) days from installation or for the remainder of the warranty on the product being repaired, whichever is longer.
Warranty coverage is reimbursed at 70% posted shop labor rate. Travel is reimbursed at $0.50 per mile. Miscellaneous charges require pre-approval.
Seller requires that all warranty service work be authorized prior to a service call for all claims. Parts should be taken to every service call to take care of the problem in one trip. Seller does not reimburse trouble-shooting.
To be eligible for warranty consideration, Claimant must:
Notice of alleged defect must be given to Seller in writing with all identifying details including serial number, model number, equipment type and date of purchase, within thirty (30) days of discovery of defect during the warranty period. Seller’s sole obligation on this warranty shall be, at its option, to repair, replace or refund the purchase price of any product or part which proves to be defective. If requested by Seller, such product or part thereof must be promptly returned to Seller, freight collect for inspection.
This warranty shall not apply and Seller shall not be responsible nor liable for:
In no event shall Seller be liable for any claims, whether arising from breach of contract or warranty claims of negligence or negligent manufacture, in excess of the purchase price of the equipment. It is incumbent on the user to provide complete and accurate records of maintenance and verifiable proof of purchase and use of genuine factory repair and replacement parts.
THIS WARRANTY IS THE SOLE WARRANTY OF SELLER AND ANY OTHER WARRANTIES, EXPRESS, IMPLIED IN LAW OR IMPLIED IN FACT, INCLUDING ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR USE, ARE HEREBY SPECIFICALLY EXCLUDED.
