The Chicago Pneumatic CPXHT-25 is engineered to handle the toughest compressed air drying challenges with a maximum inlet temperature of 180°F, eliminating the need for a separate aftercooler and simplifying your air treatment system. This compact, all-in-one solution combines a refrigerated air dryer, air-cooled precooler/reheater, 3-micron coalescing filter, automatic moisture drain, and inlet strainer—all in a space-saving design that delivers clean, dry compressed air for your 5 HP compressor. Rated for 25 CFM at up to 232 PSIG, the CPXHT-25 achieves a consistent 50°F dew point to protect your tools, equipment, and paint finishes from moisture damage. With 115V single-phase power and a six-foot power cord included, installation is straightforward with no special electrical requirements. Whether you're running a professional auto body shop, fabrication facility, or industrial maintenance operation, this high-temp dryer provides reliable moisture removal and oil filtration in a compact, efficient package.

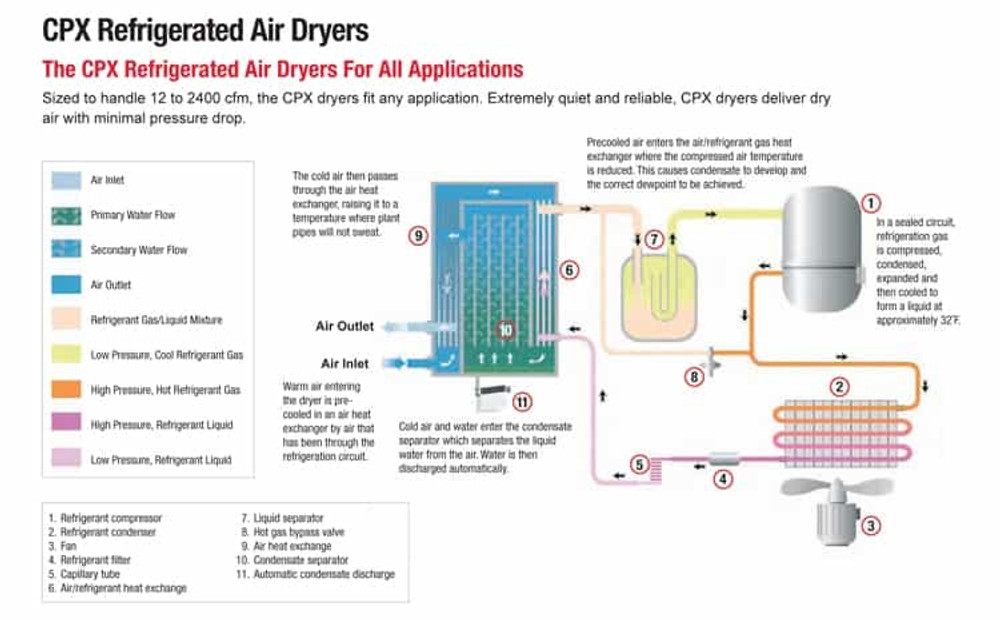

The CPXHT-25 integrates multiple critical air treatment components into a single 18" x 19" x 18" footprint, making it ideal for shops where floor space is at a premium. The included air-cooled aftercooler works in tandem with the refrigerated dryer circuit to efficiently remove heat and moisture, while the integrated precooler/reheater maximizes thermal efficiency. An inlet strainer protects internal components from particulate contamination, and the coalescing filter removes oil aerosols and dirt down to 3 microns, ensuring your compressed air is clean and dry for critical applications like spray painting, sandblasting, and precision pneumatic tools.
The automatic drain valve continuously expels condensed moisture without manual intervention, reducing maintenance and ensuring consistent performance. The ambient air condenser filter keeps the refrigeration circuit operating efficiently even in dusty environments. This turnkey design means you can install the CPXHT-25, connect your air lines via 1/2" NPT inlet and outlet ports, plug in the included power cord, and immediately start producing dry, filtered compressed air.
Unlike standard refrigerated dryers that require pre-cooled air, the CPXHT-25 accepts inlet temperatures up to 180°F, making it perfect for installation directly downstream from your compressor without a separate aftercooler. This capability is especially valuable for high-duty-cycle applications where compressor discharge temperatures run hot, or in warm climates where ambient conditions elevate compressed air temperatures. The dryer's stainless steel and copper heat exchanger construction withstands these demanding conditions while delivering reliable performance year after year.
Operating on R-134a refrigerant, the dryer maintains a steady 50°F pressure dew point (±2°F) across a wide range of ambient conditions from 34°F to 95°F, giving you consistent moisture removal in varying shop temperatures. The low 1/4 kW operating power keeps energy costs minimal while providing continuous air treatment for your 5 HP compressor system.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
BelAire Compressors, Seller, warrants products against defects in workmanship and materials under normal use and service, as follows:
Refrigerated non-cycling, high temperature and heatless desiccant dryers shall be warranted for twelve (12) months from date of start-up or eighteen (18) months from date of shipment from the factory, whichever occurs first, to include parts and labor. Parts shall be warranted for ninety (90) days from installation or for the remainder of the warranty on the product being repaired, whichever is longer.
Warranty coverage is reimbursed at 70% posted shop labor rate. Travel is reimbursed at $0.50 per mile. Miscellaneous charges require pre-approval.
Seller requires that all warranty service work be authorized prior to a service call for all claims. Parts should be taken to every service call to take care of the problem in one trip. Seller does not reimburse trouble-shooting.
To be eligible for warranty consideration, Claimant must:
Notice of alleged defect must be given to Seller in writing with all identifying details including serial number, model number, equipment type and date of purchase, within thirty (30) days of discovery of defect during the warranty period. Seller’s sole obligation on this warranty shall be, at its option, to repair, replace or refund the purchase price of any product or part which proves to be defective. If requested by Seller, such product or part thereof must be promptly returned to Seller, freight collect for inspection.
This warranty shall not apply and Seller shall not be responsible nor liable for:
In no event shall Seller be liable for any claims, whether arising from breach of contract or warranty claims of negligence or negligent manufacture, in excess of the purchase price of the equipment. It is incumbent on the user to provide complete and accurate records of maintenance and verifiable proof of purchase and use of genuine factory repair and replacement parts.
THIS WARRANTY IS THE SOLE WARRANTY OF SELLER AND ANY OTHER WARRANTIES, EXPRESS, IMPLIED IN LAW OR IMPLIED IN FACT, INCLUDING ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR USE, ARE HEREBY SPECIFICALLY EXCLUDED.
