Up your air game with the powerful BendPak VMP-7580V-603 V-MAX Patriot air compressor. Engineered for professionals who demand uncompromising performance, this 7.5 HP, 3-phase system delivers an impressive 26 CFM at 175 PSI from its robust 80-gallon vertical tank. Proudly Made in USA, the V-Max Patriot series represents the pinnacle of air compressor technology—combining rugged 100% cast-iron construction, energy-efficient operation, and whisper-quiet performance. Whether you're running an automotive repair shop, body shop, or industrial manufacturing facility, the VMP-7580V-603 meets and exceeds your most demanding air system needs with UL, CSA, and ASME certifications.
The Next Stage in Air Compressor Evolution

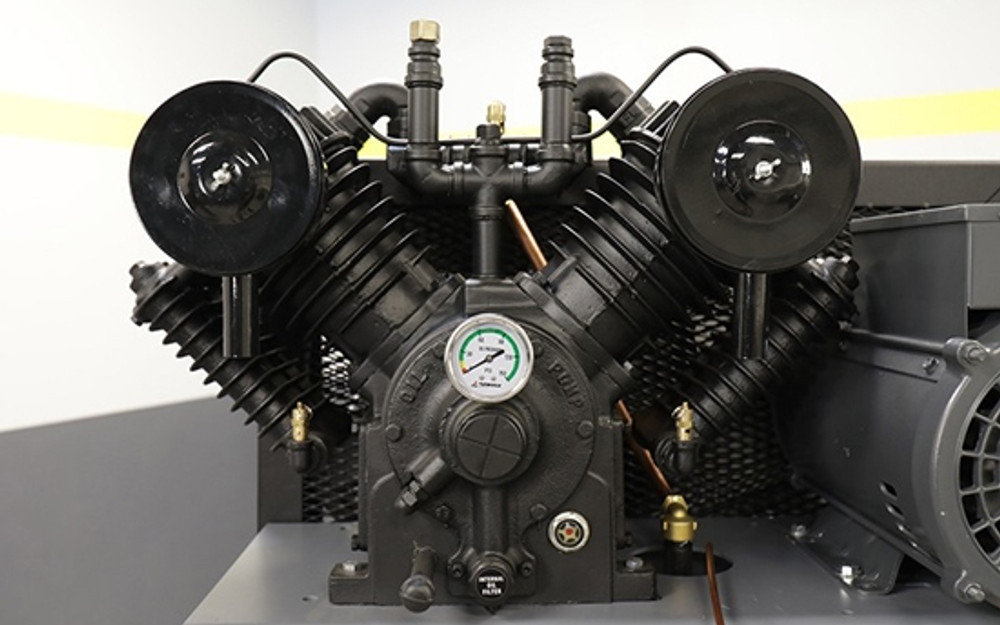

Meet the V-Max Patriot 7580V-603, a 3-phase air system that redefines what you should expect from a professional-grade compressor. Like every member of the V-Max Patriot family, the 7580V-603 features the legendary rugged V-Max four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. This 2-stage, oil-lubricated reciprocating air compressor is built with 100% cast-iron pumps to deliver the quality and performance demanded by heavy-use applications including automotive and body repair shops, industrial manufacturing, and fleet services.
The engineering behind the V-Max Patriot is exceptional. Every V-Max Patriot pump features splash lubrication for total reliability and a distinctive V-4 finned cylinder configuration that provides 360° cooling—keeping operating temperatures low even during continuous use. Unlike aluminum pumps that warp under heat, the solid cast-iron construction remains stable under the heaviest workloads, ensuring long-term durability and consistent performance year after year.

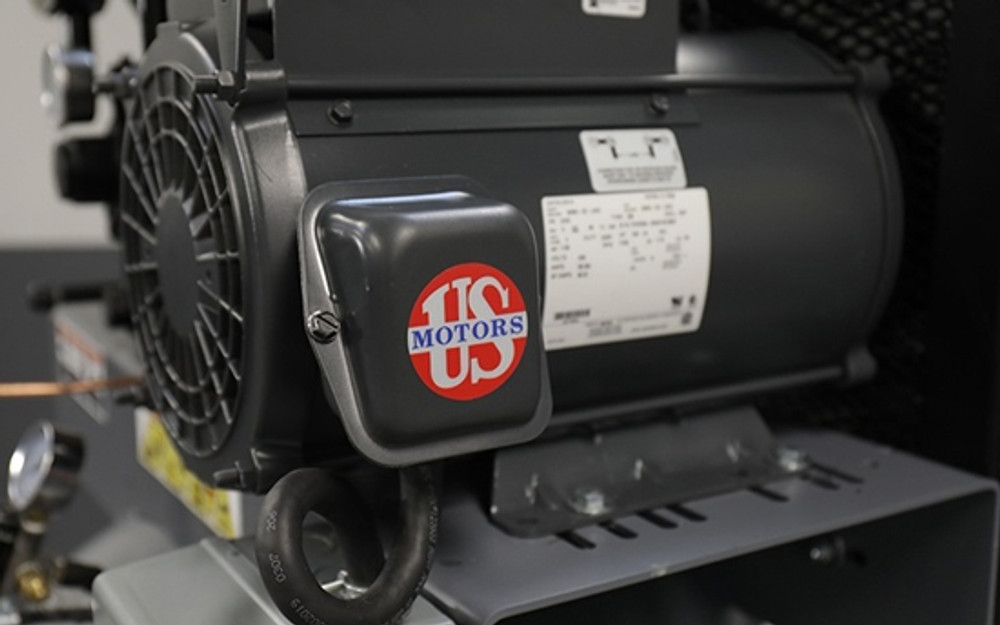

Powerful, Efficient V-Max Compressor Motor
The 7.5 HP energy-efficient motor paired with the V-Max two-stage pump creates an air delivery system that's simply unmatched in its class. Operating at just 1,750 RPM on the motor side and an ultra-low 625 RPM pump speed, this compressor runs significantly cooler and quieter than conventional designs. The result? An incredibly low 78 dBA noise level—making this one of the quietest compressors you'll find in the 7.5 HP category.
Heavy-duty disc-type valves are readily accessible and do not require cylinder head removal for maintenance—drastically reducing downtime and service costs. The large 100% cast-iron V-Max pump puts out an incredible 26 CFM at 175 PSI, yet it does so with remarkable efficiency and heat management. Thanks to the two-stage design, a built-in intercooler, and an air-cooled after-cooler, air temperatures and moisture levels are significantly reduced, resulting in dryer, cleaner compressed air for your tools and equipment.
The full pressure lubrication system ensures every critical component stays properly lubricated, while the oil sight glass lets you monitor oil levels at a glance. An oversized ductile iron crankshaft provides extra strength and wear resistance, and tapered roller main bearings with needle-type piston pin bearings ensure proper load distribution and long bearing life.
Superior Cooling and Low-Vibration Design
A precision-balanced flywheel features forced-air fan blades that optimize cooling and contribute to the compressor's impressively long service life. Combined with the balanced flywheel and counterbalanced crankshaft, the VMP-7580V-603 delivers nearly vibration-free operation. To further ensure zero unwanted movement, this air compressor includes a set of four rugged anti-vibration pads—each a half-inch thick and made from high-quality elastomer compound that resists aging, compression set, water, and oil.
The large surface area and cooling fins on cylinders, combined with the forced-air after-cooler, provide efficient heat dissipation for lower operating temperatures. This means the compressor runs cooler, oil life is extended, and overall maintenance requirements are reduced—saving you time and money over the life of the unit.
Built for Continuous Duty with Smart Safety Features
The VMP-7580V-603 is rated for continuous duty, making it ideal for shops that run air tools throughout the day without interruption. The 80-gallon vertical ASME-rated tank provides ample reserve capacity with an electronic drain valve for hassle-free moisture removal. A 3/4" outlet fitting ensures high flow rates to your air distribution system.
Safety and reliability are paramount. The magnetic starter provides thermal overload protection and minimizes start loads, ensuring long life and trouble-free operation. An ASME-rated safety valve protects the compressor from overpressure and safeguards the operator. The automatic pressure switch provides convenient auto start and stop functionality, while integrated pressure unloader valves built into the intake valve assembly reduce internal pump heat from initial start-up compression.
Additional features include a pressure gauge with service valve, oversize replaceable air filters, and corrosion-resistant tubing for coolers, separators, and valves—all contributing to longer life and reduced maintenance. The fully-enclosed belt guard protects the dual drive belts, which require less belt tension, resulting in less load on pump bearings, longer belt life, and low vibration.
Maximum Efficiency Equals Real Cost Savings
When evaluating air compressors, it's critical to look beyond the initial purchase price. The real cost—or savings—will be found in ongoing electricity consumption and maintenance expenses. The more air you can produce per horsepower, the less overall power is required. Thanks to their massive, energy-efficient pumps, V-Max Patriot air compressors run at notably slower speeds to achieve low operating temperatures, thereby maximizing compressor efficiency and minimizing electrical draw.
The VMP-7580V-603 operates on 208-230 Volt AC, 3-phase power at 60 Hz, with an 18 amp draw and a recommended 50 amp breaker. This efficient power profile, combined with the compressor's proven air-cooled design—which is economical, reliable, and environmentally friendly—means lower operating costs and a smaller carbon footprint for your facility.
Even a casual comparison will quickly reveal that the monstrous V-Max Patriot pump outpaces the competition every time in terms of efficiency, reliability, and longevity. In other words, nothing comes close to the value of a V-Max Patriot air compressor. With its solid cast-iron construction, advanced cooling system, and smart engineering throughout, the 7580V-603 is built to deliver decades of reliable service with minimal maintenance.
Key Highlights of the VMP-7580V-603
26 CFM at 175 PSI from a rugged two-stage, belt-drive V-4 pump with continuous duty cycle
7.5 HP, 3-phase motor with magnetic starter and thermal overload protection for reliable, trouble-free operation
100% cast-iron pump and cylinders that won't warp under heat—engineered for extreme duty and maximum longevity
80-gallon vertical ASME-rated tank with electronic drain valve for convenient moisture management
Extra-quiet operation at just 78 dBA thanks to low 625 RPM pump speed and advanced vibration-dampening design
UL, CSA, and ASME certified and Made in USA for unmatched quality assurance
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Duration: From the date of purchase by original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the compressor tank only
Two Years (24-Months) Warranty on the compressor pump only
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty: Any BendPak Air Compressor
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
a. Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with
instructions provided in the owner’s manual(s) supplied or any pre-delivery service, (assembly, oil, lubricants, adjustment etc.)
b. Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
c. Items considered general wear parts such as rubber belts, hoses, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship Other items not listed but considered general wear parts; a. Pump wear or valve damage caused by using oil not specified; b. Pump or valve damage caused by any oil contamination or by failure to follow proper oil maintenance guidelines; c. Ring wear or valve damage from inadequate filter maintenance
d. Any component damaged in shipment or any failure caused by installing or operating air compressor under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
e. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
f. Rusted tanks, including but not limited to rust due to improper drainage or corrosive environments. The five-year tank warranty applies to ASME air receivers only if they are installed on rubber anti-vibration pads or approved equivalent
g. Cosmetic defects that do not interfere with product functionality
h. Damage due to incorrect voltage or improper wiring
i. Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of BendPak Inc. product
j. All electrical components are guaranteed for one year against defects in workmanship and/or materials when the lift is installed
and used according to specifications
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
7. Responsibilities of Purchaser under this warranty:
a. Provide dated proof of purchase and maintenance records
b. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
c. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote
addresses.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other
than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under
these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages. All expressed and implied warranties, including the implied warranties of merchantability and fitness for a particular
purpose, are limited in duration to the coverage period. No warranties, expressed or implied, will apply after this period. BendPak may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
