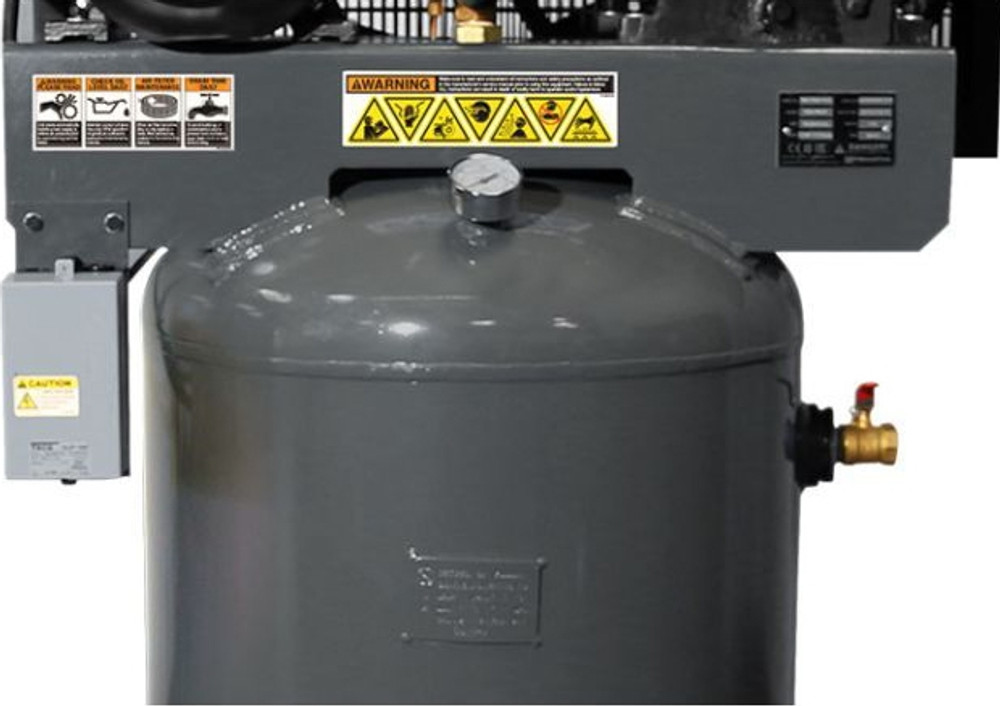

Meet the enormous BendPak V-Max Elite VMP-10120V-603 3-phase air compressor system. When it comes to pure air power and reliability, there's no such thing as a more solid investment. This 10 HP industrial-grade air compressor delivers a massive 41 CFM at 90 PSI and features a 120-gallon ASME-rated vertical tank, making it the ultimate choice for busy automotive shops, body repair centers, manufacturing facilities, and industrial applications where downtime simply isn't an option.
All Craft, No Compromise: The V-Max Elite 10120V-603
This V-Max Elite air compressor is a top-of-the-line air delivery system designed for maximum efficiency under every load condition. Like others in the V-Max Elite series of air compressors, the VMP-10120V-603 features an extreme-duty, four-cylinder pump made of 100% cast iron. These rugged two-stage oil-lubricated reciprocating compressors are made to shine on even your busiest days, delivering continuous-duty performance that simply won't quit.
Built for professionals who demand the best, this compressor operates at a remarkably quiet 78 dBA noise level while running at just 745 pump RPM—substantially slower than competing models. The result? Cooler operation, longer component life, reduced maintenance, and a quieter work environment. With a continuous duty cycle and 175 PSI maximum pressure, the VMP-10120V-603 keeps your tools running at peak performance all day long.
V-Max Elite Air Compressor Pump Technology
This massive V-Max Elite pump comes standard with splash lubrication and a V-4 finned cylinder configuration for 360° cooling. Heavy-duty, disc-type valves have been engineered for absolute reliability, and users can even access them without having to perform complicated valve maintenance procedures or remove the cylinder. A built-in intercooler and air-cooled after-cooler chills the air to bring down the temperatures and keep condensation to a minimum.
The cast-iron construction of both the pump and cylinder heads provides exceptional thermal stability under heavy workloads. Unlike aluminum cylinders with pressed-in sleeves that can warp from heat, this all-cast-iron design remains stable and true, maintaining precision tolerances and peak efficiency for years. The pump features two compression rings and one oil control ring that deliver excellent oil control and high-efficiency air delivery, while tapered roller main bearings provide full contact and support of the crankshaft for smooth, reliable operation.
At its heart, the VMP-10120V-603 air compressor is all about big air with comparably little noise due to slower RPM speeds and its two-stage belt-drive design. The dual drive belts require less belt tension, resulting in less load on pump bearings, longer belt life, and low vibration—all protected by a fully-enclosed belt guard for safety.
Superior Engineering for Maximum Reliability
The precision-balanced flywheel features forced-air fan blades for optimum compressor cooling and extended service life. Combined with a balanced counterbalanced crankshaft, the result is nearly vibration-free operation that keeps your shop floor quiet and your equipment stable. An oversized ductile iron crankshaft provides extra strength and longer wear, while high-density, die-cast aluminum alloy connecting rods minimize reciprocating weight for smooth, efficient operation.
The rugged cast-iron oil reservoir includes a convenient sight gauge glass, large oil drain, and convenient fill cap for easy maintenance. Corrosion-resistant tubing is used throughout for coolers, separators, and valves, ensuring longer life and reduced maintenance. Integrated pressure unloader valves are built into the intake valve assembly on the compressor head, reducing internal pump heat from initial start-up compression for faster, cooler starts.
Anti-Vibration Mounting & Stability
This air compressor includes a set of four rugged, half-inch thick anti-vibration pads to ensure there's virtually zero machine vibration during operation. The high-quality elastomer compound resists aging, compression set, water, and oil, keeping your compressor stable and your shop floor quiet even during the most demanding operations.
Energy Efficiency That Saves You Money
All V-Max Elite air compressors run at noticeably slower speeds, thanks to their massive, energy-efficient 10 HP motor running at 1,750 RPM. We do this to reduce operating temperatures and maintenance costs while increasing overall efficiency. When making an air compressor purchase, it's always a good idea to consider the power it consumes along with the general upkeep you'll have to perform to keep it running.
The true cost of ownership is more than the purchase price. Electric power costs add up based on the horsepower needed to produce the air required. The more air you can produce per horsepower, the less power is required to meet your air demands. The VMP-10120V-603 operates on 208-230 Volt AC, 3-phase power with an 18-amp draw and requires a 40-amp breaker. The included magnetic starter provides thermal overload protection and minimizes start loads, providing long life and trouble-free operation.
When you stack what the V-Max VMP-10120V-603 can achieve next to the other guys, it isn't hard to see that no one can touch the value of a V-Max Elite air compressor by BendPak.
Key Features & Benefits
41 CFM at 90 PSI and 31 CFM at 175 PSI – delivers the air volume you need for demanding pneumatic tools
120-gallon ASME-rated vertical tank with 3/4" outlet fitting – ample capacity for high-volume applications
Cast-iron V-4 pump with splash lubrication and 360° finned cooling – unmatched durability and heat dissipation
Continuous duty cycle at just 78 dBA – quiet, all-day operation without overheating
Magnetic starter with thermal overload protection and automatic pressure switch – reliable, hands-free operation
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Duration: From the date of purchase by original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the compressor tank only
Two Years (24-Months) Warranty on the compressor pump only
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty: Any BendPak Air Compressor
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
a. Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with
instructions provided in the owner’s manual(s) supplied or any pre-delivery service, (assembly, oil, lubricants, adjustment etc.)
b. Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
c. Items considered general wear parts such as rubber belts, hoses, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship Other items not listed but considered general wear parts; a. Pump wear or valve damage caused by using oil not specified; b. Pump or valve damage caused by any oil contamination or by failure to follow proper oil maintenance guidelines; c. Ring wear or valve damage from inadequate filter maintenance
d. Any component damaged in shipment or any failure caused by installing or operating air compressor under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
e. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
f. Rusted tanks, including but not limited to rust due to improper drainage or corrosive environments. The five-year tank warranty applies to ASME air receivers only if they are installed on rubber anti-vibration pads or approved equivalent
g. Cosmetic defects that do not interfere with product functionality
h. Damage due to incorrect voltage or improper wiring
i. Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of BendPak Inc. product
j. All electrical components are guaranteed for one year against defects in workmanship and/or materials when the lift is installed
and used according to specifications
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
7. Responsibilities of Purchaser under this warranty:
a. Provide dated proof of purchase and maintenance records
b. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
c. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote
addresses.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other
than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under
these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages. All expressed and implied warranties, including the implied warranties of merchantability and fitness for a particular
purpose, are limited in duration to the coverage period. No warranties, expressed or implied, will apply after this period. BendPak may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
