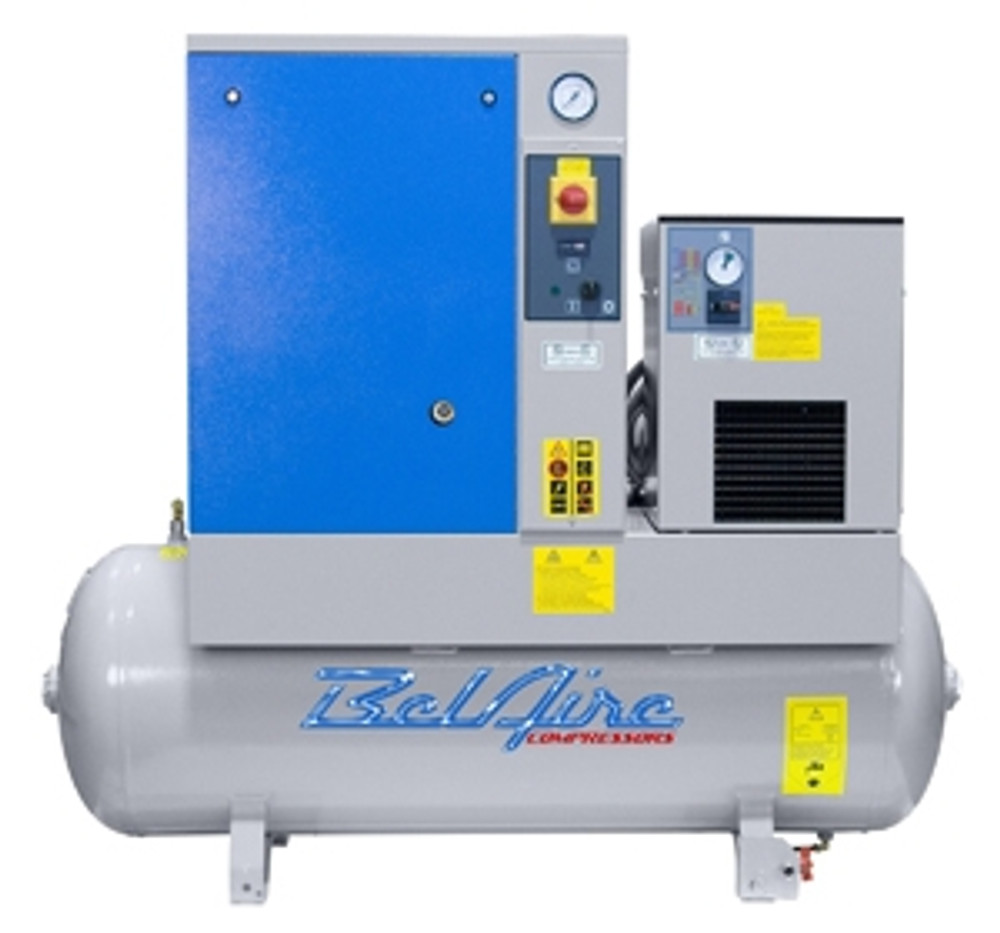

BelAire BR5503D 5HP 60G H Belt Drive Rotary Screw Air Compressor
Write a Reviews
IMC-BelAire
BelAire BR5503D 5HP 60G H Belt Drive Rotary Screw Air Compressor
BelAire BR5503D 5HP 60 Gallon 150psi Three Phase Belt Drive Rotary Screw Air Compressor – Dryer Included
The BelAire BR5503D is the quiet, reliable compressed air solution designed specifically for professional automotive repair and body shops demanding consistent, high-quality compressed air. This compact 5HP rotary screw compressor with an integrated 60-gallon ASME/CRN receiver tank and included dryer delivers 16.6 acfm at 150 psi while operating at an exceptionally quiet 62 dBA. Built for continuous duty operation, the BR5503D provides the dependable air supply your shop needs without sacrificing valuable floor space – occupying less than 12 square feet.
Engineered by IMC-BelAire, this rotary screw compressor combines proven industrial technology with a low sound enclosure, making it ideal for environments where noise reduction is critical. The tri-voltage TEFC motor offers versatility with 208-230/460V three-phase power options, while the UL and UL-C approved control panel ensures safety and compliance. Factory-filled with premium lubricant rated for 4,000 hours of operation in clean environments, the BR5503D is ready to deliver reliable performance right out of the crate.
Key Advantages of the BelAire BR5503D
- Ultra-Quiet Operation: At just 62 dBA, the low sound enclosure makes this compressor ideal for shops where noise is a concern, allowing for a better working environment without sacrificing power.
- 100% Continuous Duty Capability: Designed for non-stop operation, the BR5503D provides reliable compressed air whenever you need it, perfect for busy automotive and body shop applications.
- Integrated Dryer Included: The built-in dryer removes moisture from compressed air, protecting your tools, equipment, and paint finishes from water damage and contamination.
- Space-Saving Design: With a compact footprint of less than 12 square feet (dimensions: 56" x 22" x 50"), this compressor maximizes your available shop space without compromising capacity.
- Industrial-Grade Components: Features an ASME/CRN certified 60-gallon receiver tank, tri-voltage TEFC motor, across-the-line motor starter, and UL/UL-C approved control panel for long-term reliability and safety.
Why Choose a Rotary Screw Compressor?
The BelAire line of rotary screw compressors represents a significant upgrade over traditional piston compressors for professional shops. Rotary screw technology allows for continuous operation without the heat buildup and duty cycle limitations of reciprocating compressors. This means you can run air-hungry tools and equipment all day long without waiting for tank recovery or worrying about compressor shutdown due to overheating.
The belt drive design of the BR5503D further reduces operational noise and vibration while providing efficient power transfer. Combined with the low sound enclosure, this compressor delivers industrial performance in a package quiet enough for any professional environment. Whether you're running paint guns, air sanders, lifts, or pneumatic tools, the BR5503D provides clean, dry, consistent air pressure to keep your operation running smoothly.
Important Electrical Requirements
⚡ MUST Have Three-Phase Electric Power
This compressor requires three-phase electrical service (208-230/460V, 3 Ph) and will NOT operate on standard single-phase household power. Please verify that your facility has the appropriate three-phase electrical infrastructure before purchasing. Consult a licensed electrician if you are unsure about your power setup.
Product Features in Detail
Detailed component features of the BelAire rotary screw compressor line
Additional technical features and construction details
User-Friendly Operation & Maintenance
The BR5503D is designed for easy operation and minimal maintenance requirements. The compressor ships with factory fill of premium lubricant suitable for 4,000 hours of operation in clean environments, reducing your initial maintenance burden. The across-the-line motor starter provides reliable, simple operation, while the UL and UL-C approved control panel offers intuitive monitoring and control of your compressed air system.
The compact, enclosed design keeps all critical components protected and organized in an extremely user-friendly package. With 150 psig standard pressure and continuous duty capability, this compressor is built to be a set-it-and-forget-it workhorse in your facility, providing years of reliable service with routine maintenance.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
BELAIRE COMPRESSORS ROTARY SCREW COMPRESSOR WARRANTY POLICY
BelAire Compressors, Seller, warrants products against defects in workmanship and materials under normal use and service, as follows:
1 YEAR STANDARD WARRANTY
Packaged compressors shall be warranted for twelve (12) months from date of start-up or eighteen (18) months from date of shipment from the factory, whichever occurs first, to include parts and labor. Parts shall be warranted for ninety (90) days from installation or for the remainder of the warranty on the product being repaired, whichever is longer.
5 YEAR EXTENDED WARRANTY
The 5 Year Extended Warranty is available for all rotary screw compressors. This warranty includes the 1 Year Standard Warranty and warranty extensions for the major components. The airend, motor, air/oil coolers, variable speed drive (if applicable) and sump tank shall be warranted for a period not to exceed sixty (60) months from start-up to include parts, labor and travel for 12 months from date of shipment, parts only for the remaining 48 months.
- Requires approved start-up by an authorized BelAire Compressor distributor
- Requires completed warranty registration card be returned to the factory indicating satisfactory commissioning of the compressor by an authorized BelAire Compressor distributor
Warranty coverage is reimbursed at 70% posted shop labor rate. Travel is reimbursed at $0.50 per mile. Miscellaneous charges require pre-approval.
To be eligible for warranty consideration, Claimant must:
- (a) Follow all recommended installation and service procedures as outlined by the Seller
- (b) Use only factory parts, accessories and fluids on the compressor
- (c) Submit fluid samples for annual analysis and perform maintenance per the prescribed instructions in the Operators and/or Maintenance manual(s)
- (d) Have a valid warranty registration card and start-up sheet on file with BelAire Compressor
Notice of alleged defect must be given to Seller in writing with all identifying details including serial number, model number, equipment type and date of purchase, within thirty (30) days of discovery of defect during the warranty period.
Seller’s sole obligation on this warranty shall be, at its option, to repair, replace or refund the purchase price of any product or part which proves to be defective. If requested by Seller, such product or part thereof must be promptly returned to Seller, freight collect for inspection.
This warranty shall not apply and Seller shall not be responsible nor liable for:
- (a) Consequential, collateral or special losses or damages
- (b) Equipment conditions caused by fair wear and tear, abnormal conditions of use, accident, neglect or misuse of equipment, improper storage or damages resulting from shipment
- (c) Deviation from operating instructions, specifications or other special terms of sales
- (d) Labor charges, loss or damage resulting from improper operation, maintenance or repairs made by person(s) other than Seller or Seller’s authorized service station
- (e) Improper application of product
In no event shall Seller be liable for any claims, whether arising from breach of contract or warranty claims of negligence or negligent manufacture, in excess of the purchase price of the equipment. It is incumbent on the user to provide complete and accurate records of maintenance and verifiable proof of purchase and use of genuine factory repair and replacement parts.
THIS WARRANTY IS THE SOLE WARRANTY OF SELLER AND ANY OTHER WARRANTIES, EXPRESS, IMPLIED IN LAW OR IMPLIED IN FACT, INCLUDING ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR USE, ARE HEREBY SPECIFICALLY EXCLUDED.
