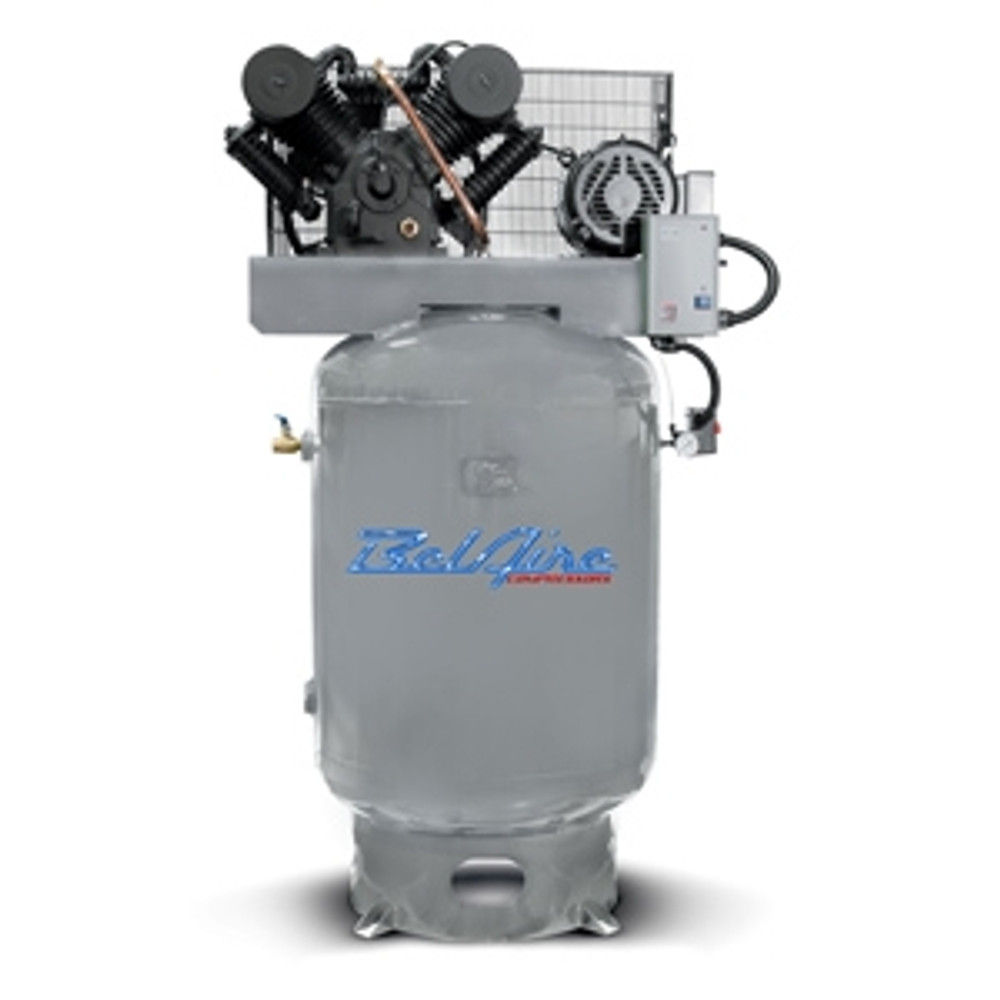

BelAire 6312VE4 10HP 120G Iron Series Vertical "Elite" Elec Air Compressor
Write a Reviews
BelAire
BelAire 6312VE4 10HP 120G Iron Series Vertical "Elite" Elec Air Compressor
BelAire 6312VE4 10HP 120 Gallon Iron Series Vertical "Elite" Electric Air Compressor
The BelAire 6312VE4 represents professional-grade compressed air power engineered for demanding industrial and commercial applications. This 10HP three-phase electric air compressor combines the legendary durability of all cast iron construction with the advanced features of BelAire's Elite series, delivering 35 CFM at 100 PSI from a substantial 120-gallon vertical tank. Designed for facilities requiring continuous, reliable compressed air output, this vertical configuration maximizes performance while minimizing floor space requirements—ideal for busy shops where every square foot counts.
As part of BelAire's Iron Series lineup, the 6312VE4 features a solid cast iron pump that stands up to the rigors of daily professional use far better than aluminum alternatives. Cast iron construction provides superior heat dissipation, reduced wear, and extended service life—critical advantages when your business depends on consistent air pressure throughout long production runs. The Elite designation means this unit comes fully loaded with premium features including a low oil level switch for pump protection, automatic tank drain to eliminate moisture buildup, and a beltguard aftercooler that reduces air temperature and moisture content for cleaner, drier compressed air.
Elite Performance Features
The 6312VE4 operates on 460V three-phase power with a full load amperage of 12.5 FLA, making it suitable for commercial and industrial electrical systems. The included magnetic starter provides reliable motor protection and smooth operation, while the start-stop pressure switch automatically maintains your desired pressure range. With a maximum pressure rating of 175 PSI and output of 32 CFM at 175 PSI, this compressor handles high-demand applications with ease.
Every Iron Series compressor comes equipped with an ASME-certified tank and safety valve, and undergoes 100% factory testing at full pressure before leaving the facility—ensuring you receive a compressor ready to perform safely and reliably from day one. BelAire backs this quality with an exceptional 2-Year Bumper-to-Bumper Warranty included at no additional cost, demonstrating their confidence in the durability and performance of their cast iron compressor line.
Key Advantages at a Glance
- 35 CFM at 100 PSI / 32 CFM at 175 PSI – powerful output for multiple tools and high-demand operations
- 120-gallon vertical ASME tank – substantial air storage in a compact footprint (42" x 30" x 78")
- Solid cast iron pump construction – superior durability, heat dissipation, and extended service life
- Elite features – low oil level switch, automatic tank drain, and beltguard aftercooler for maximum protection
- Magnetic starter included – professional-grade motor control and protection built in
Professional-Grade Compressed Air Solution
BelAire's Iron Series compressors represent the pinnacle of two-stage air compressor engineering, offering models from simplex units up to 10HP through duplex configurations reaching 10-20HP. Whether you select a standard or Elite model, you're investing in equipment built to deliver years of dependable service under the most challenging conditions. The vertical tank design of the 6312VE4 makes efficient use of limited floor space while providing ample air storage capacity to handle intermittent high-draw applications without pressure drops.
For optimal air quality and system longevity, BelAire recommends pairing this compressor with their CPXHT50 refrigerated air dryer, which removes moisture from compressed air before it reaches your tools and equipment. Clean, dry air prevents tool corrosion, reduces maintenance costs, and ensures consistent performance across your entire pneumatic system.
⚠ CRITICAL ELECTRICAL REQUIREMENT
This compressor MUST have three-phase electric power (460V/3Ph). Verify your facility has the appropriate electrical service before ordering. Three-phase power is standard in commercial and industrial settings but uncommon in residential locations.
Cast Iron Pump Construction – Built for Professional Durability and Longevity
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
