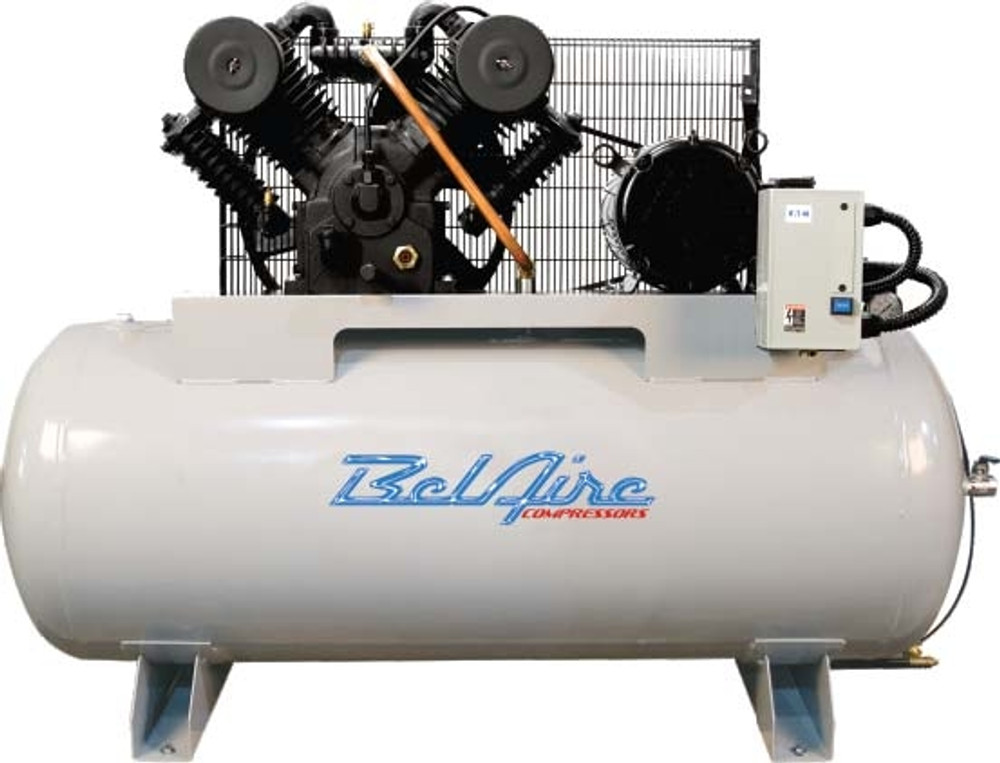

BelAire 6312H 10HP 120G H Iron Series Elec Air Compressor
Write a Reviews
BelAire
BelAire 6312H 10HP 120G H Iron Series Elec Air Compressor
BelAire 6312H 10HP 120H Gallon Iron Series Three Phase Electric Air Compressor
The BelAire 6312H delivers professional-grade compressed air performance with a robust 10 horsepower cast iron pump design and a generous 120-gallon horizontal tank. Engineered for demanding shop environments and industrial applications, this three-phase electric compressor produces 35 CFM at 100 PSI and 32 CFM at 175 PSI, providing the airflow and pressure capacity needed for continuous operation of air tools, spray systems, and pneumatic equipment. Built to BelAire's Iron Series standard, the 6312H features all-cast-iron construction for superior durability, an ASME-certified tank, included magnetic starter, and comes backed by a comprehensive 2-year bumper-to-bumper warranty with no additional purchase required.
Industrial Cast Iron Design for Maximum Reliability
BelAire Air Compressor's Iron Series compressors feature all cast iron design pumps engineered for heavy-duty performance and extended service life. The 6312H utilizes a solid cast iron pump that provides superior heat dissipation, reduced wear, and exceptional reliability compared to aluminum alternatives. This construction ensures consistent performance even under continuous load conditions, making it ideal for professional automotive shops, manufacturing facilities, and industrial applications where downtime is not an option.
The Iron Series lineup includes simplex compressors up to 10hp and duplex models from 10-20hp, giving you the flexibility to choose the right configuration for your operation. All Iron Series compressors are 100% factory tested at full pressure before shipment, ensuring that every unit meets BelAire's rigorous quality standards and arrives ready for immediate installation and operation.
Professional-Grade Performance Features
Designed for professional users who demand reliable, hands-free operation, the BelAire 6312H comes equipped with essential commercial-grade features. The integrated magnetic starter provides smooth, consistent motor starting and enhanced protection against voltage fluctuations. The start-stop pressure switch automatically controls compressor operation, maintaining optimal tank pressure without constant monitoring and ensuring energy-efficient performance throughout your workday.
Operating on 208-230V three-phase power with 26-25 FLA, this compressor requires a dedicated three-phase electrical supply and delivers the consistent power delivery and efficiency that three-phase motors are known for. The 120-gallon horizontal tank provides substantial air storage capacity, reducing pump cycling and ensuring steady air delivery even during peak demand periods. With a maximum pressure of 175 PSI, the 6312H handles demanding applications that require higher operating pressures.
Key Advantages of the BelAire 6312H
- Solid Cast Iron Pump Construction – Superior durability and heat dissipation for extended service life and consistent performance under heavy use
- 35 CFM at 100 PSI / 32 CFM at 175 PSI – High airflow capacity supports multiple users and air-hungry tools simultaneously
- 120-Gallon Horizontal Tank – Large air storage capacity reduces pump cycling and provides steady air delivery during peak demand
- ASME Tank and Safety Valve – Certified construction meets stringent safety standards for commercial and industrial use
- 2-Year Bumper-to-Bumper Warranty – Comprehensive coverage with no additional purchase required, demonstrating BelAire's confidence in product quality
⚠ IMPORTANT: Three-Phase Power Required
This compressor MUST have three-phase electric power to operate. Verify that your facility has the appropriate 208-230V three-phase electrical service before ordering. Single-phase power cannot be used with this unit.
Built-In Quality and Safety Features
Every BelAire Iron Series compressor includes essential safety and quality features as standard equipment. The ASME-certified tank and safety valve meet all applicable pressure vessel standards, ensuring safe operation in commercial and industrial environments. Each unit is 100% factory tested at full pressure before leaving the facility, verifying proper operation and identifying any potential issues before the compressor reaches your shop.
Standard electric units include a magnetic starter and manual drain valve for convenient tank maintenance. The magnetic starter provides reliable motor control and protection, while the manual drain allows you to remove accumulated condensation from the tank to prevent corrosion and maintain air quality. For enhanced air treatment, BelAire recommends pairing this compressor with the CPXHT50 refrigerated air dryer to remove moisture and ensure clean, dry compressed air for your most demanding applications.
BelAire Iron Series compressors feature solid cast iron pump construction for maximum durability and reliable performance in demanding professional environments.
Specifications at a Glance
With compact dimensions of 73" x 24" x 53" and a shipping weight of 830 lbs, the BelAire 6312H is designed for permanent installation in professional shop environments. The horizontal tank configuration provides a stable, space-efficient footprint while maximizing air storage capacity. This compressor is built for users who need reliable, industrial-grade compressed air performance day in and day out.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
BelAire Compressors, Seller, warrants products against defects in workmanship and materials under normal use and service, as follows:
BELAIRE TWO-STAGE STANDARD WARRANTY
Two-stage packaged compressors shall be warranted for twenty-four (24) months from date of start-up or thirty (30) months from date of shipment from the factory, whichever occurs first, to include parts and labor. Parts shall be warranted for ninety (90) days from installation or for the remainder of the warranty on the
product being repaired, whichever is longer.
BELAIRE SINGLE-STAGE STANDARD WARRANTY
Single-stage packaged compressors and bare pump compressors shall be warranted for twelve (12) months from date of start-up or eighteen (18) months from date of shipment from the factory, whichever occurs first, to include parts. Parts shall be warranted for ninety (90) days from installation or for the remainder of the warranty on the product being repaired, whichever is longer.
Warranty coverage is reimbursed at 70% posted shop labor rate. Travel is reimbursed at $0.50 per mile. Miscellaneous charges require pre-approval.
Seller requires that all warranty service work be authorized prior to a service call for all claims. Parts should be taken to every service call to take care of the problem in one trip. Seller does not reimburse troubleshooting.
To be eligible for warranty consideration, Claimant must:
- (a) Follow all recommended installation and service procedures as outlined by the Seller
- (b) Use only factory parts, accessories and fluids on the compressor
- (c) All returned goods must have an authorized RGA# from Seller
Notice of alleged defect must be given to Seller in writing with all identifying details including serial number, model number, equipment type and date of purchase, within thirty (30) days of discovery of defect during the warranty period.
Seller’s sole obligation on this warranty shall be, at its option, to repair, replace or refund the purchase price of any product or part which proves to be defective. If requested by Seller, such product or part thereof must be promptly returned to Seller, freight collect for inspection.
This warranty shall not apply and Seller shall not be responsible nor liable for:
- (a) Consequential, collateral or special losses or damages
- (b) Equipment conditions caused by fair wear and tear, abnormal conditions of use, accident, neglect or misuse of equipment, improper storage or damages resulting from shipment
- (c) Deviation from operating instructions, specifications or other special terms of sales
- (d) Labor charges, loss or damage resulting from improper operation, maintenance or repairs made by person(s) other than Seller or Seller’s authorized service station
- (e) Improper application of product
- (f) Dryers, motors or engines. These items are covered by the original manufacturer’s warranty and service network
In no event shall Seller be liable for any claims, whether arising from breach of contract or warranty claims of negligence or negligent manufacture, in excess of the purchase price of the equipment. It is incumbent on the user to provide complete and accurate records of maintenance and verifiable proof of purchase and use of genuine factory repair and replacement parts.
THIS WARRANTY IS THE SOLE WARRANTY OF SELLER AND ANY OTHER WARRANTIES, EXPRESS, IMPLIED IN LAW OR IMPLIED IN FACT, INCLUDING ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR USE, ARE HEREBY SPECIFICALLY EXCLUDED.
