The Atlas® Air Force AF10 (MPAF10-1PH) represents the pinnacle of commercial-grade air compression technology for demanding automotive and industrial environments. This 10 horsepower, single phase 220V powerhouse delivers an exceptional 37 CFM at 90 PSI and 35 CFM at 175 PSI, making it ideal for large automotive repair shops, body shops, and facilities that require maximum air output and reliability. Built to the same exacting standards as the entire line of Atlas® professional automotive equipment, this heavy-duty compressor features a 3-cylinder, 2-stage pump with low RPM operation for extremely quiet performance and extended service life.
What sets the MPAF10-1PH apart is its comprehensive "Plus Package" included as standard equipment. This premium upgrade delivers better air quality and extends compressor longevity through three critical components: an aftercooler that reduces air temperature and moisture content, an automatic low oil shut-off that protects the pump from damage, and an automatic tank drain that eliminates water accumulation without manual intervention. These features work together to ensure your Atlas® air compressor delivers cleaner, drier air while minimizing maintenance requirements.
The Atlas® Air Force AF10 is engineered with a powerful belt-driven reciprocating design that offers years of trouble-free service. At its core is a 10 horsepower low RPM motor that reduces noise levels while maintaining exceptional output. The motor is controlled by an included magnetic starter, which regulates electrical input and significantly extends the life of the unit by reducing electrical stress during startup cycles.
The compressor operates efficiently within a 145-175 PSI pressure range, providing consistent, reliable air delivery for even the most demanding pneumatic tools. The 3-cylinder, 2-stage pump configuration delivers superior compression efficiency compared to single-stage units, resulting in cooler operation and longer component life. A heavy-duty metal belt guard protects moving components while meeting safety standards for commercial environments.
Storage capacity is provided by a massive 120-gallon horizontal steel tank, Made in the USA, ensuring you have the air reserves needed for sustained operation of multiple tools or high-demand applications. The horizontal orientation optimizes floor space usage while maintaining stability. The tank features a ½" NPT air outlet for standard connections and a finned tank inlet tube that reduces heat transfer into the tank, minimizing water accumulation and improving air quality.
Atlas® engineers understand that uptime matters in professional environments. The MPAF10-1PH incorporates thoughtful design elements that simplify routine maintenance. A compressor oil drain extension tube makes oil changes cleaner and easier, reducing the mess typically associated with compressor servicing. The automatic low oil shut-off system monitors oil levels continuously, preventing costly pump damage from oil starvation.

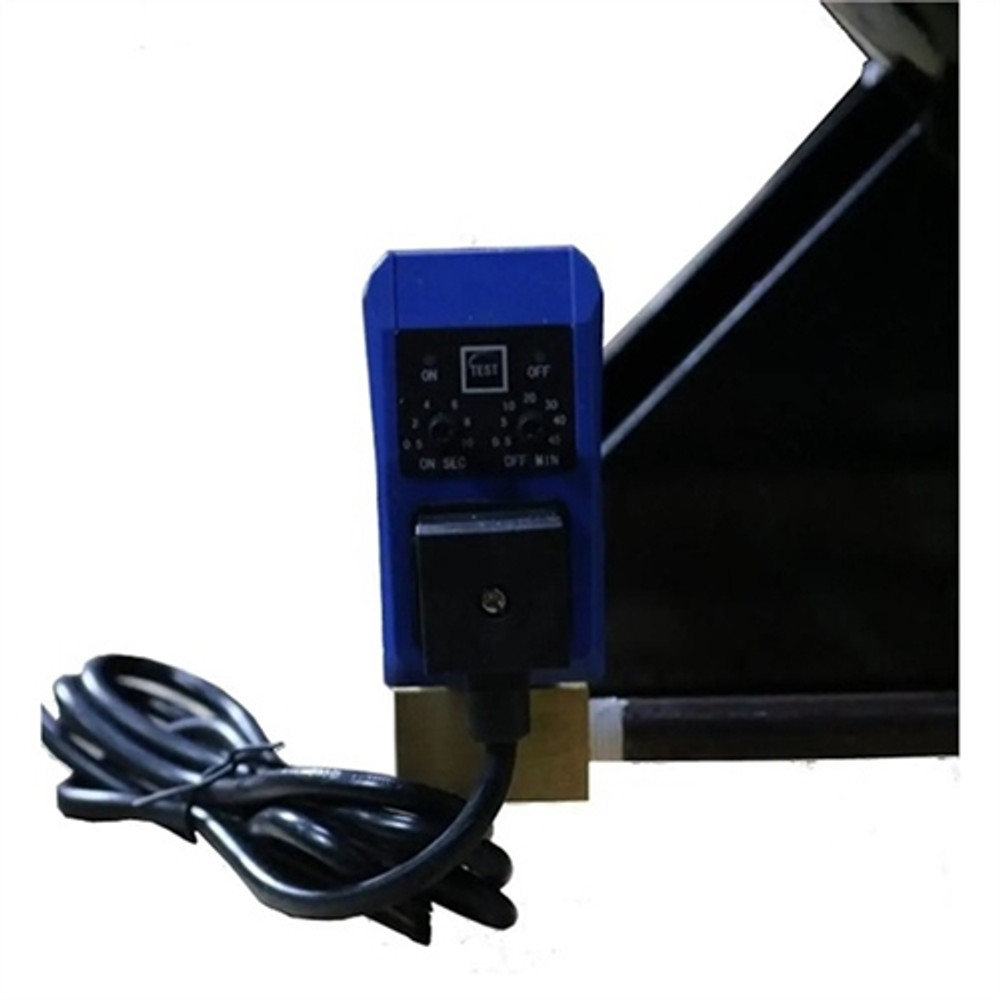

The integrated automatic tank drain removes moisture buildup without requiring daily manual draining, an often-overlooked maintenance task that can lead to rust and contamination. Combined with the aftercooler, which cools compressed air before it enters the tank and condenses moisture before it can enter your air lines, these systems work together to deliver drier, cleaner air while protecting your investment.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
The Atlas® Air Force air compressors are powerful, belt-driven reciprocating compressors designed and built to offer years of trouble-free service. Every unit is manufactured to the same exacting standards as the entire line of Atlas® professional grade automotive equipment, ensuring consistency, reliability, and performance you can count on. This commitment to quality is backed by a 1 Year Parts Only Warranty.
With overall dimensions of 72" L x 32" W x 52" H and a shipping weight of 1,000 lbs, the MPAF10-1PH is a substantial piece of equipment designed for permanent installation in professional facilities. The horizontal tank configuration maximizes stability and optimizes workshop floor space, while the robust construction ensures decades of reliable service in the toughest commercial environments.
