Transform your shop's alignment and ADAS calibration capabilities with the Autel IA1000LDWTDT — a state-of-the-art automated system that combines robotic precision, laser-guided positioning, and comprehensive diagnostic power. This complete package integrates four-wheel alignment and advanced ADAS calibration into one powerful platform, dramatically reducing setup time and eliminating human error through intelligent automation.

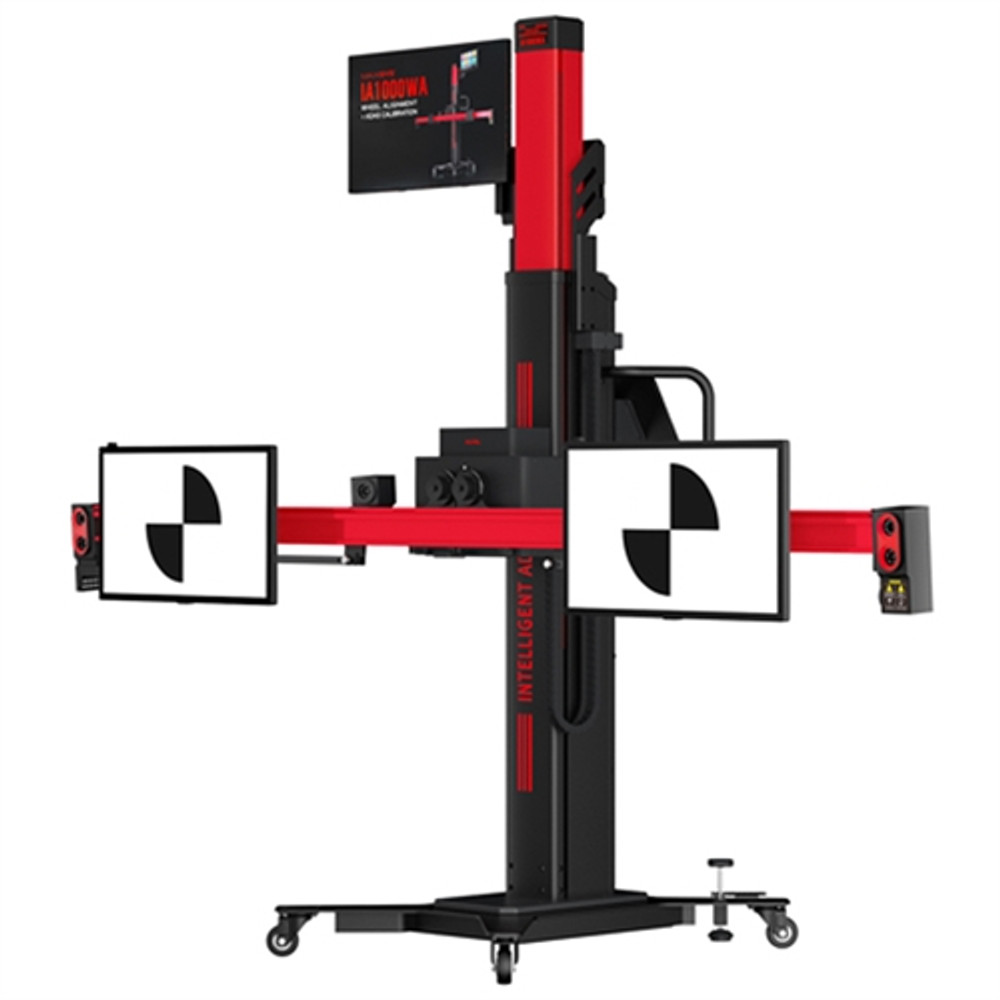

The IA1000 frame features six high-definition cameras and precision-engineered wheel clamps delivering industry-leading accuracy to 0.02 degrees. Robotic forward-facing camera target positioning, laser-guided ACC calibration, blind spot calibrator functionality, and AVM mat placement work together seamlessly. The system automatically compensates for unlevel floors and performs automatic pitch, roll, yaw, and front-to-back fine-tuning, ensuring perfect calibration results every time while dramatically improving efficiency.

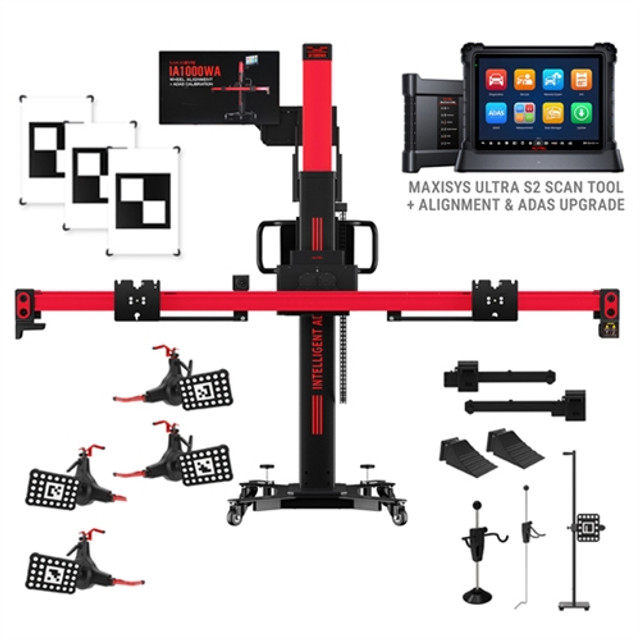

This package includes three 27-inch attachable monitors with the Autel digital LDW target kit, enabling one-step robotic and vertical LDW target placement. You also receive the complete Autel LDW physical pattern and target kit for maximum versatility. Powered by the included MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2 6-in-1 communication device, the IA1000 offers extensive coverage for U.S., Asian, and European vehicles with both static and dynamic ADAS calibration software.
The 24-inch touchscreen display attaches directly to the frame unit, providing intuitive control over all alignment and calibration functions. The complete system includes four tire clamps, a steering wheel and brake lock, a distance target, two wheel chocks, and two AVM-placement lasers — everything needed for professional-grade service right out of the box.
The IA1000LDWTDT arrives as a turnkey solution with everything required for professional alignment and ADAS calibration services:
Core System:
Digital Targets:
Diagnostics:
Accessories:
The IA1000LDWTDT ships with dimensions of 86.5" H x 111" L x 44" W and a shipping weight of 1,453 lbs, designed for permanent installation in professional service facilities. The system is backed by a one-year limited warranty and includes one year of free MaxiSYS Ultra S2 software updates, ensuring you have the latest vehicle coverage as new models are released.
Autel provides comprehensive technical support through their dedicated service center. Reach their team at 1-855-AUTEL-US (288-3587) Monday through Friday, 9:00 AM to 6:00 PM Eastern Time. For after-hours support, email USsupport@autel.com for assistance.
