The Autel IA1000DT represents the cutting edge of automated alignment and ADAS calibration technology. This comprehensive system package combines robotic precision with advanced digital target technology to deliver unprecedented accuracy and efficiency in modern calibration workflows. Featuring six high-definition cameras and laser-enabled positioning guides, the IA1000DT performs both four-wheel alignment and ADAS calibration with industry-leading accuracy down to 0.02 degrees. With robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator, and AVM mat placement—plus unlevel floor compensation—this system minimizes manual setup time and reduces human error at every step.
What sets the IA1000DT apart is its inclusion of three 27-inch attachable monitors and the complete Autel digital LDW target kit. These digital targets provide one-step robotic and vertical LDW target placement, dramatically reducing manual operation time compared to traditional physical targets. The digital target kit supports Mercedes-Benz, Honda, Nissan, Infiniti, Toyota, Mazda, Mitsubishi, Maserati, Hyundai, Kia, and Subaru vehicles. The system's automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments ensure consistent, repeatable accuracy while minimizing operator involvement.
Designed for professional automotive shops requiring comprehensive alignment and ADAS coverage, the IA1000DT is compatible with the Autel MaxiSYS Ultra S2 tablet with IA1000 ADAS Upgrade software (sold separately). With the tablet and software, technicians gain access to extensive coverage for U.S., Asian, and European vehicles, along with industry-leading dynamic and static ADAS component calibration capabilities. The system includes precision-engineered wheel clamps, a 24-inch touchscreen display that mounts to the frame unit, steering wheel and brake lock, distance target, wheel chocks, and AVM-placement lasers—everything needed for professional-grade operation right out of the box.

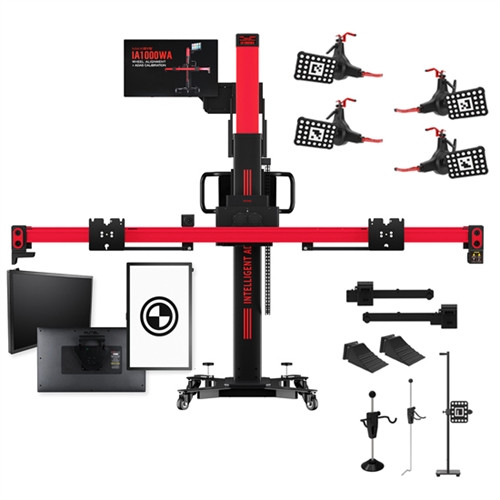

The IA1000DT arrives complete with all essential components for immediate deployment:
Important: This system requires the Autel MaxiSYS Ultra S2 tablet and IA1000 Activation Card (sold separately) to function.
The tablet provides the software interface and vehicle coverage database, while the activation card unlocks the IA1000 system capabilities. Additional physical Autel targets, patterns, and calibration components are also available separately for expanded calibration coverage.
Shipping Dimensions: 86.5" H x 80" L x 44" W
Shipping Weight: 770 lbs
Accuracy: 0.02 degrees
Warranty: One-Year Limited Warranty
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Autel Service Center
Phone: 1-855-AUTEL-US (288-3587)
Hours: Monday–Friday, 9:00 AM – 6:00 PM Eastern Time
After-Hours Email Support: USsupport@autel.com
The Autel IA1000DT is backed by a one-year limited warranty and supported by Autel's dedicated U.S.-based service team.
